Item #FP29602

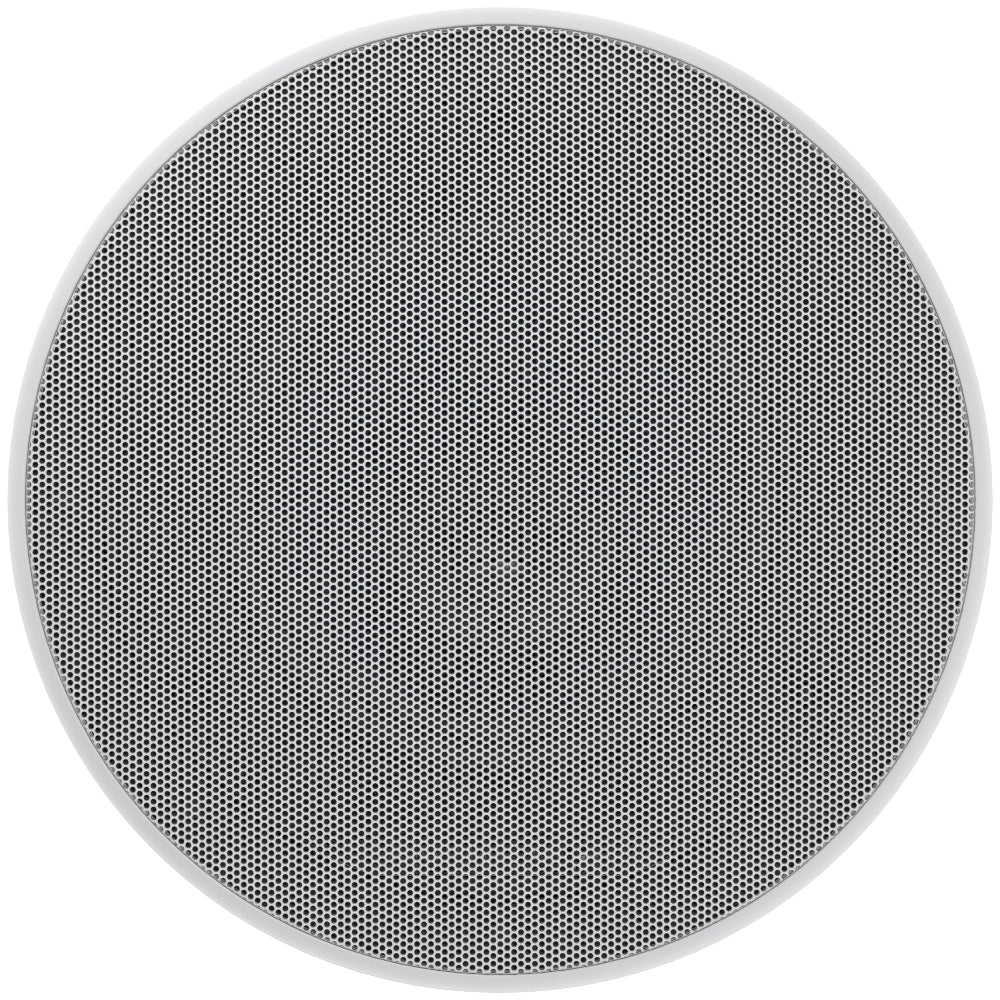

Bowers & Wilkins CCM 663SR

In-Ceiling Speaker
Item #FP29602

Bowers & Wilkins CCM 663SR

In-Ceiling Speaker
$700.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

A high-performance, in-ceiling surround speaker that 's ideal for the surround sound channel in a home theatre set-up, or for bringing stereo sound to rooms where space is limited. Features a Nautilus swirl-loaded 25mm (1in) aluminum dome tweeter that pivots for an adjustable off-axis treble response.

Watch our Comparison

The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Aramid Fibre coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Aramid Fibre features on our most advanced high-performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel.

Details & Specs

Specifications

  • Description: 2-way dual channel in-ceiling system
  • Drive Units
    • 2x ø20mm (1in) soft dome tweeter
    • 1x ø150mm (6in) blue aramid fiber cone bass/midrange
  • Frequency Range (-6dB): 48Hz – 30kHz48Hz – 30kHz
  • Recommended Amp Power: 25 – 80w (per channel)
  • Sensitivity SPL (2.83V, 1m):
    • 83dB (per channel)
    • 89dB (both channels driven)
  • Impedance Nominal (min): 8 ohms (4 ohms) (per channel)

Approximate Dimensions

  • Frame Dimensions
    • Frame Diameter: 9.5 "
    • Depth Behind Surface: 5.2 "
  • Cut-out Dimensions
    • Cut-out diameter: 8 "
    • Protrusion: 0.2"
  • Pre-mount Kit: C6
  • Recommended Back Box: 6C

Approximate Weight

  • Shipping: 10 lbs

Warranty Information

  • Manufacturer Warranty (authorized online retailer): 1 Year Parts And Labor
