Item #FP37613

Bowers & Wilkins CCM 632

In-Ceiling Speakers - Pair
Item #FP37613

Bowers & Wilkins CCM 632

In-Ceiling Speakers - Pair
$700.00
More on the way! Order now to reserve risk free.
Contact Us

Overview

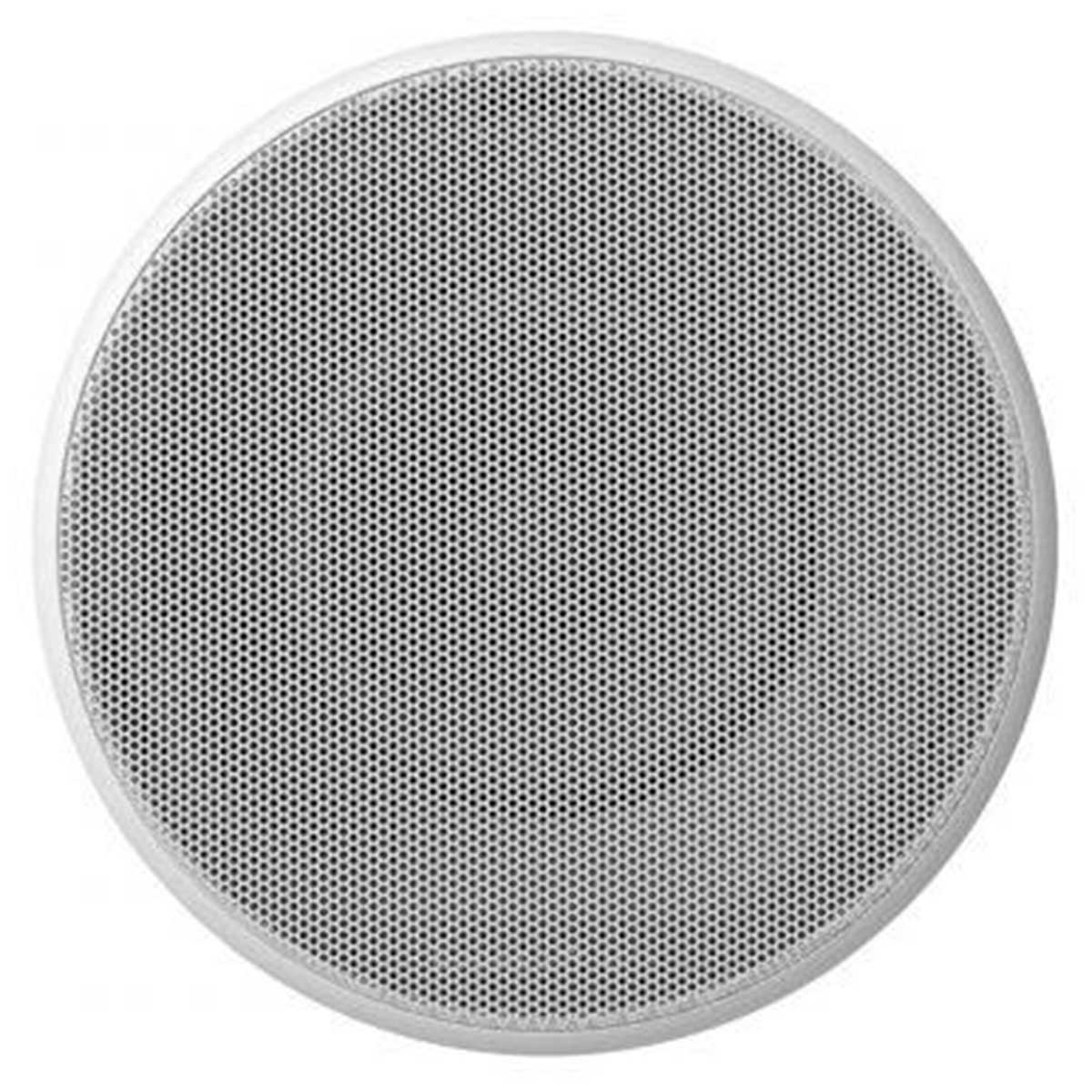

CCM632 is an in-ceiling speaker designed to deliver a full range of sound at high quality in a very small space. Each speaker comes with an integral enclosure to minimize acoustic bleed into adjoining spaces. Speakers are supplied in pairs, with each pack including round and square magnetically fixed, and fully customizable, grille/bezel assemblies.

Watch our Comparison

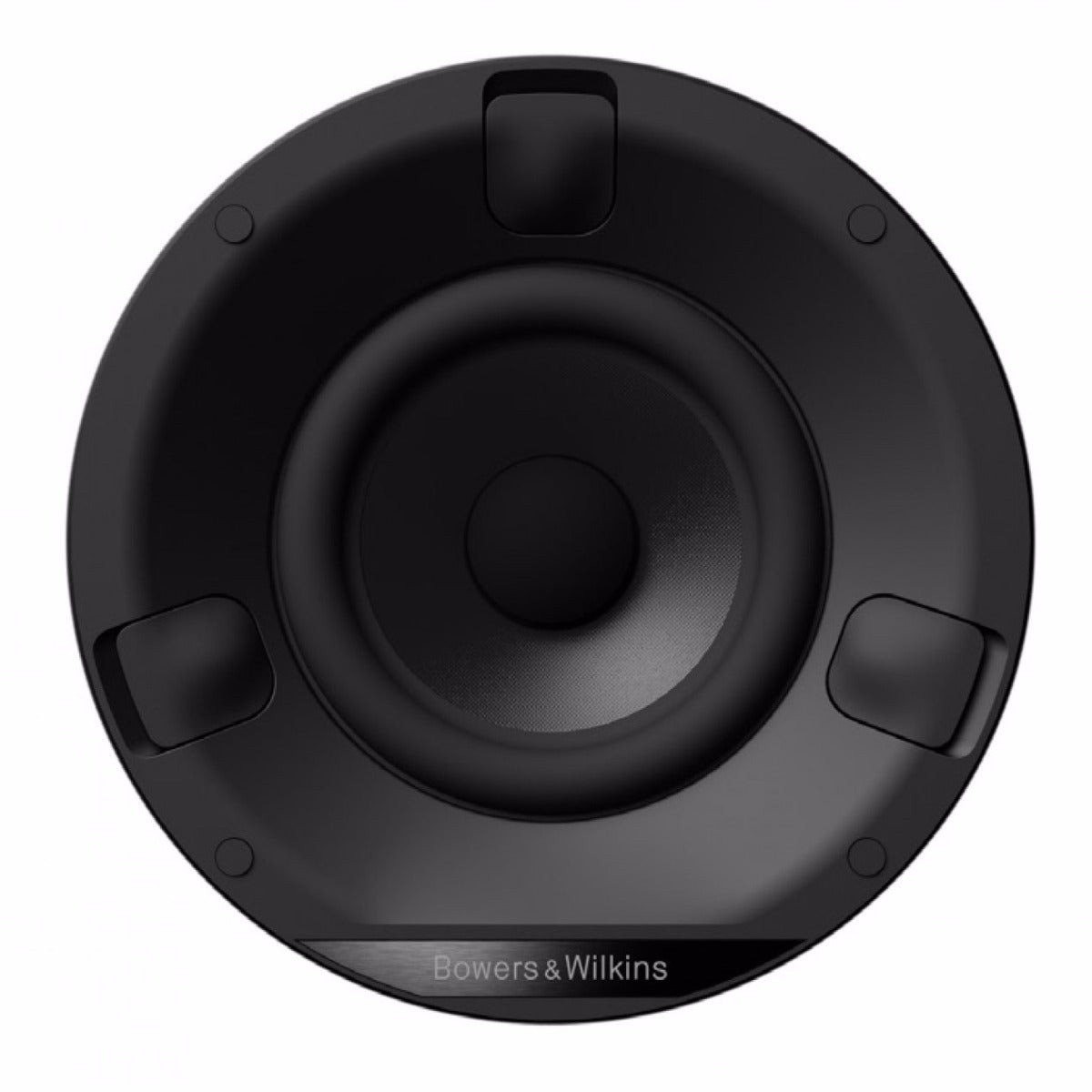

In-ceiling speakers, designed to squeeze into small spaces or be used in multiples for diffuse, background sound, are really difficult to get right. If the driver’s too small, there won’t be enough bass without adding a bulky subwoofer, but the common alternative is a 2-way where the tweeter sits in front of a small bass/midrange driver. The problem with these is the driver fires around the tweeter’s body, inevitably leading to coloration. The new Bowers & Wilkins CCM632 is a single 75mm (3inch) full-range driver with a beautifully well-balanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150mm (6”) diameter space installed.

The CCM632 also features Bowers & Wilkins new and innovative ZipDogs fixing method. These make short work of installation and cope with almost any thickness of the mounting panel.

Details & Specs

Specifications

  • Description: 2-way in-ceiling system
  • Drive Units:
    • 1x ø25mm (1in) Nautilus™ swirl loaded aluminum dome tweeter
    • 1x ø150mm (6in) blue aramid fiber cone bass/midrange
  • Frequency Range (-6dB): 45Hz – 50kHz
  • Recommended Amp Power: 25 – 150w
  • Sensitivity SPL (2.83V, 1m): 88dB
  • Impedance Nominal (min): 8 ohms (4.5 ohms)

Approximate Dimensions

  • Frame Dimensions
    • Frame Diameter: 9.5 "
    • Depth Behind Surface: 5.2 "
  • Cut-out Dimensions
    • Cut-out diameter: 8 "
    • Protrusion: 0.2 "
  • Pre-mount Kit: C6
  • Recommended Back Box: 6C

Approximate Weight

  • Shipping: 10 lbs

Warranty Information

  • Manufacturer Warranty (authorized online retailer): 1 Year Parts And Labor
