Audiolab DC Block 6

Mains Filter & DC (Direct Current) Blocker

Audiolab DC Block 6

Mains Filter & DC (Direct Current) Blocker
$499.00
Select Color:


Overview

Condition incoming power across six components using the Audiolab DC Block 6. Canceling up to 1.2V of DC offset while filtering high frequency RFI EMI noise, this six way distribution unit stops transformer hum and cleans up power across any complete sound system setup.

Audiolab DC Block 6 is a multi outlet power conditioner built for home audio systems with up to six components. It works by removing unwanted direct current from incoming AC power, which can be introduced by household appliances, wireless networks, or switch mode power supplies. By cancelling up to 1.2V of DC voltage, the unit helps restore a clean mains sine wave before power reaches source equipment or amplifiers.

By correcting DC offset, the DC Block 6 keeps toroidal transformers from saturating under normal household loads. This helps avoid mechanical hum from the chassis and keeps amplifier performance steady. The unit also uses audio grade filtering circuits to reduce both differential and common mode high frequency noise. This cuts down on interference from Wi Fi routers, mobile phones, and other nearby devices.

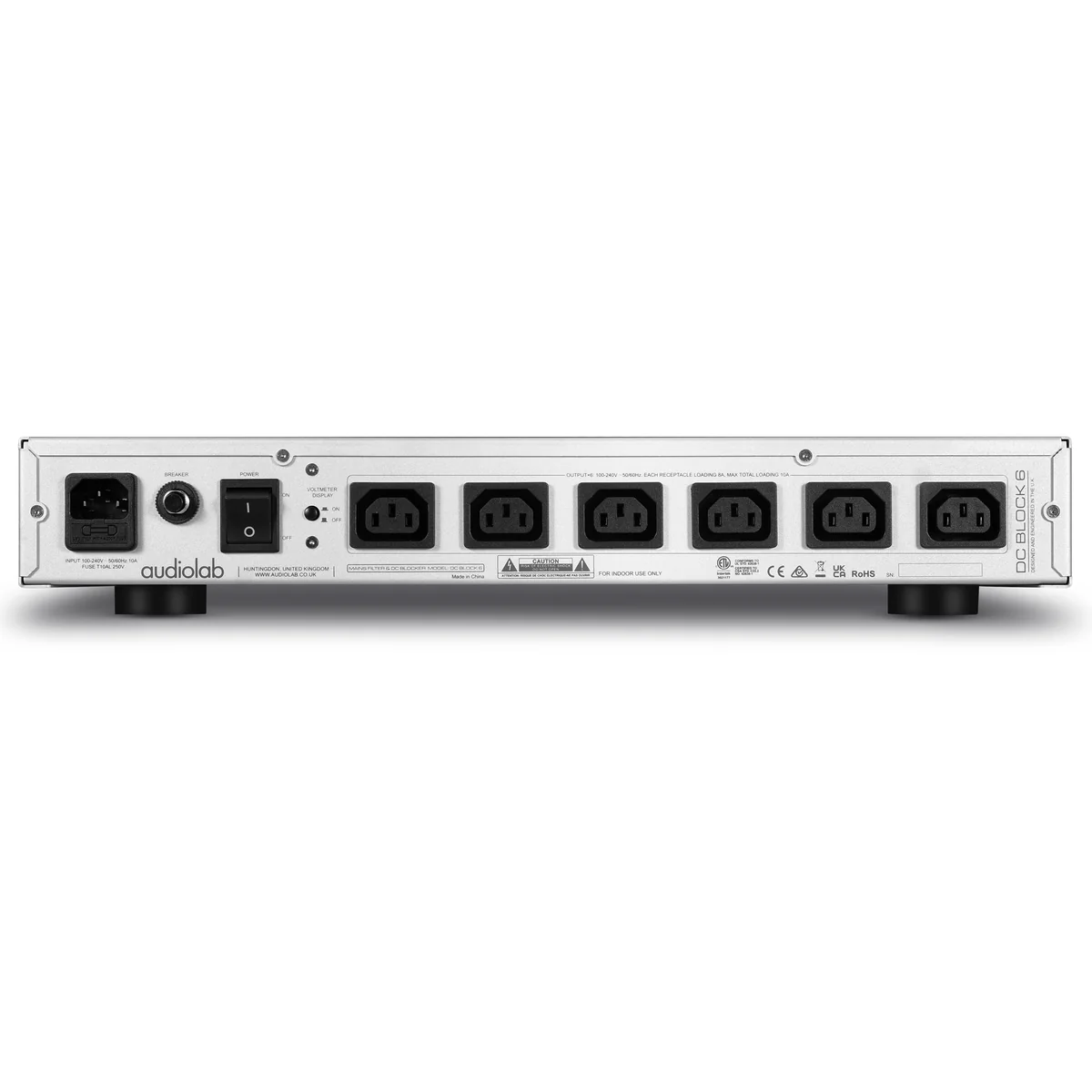

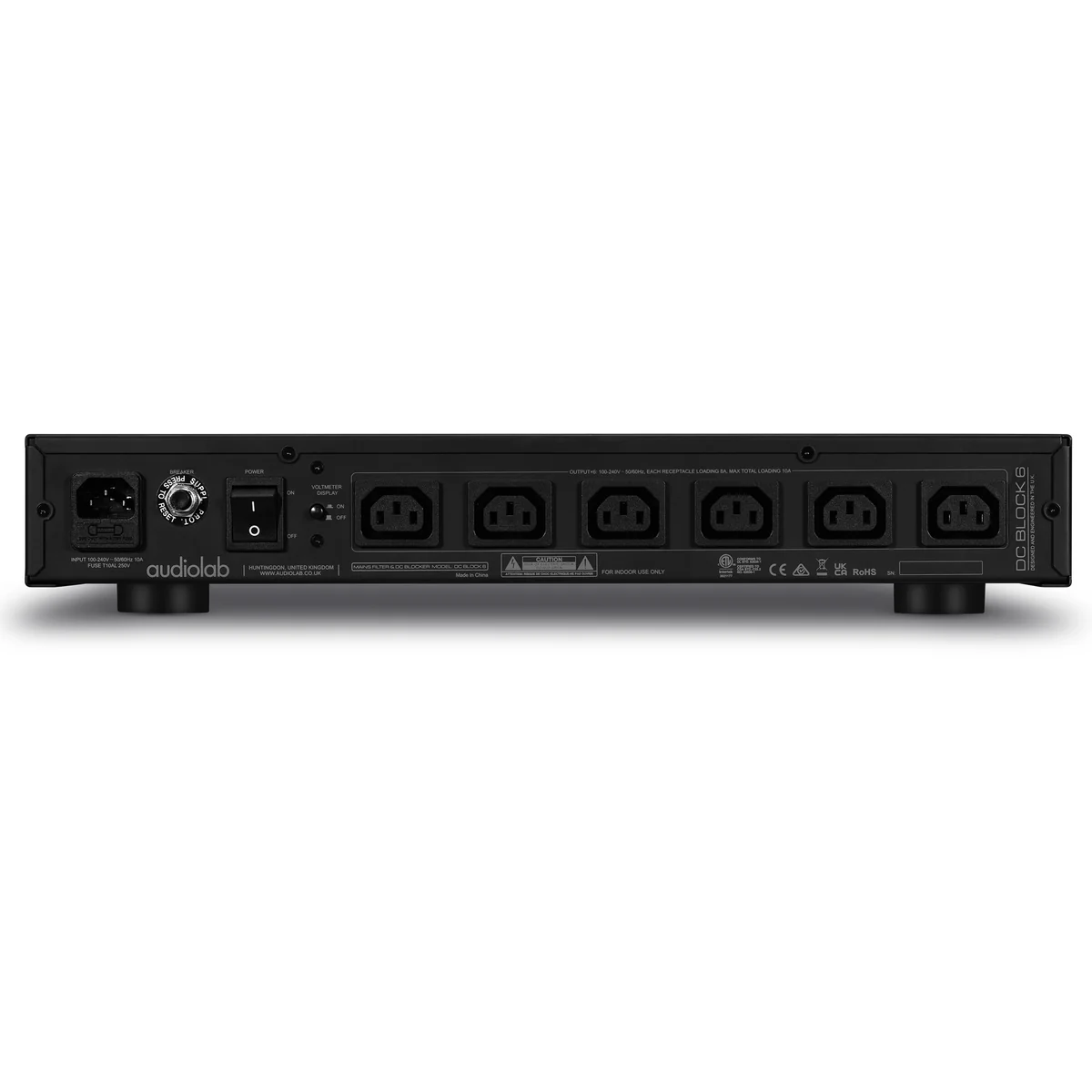

The DC Block 6 offers six IEC outlets and an IEC mains inlet. Each outlet supports up to 8A, while the whole unit can handle a total load of 10A. Built-in overload protection is included. The chassis measures 444mm wide, 306.4mm deep, and 78.4mm high, so it fits standard equipment racks. It comes in black or silver and includes six IEC C14-to-C13 cables plus a main power cord for simple setup in audiovisual systems.

Details & Specs

Model DC Block 6
General Description Mains filter & DC (Direct Current) Blocker
Design Philosophy and Core Technology Blocks DC offset on the mains power line
Blocks up to 1.2V (1200mV)
High frequency filter to suppress noise on the mains power line
Overload protection
6 IEC in/out
Max Load 8A per individual IEC in/out
10A total max load
Net Weight 4.6kg
Gross Weight 6.8kg
Dimensions (mm) (W x H x D) 444 x 306.4 x 78.4
Carton Size (mm) (W x H x D) 500 x 455 x 140
Finish Black / silver
Power Requirements 100-240V ~ 50/60Hz
Standard Accessories 6 x IEC C13 to C14 cables, 1 x Power cord
