Audiolab D7

Digital to Analog Converter (DAC)

Audiolab D7

Digital to Analog Converter (DAC)
$699.00
Select Color:


Overview

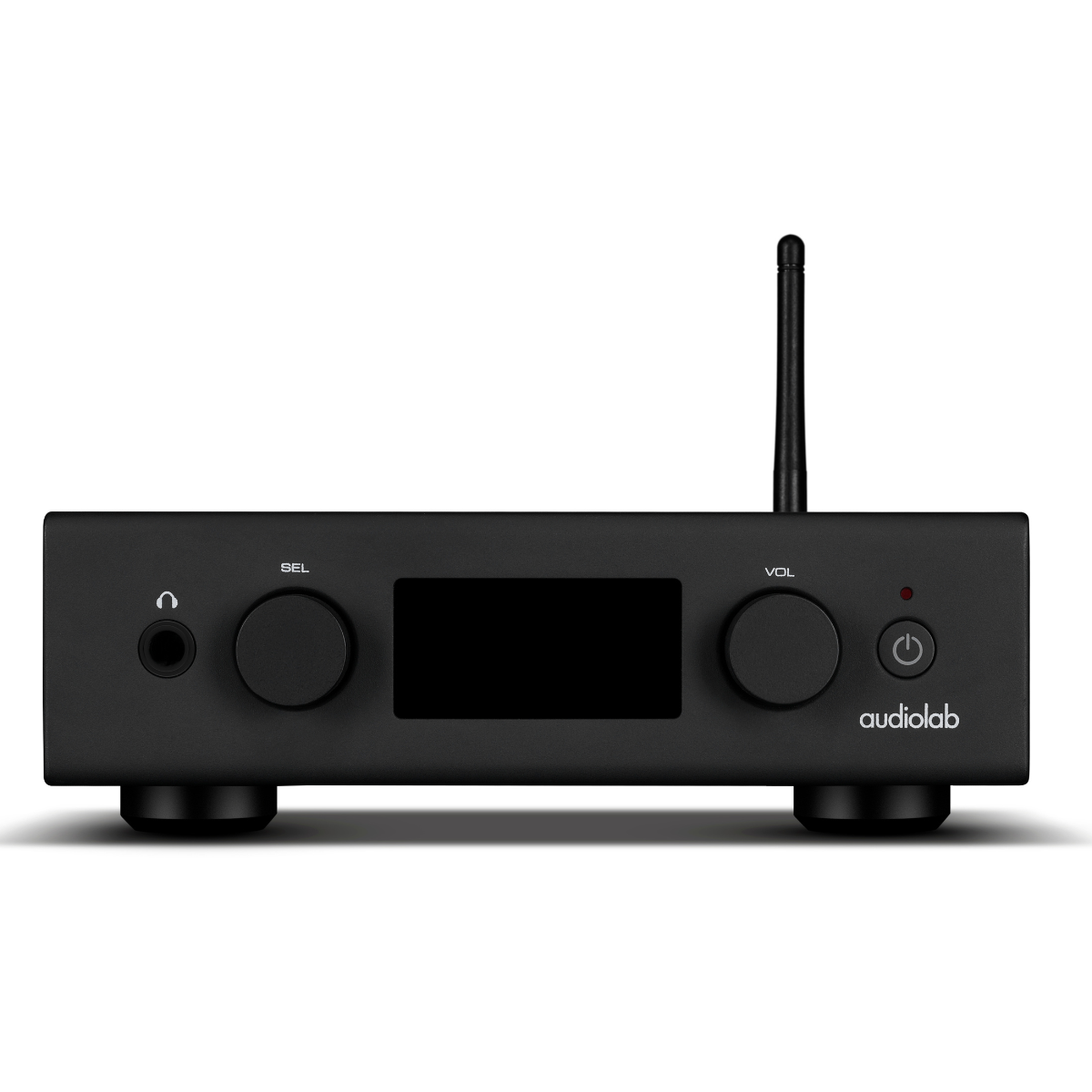

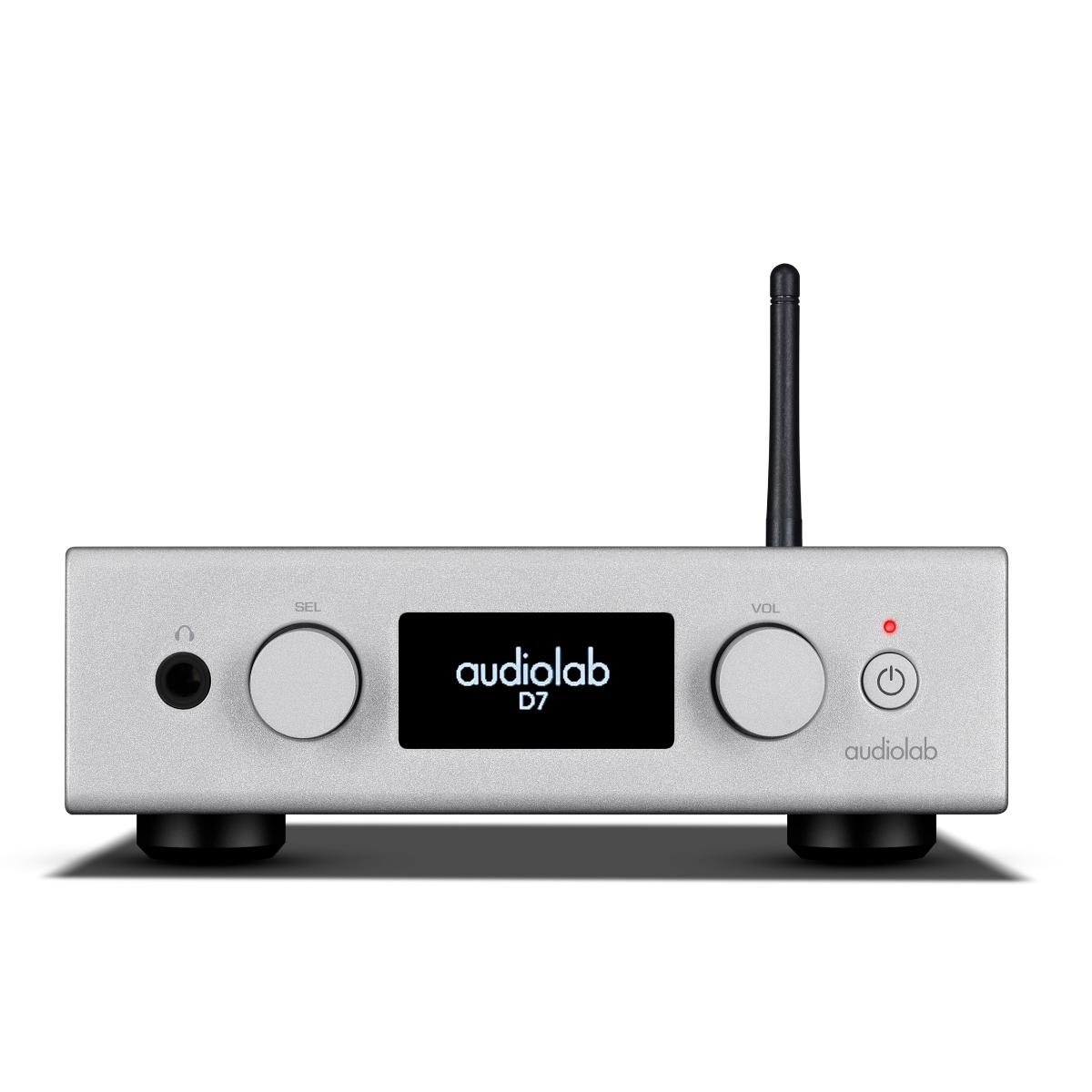

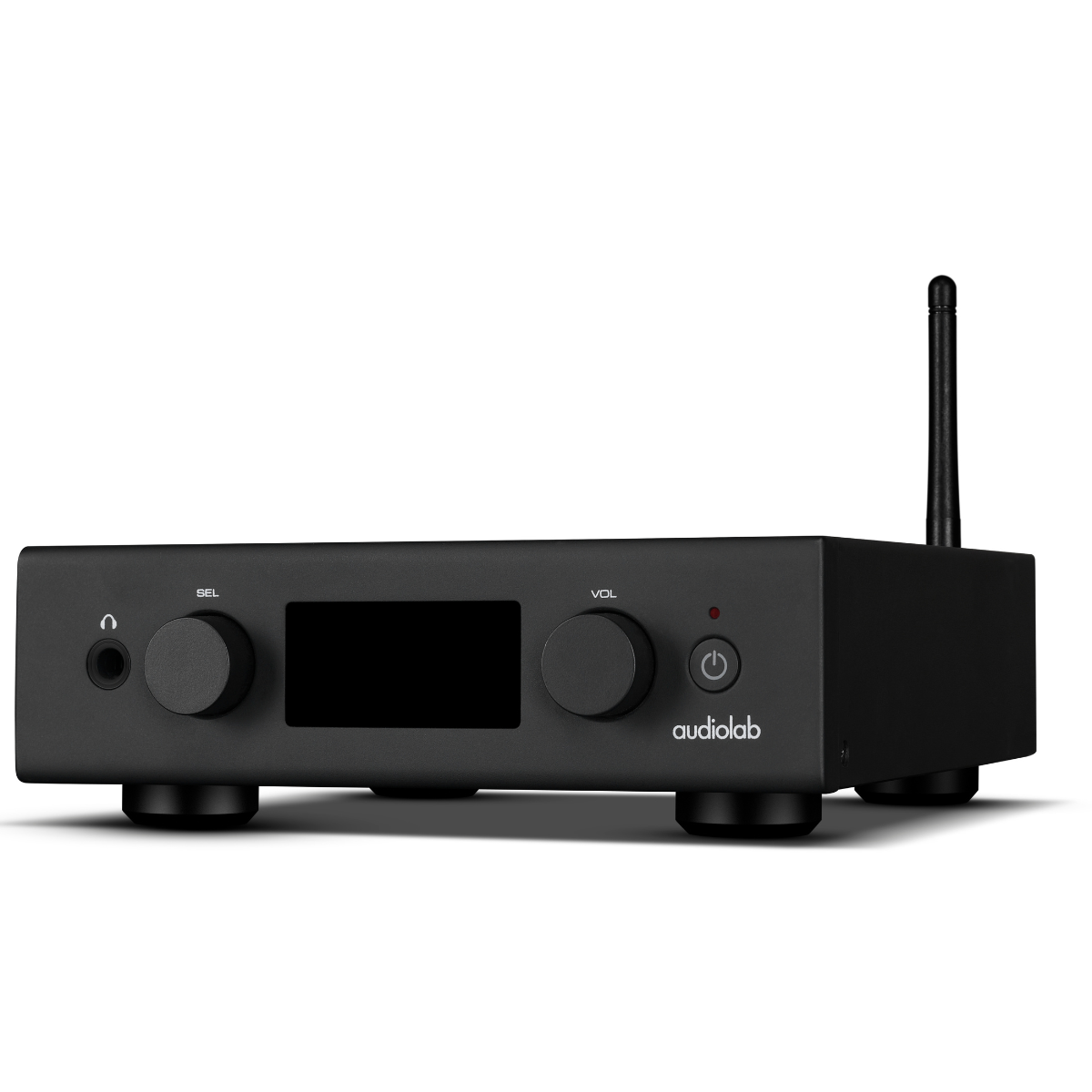

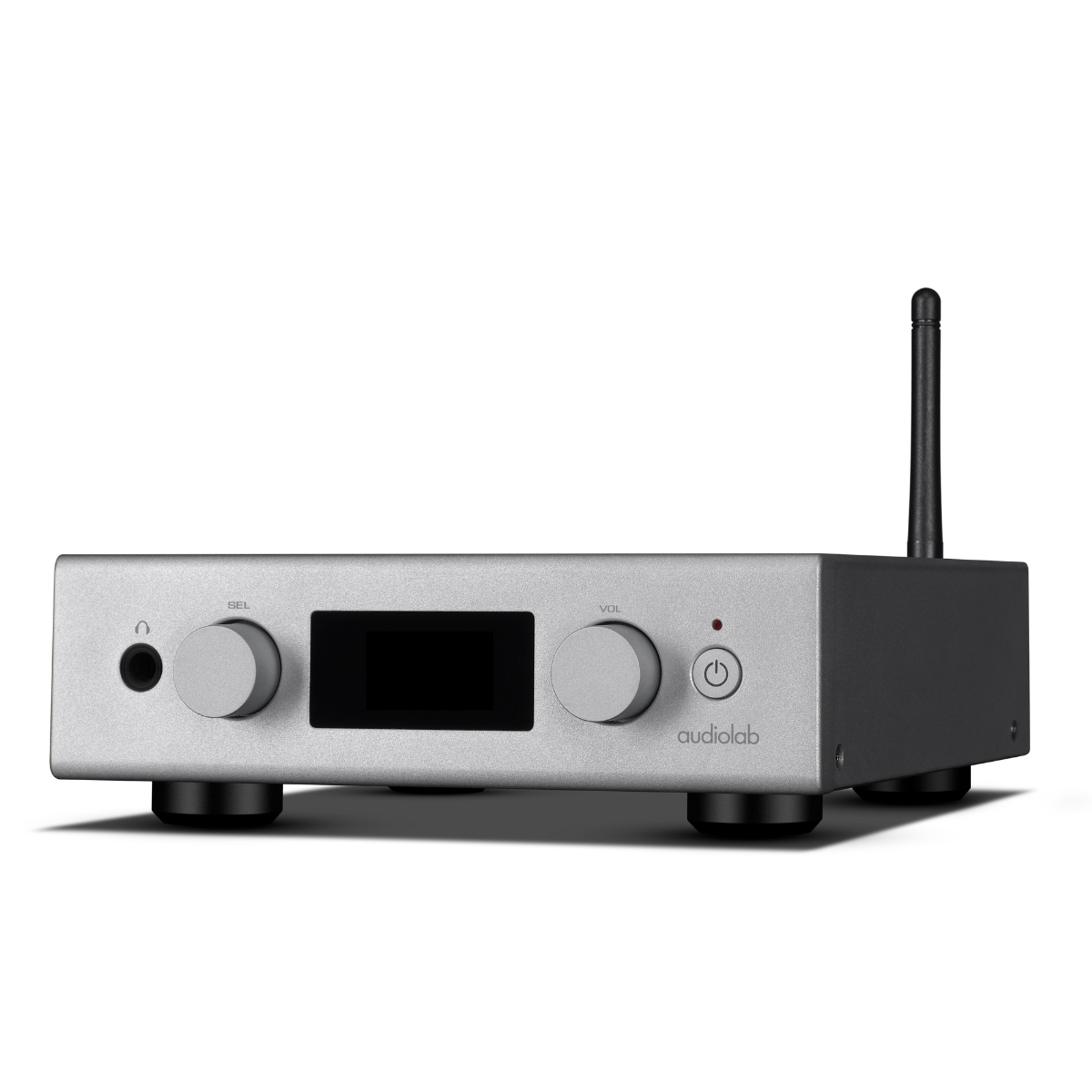

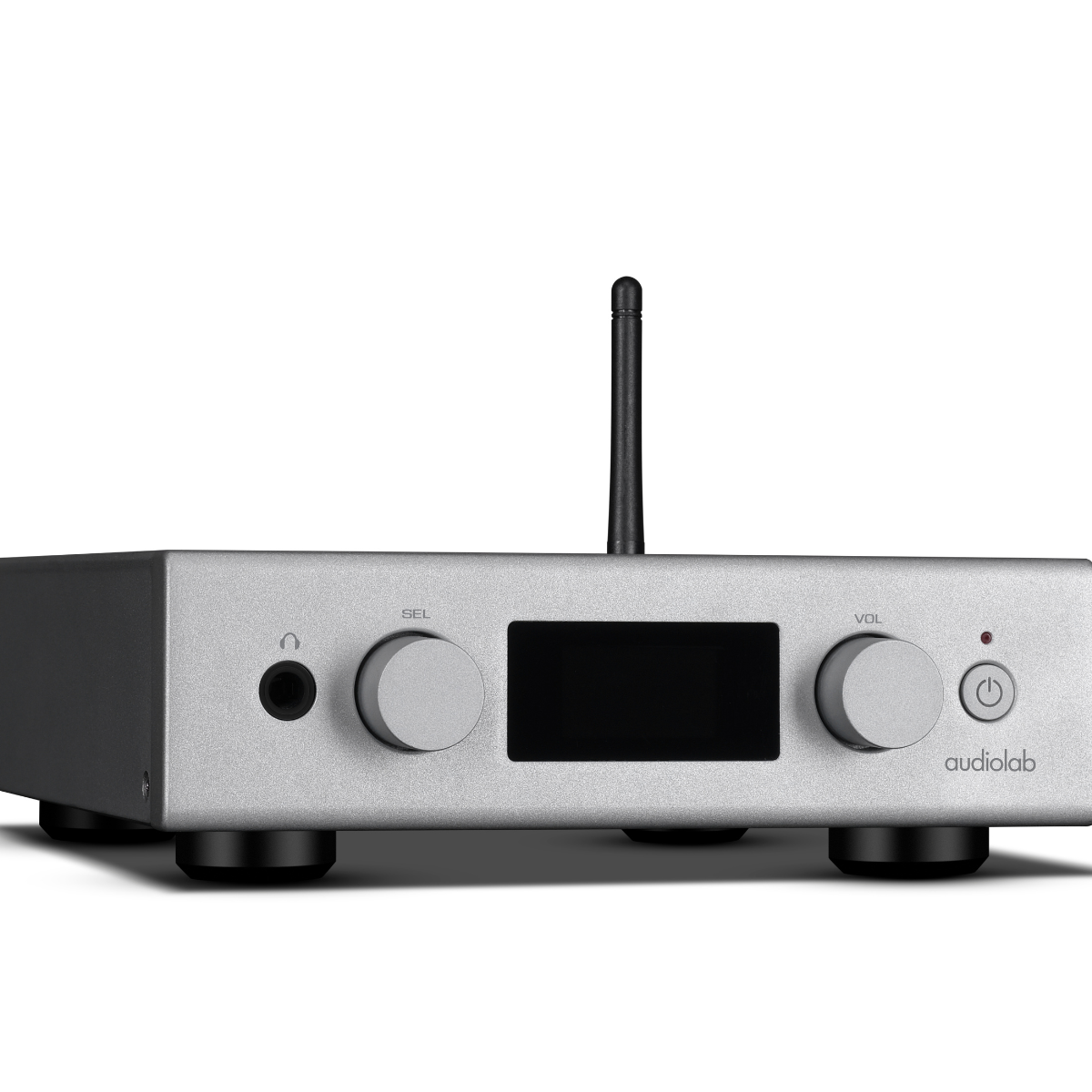

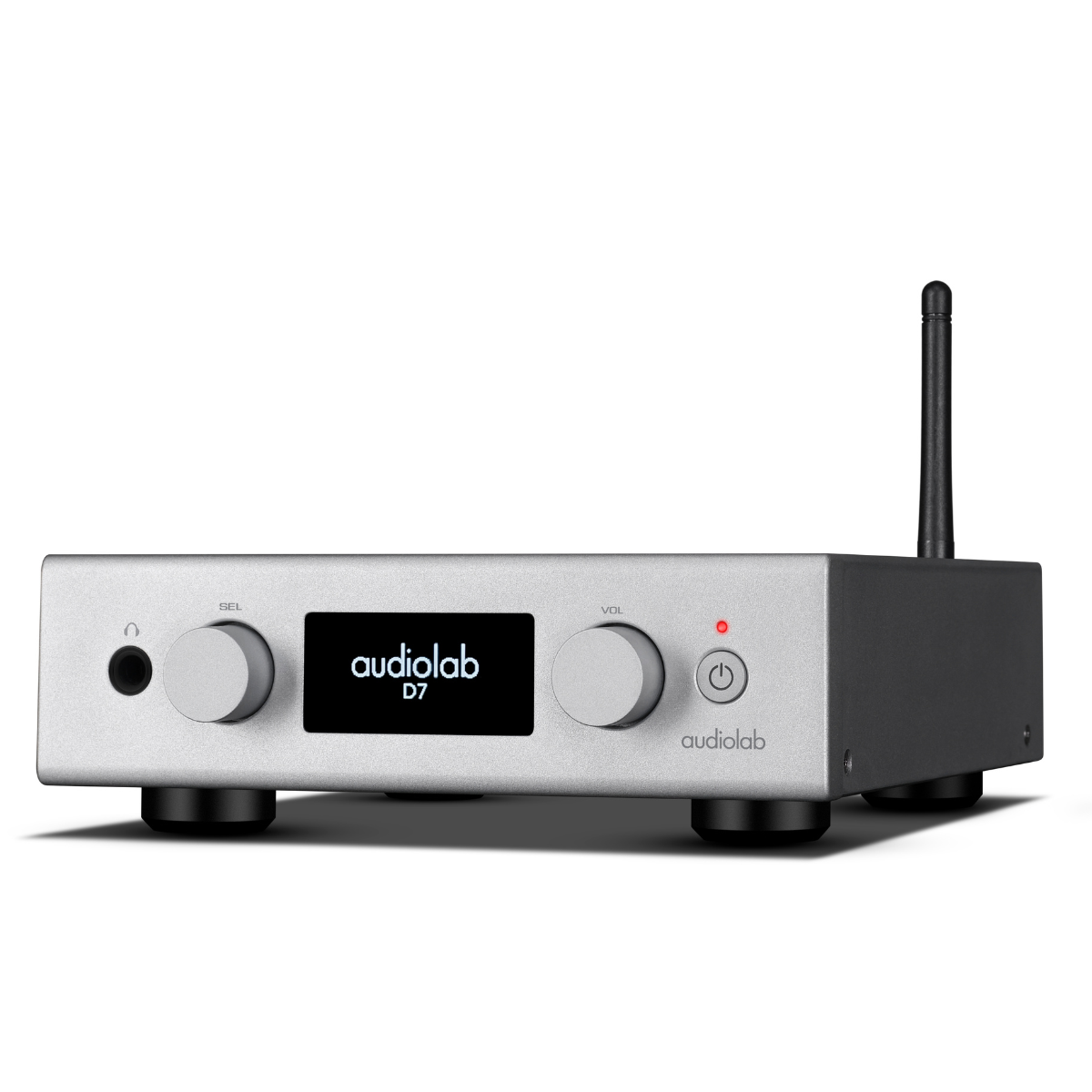

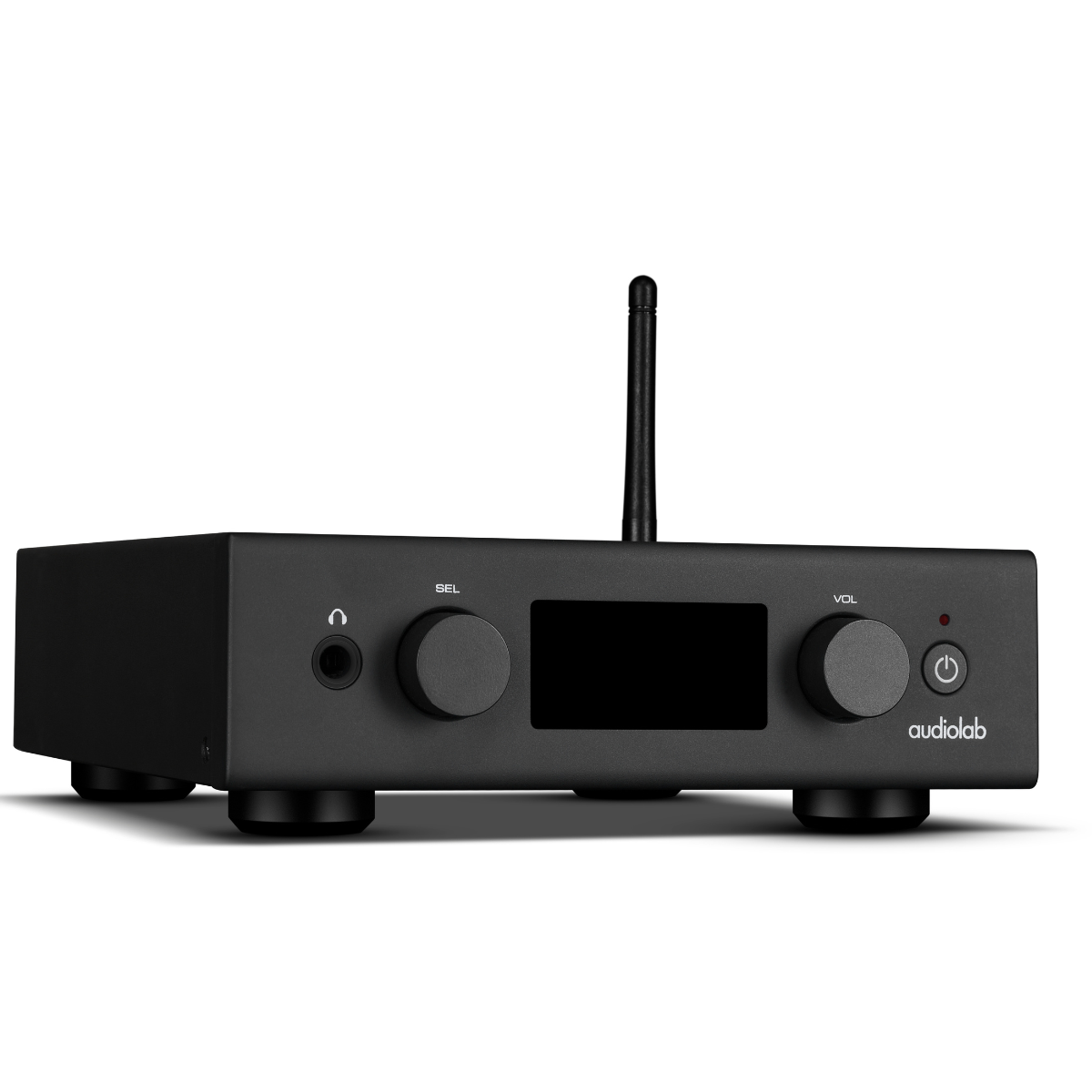

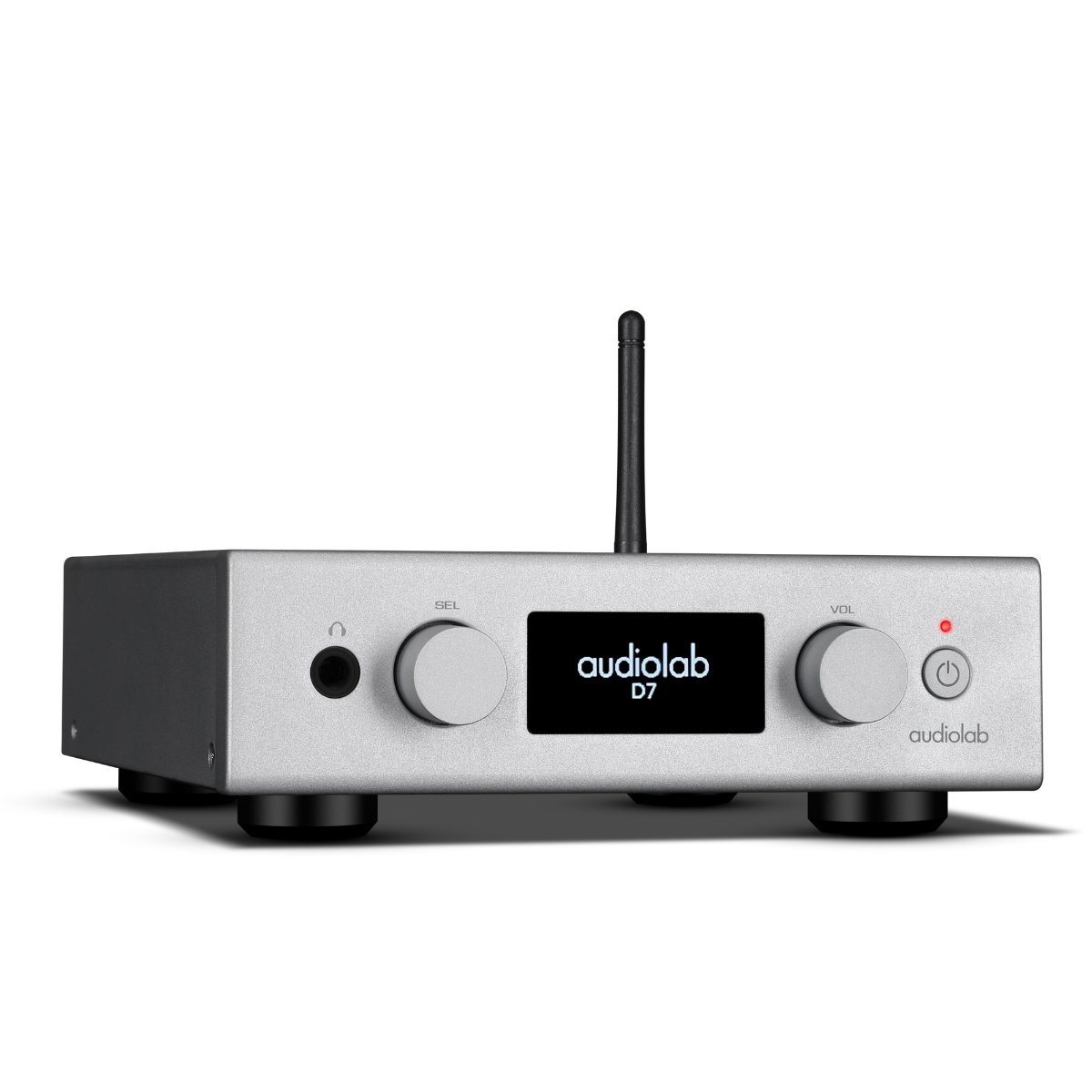

Upgrade your sound system setup with the compact Audiolab D7 DAC. Packed with an ES9038Q2M 32 bit converter, Bluetooth 5.1 streaming, DSD512 USB playback, and a dedicated headphone amp, this unit delivers flexible audio visual solutions for high resolution digital sources.

Audiolab D7 is designed to turn digital signals into clear and natural analog sound for modern hi fi systems. At its core is an ES9038Q2M 32 bit DAC chip that keeps distortion extremely low, with total harmonic distortion below 0.001 percent. Balanced outputs deliver a signal to noise ratio over 117dB, which helps keep background noise out of the audio path. Built in preamplifier features allow direct control of output levels, making it easy to connect straight to a power amplifier or a pair of active monitors.

Audiolab D7 handles both wired and wireless sources with straightforward connections. Dual optical and dual coaxial inputs, a PC USB port, and a front USB A jack support a range of devices. High resolution formats up to PCM 768kHz and DSD512 are supported over the PC USB input. The front USB A port also lets users play music files directly from a flash drive, including MP3, WMA, APE, AAC, WAV, and FLAC formats. For wireless streaming, Bluetooth 5.1 is included with support for aptX and aptX HD.

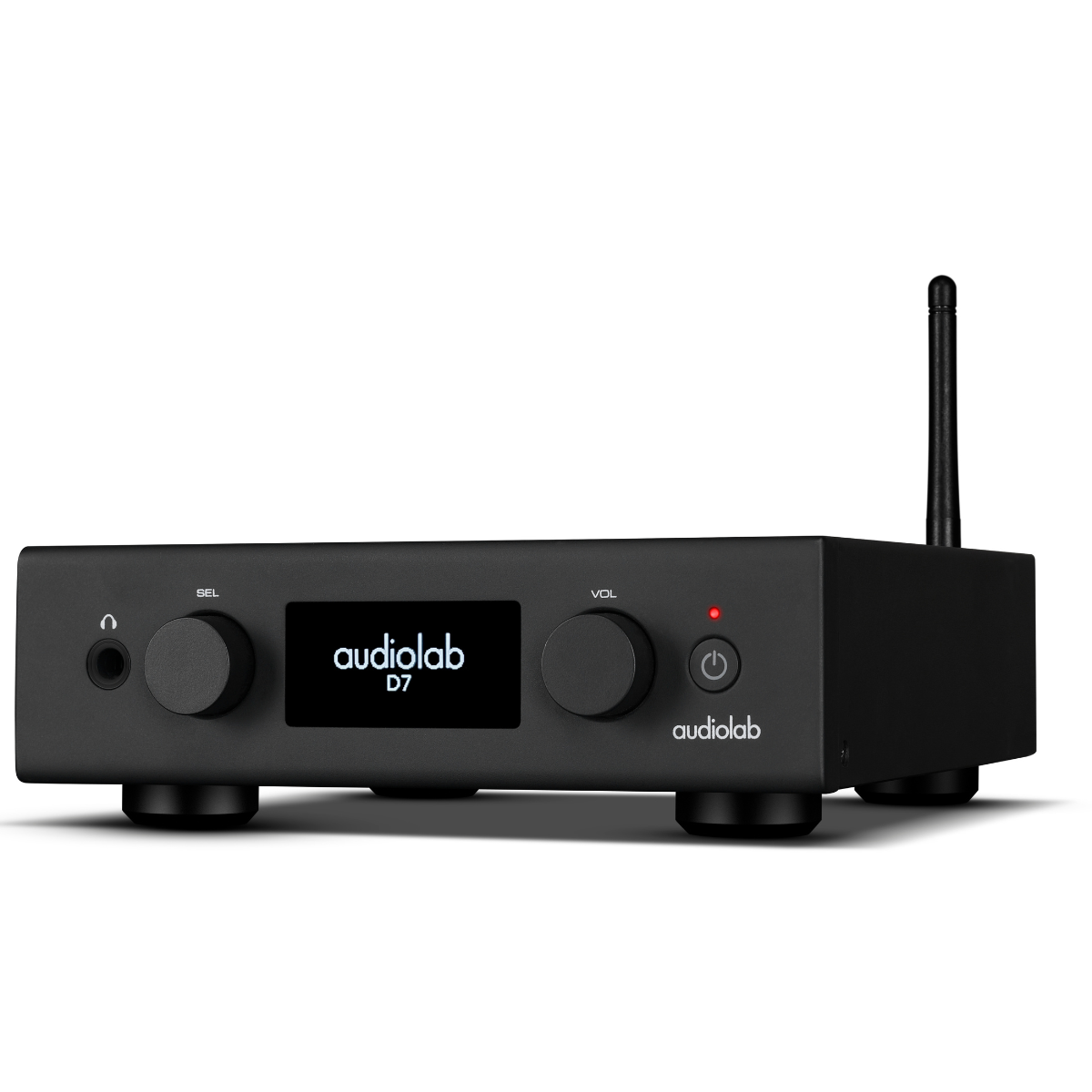

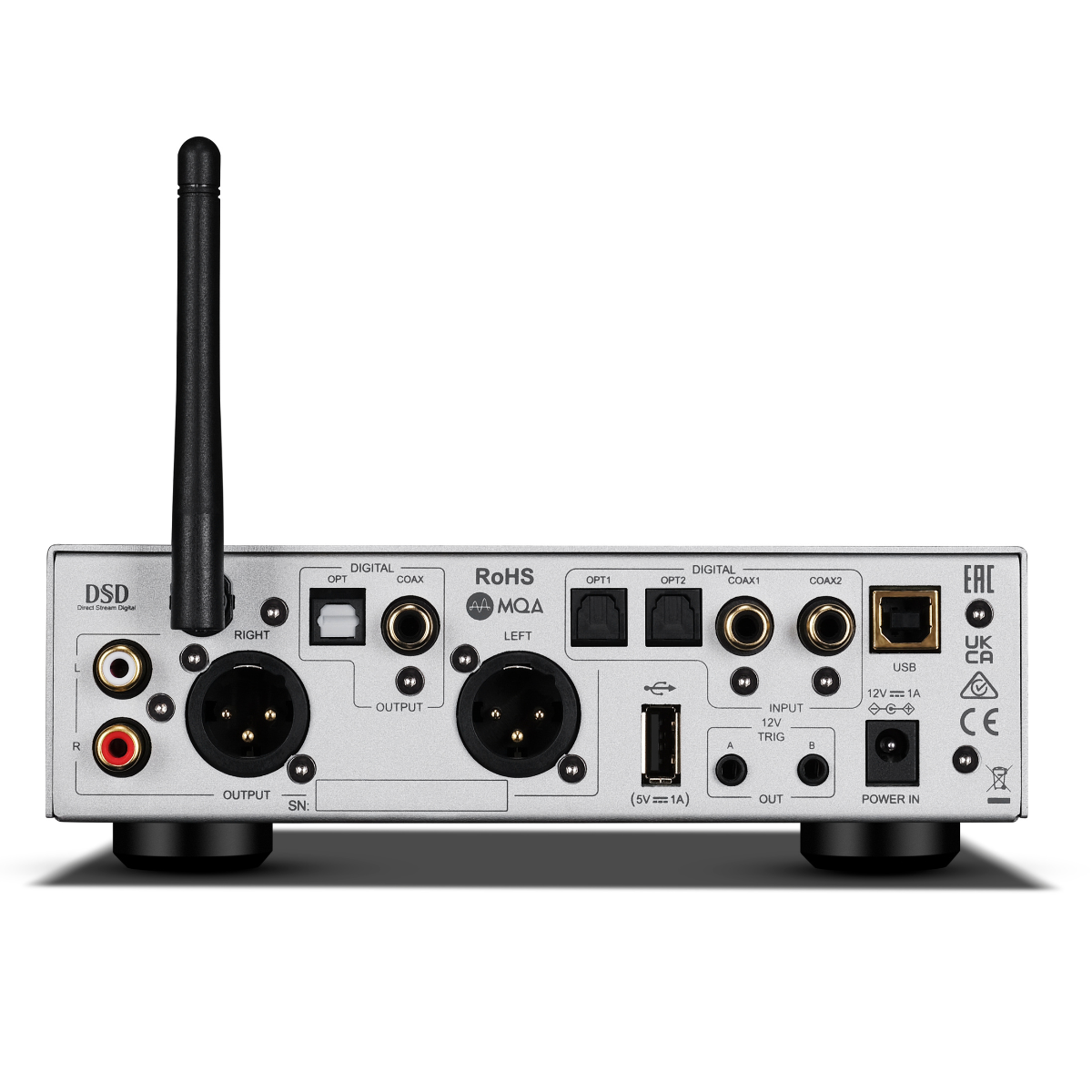

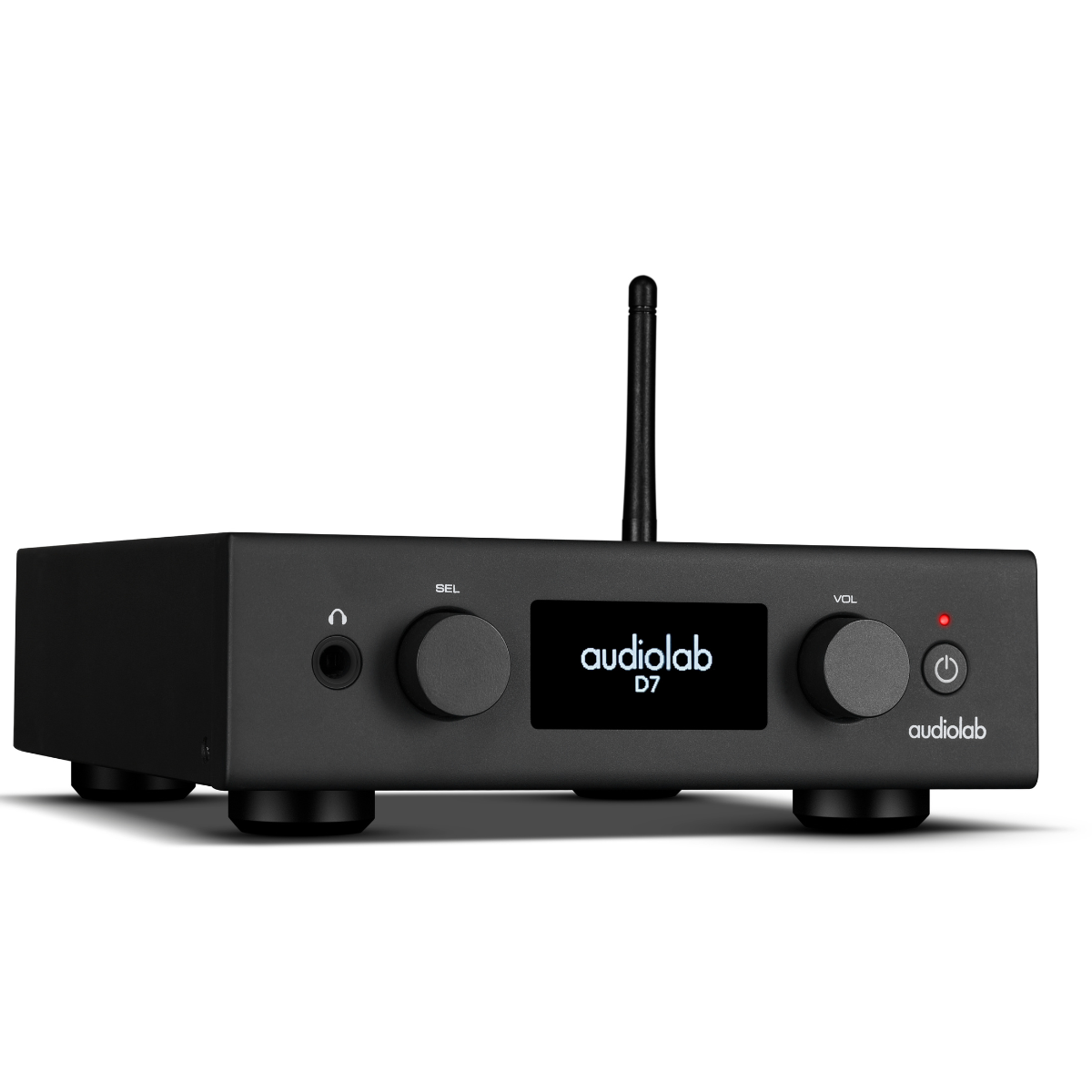

Its system control center centers on a clear OLED display that shows active inputs, file details, and selectable digital filter profiles. A dedicated current-feedback headphone amplifier with a low 2.35 Ω output impedance drives headphones rated between 20-600Ω with steady current. Rounding out the rear panel, balanced XLR, unbalanced RCA, optical, coaxial, and dual 12V trigger outputs ensure seamless matching within any custom sound system setup.

Details & Specs

Model D7
General Description DAC
Design Philosophy and Core Technology ES9038Q2M 32-bit DAC
OLED Display
Bluetooth 5.1 (aptX / aptX HD) streaming
Dedicated Current-Feedback Headphone Amp
Supports playing USB memory device (MP3 / WMA / APE / AAC / WAV / FLAC)
USB Firmware Upgrade
Inputs 2 x SPDIF (Coax)
2 x SPDIF (Optical)
1 x PC USB (USB B)
1 x USB HDD (USB A)
1 x Bluetooth (aptX / aptX HD)
Outputs 1 x RCA
1 x XLR
1 x Headphone
2 x 12V Trigger
1 x Optical
1 x Coax
Sampling Frequency Optical/Coaxial: 44.1kHz–192kHz
USB HDD: 44.1kHz–96kHz
PC USB: 44.1kHz–768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
DAC
D to A Converter ES9038Q2M
Output Level (0dBFS, 1kHz) 2.05Vrms (RCA), 4.1Vrms (XLR)
Total Harmonic Distortion (THD) < 0.001% (1KHz @ 0dBFS)
Frequency Response 20Hz-20kHz (+/-0.2dB)
Output Impedance 120 ohm
Max. Sampling Frequency USB HDD: 96KHz
Optical,Coaxial: 192KHz
PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N) > 115dB (A-weighted, RCA)
> 117dB (A-weighted, XLR)
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 2.35 ohm
Load Impedance 20-600 ohm
General
Standby Power Consumption <0.5W
Net Weight 1.42 kg
Gross Weight 2.2 kg
Dimensions (mm) (W x H x D) 180 x 56 x 208mm
Carton Size (mm) (W x H x D) 290 x 85 x 325mm
Finish
Power Requirements (depending on region) 220-240V ~ 50/60Hz
100-120V ~ 50/60Hz
Standard Accessories Power adapter, Remote Control, User Manual, etc.
