Audiolab 9000P

Power Amplifier

Audiolab 9000P

Power Amplifier
$1,499.00
Select Color:


Overview

Audiolab 9000P Class AB power amplifier delivers up to 160W per channel in stereo or 380W in bridged mono mode. Featuring Complementary Feedback technology, RCA and XLR inputs, and thermal protection, it provides robust amplification for any sound system setup.

The Audiolab 9000P is a Class AB power amplifier designed for systems that need reliable power and control. Its Complementary Feedback circuit helps keep sound consistent and stable, even when the speakers present a tough load. The amplifier can run as a standard two channel stereo or be switched to bridged mono for higher output, making it suitable for different installation needs.

In stereo, the amplifier supplies 100 watts per channel at 8 ohms or 160 watts per channel at 4 ohms. Bridged mono mode raises output to 300 watts at 8 ohms and 380 watts at 4 ohms. Both unbalanced RCA and balanced XLR inputs are available, so it fits into a range of setups. The amplifier can deliver up to 15 amps of output current, which helps it handle music with strong peaks or sudden changes.

The amplifier includes output short circuit protection and high temperature safeguards to help prevent damage during use. An automatic standby mode keeps power draw under 0.5 watts when the system is not active. A 12V trigger input allows the amplifier to power up in sync with a preamplifier. With a footprint of 444 by 90 by 327 millimeters and a weight of 9.2 kilograms, the 9000P provides a solid base for building a high performance sound system.

Details & Specs

Model 9000P
General Description Power Amplifier
Design Philosophy and Core Technology Class AB power amplifier
CFB (Complementary Feedback Technology)
Stereo/Bridge mode

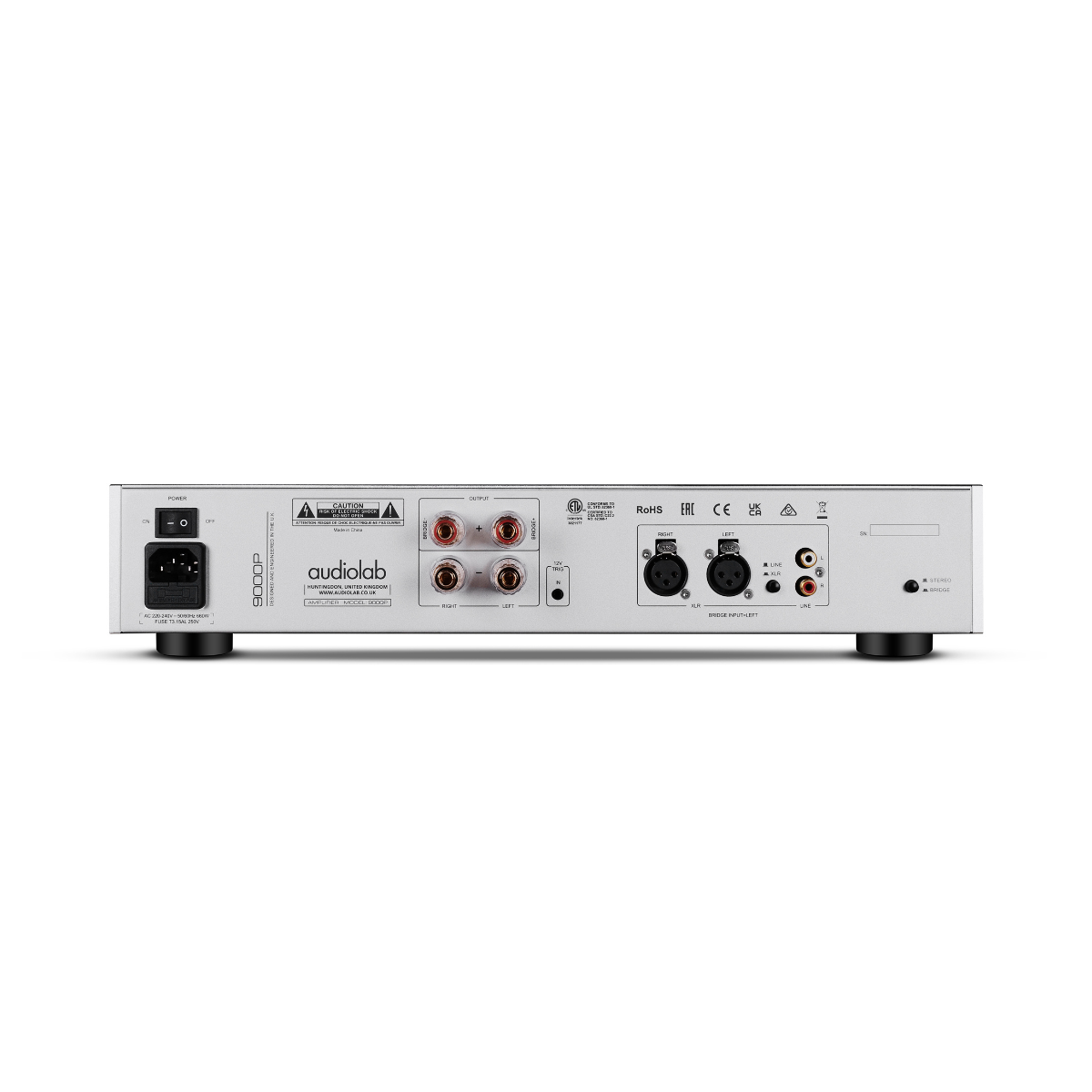

Inputs 1 x Analogue
1 x XLR
1 x 12V Trigger
Outputs 1 x Stereo Speaker
Power Amplifier Section (STEREO)
Gain 29dB (RCA) / 23dB (XLR)
Rated Power Output Stereo: 2 x 100W (8 ohms, THD <1%)
Stereo: 2 x 160W (4 ohms, THD <1%)
Bridged (Mono): 300W (8 ohms, THD <1%)
Bridged (Mono): 380W (4 ohms, THD <1%)
Frequency Response 20Hz - 20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) <0.002% (1kHz)
Input Sensitivity 1Vrms (RCA)
2Vrms (XLR)
Input Impedance 10k ohms
Signal-to-Noise Ratio (S/N) > 112dB (A-weighted)
Max. Output Current 15A
General
Standby Power Consumption <0.5W
Net Weight 9.2kg
Gross Weight 10.6kg
Dimensions (mm) (W x H x D) 444 x 90 x 327 mm
Carton Size (mm) (W x H x D) 514 x 165 x 470 mm
Finish Black/Silver
Power Requirements (depending on region) 220-240V - 50/60Hz
100-120V - 50/60Hz
Standard Accessories Power Cord, User Manual
