Audiolab 9000N

Network Player/Streamer

Audiolab 9000N

Network Player/Streamer
$3,499.00
Select Color:


Overview

Audiolab 9000N network streamer features an ESS Sabre ES9038Pro 32 bit DAC, quad core processing, and a 4.3 inch screen. Perfect for high performance sound system setup options, it supports high resolution PCM, DSD, Wi Fi, Ethernet, and app control.

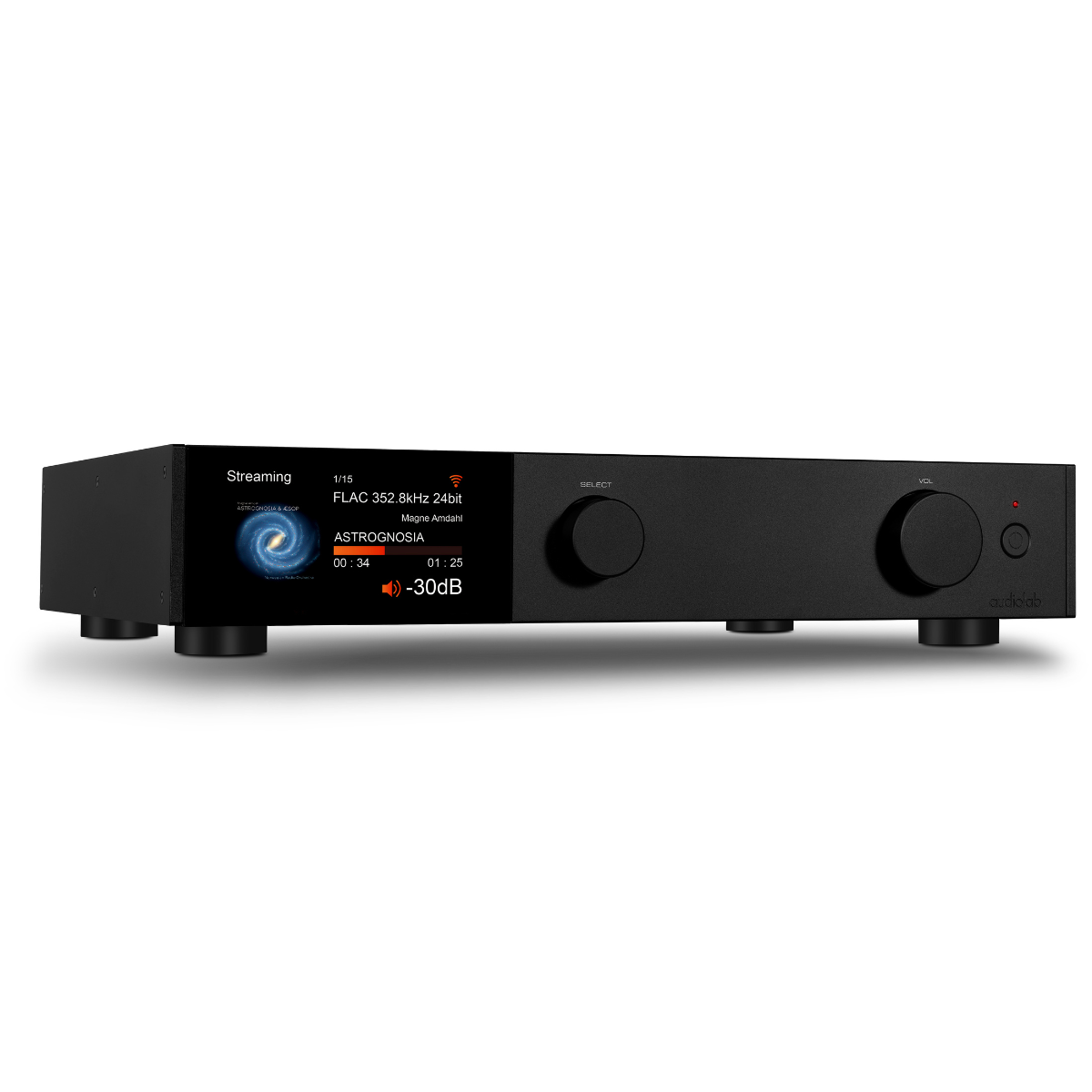

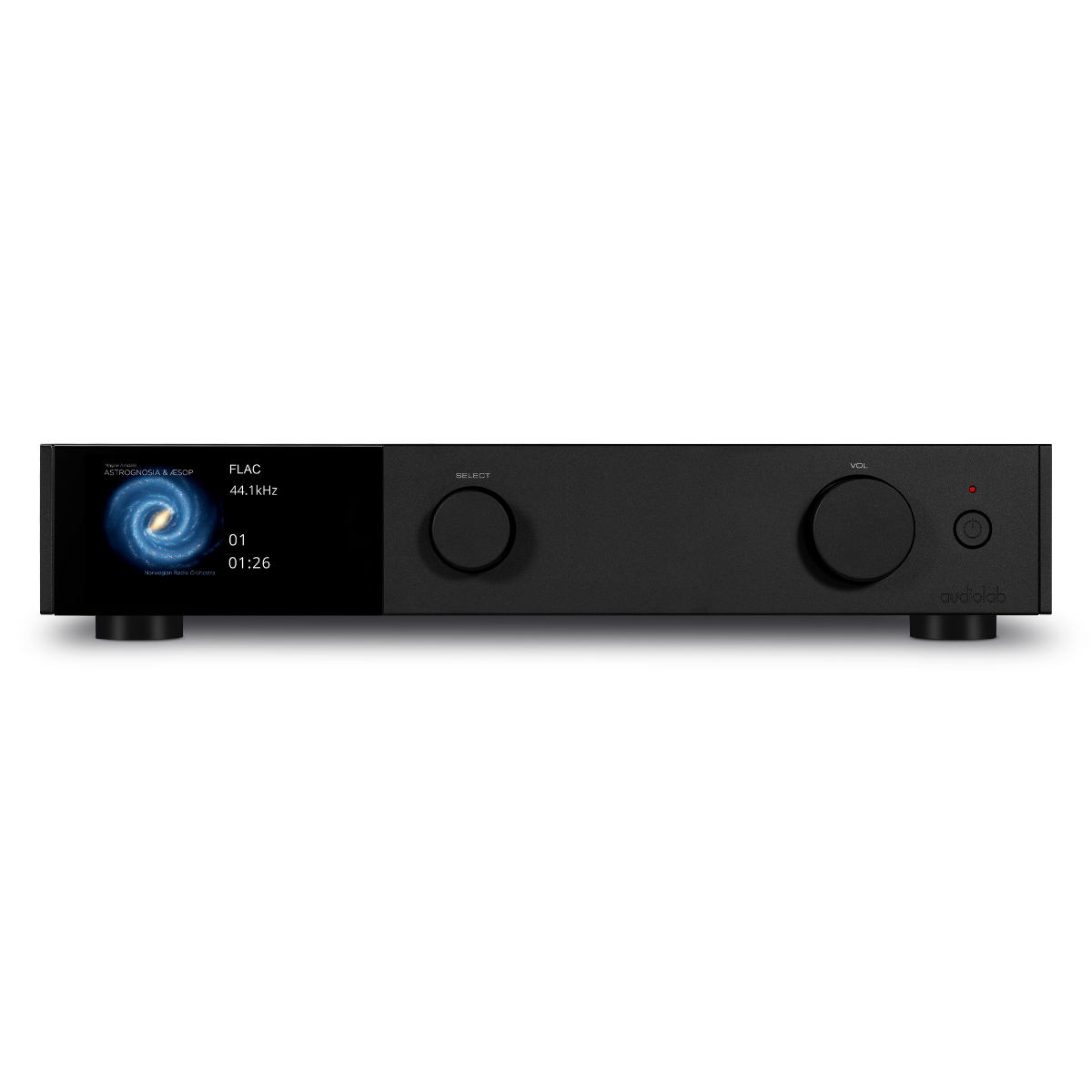

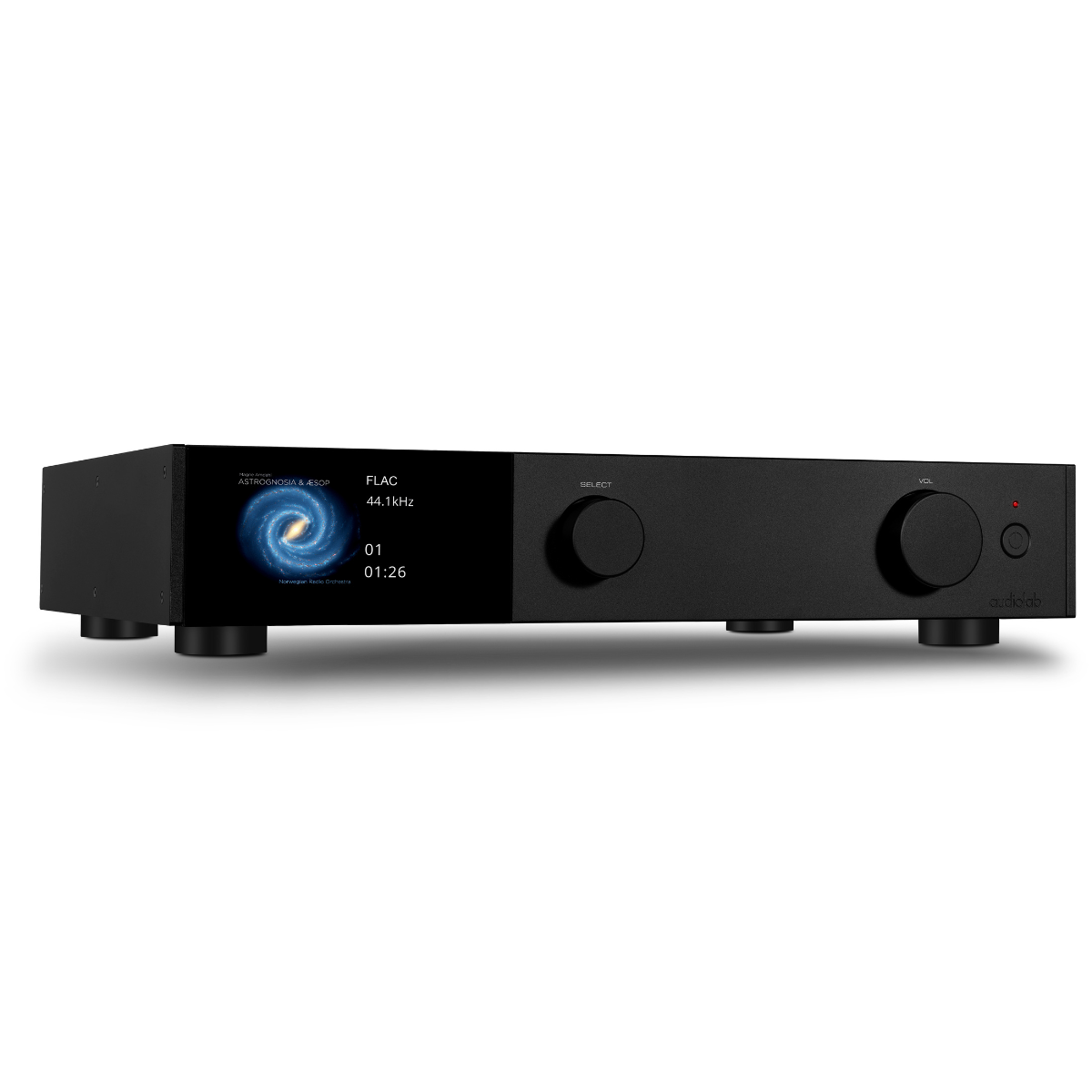

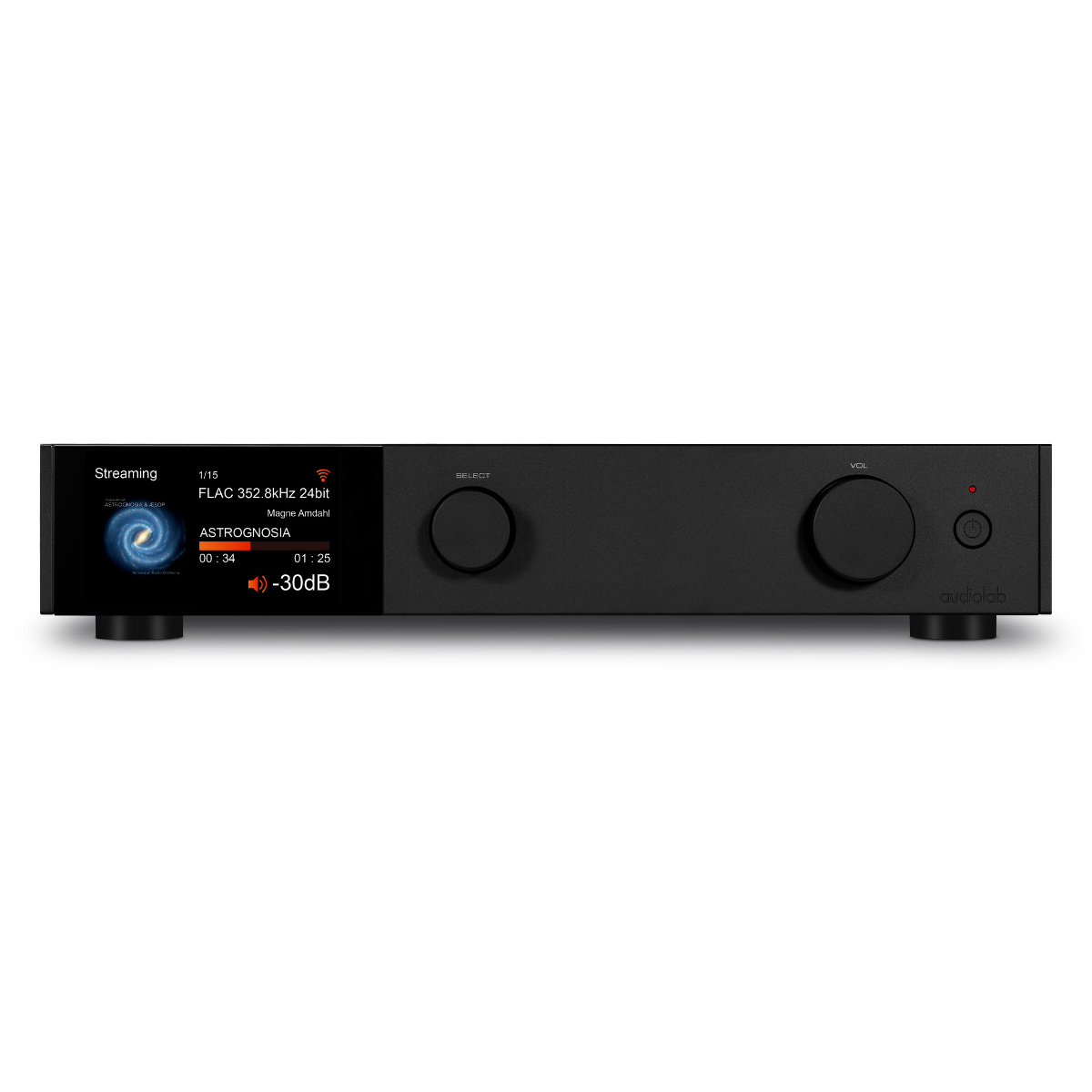

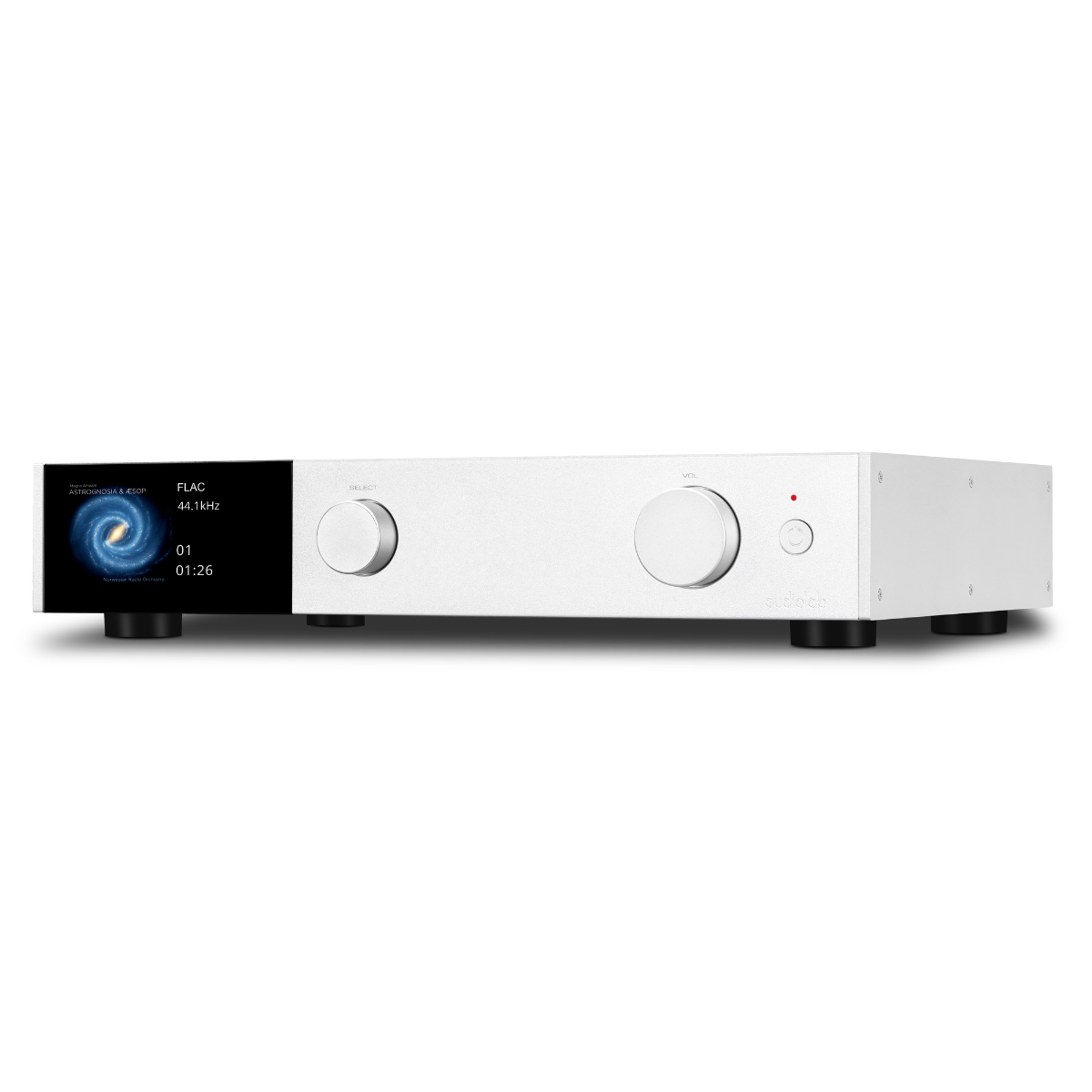

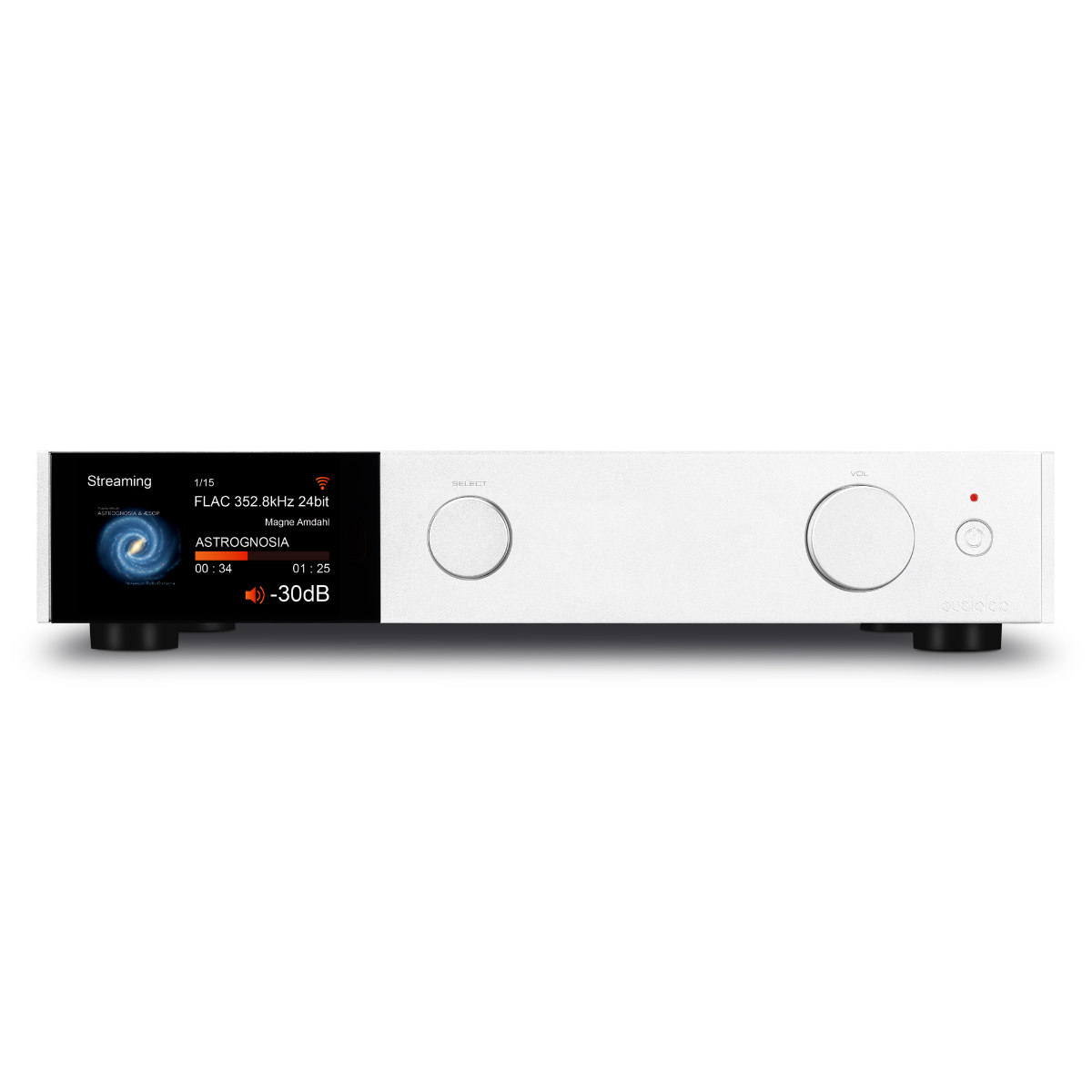

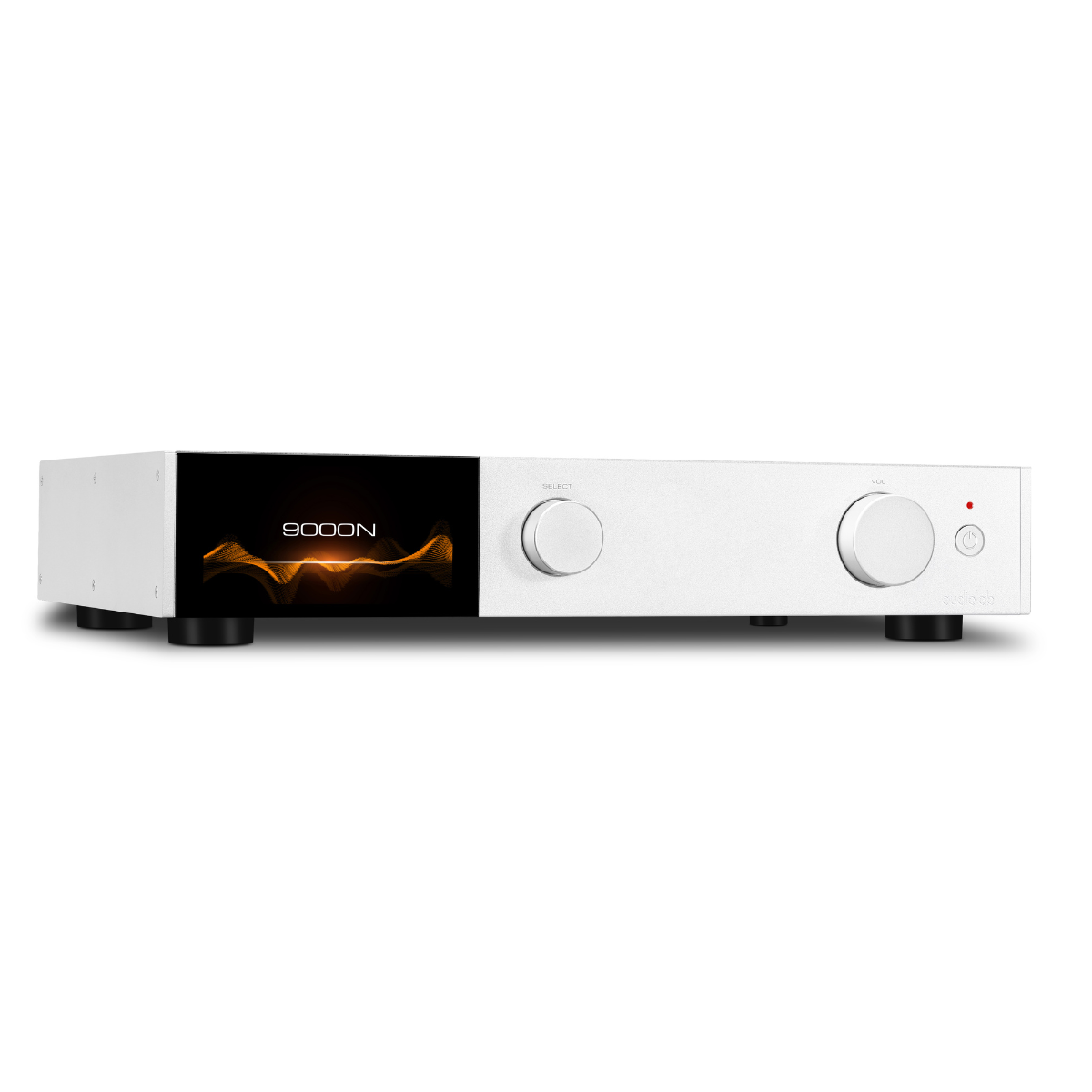

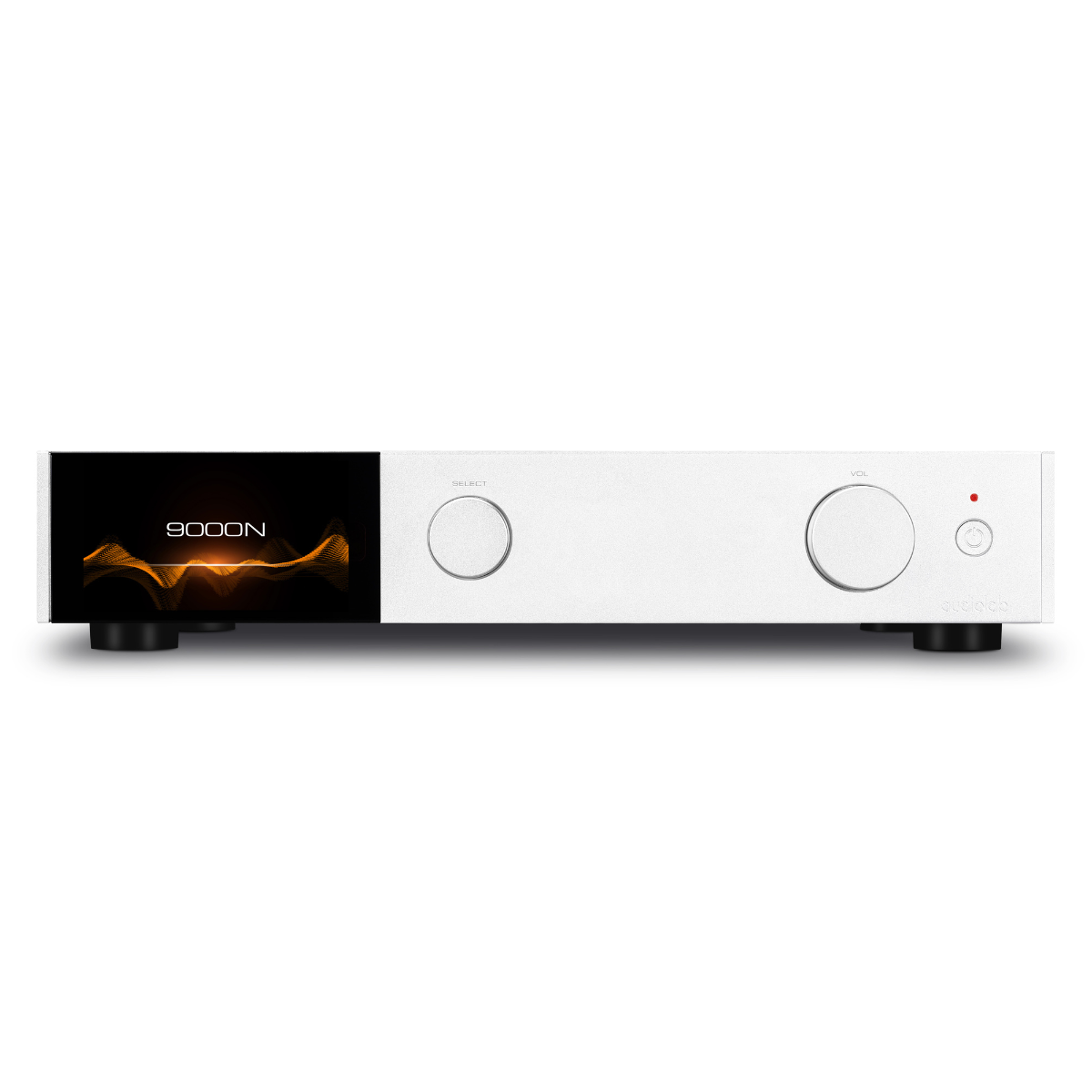

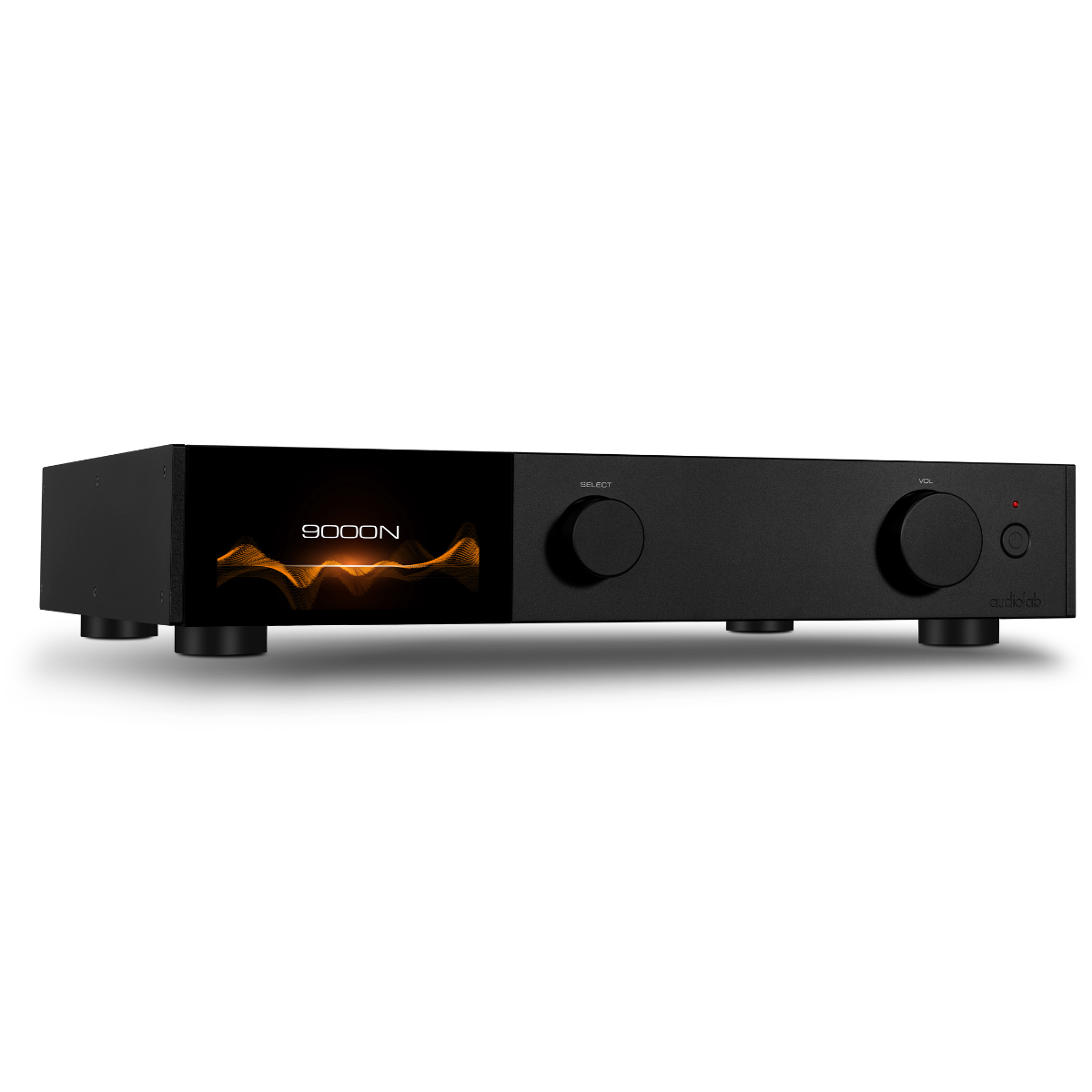

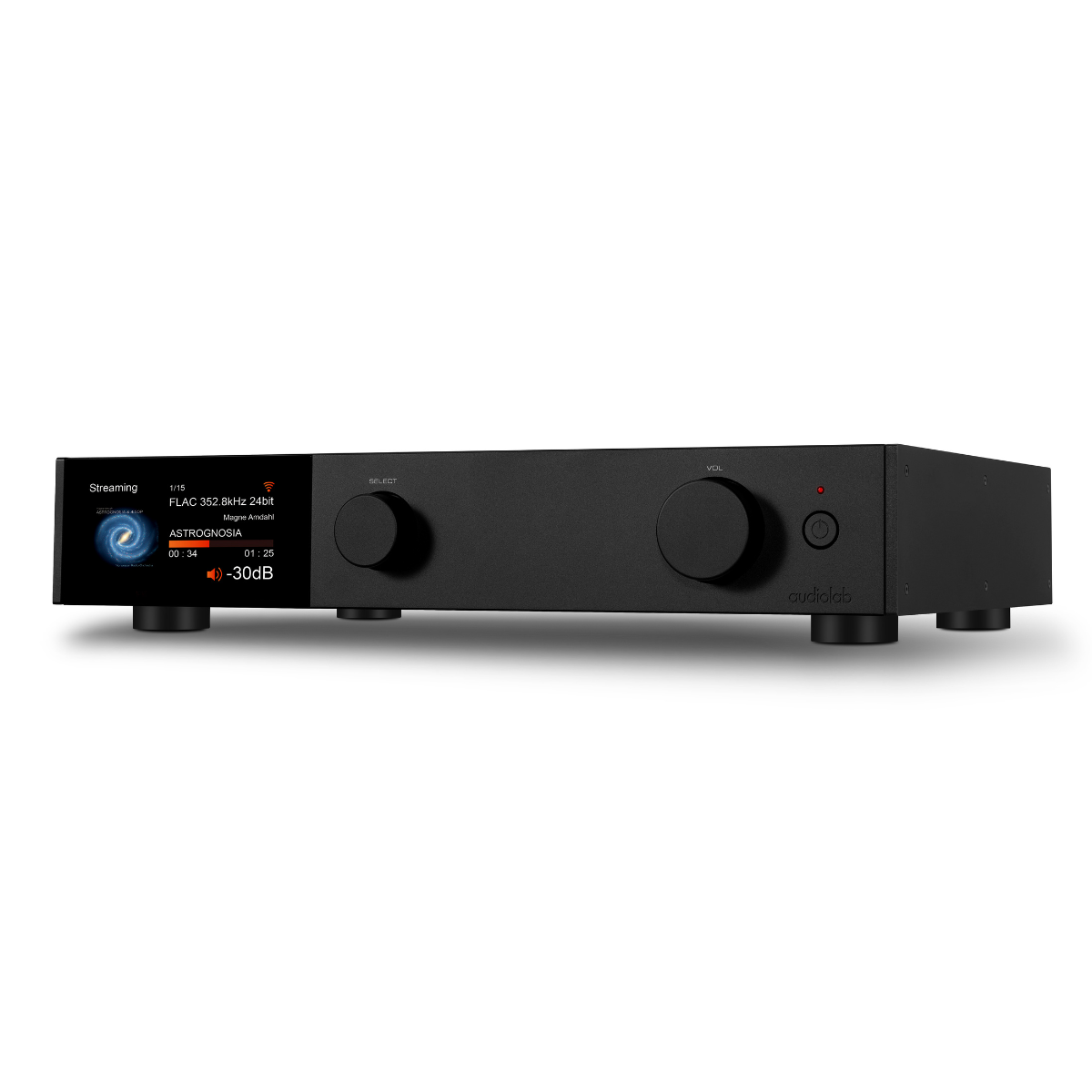

The Audiolab 9000N network player is built around a quad core Arm Cortex A53 processor running at 1.8 GHz per core. It uses an ESS Sabre ES9038Pro 32 bit DAC to handle digital audio with precision. The player supports high resolution formats, processing PCM up to 768kHz and native DSD up to DSD512. Album artwork and track details appear on a 4.3 inch IPS LCD screen on the front panel, making it easy to see what is playing at a glance. The design fits well into modern audio visual setups.

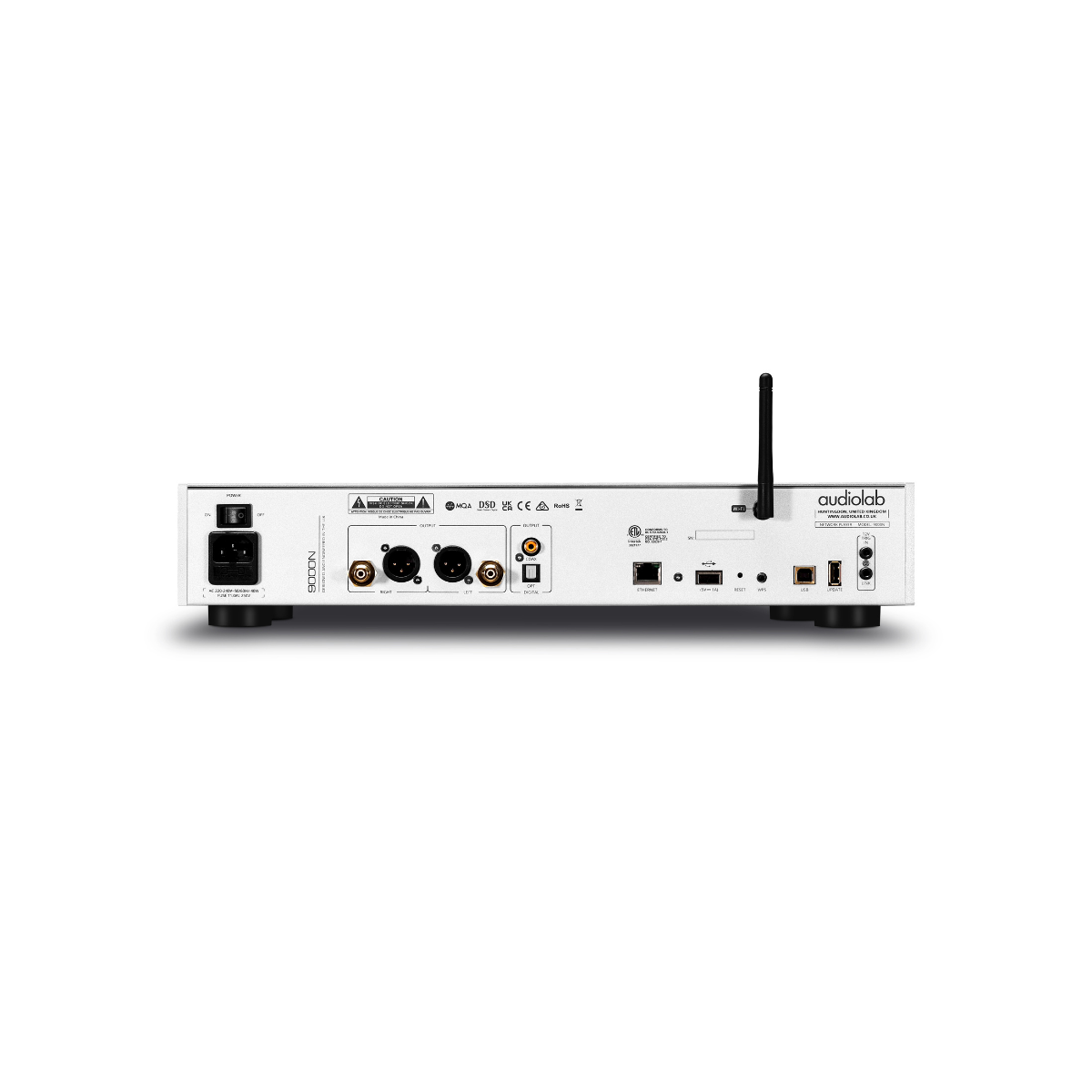

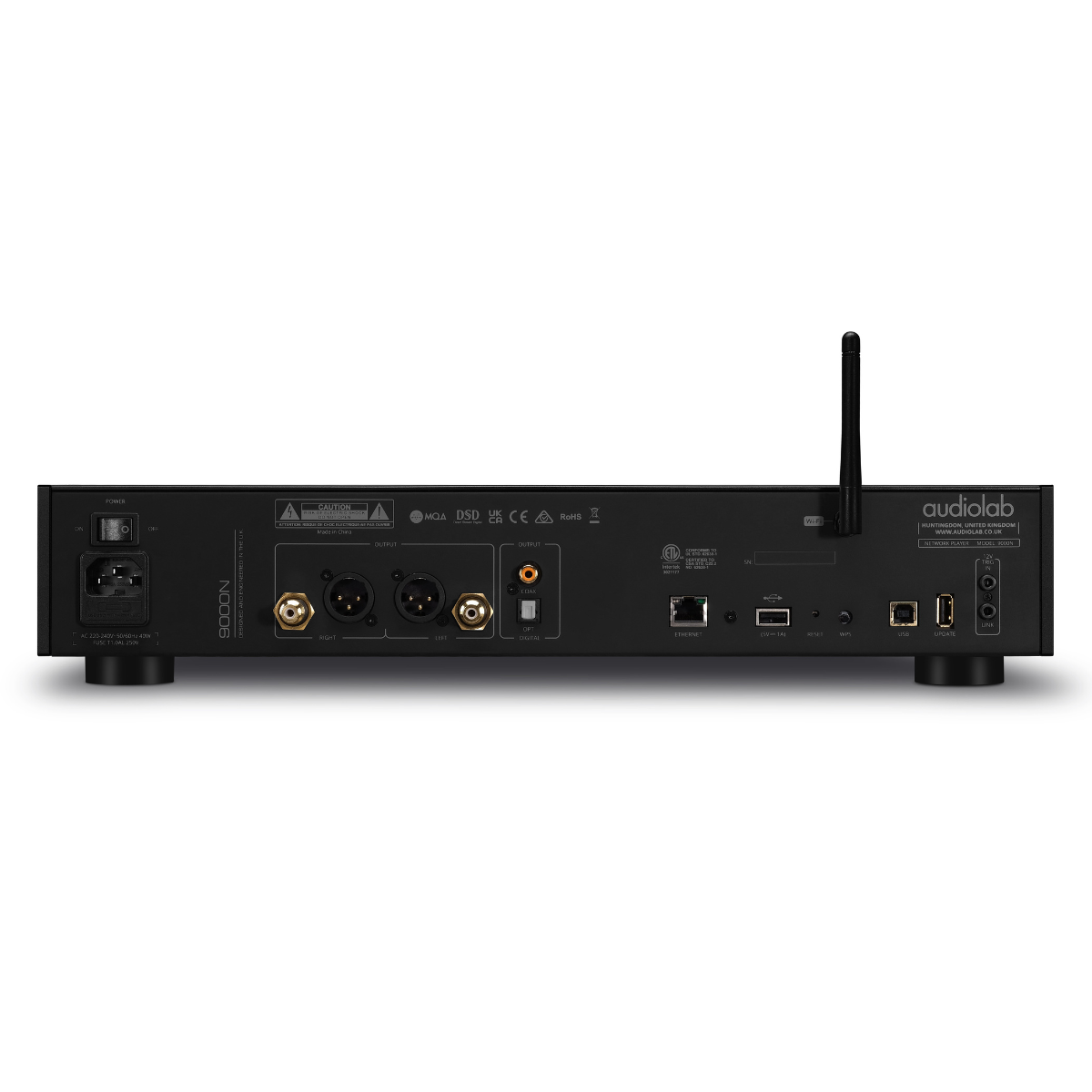

Wireless streaming works over dual band Wi Fi. For direct connections, the player offers a Gigabit Ethernet port and a PC USB Type B input. Outputs cover balanced XLR, unbalanced RCA, optical, and coaxial connections. A 12V trigger link is included for power sync with other equipment. The system supports Spotify Connect, TIDAL Connect, Qobuz, and TuneIn Radio out of the box. It also works as a Roon Ready endpoint and uses OpenHome UPnP protocols for gapless playback.

The player can be controlled with a mobile app for iOS and Android or with the included remote. USB storage devices in FAT32, exFAT, or NTFS formats plug straight into the unit for local playback. The chassis measures 444 by 89 by 333 mm and is built to last. This makes the 9000N a practical choice for high performance sound systems.

Details & Specs

Model 9000N
General Description Network Player
Design Philosophy And Core Technology ESS Sabre ES9038Pro 32bit DAC
Quad Arm® Cortex®-A53 core, 1.8GHz per Core
Audiolab 9000N Streaming technology (IEEE 802.11 a / b / g / n / ac, 2.4/5GHz)
UPnP AV protocol with audio streaming extension (Open Home)
Native support for Spotify Connect, TIDAL Connect, MQA, Qobuz and TuneIn Radio
Roon Ready
Gapless Playback
High-resolution album artwork display
USB storage / flash drive / USB hard disk (Single-partition FAT32, exFAT and NTFS) playback
4.3" (800 x 480px) IPS LCD screen
iOS (11.0 or later) / Android (Android 4.0 or later) required for App control
The audiolab 9000N App Features Native support for TIDAL, Qobuz and TuneIn Radio
Tidal icons to easily identify high-res music
Qobuz high-res icons to identify high-res music
Volume control
High-resolution album artwork display
Artwork caching
Intelligent search functionality
Multiple Playlist complications & functionality
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists / album / songs
Saving and restoring of playlists (including Tidal and Qobuz)
Inputs 1 x Network Streaming
1 x PC USB (USB Type-B)
1 x Ethernet 10/100 / 1000 Base-T Ethernet
1 x 12V Trigger
Outputs 1 x RCA (pair)
1 x XLR (pair)
1 x Optical
1 x Coaxial
1 x 12V Trigger (Link)
Supported File Formats DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3
Sampling Frequency PCM: 44.1kHz-768kHz (705.6kHz / 768kHz Fixed-point supported via Audiolab 9000N App streaming)
DSD: DSD64, DSD128, DSD256, DSD512 (Native)
Digital Section
Digital Output Voltage 500mV +/- 50mVpp
Output Impedance 75Ω
Frequency Response -0.01dB (20Hz - 20kHz, ref. 1kHz)
Max. Sampling Frequency 192kHz / 24bit
Digital Outputs 1 x Coaxial
1 x Optical
D to A Converter
Variable Output Voltage 0 – 2.05V
DAC ES9038Pro
Frequency Response +/-0.5dB (20Hz - 20kHz, ref. 1kHz)
Total Harmonic Distortion <0.001% (1kHz @ 2.05Vrms)
Max. Sampling Frequency 768kHz / 32bit
Signal-to-noise ratio (A-weighted) >116dB (RCA), >120dB (XLR)
Output Impedance 120Ω
General
Standby Power Consumption <0.5W
Net Weight 6.2kg
Gross Weight 8kg
Dimensions (mm) (W x H x D) 444 x 89 x 333
Carton Size (mm) (W x H x D) 514 x 470 x 161
Finish Black / Silver
Power Requirements (depending on region) 220-240V ~ 50/60Hz
100-120V ~ 50/60Hz
Safety Regulation Conformity
Standard Accessories Power Cord, Remote Control, User Manual
