Audiolab 9000A

Integrated Amplifier

Audiolab 9000A

Integrated Amplifier
$2,999.00
Select Color:


Overview

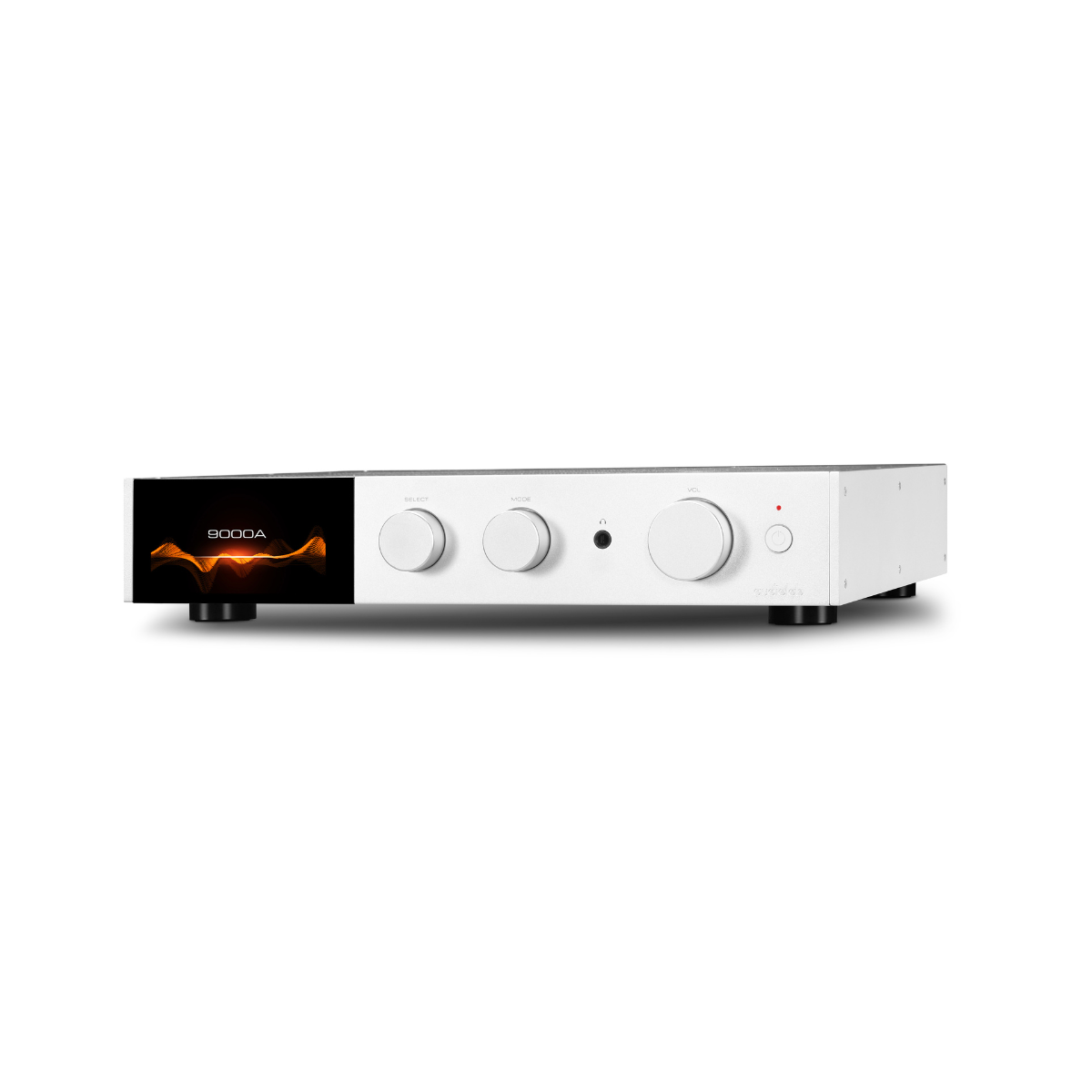

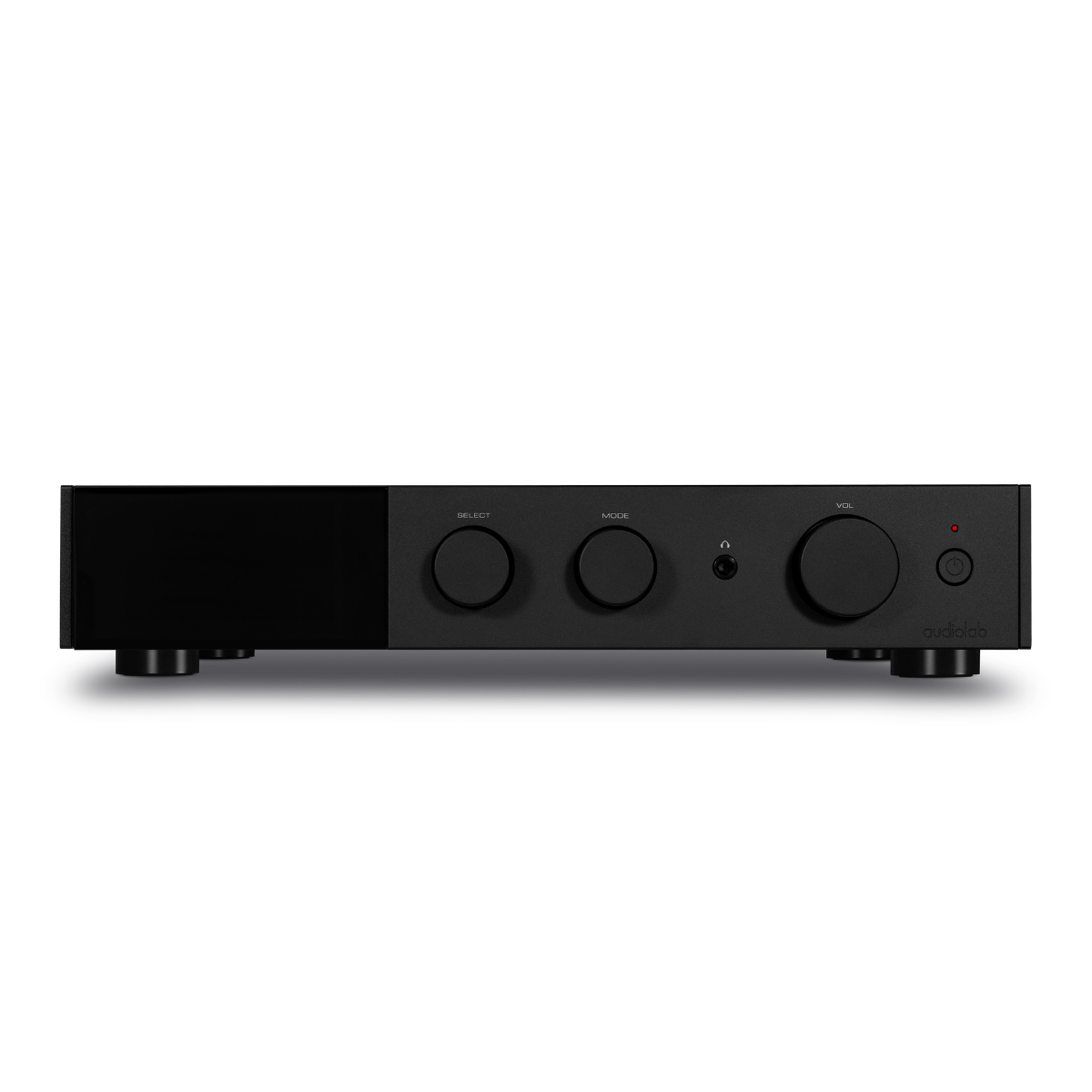

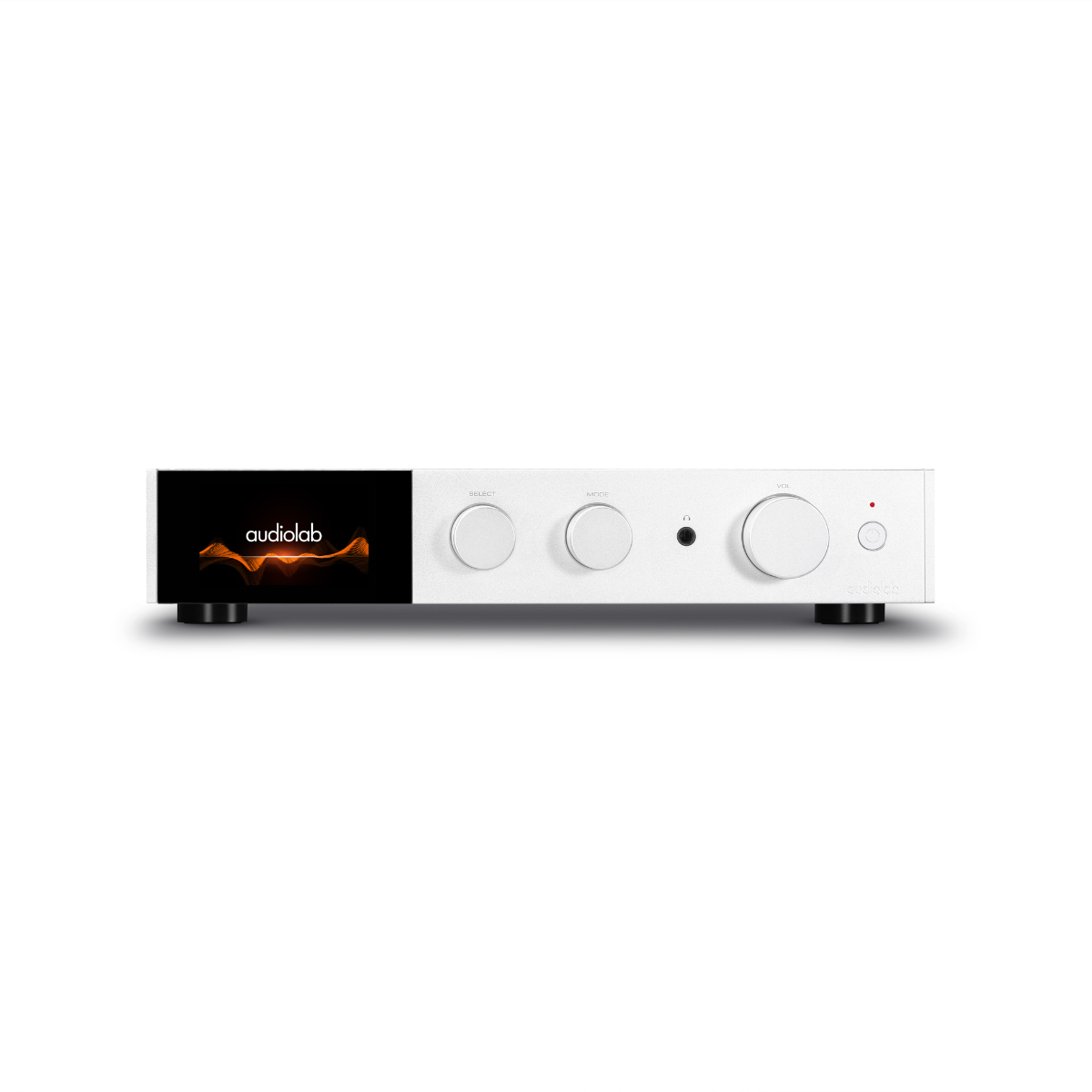

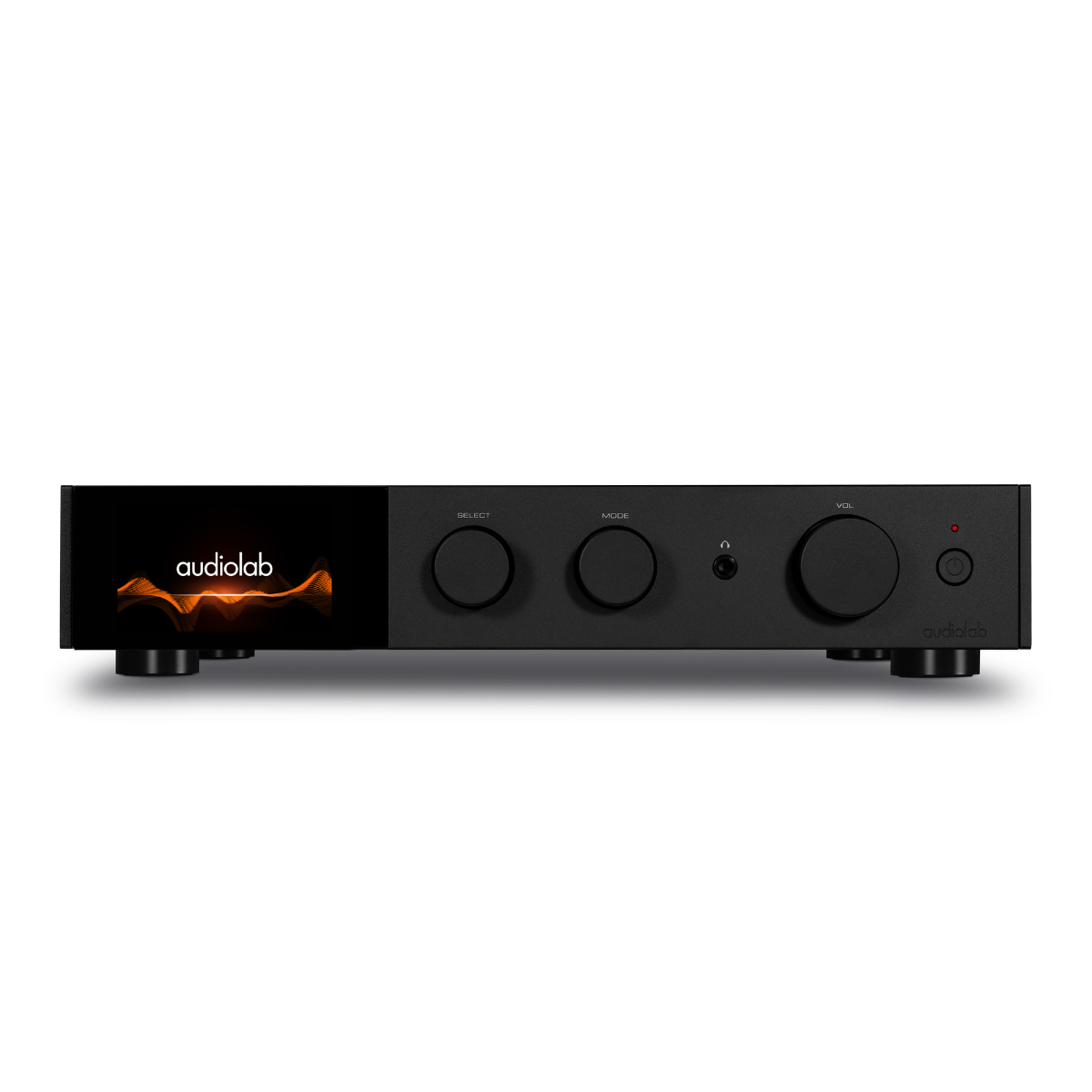

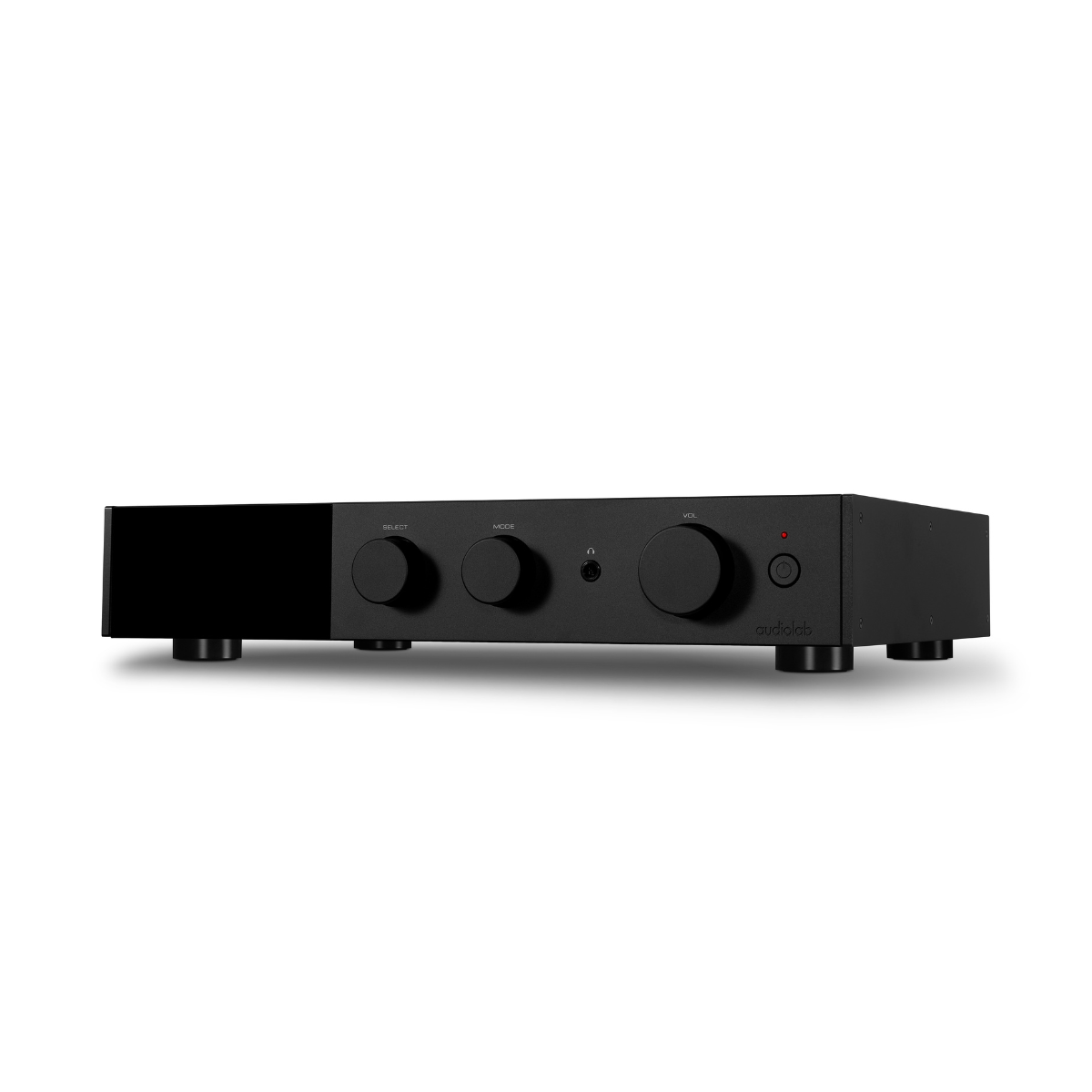

Delivering 100W per channel into 8 ohms, the Audiolab 9000A Integrated Amplifier features an ES9038Pro 32 bit DAC, Bluetooth 5.1, and an MM phono stage. Operating in integrated, pre, or power modes, it serves as a versatile anchor for any high performance sound system setup.

The Audiolab 9000A Integrated Amplifier is built for installations that need strong Class AB amplification. It supplies 100 watts per channel into 8 ohms and 160 watts per channel into 4 ohms. Digital signals are handled by the ES9038Pro 32 bit DAC, which supports high resolution audio up to PCM 768kHz and DSD512 through PC USB. Optical and coaxial inputs accept signals up to 192kHz.

The 9000A can be used as an integrated amplifier, a preamplifier, or a power amplifier, depending on the needs of the system. It offers three analogue inputs, a balanced XLR input, a low noise moving magnet phono stage, and several digital connections. Bluetooth 5.1 is included for wireless streaming, with support for aptX, aptX HD, AAC, and LDAC formats. The built in headphone amplifier works with headphones rated from 20 to 600 ohms, making it suitable for a range of personal listening setups.

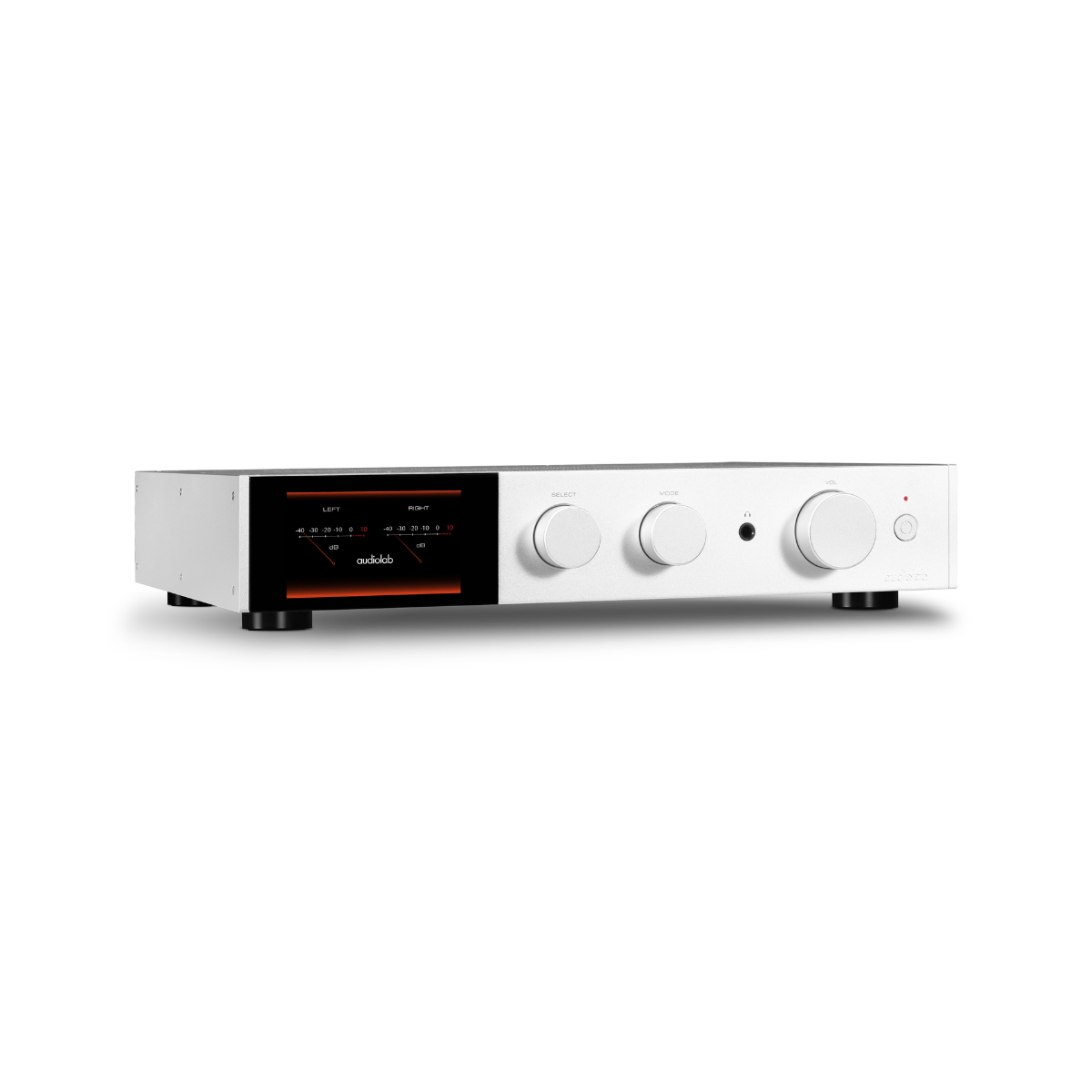

A 4.3 inch IPS LCD display on the front panel shows system status and settings. The unit measures 444mm wide, 89mm high, and 342mm deep, and weighs 9.4kg. It comes in black or silver finishes, so it can fit into different audio visual setups while providing steady power and a wide range of input options.

Details & Specs

Model Audiolab 9000A
General Description Integrated Amplifier
Design Philosophy and Core Technology 2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB
ES9038Pro 32-bit DAC
4.3" (800 x 480px) Large Size Full View IPS LCD
Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support
Dedicated High-performance, Low-noise MM Phono Stage
Dedicated Current-Feedback Headphone AMP
Integrated / PRE-POWER / PRE Only Modes
USB Upgrade Support

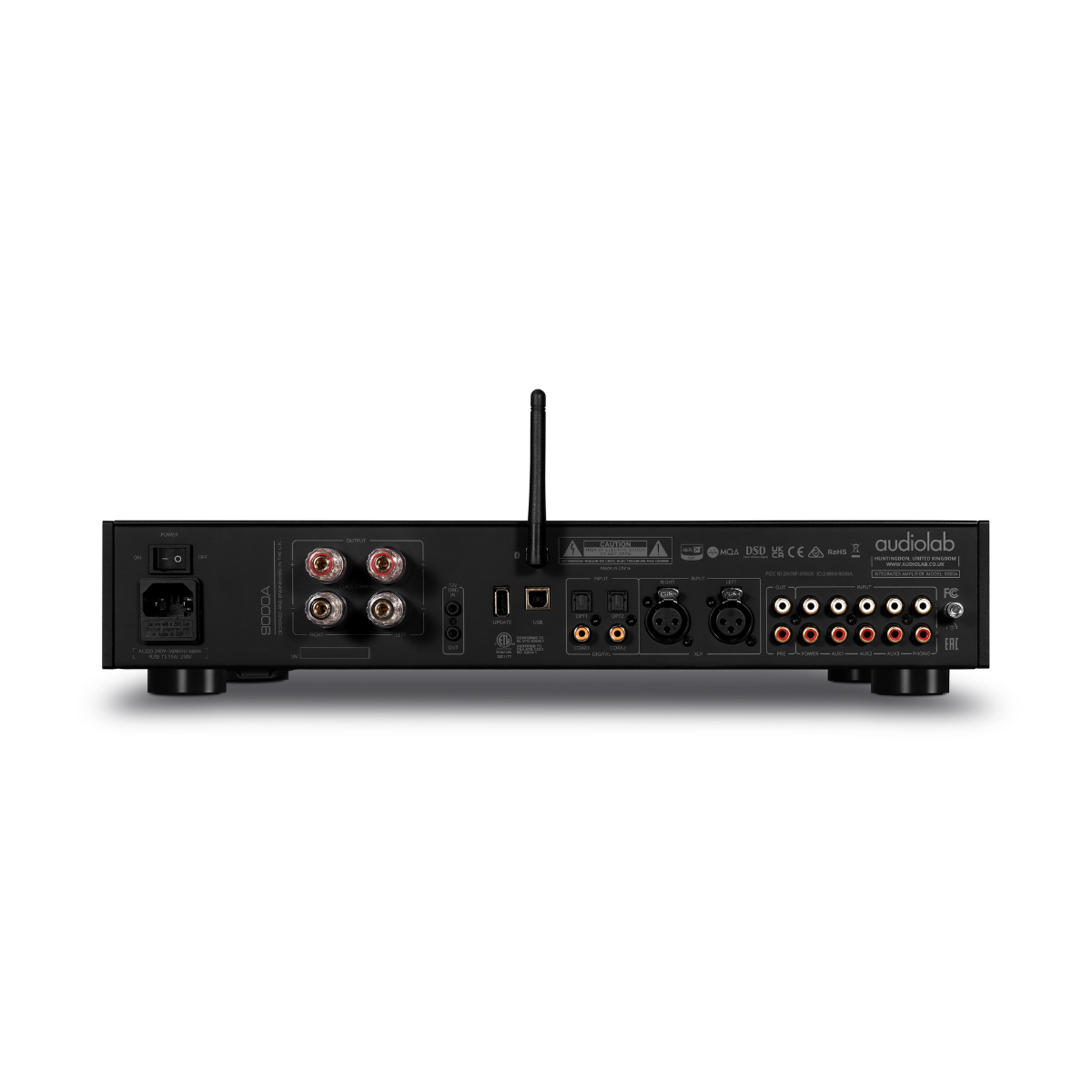

Inputs 3 x Analogue
1 x XLR
1 x Phono (MM)
1 x Power Amplifier
2 x SPDIF (Coax)
2 x SPDIF (Optical)
1 x PC USB (USB B - Windows / macOS only)
1 x Bluetooth (aptX/aptX HD/LDAC)
1 x 12V Trigger
Outputs 1 x PRE Amplifier
1 x Stereo Speaker
1 x Headphone
1 x 12V Trigger
Sampling Frequency Optical / Coaxial: 44.1kHz-192kHz
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain (max.) +6dB (Line), +53dB (Phono MM)
Input Sensitivity 1Vrms (Line, Volume = 0dB)
2Vrms (XLR, Volume = 0dB)
4.4mV (Phono MM, Volume = 0dB)
Input Impedance 10K (Line)
47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 120 ohms
Signal-to-Noise Ratio > 110dB (Line & XLR, A-weighted)
> 80dB (Phono MM, A-weighted)
DAC
D to A Converter ES9038Pro
Total Harmonic Distortion (THD) < 0.001% (1kHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Max. Sampling Frequency Optical, Coaxial: 192kHz
PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N) > 117dB (A-weighted)
Power Amplifier Section
Gain +29dB
Rated Power Output 2 x 100W (8 ohms, THD<1%)
2 x 160W (4 ohms, THD<1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) <0.002% (1kHz @ 50W / 8 ohms)
Input Sensitivity 1Vrms
Signal-to-Noise Ratio (S/N) > 110dB (A-weighted)
Max. Output Current 15A
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 2.35 ohms
Load Impedance 20-600 ohms
General
Standby Power Consumption <0.5W
Net Weight 9.4kg
Gross Weight 11.2kg
Dimensions (W x H x D) 444 x 89 x 342 mm
Carton Size (W x H x D) 514 x 470 x 161 mm
Finish Black / Silver
Power Requirements 220-240V ~ 50/60Hz
100-120V ~ 50/60Hz (depending on region)

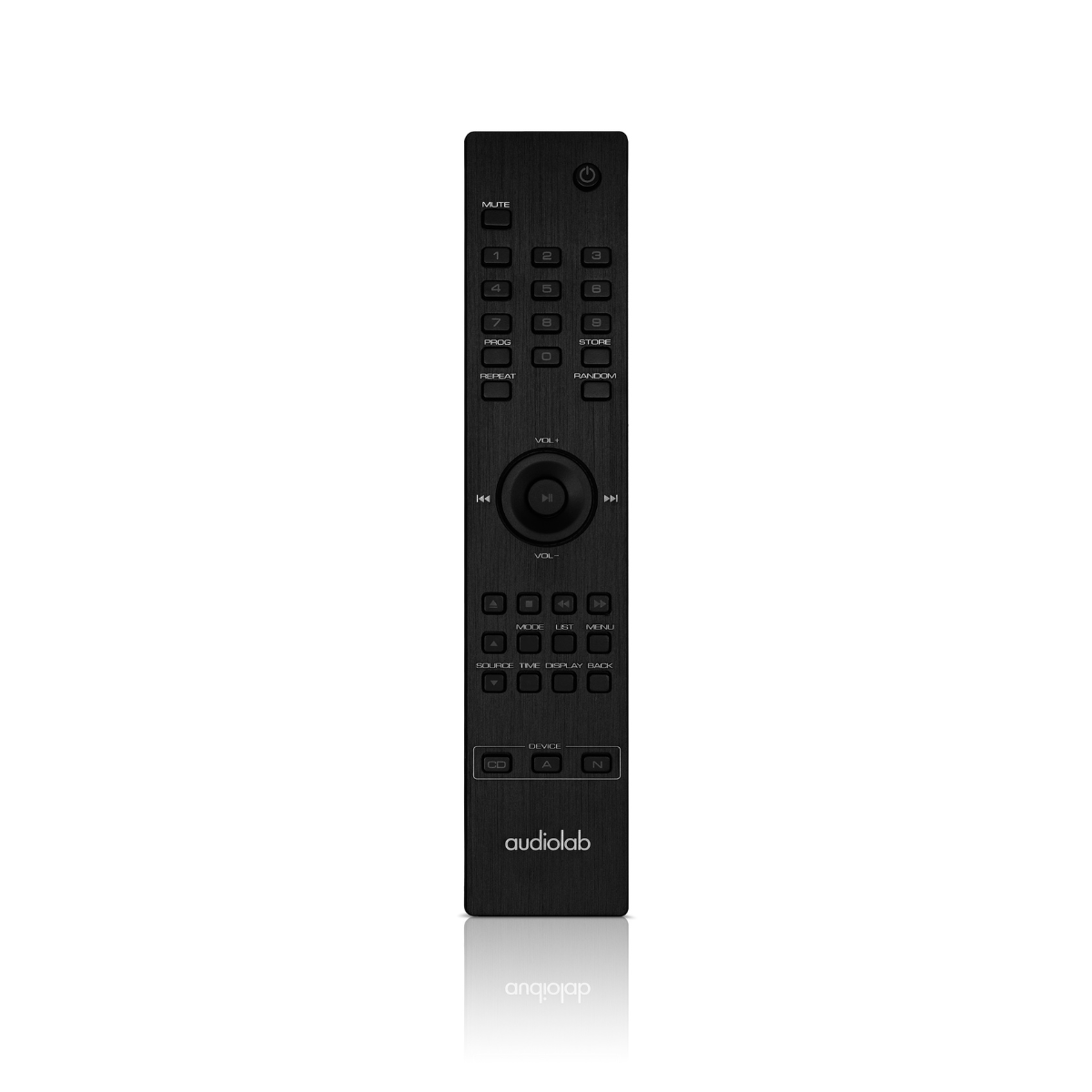

Standard Accessories Power Cord, Remote Control, User Manual, Antennas, etc.
