Audiolab 7000N Play

Wireless Audio Streaming Player

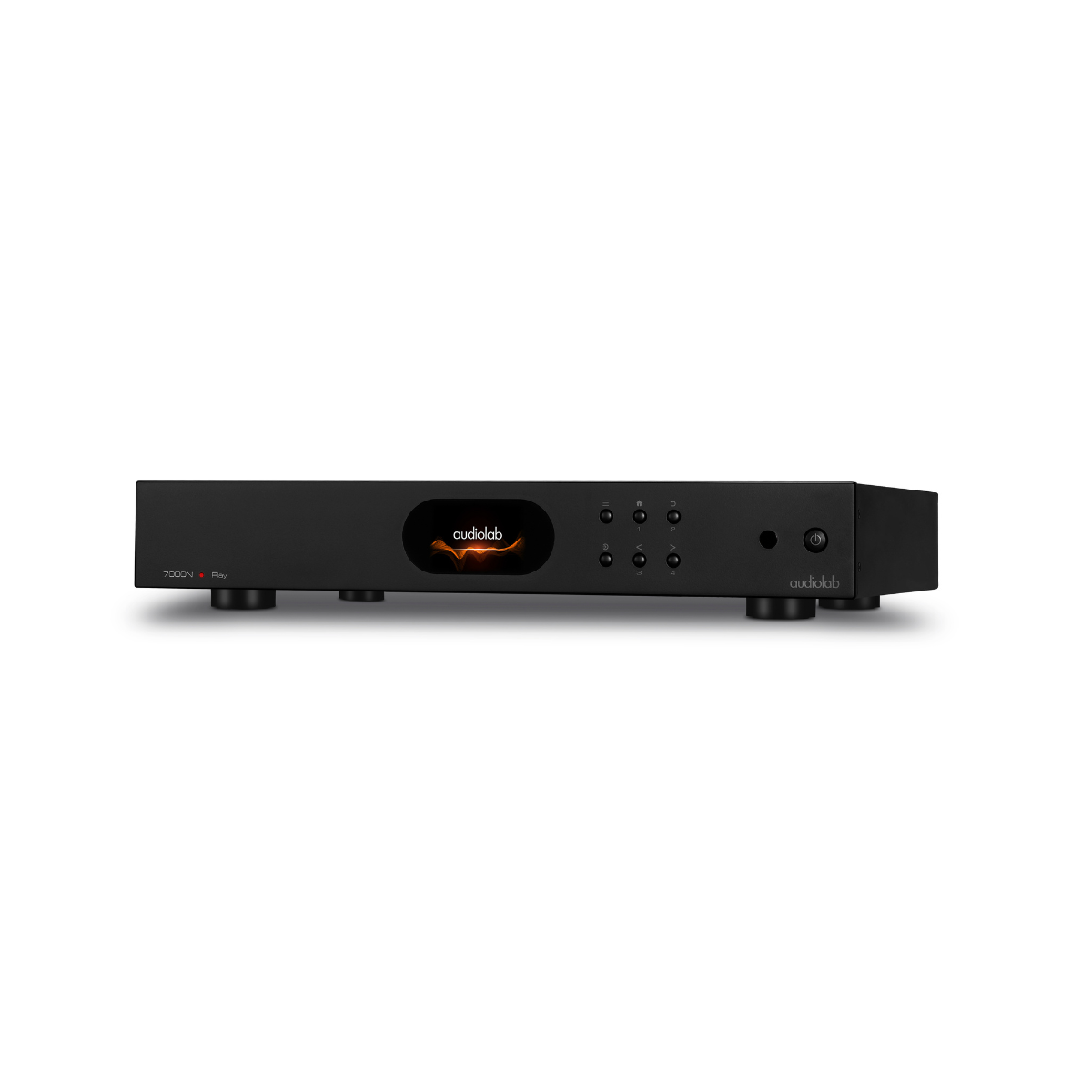

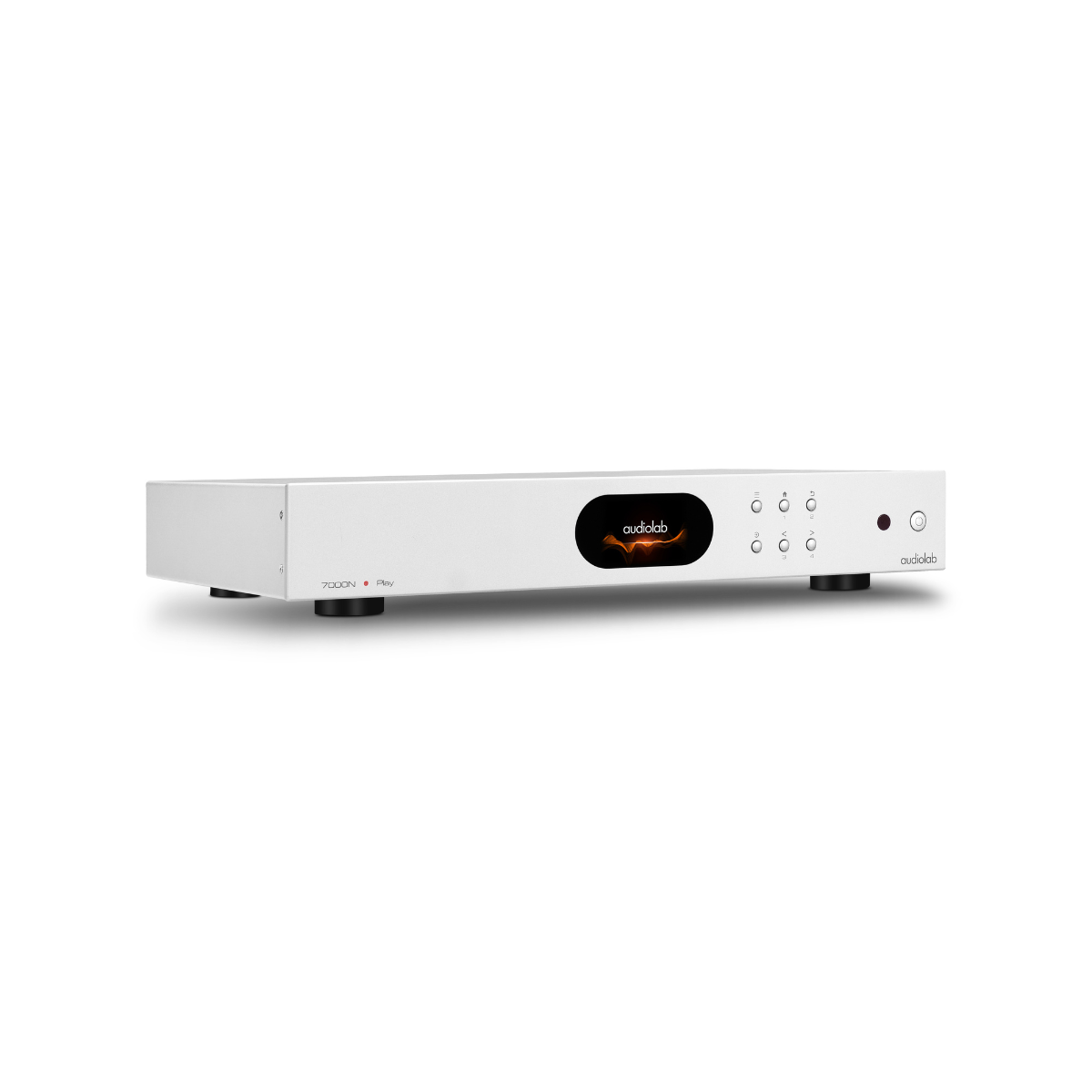

Audiolab 7000N Play

Wireless Audio Streaming Player
$999.00
Select Color:


Overview

Deliver high resolution streaming to traditional sound system setup configurations using the Audiolab 7000N Play. Featuring an ESS Sabre ES9038Q2M DAC, DTS Play Fi, Apple AirPlay 2, and digital or analog outputs, this unit provides versatile audio visual solutions for whole home playback.

Audiolab 7000N Play adds high resolution wireless streaming to sound systems that are already in place. At its core is an ESS Sabre ES9038Q2M digital to analog converter, which handles audio files up to 192kHz and 24 bit. The signal to noise ratio is over 115dB, so audio stays clean. An isolated power supply helps keep electrical noise away from sensitive audio parts.

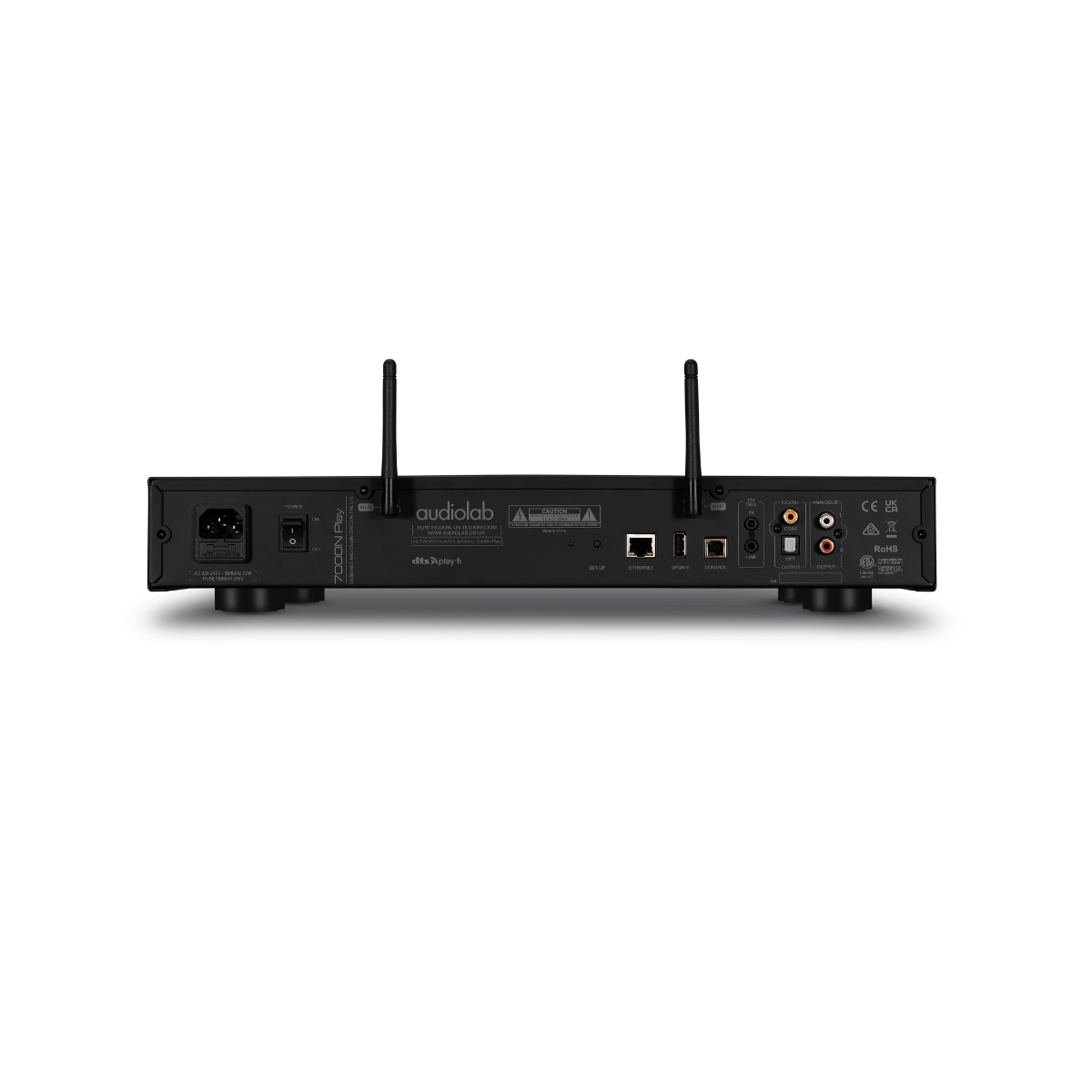

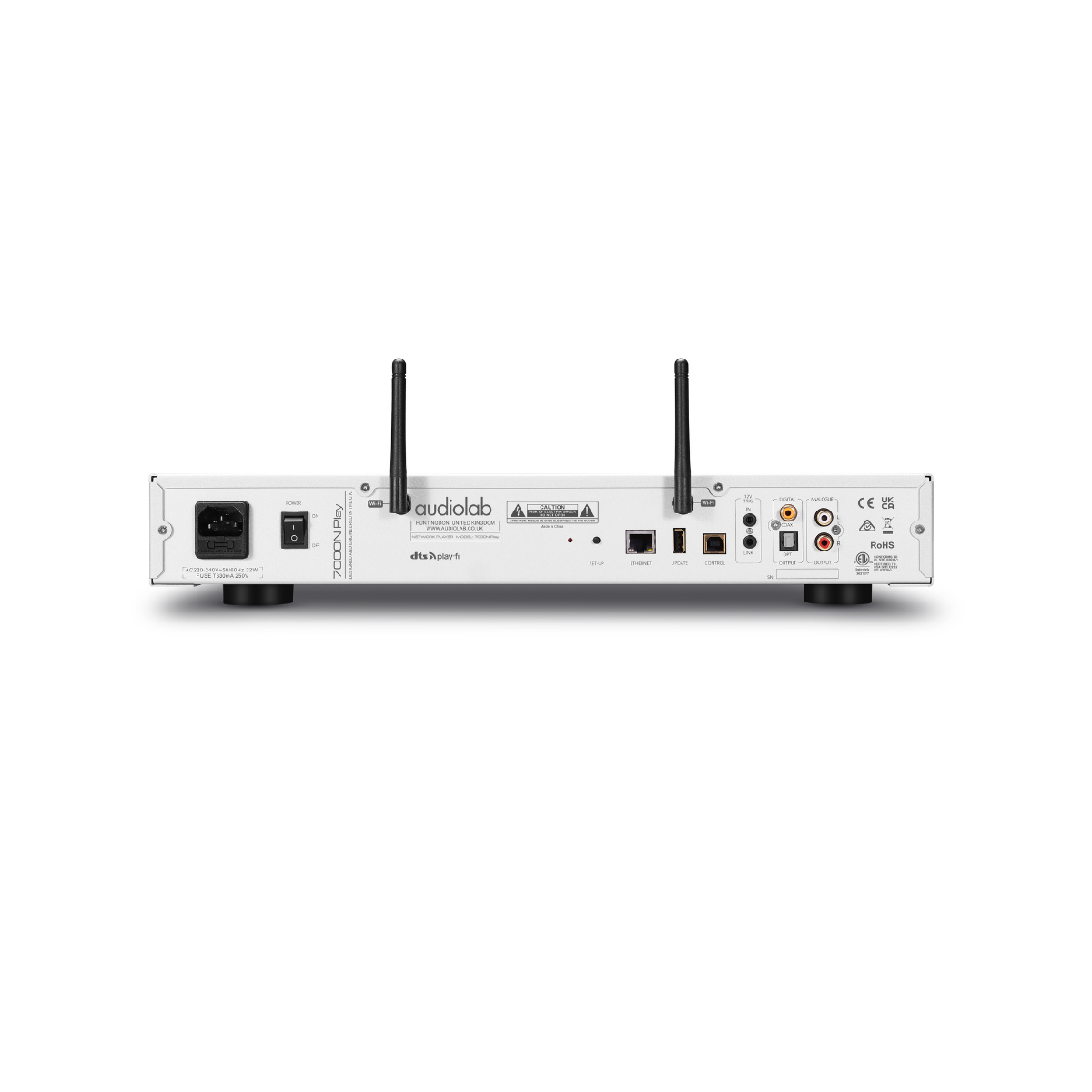

DTS Play Fi and Apple AirPlay 2 support make it easy to add the 7000N Play to most home audio setups. Control works with iOS, Android, Kindle Fire, and Windows PCs. Music can come from services like Spotify, TIDAL, Amazon Music, and Qobuz, or from network attached storage drives. Multiple devices can be linked for playback throughout the house. Audio output is available through coaxial, optical, or analog RCA connections. An ethernet port is included for stable, high bandwidth streaming.

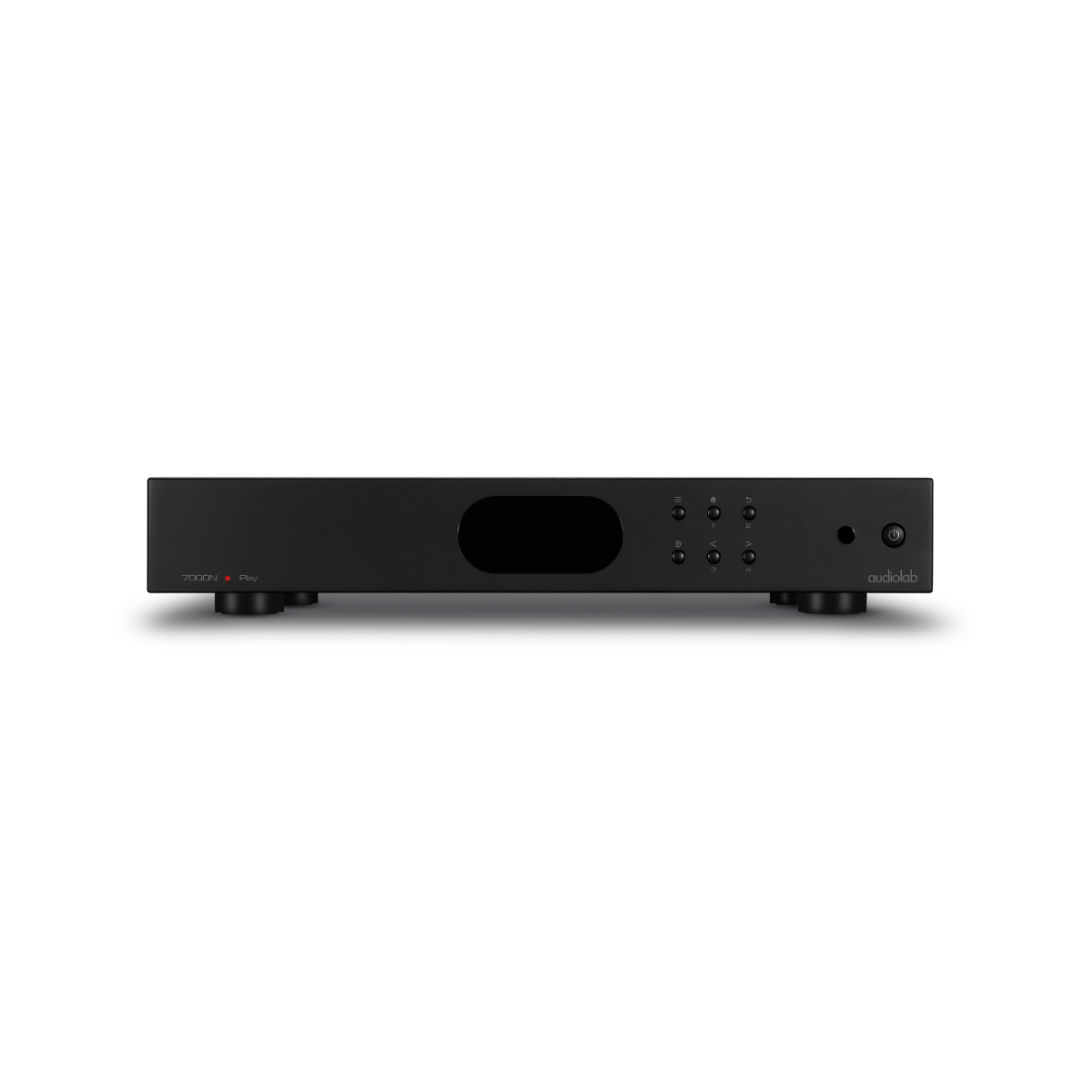

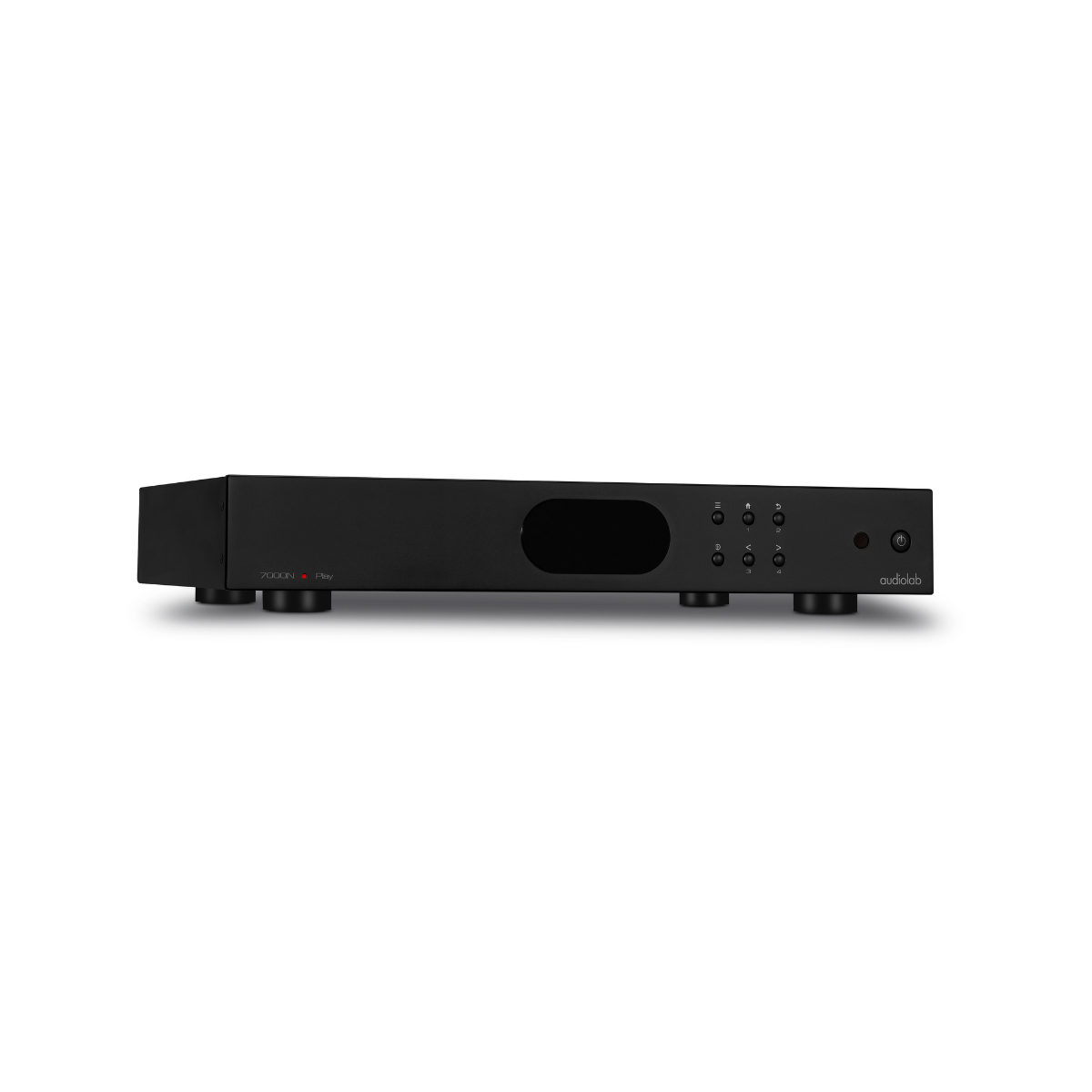

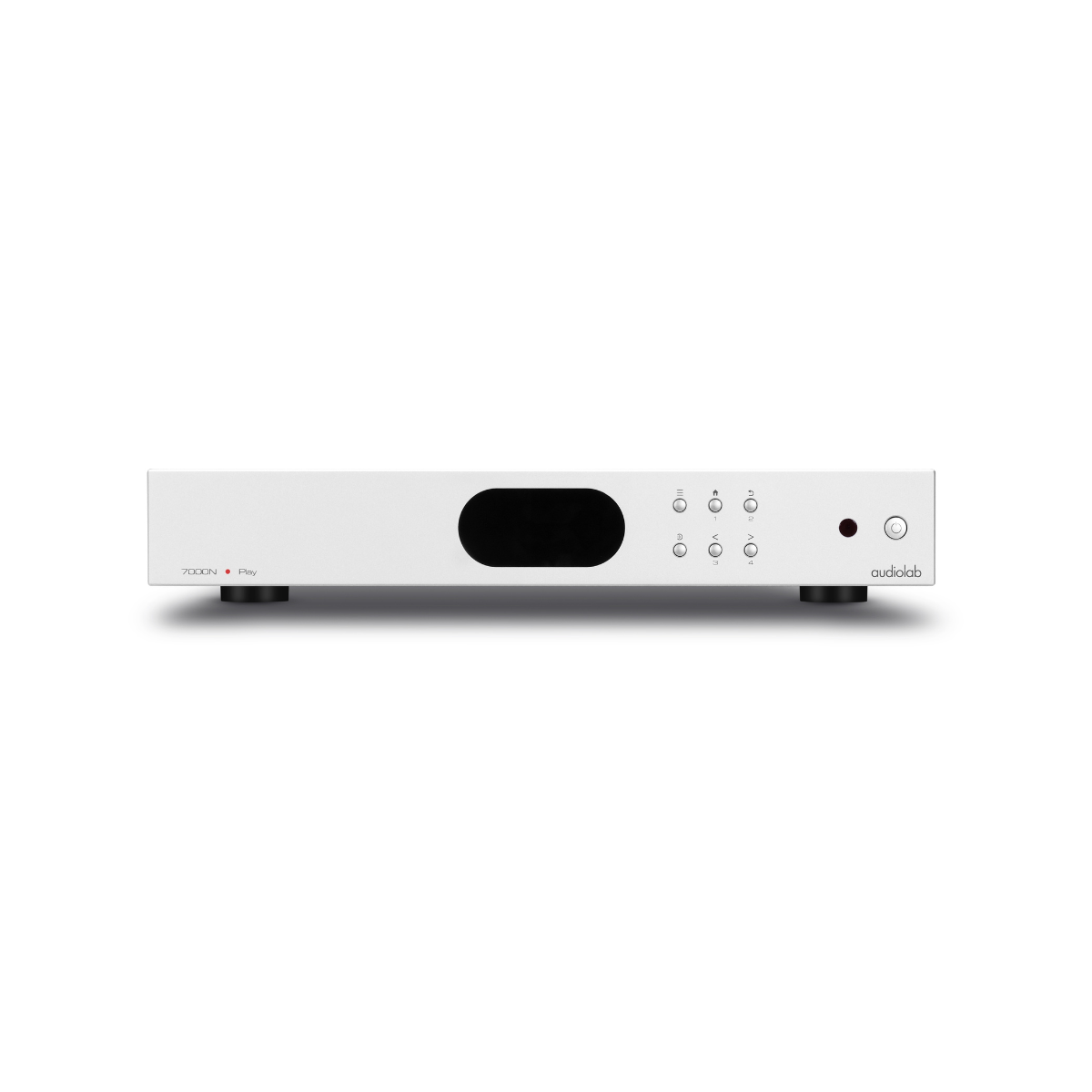

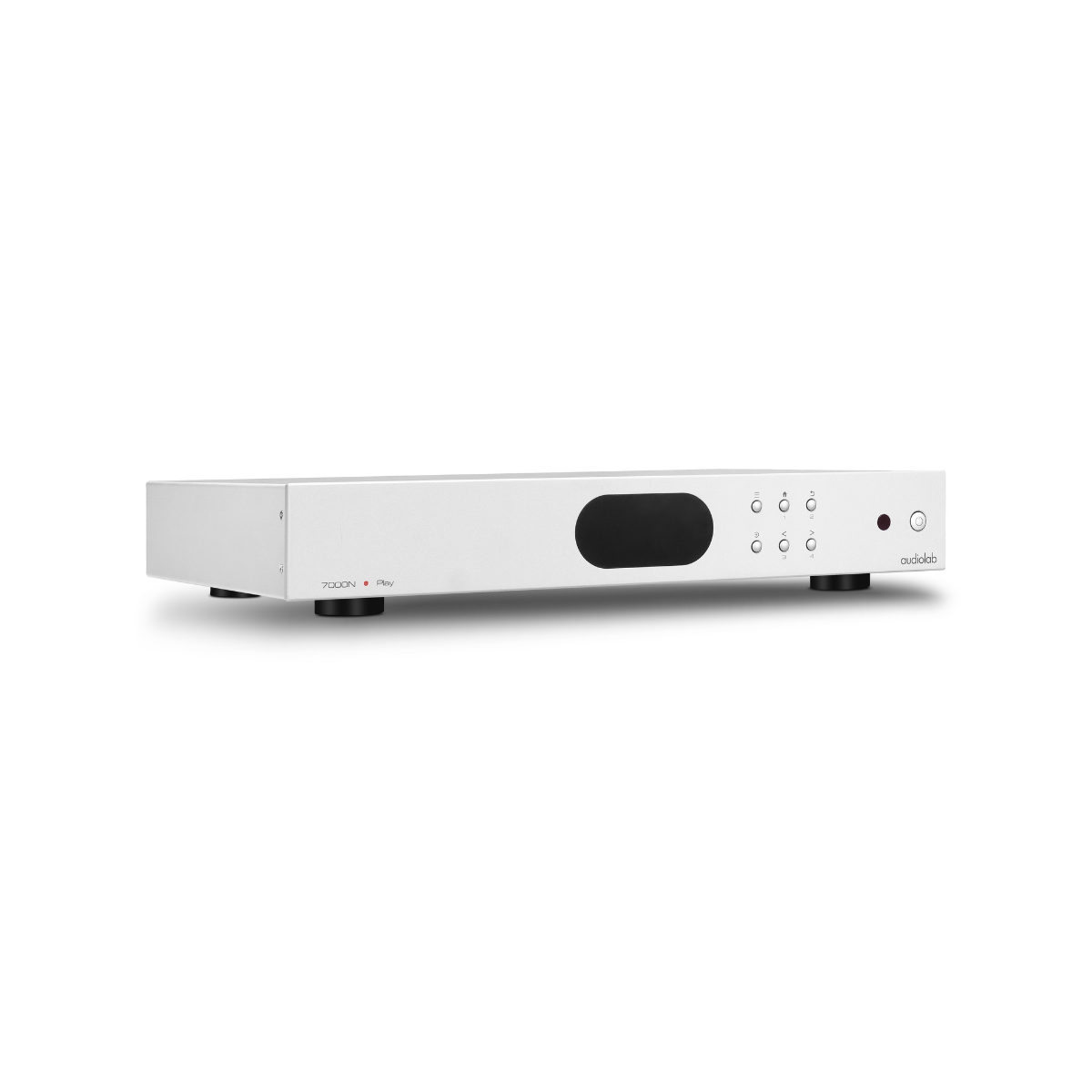

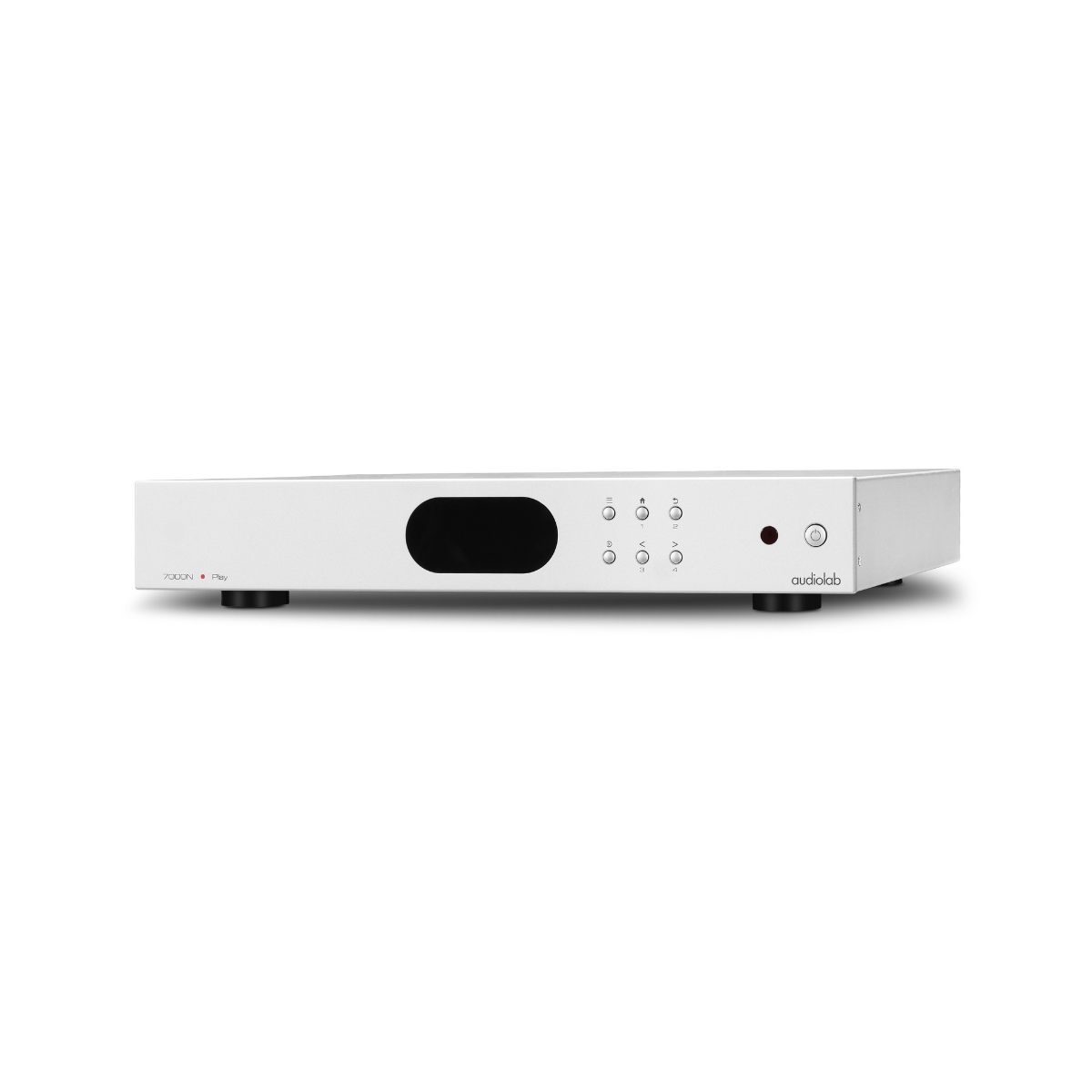

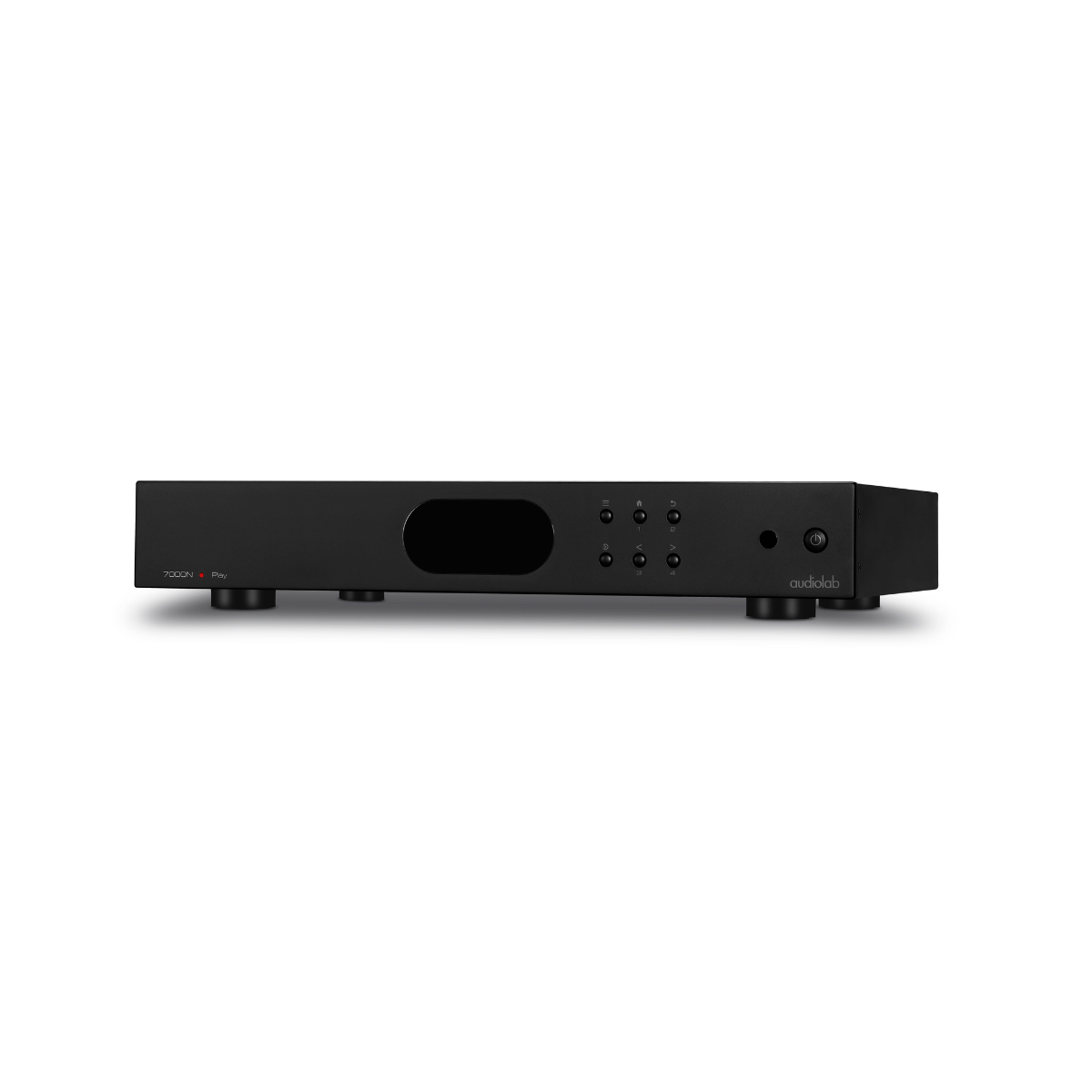

The front panel includes a 2.8 inch IPS LCD display that shows system status at a glance. A 12V trigger connection is available for system sync, and a USB 2.0 port allows for app based volume control. The chassis measures 444mm wide and 340mm deep. Power use in standby mode is low, which suits both commercial AV installations and home media rooms where equipment stays on for long periods.

Details & Specs

Model 7000N Play
General Description Wireless Audio Streaming Player
Design Philosophy and Core Technology ESS Sabre ES9038Q2M Reference DAC
Isolated Power Supply
2.8" (480 x 640px) Full View IPS LCD
DTS Play-Fi Technology
Streaming Service Support includes Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQ Music and more
Apple Airplay 2 compatible
Multi-room / Multi Speaker Group Support
Android / iOS / Kindle Fire / Windows PC Control Support
Automatic Equipment Activation Via 12V Trigger And Link
Wired Internet Connection For High Bandwidth Applications
USB Firmware Upgrade Input
Digital Section
Digital Output Intensity 500 +/- 50mVpp
Output Impedance 75 ohms
Frequency Response -0.01dB (20Hz-20kHz, ref.1kHz)
Max. Sampling Frequency 192kHz / 24-bit
Digital Outputs 1 x Coaxial, 1 x Optical, 1 x RCA Line Output
D to A Converter
Variable Output Voltage 0 – 2.1V
DAC ES9038Q2M
Frequency Response +/-0.5dB (20Hz-20kHz, ref.1kHz)
Total Harmonic Distortion (THD) <0.0005% (1kHz @2.1Vrms)
Max. Sampling Frequency 192kHz / 24-bit
Signal-to-Noise Ratio (S/N) >115dB (A-weighted)
Output Impedance 100 ohms
General
Standby Power Consumption <0.5W
Dimensions (mm) (W x D x H) 444 x 340 x 78
Carton Size (mm) (W x D x H) 500 x 455 x 140
Net Weight 5.0kg
Gross Weight 6.1kg
Finish Black / Silver
Power Requirements (depending on region) 220-240V ~ 50/60Hz
100-120V ~ 50/60Hz
Safety Regulation Conformity 20-600 ohms
Standard Accessories Power Cord, USB Cable, User Manual
