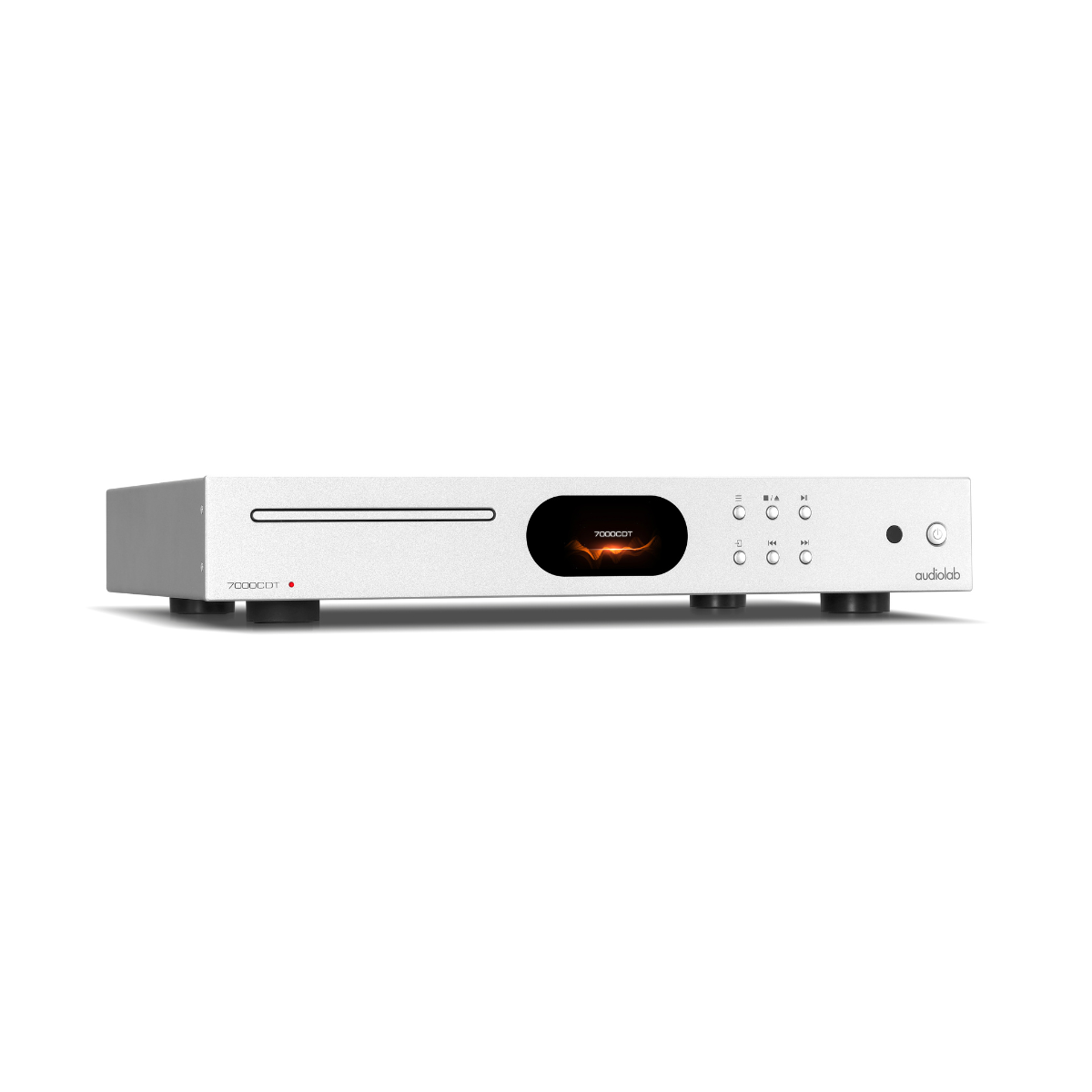

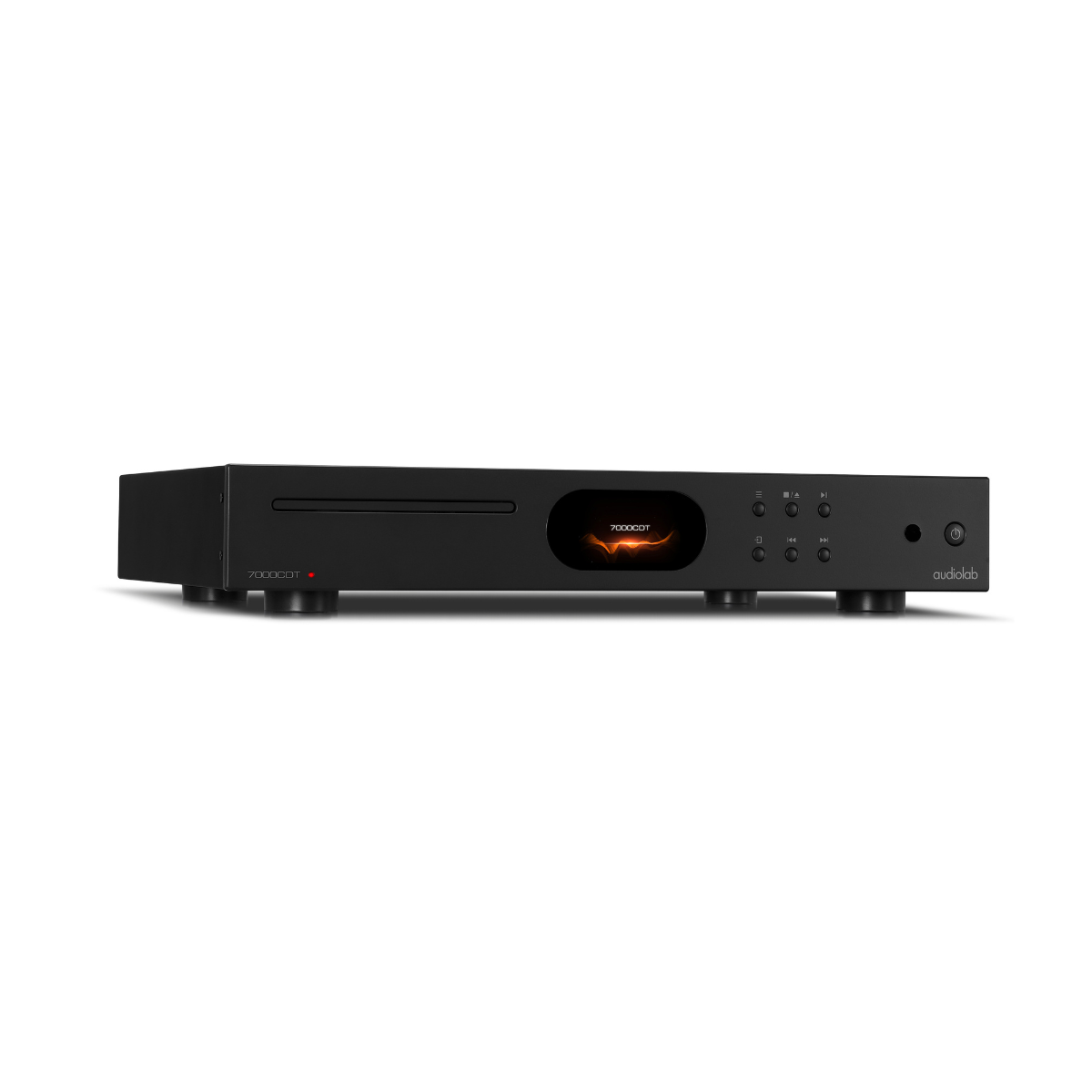

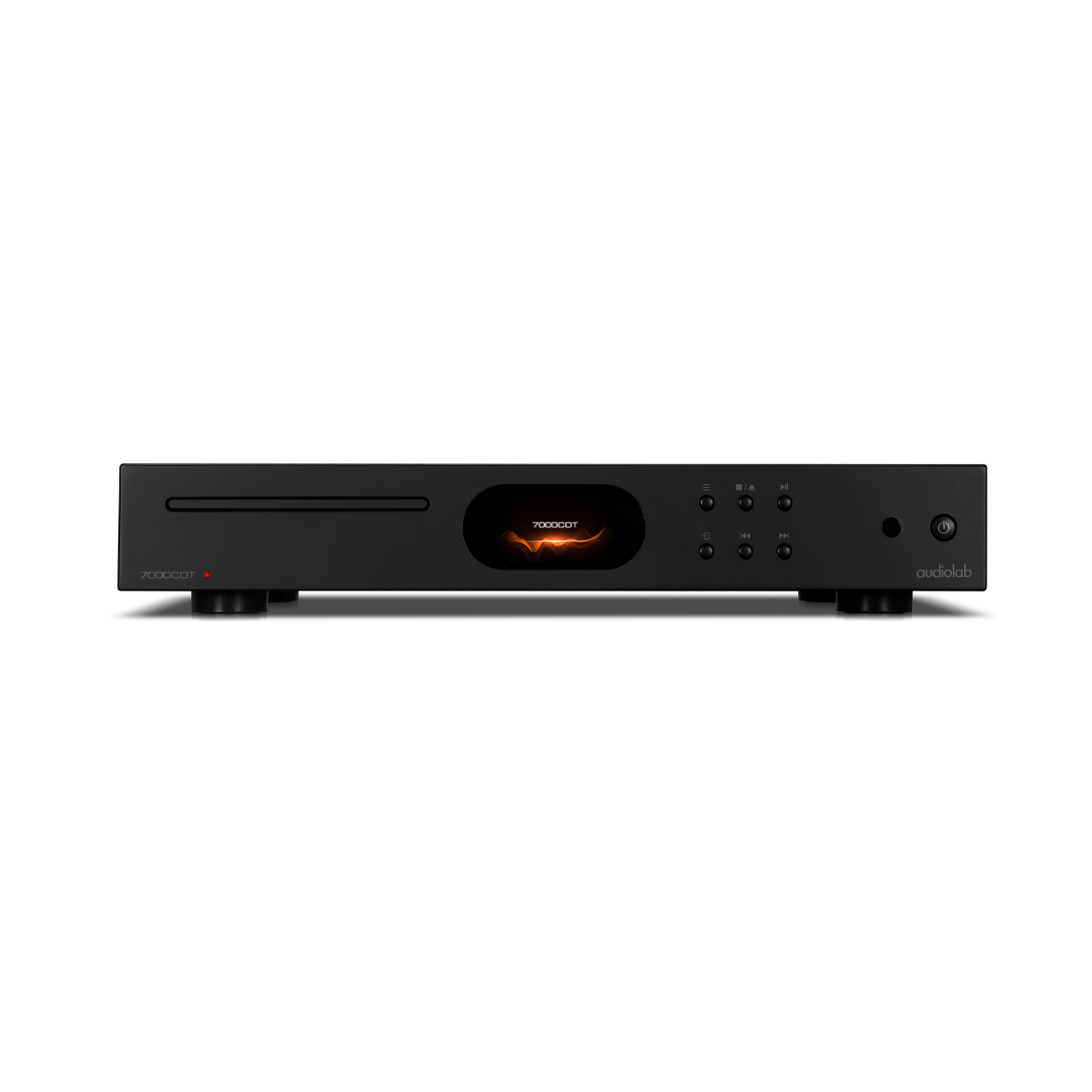

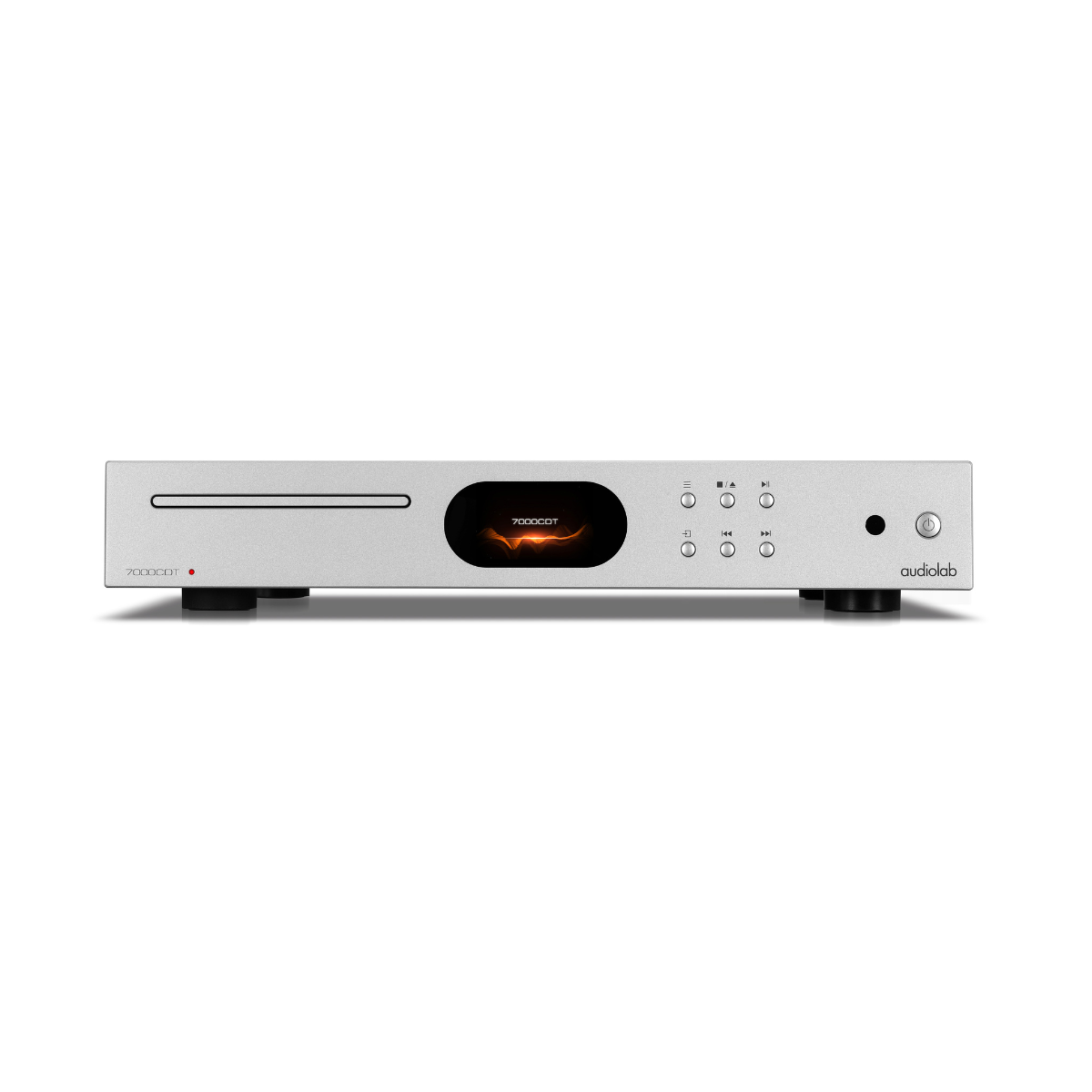

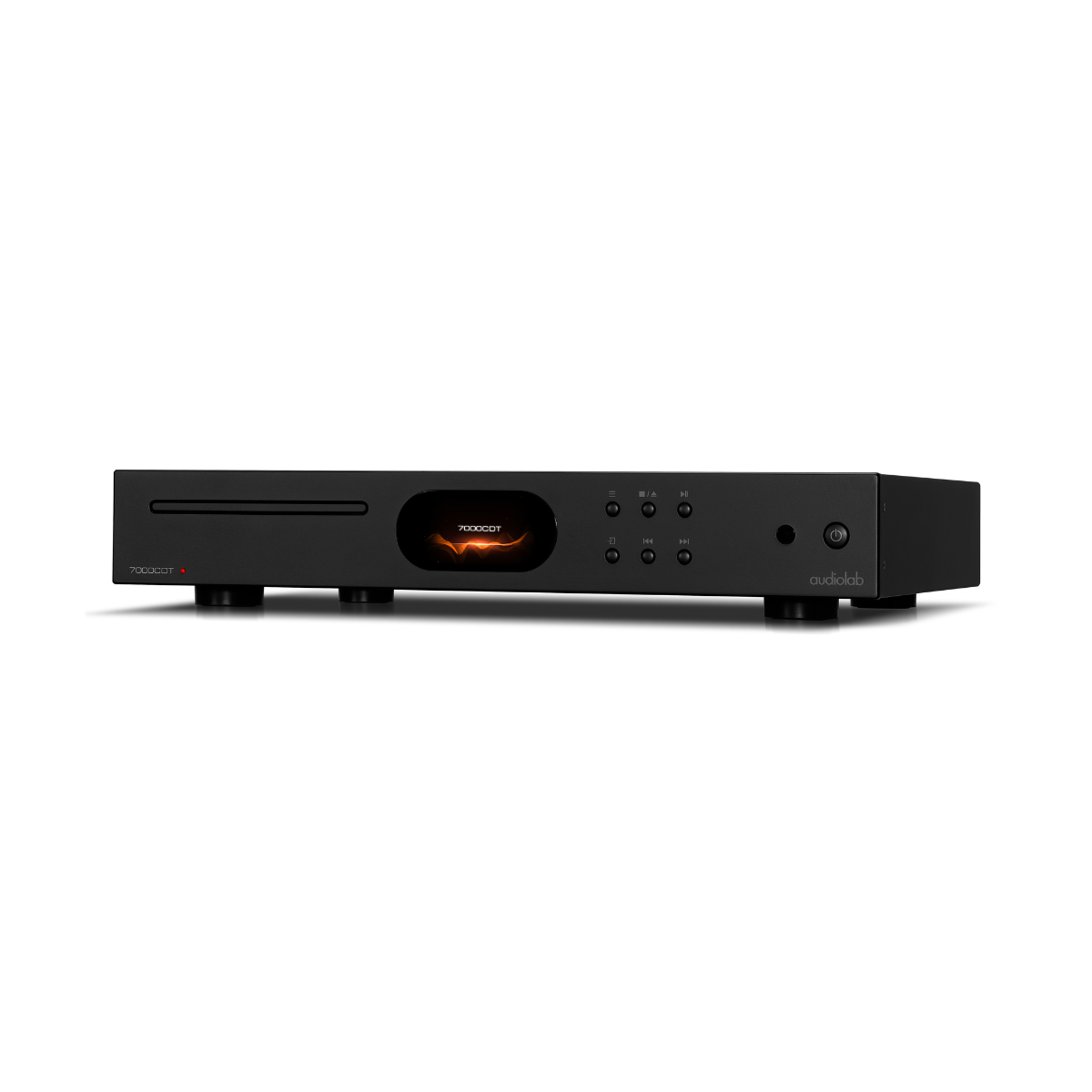

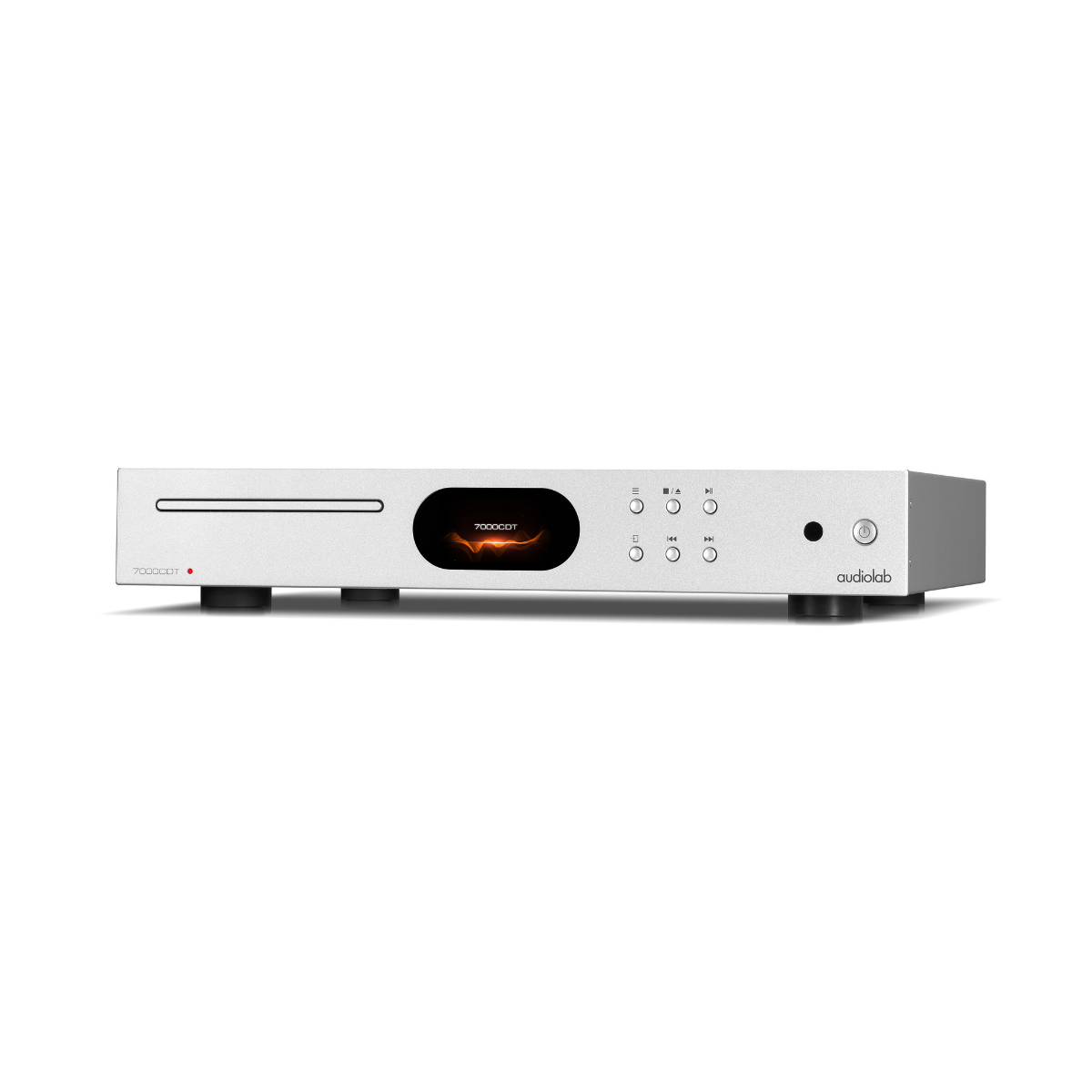

Audiolab 7000CDT

CD Transport

Audiolab 7000CDT

CD Transport
$999.00
Select Color:


Overview

Streamline physical media playback with the Audiolab 7000CDT. Packed with a high precision CD mechanism, USB media support, and dual digital outputs, this transport brings clean signals and straightforward functionality to any classic sound system setup.

Audiolab 7000CDT is built to read physical media and send a clean digital signal to an external converter or amplifier. A precise optical system tracks standard compact discs, CD R discs, and CD RW discs while keeping noise to a minimum. The signal is available through either a coaxial or optical output, with a fixed 44.1kHz sampling rate and harmonic distortion below 0.002 percent.

The front USB port lets the player work as a digital media player in modern systems. Plugging in a flash drive or external drive formatted in FAT12, FAT16, or FAT32 gives direct playback of MP3, WMA, AAC, and WAV files. Track information appears on a 480 by 640 pixel full color IPS LCD screen. Built in brightness controls help reduce screen glow for late night listening.

The player is easy to add to a larger sound system. A 12V trigger input and link port allow automatic power sync with other equipment. The auto standby setting keeps idle power draw under 0.5 watts. With a chassis measuring 444mm wide and 322mm deep, it fits on standard equipment shelves and works well as a main component in custom audio visual setups.

Details & Specs

Model 7000CDT
General Description CD Transport
Design Philosophy and Core Technology Compatible with CD/CD-R/CD-RW
Support playing USB storage devices (MP3/WMA/AAC/WAV)
Display indication
Adjustable screen brightness
Activate the device automatically via 12V trigger
Auto standby function can be turned on or off
USB Storage Device Audio Format Support MP3, WMA, AAC, WAV format playback
USB Storage Device File System Support FAT12, FAT16 and FAT32 format
Digital Output Amplitude 500 +/-50mVpp
Output Impedance 75Ω
Frequency Response -0.01dB (20Hz-20kHz, ref.1kHz)
Total Harmonic Distortion (THD) < 0.002%
Sampling Rate 44.1kHz
Digital Output Interface 1 x Coaxial, 1 x Optical
Standby Power Consumption < 0.5W
Power Requirements (according to region) 220-240V - 50/60Hz
100-120V - 50/60Hz
Product Size (mm) (W x D x H) 444 x 322 x 78
Carton Size (mm) (W x D x H) 514 x 470 x 158
Net Weight 5.5kg
Gross Weight 7.4kg
