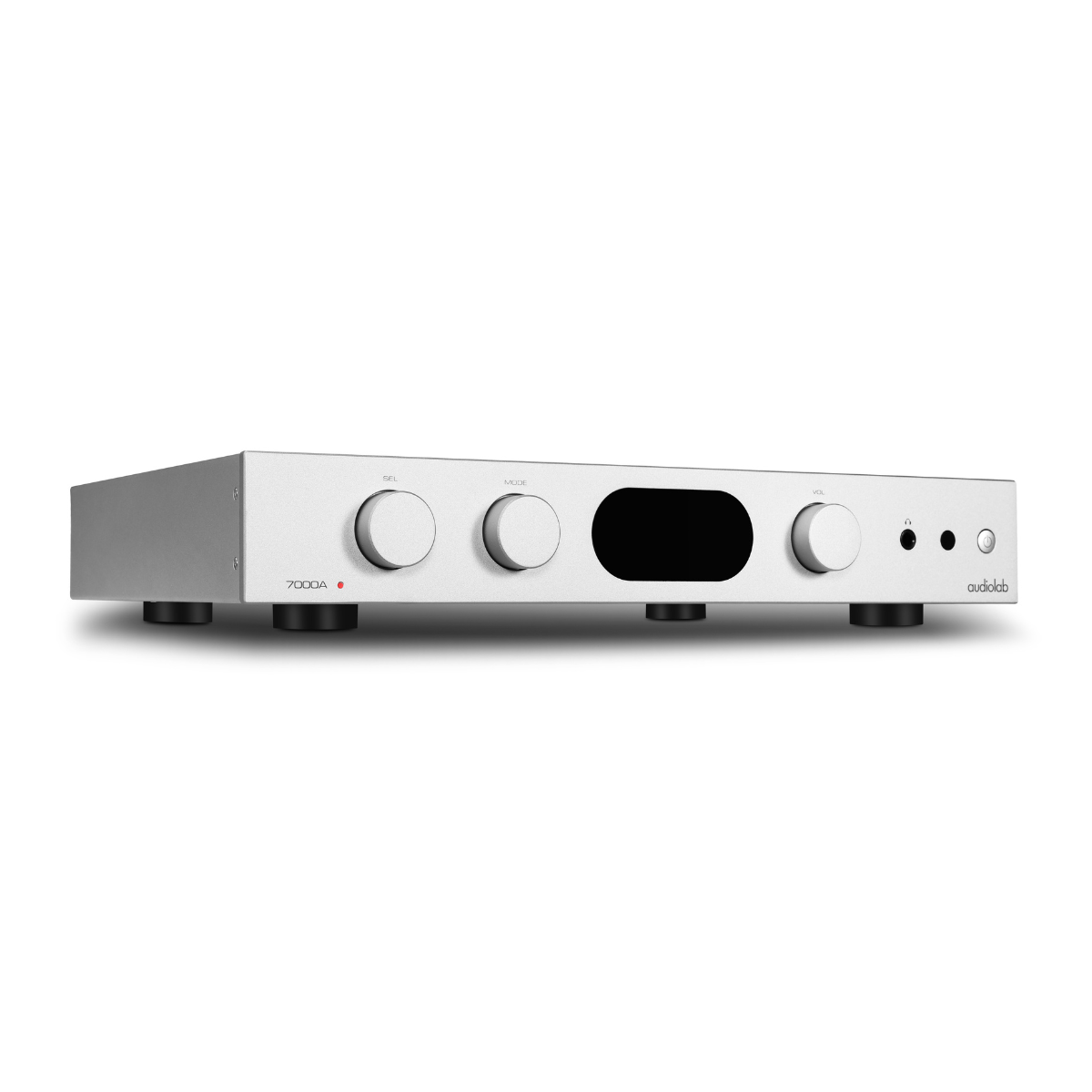

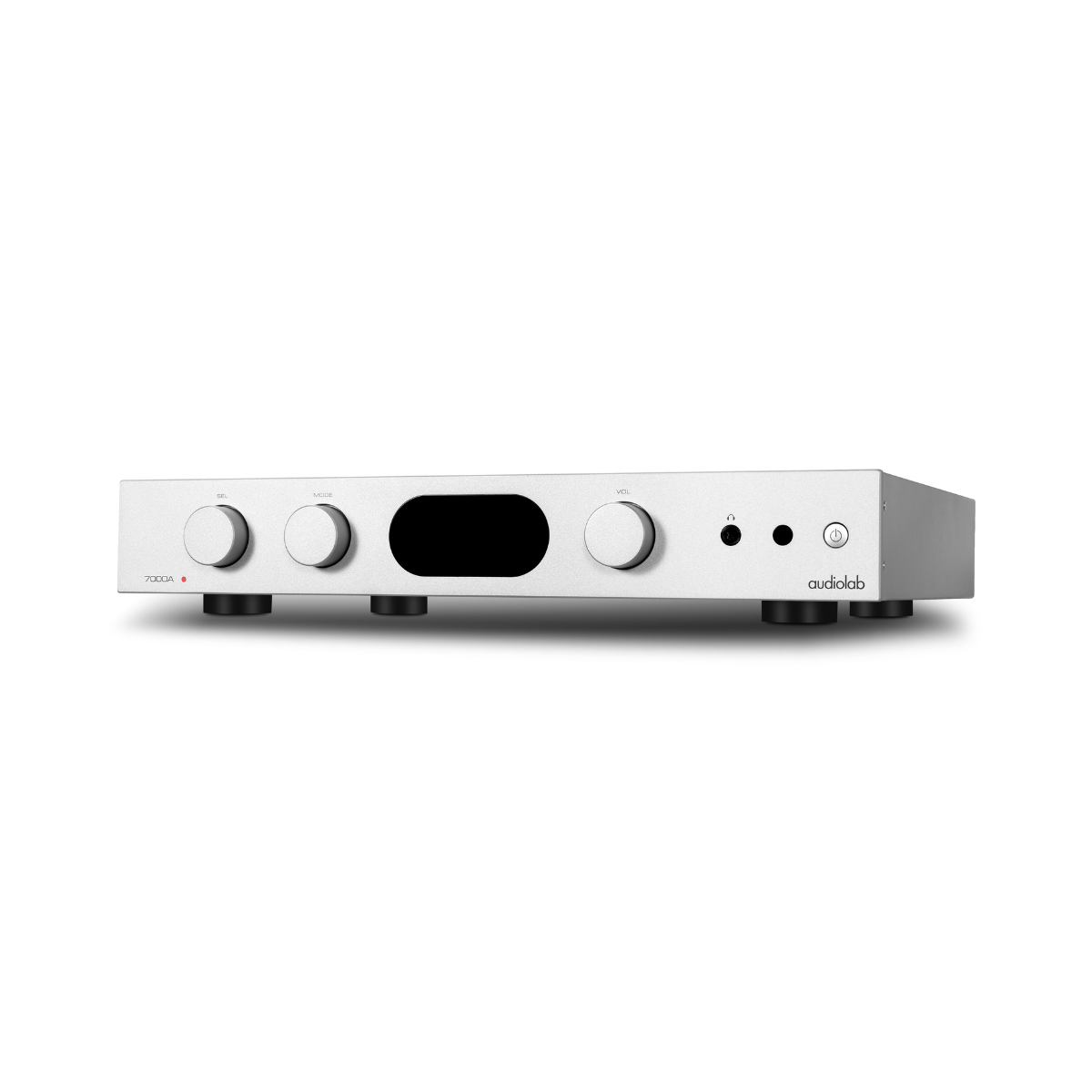

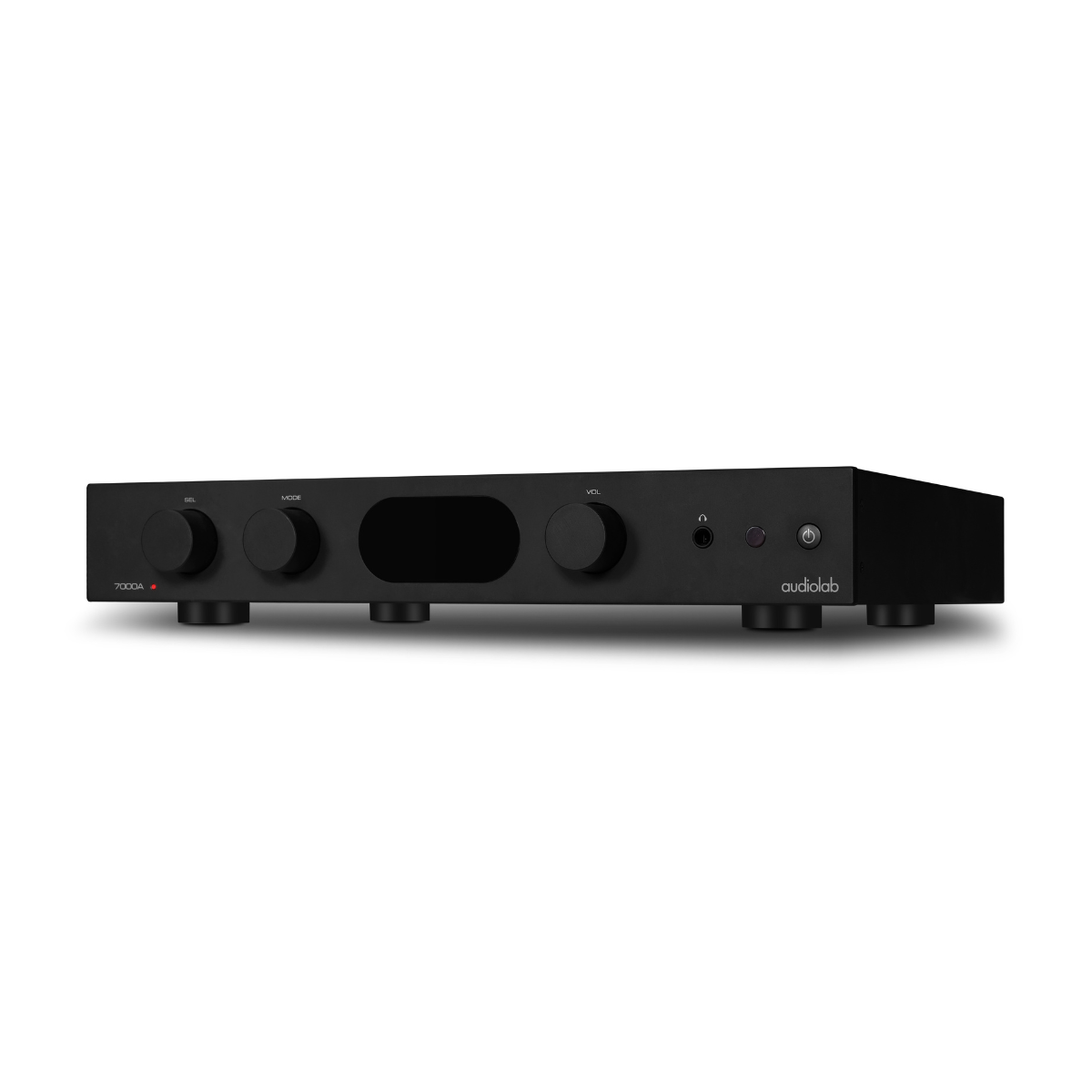

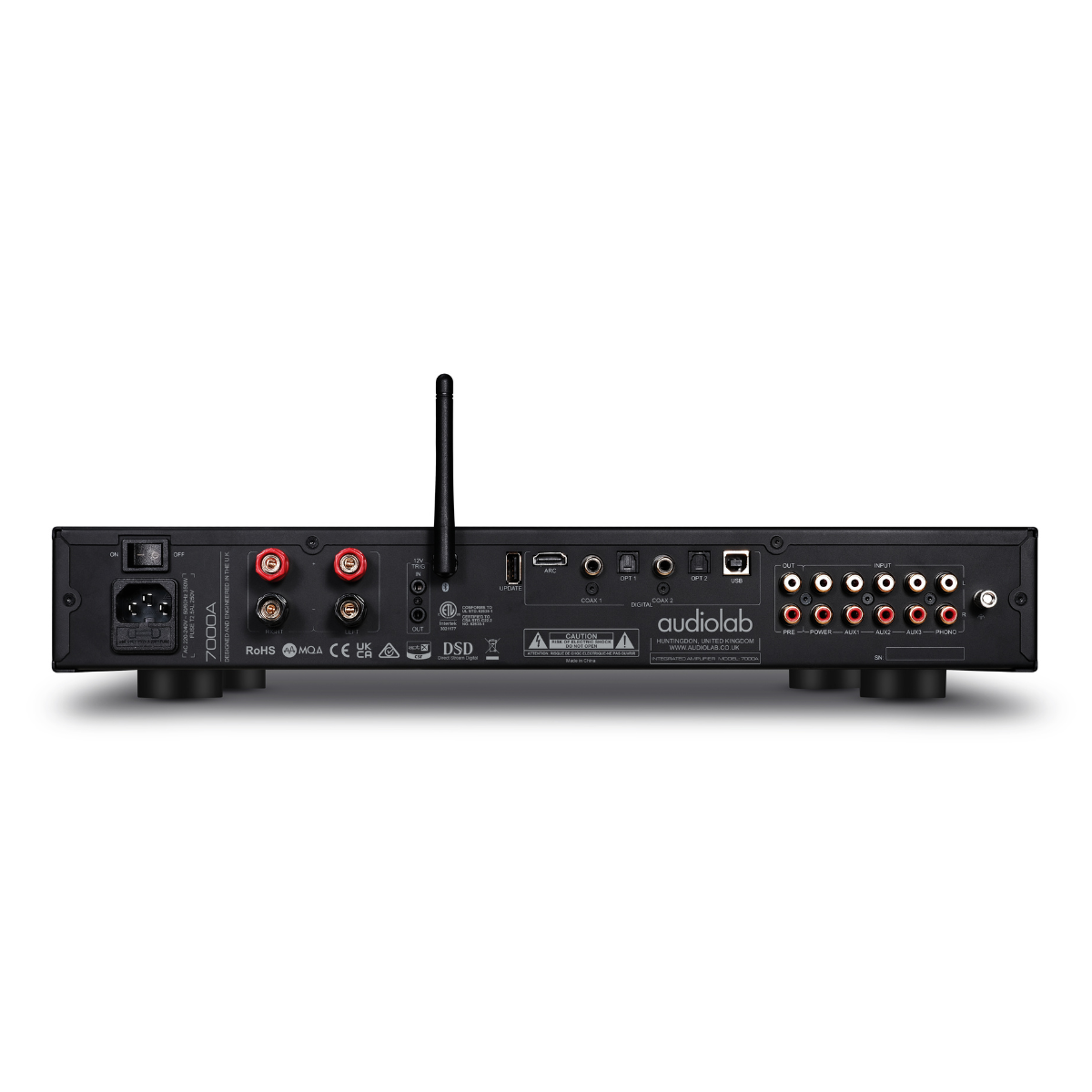

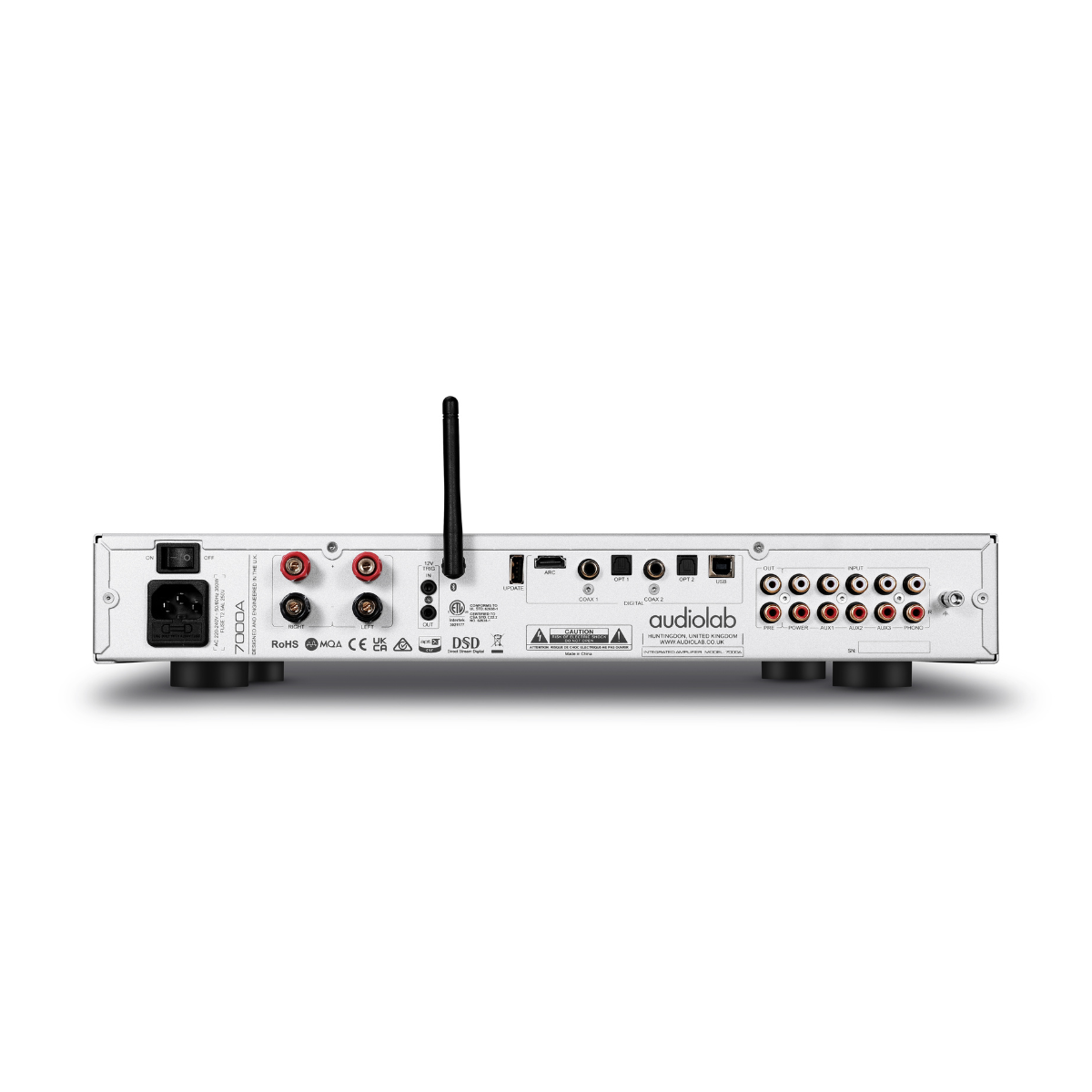

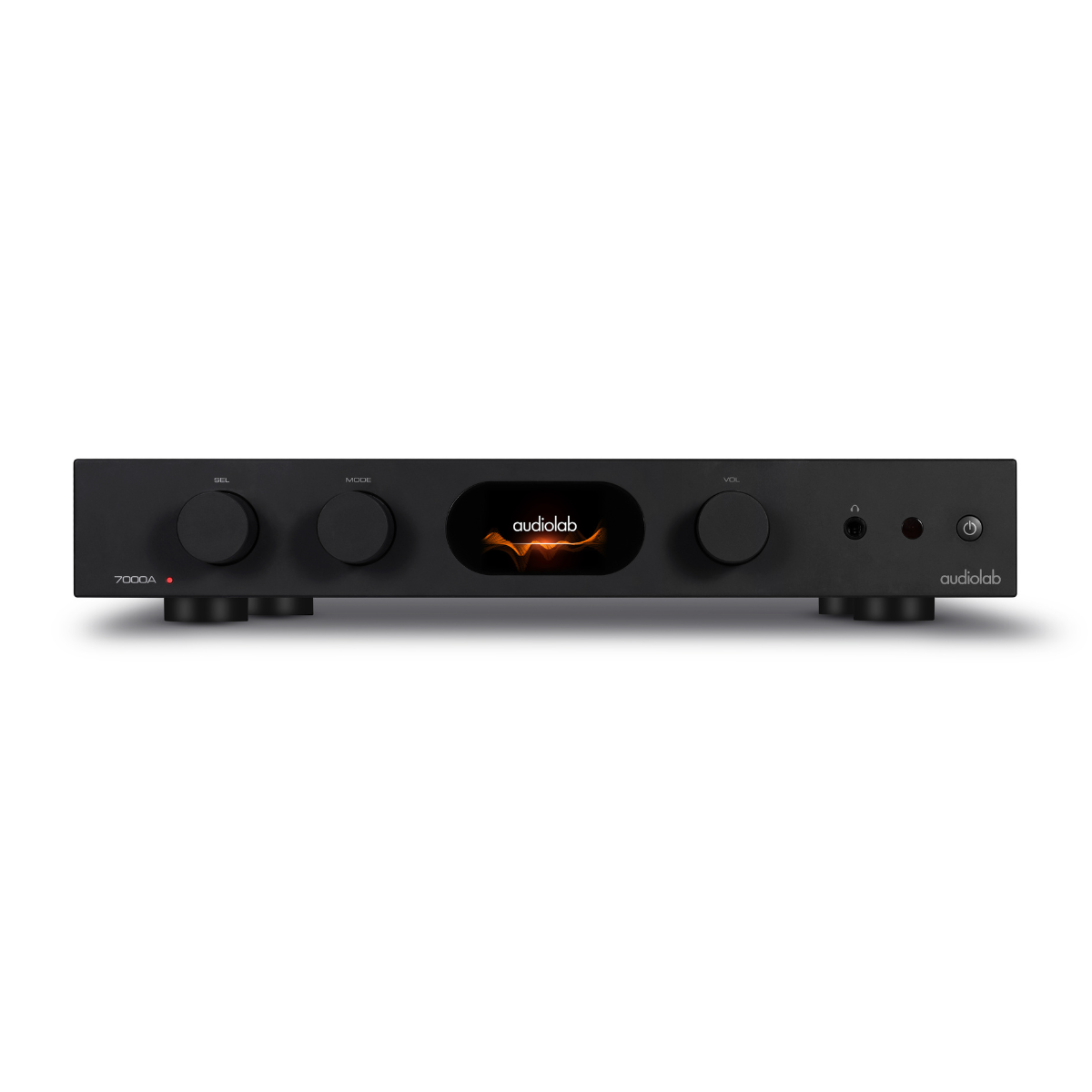

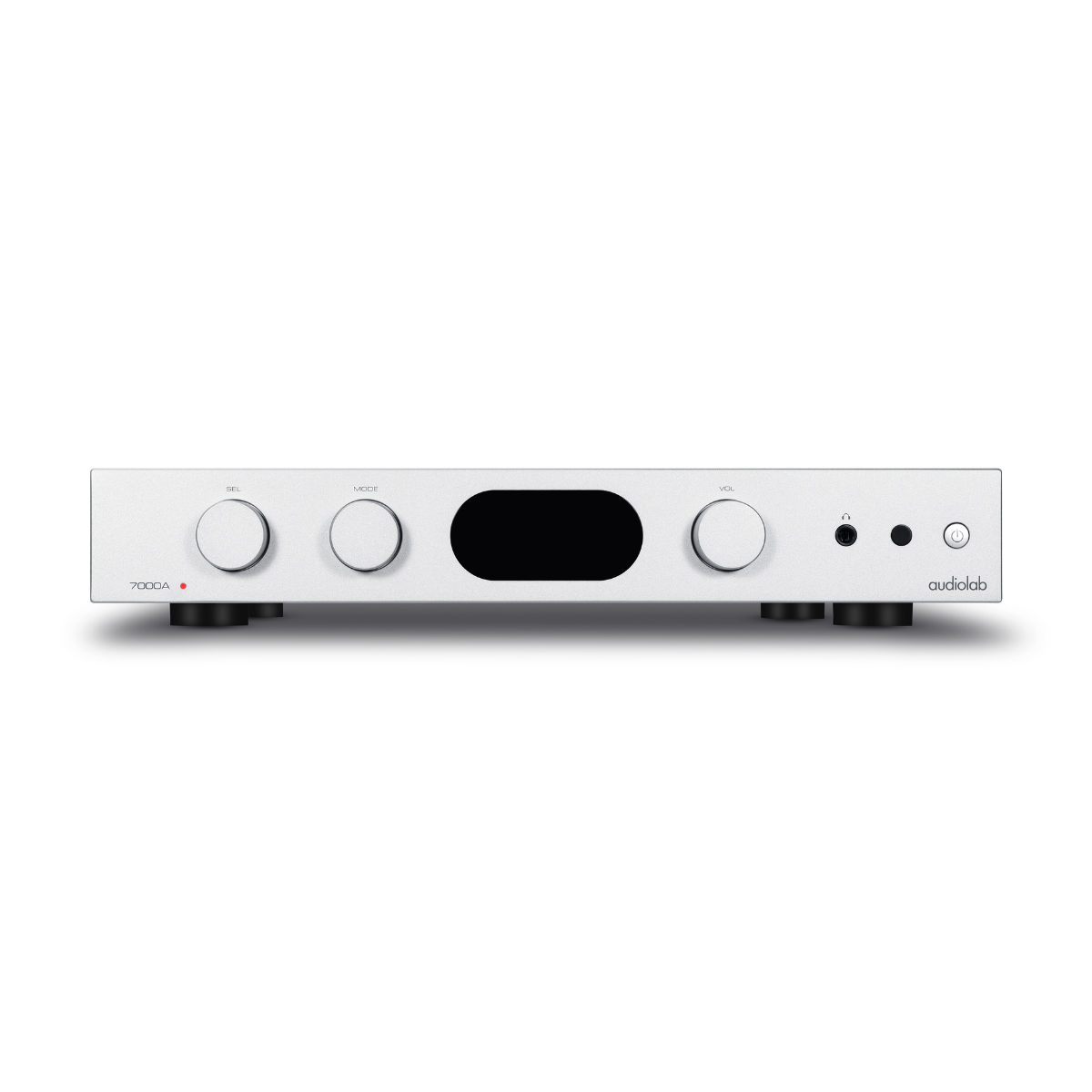

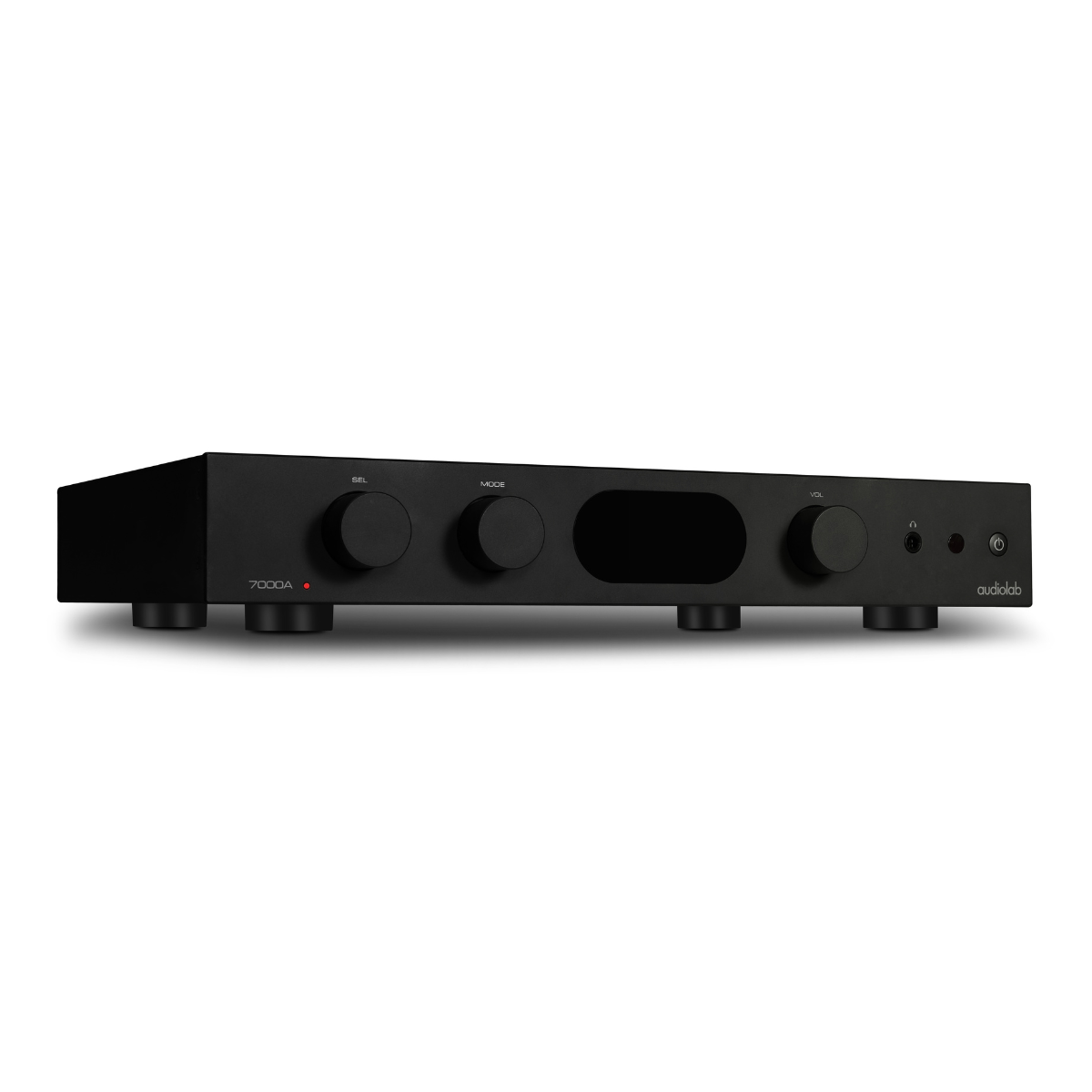

Audiolab 7000A

Integrated Amplifier

Audiolab 7000A

Integrated Amplifier
$1,999.00
Select Color:


Overview

Audiolab 7000A integrated amplifier features 70W per channel Class AB power, an ES9038Q2M DAC, and an HDMI ARC input. Offering flexible Pre and Power operating modes, it easily drives speakers, headphones, and turntables within any modern sound system setup.

The Audiolab 7000A is built as an integrated amplifier that handles both digital and analog sources. It delivers 70 watts per channel into 8 ohm speakers or 110 watts per channel into 4 ohm loads, so it can drive a range of speakers with ease. The amplifier can be set up in Integrated, Pre Power, or Pre Only modes, which means it can work as a main amplifier, a preamp, or just as a power amp depending on the system. A 2.8 inch IPS LCD screen shows system settings and digital VU meters, making it easy to check levels and adjust as needed.

Digital sources are handled by an ES9038Q2M 32 bit DAC, which supports high resolution audio up to 768kHz PCM and native DSD512 through the USB input. Optical and coaxial connections support up to 192kHz audio. For analog sources, there are three line level inputs and a low noise Moving Magnet phono stage for connecting a turntable. The amplifier also includes two optical and two coaxial digital inputs, as well as an HDMI ARC output. Output, and preamp output options for connecting to external amplifiers, a headphone output with its own current-feedback circuit for better sound quality, and standard speaker terminals. The amplifier can sync its power on/off with other equipment via 12V trigger ports. With a footprint of 444 by 340 by 78 millimeters, it fits well into most racks or shelves and serves as a solid base for home entertainment systems and tailored sound system setup projects.

Details & Specs

Model 7000A
General Description Integrated Amplifier
Design Philosophy and Core Technology 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB
ES9038Q2M 32-bit DAC
2.8" (480x640mm) Full View IPS LCD
Bluetooth 5.0 (aptX / aptX LL) Support
Low Noise Moving Magnet Phono Stage
Dedicated Current-Feedback Headphone amp
Integrated / PRE-POWER / PRE only Modes
VU Digital / VU Analogue Meter
USB Upgrade Support
Inputs 3 x Analogue
1 x Phono (MM)
1 x Power Amplifier
2 x SPDIF (Coax)
2 x SPDIF (Optical)
1 x HDMI ARC
1 x PC USB (USB B - Windows / mac OS only)
1 x Bluetooth (aptX/aptX LL)
1 x 12V Trigger
Outputs 1 x PRE Amplifier
1 x Stereo Speaker
1 x Headphone
1 x 12V Trigger
Sampling Frequency Optical / Coaxial: 44.1kHz - 192kHz
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain +6dB (Line); +55dB (Phono MM)
Input Sensitivity 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB)
Input Impedance 10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0005% (1kHz @ 2V, Volume = 0dB)
Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 100 ohms
Signal-to-Noise Ratio > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted)
DAC
D to A Converter ES9038Q2M
Total Harmonic Distortion (THD) < 0.0005% (1KHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Max. Sampling Frequency Optical, Coaxial: 192kHz
PC USB: PCM768kHz, DSD512
Power Amplifier Section
Gain +29dB
Rated Power Output 2 x 70W (8 ohms, THD<1%)
2 x 110W (4 ohms, THD<1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) <0.003% (1kHz @ 40W / 8 ohms)
Input Sensitivity 720mV
Signal-to-Noise Ratio (S/N) > 110dB (A-weighted)
Max. Output Current 11A
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 10 ohms
Load Impedance 20-600 ohms
General
Standby Power Consumption <0.5W
Net Weight 8.4kg
Gross Weight 10.7kg
Dimensions (mm) (W x D x H) 444 x 340 x 78
Carton Size (mm) (W x D x H) 500 x 455 x 140
Finish Black / Silver
Power Requirements (depending on region) 220-240V ~ 50/60Hz
100-120V ~ 50/60Hz
Standard Accessories Power Cord, Remote Control, User Manual, Antennas, etc.
