Ascendo Audio The6 Passive Wedge 30

On-Wall Loudspeaker - Black/Black Grille - Each
Item #6PWB

Ascendo Audio The6 Passive Wedge 30

On-Wall Loudspeaker - Black/Black Grille - Each
$1,550.00
Special Order: Free Shipping!

Overview

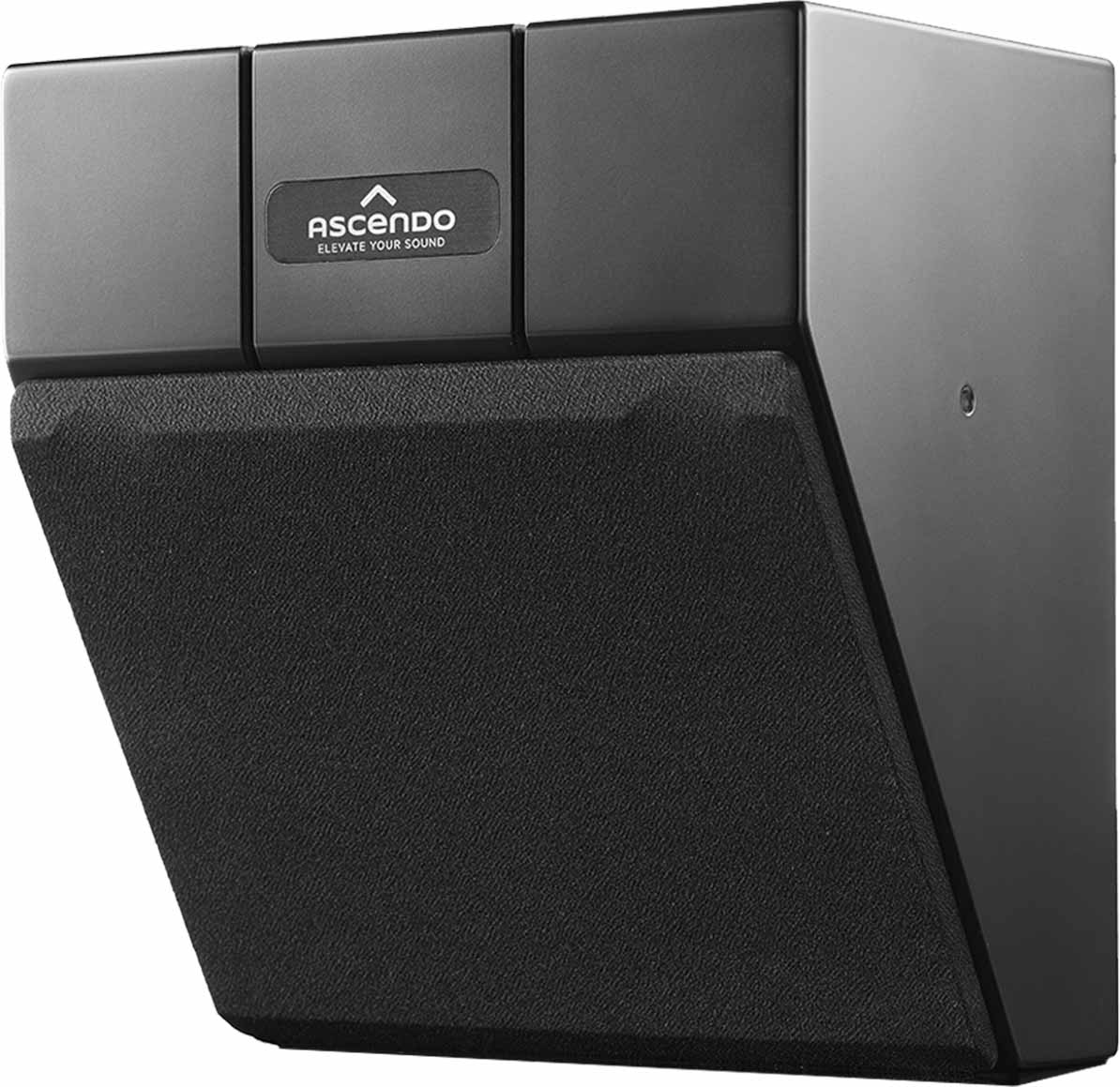

The6 PASSIVE WEDGE 30 is a compact angled speaker designed for immersive theater locations where precise speaker orientation is required. Its 6.5" coaxial point‑source driver provides wide, even coverage while maintaining accurate imaging across multiple seats. The 30‑degree pre‑angled cabinet enables optimal placement for Atmos, DTS:X, and Auro‑3D installations.

The 6 Passive Wedge 30’s design objective was to offer a compact and shallow pre-angled speaker that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

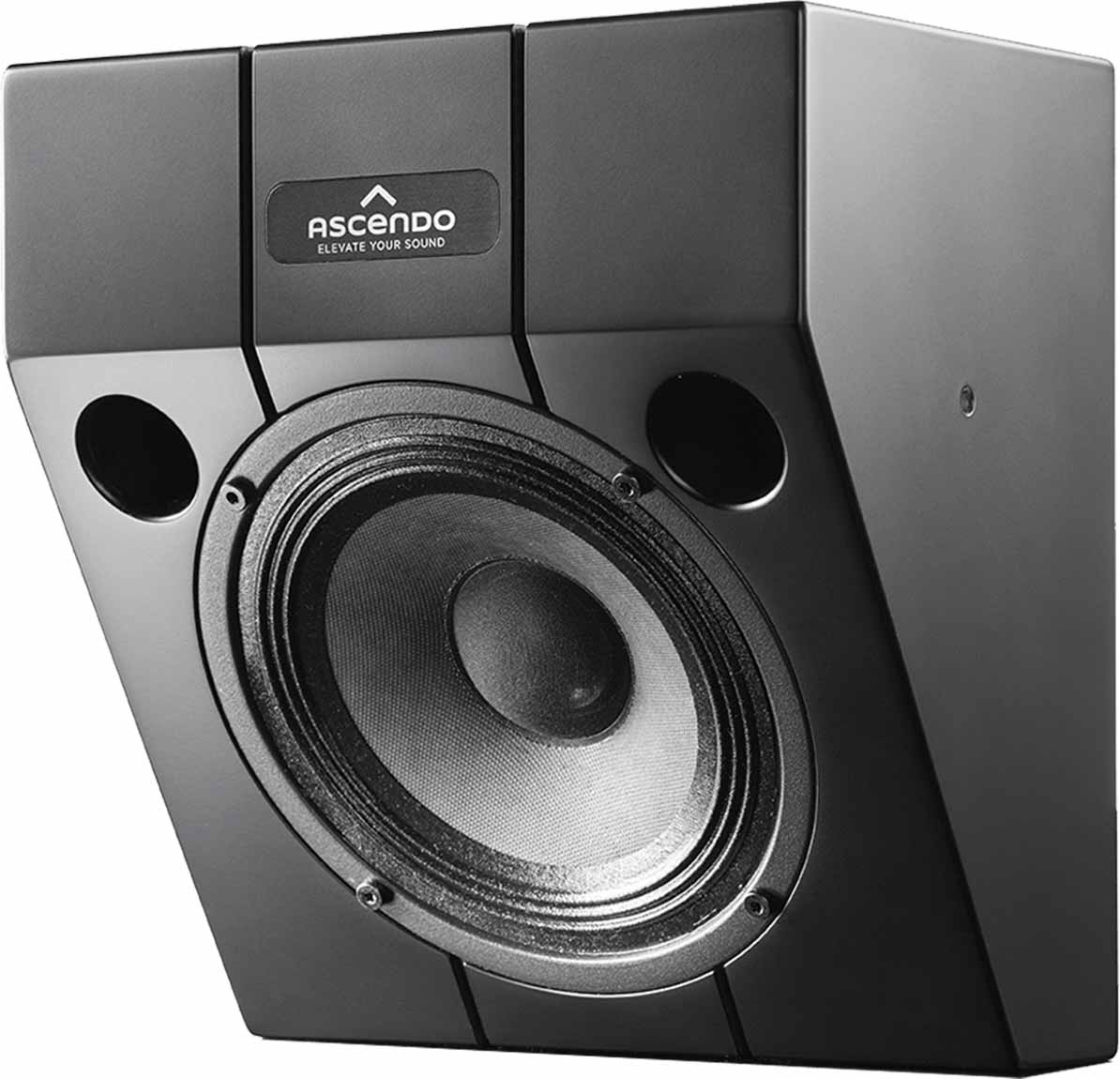

It is a very compact two-way passive loudspeaker system which utilizes a 6.5” time coherent Coaxial Point Source driver featuring a soft dome tweeter. This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.

Its 30-degree pre-angle meets the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

The 6 Passive Wedge 30 is an enormously dynamic and powerful speaker, despite the 30-degree angle only a record-breaking 155 mm (6.1 in) deep with a very compact width and height.

Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Details & Specs

Model The6 PASSIVE WEDGE 30
Speaker Type 6-1/2” time-coherent point-source coaxial
Principle Vented
Passive / Active Passive
Woofer 6-1/2” woofer
Tweeter 1” soft dome
Recommended ASCENDO Amplifiers AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004
SPL (Half Space 2π) 111 dB (Cont.) / 122 dB (Peak)
Frequency Range 95 Hz – 20 kHz (-3 dB)
Power Handling 200 W
Efficiency 93 dB / 1 W/m
Impedance 8 Ω
Directivity Horizontal x Vertical 85° x 85°
Input Terminal 4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions (W/H/D) Inch (Without Grille) 9-7/16 x 10-1/16 x 6-1/8 (Vertical)
9-7/16 x 6-1/8 x 10-1/16 (Horizontal)
Weight 11.46 lbs (5.2 kg)
Enclosure Internally braced MDF

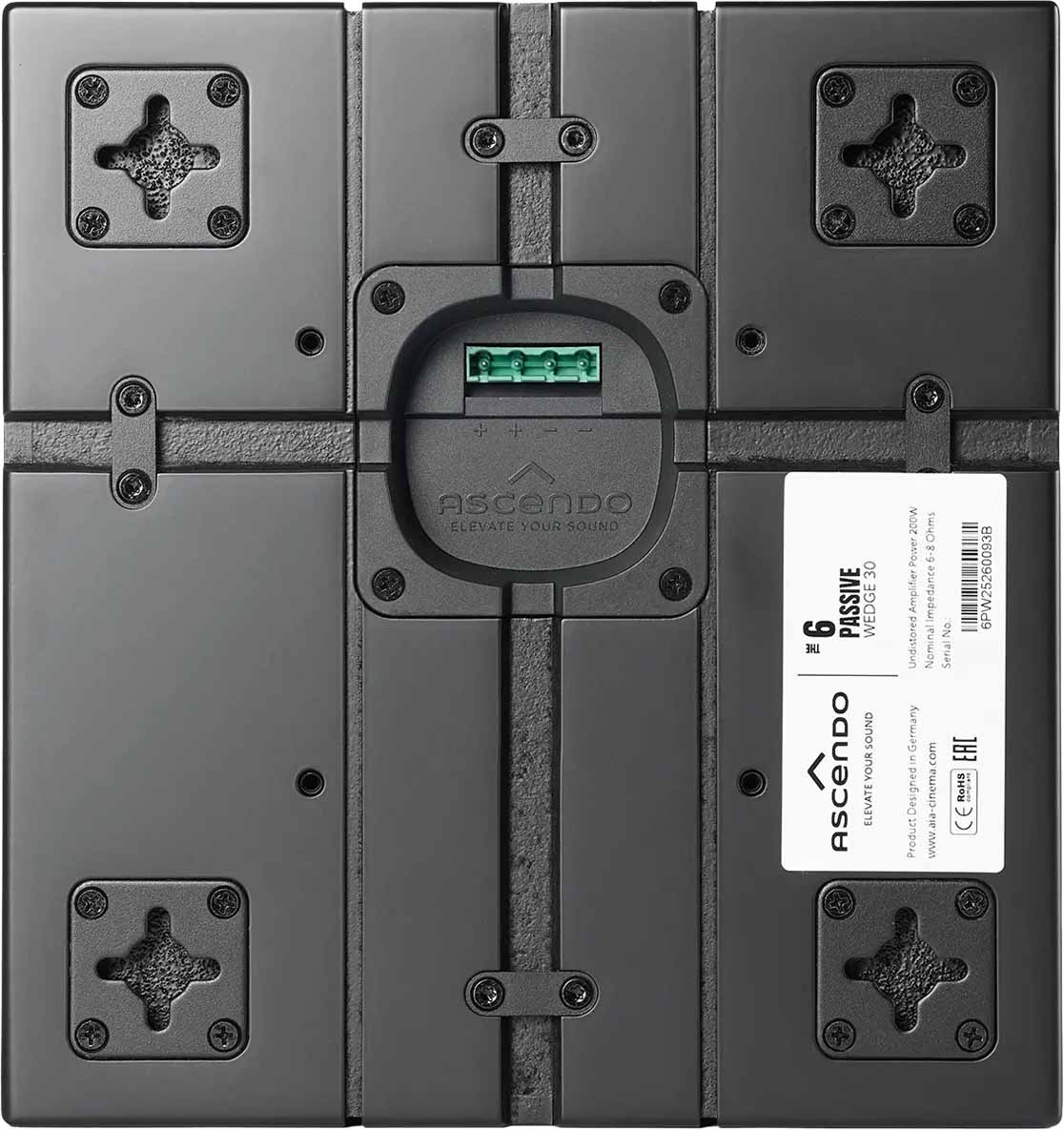

Mounting Metal wall or ceiling mounting brackets allowing further angling in two axes
6 x wall mount brackets for multiple hanging options
VESA 100 x 100 mounting points
