Item #5POB

Ascendo Audio The5 Passive

On-Wall Loudspeaker - Black/Black Grille - Each
Item #5POB

Ascendo Audio The5 Passive

On-Wall Loudspeaker - Black/Black Grille - Each
$950.00
Special Order: Free Shipping!

Overview

The5 PASSIVE ON WALL delivers precise, point-source sound from a compact enclosure designed for discreet immersive theater installations. Its time-coherent coaxial driver provides controlled directivity and clear imaging, while the extremely shallow cabinet enables easy on-wall or in-wall mounting. Designed for modern 3D audio systems, The5 combines compact dimensions with the dynamic performance ASCENDO is known for.

Quality is not a matter of size or budget. This impressively demonstrates Ascendo Audio's smallest speaker model, the passive The5-P (Previous name: CCM5-P). The The5-P is a true high-performance speaker whose centerpiece is a heavy-duty 13 centimeter large coaxial driver, provenient from the area of professional PA technology. The genes of this advanced coax driver not only care for an amazingly great acoustic bandwidth, but also provide an efficiency of 88 dB (1 watt/1 meter).

The effectiveness of the The5-P therefore allows for the combination with lower output power amplifiers. For this reason, the smallest passive speaker from Ascendo Audio is the top recommendation when it comes to the realization of smaller 3D home theaters operating with Dolby Atmos, Auro 3D or DTS:X.

Another major advantage of the The5-P is its small depth of only 75 mm. This makes it the perfect choice for in-wall as well as on-wall assembly.

Details & Specs

Model The5 PASSIVE ON WALL
Speaker Type 5-1/4” time-coherent point-source coaxial
Principle Vented
Passive | Active Passive
Woofer 5-1/4” woofer
Tweeter 1” soft dome
Recommended ASCENDO Amplifiers AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004
SPL (Half Space 2pi) 108 dB (Continuous) / 120 dB (Peak)
Frequency Range 100 Hz – 20 kHz (-3 dB, without DSP)
Power Handling 100 W
Efficiency 89 dB (1 W / 1 m, 2π)
Impedance 8 Ω
Directivity (Horizontal x Vertical) 85° x 85°
Input Terminal 4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions (W x H x D) 9-13/16 x 15-3/4 x 2-15/16 in (3-3/16 in with grille)
Dimensions (W x H x D) 250 x 400 x 75 mm (81 mm with grille)
Packing Dimensions (W x H x D) 14-3/16 x 19-11/16 x 7-1/16 in
Packing Dimensions (W x H x D) 360 x 500 x 180 mm
Weight 8.82 lb (4.0 kg)
Gross Weight 12.13 lb (5.5 kg)
Enclosure Internally braced MDF

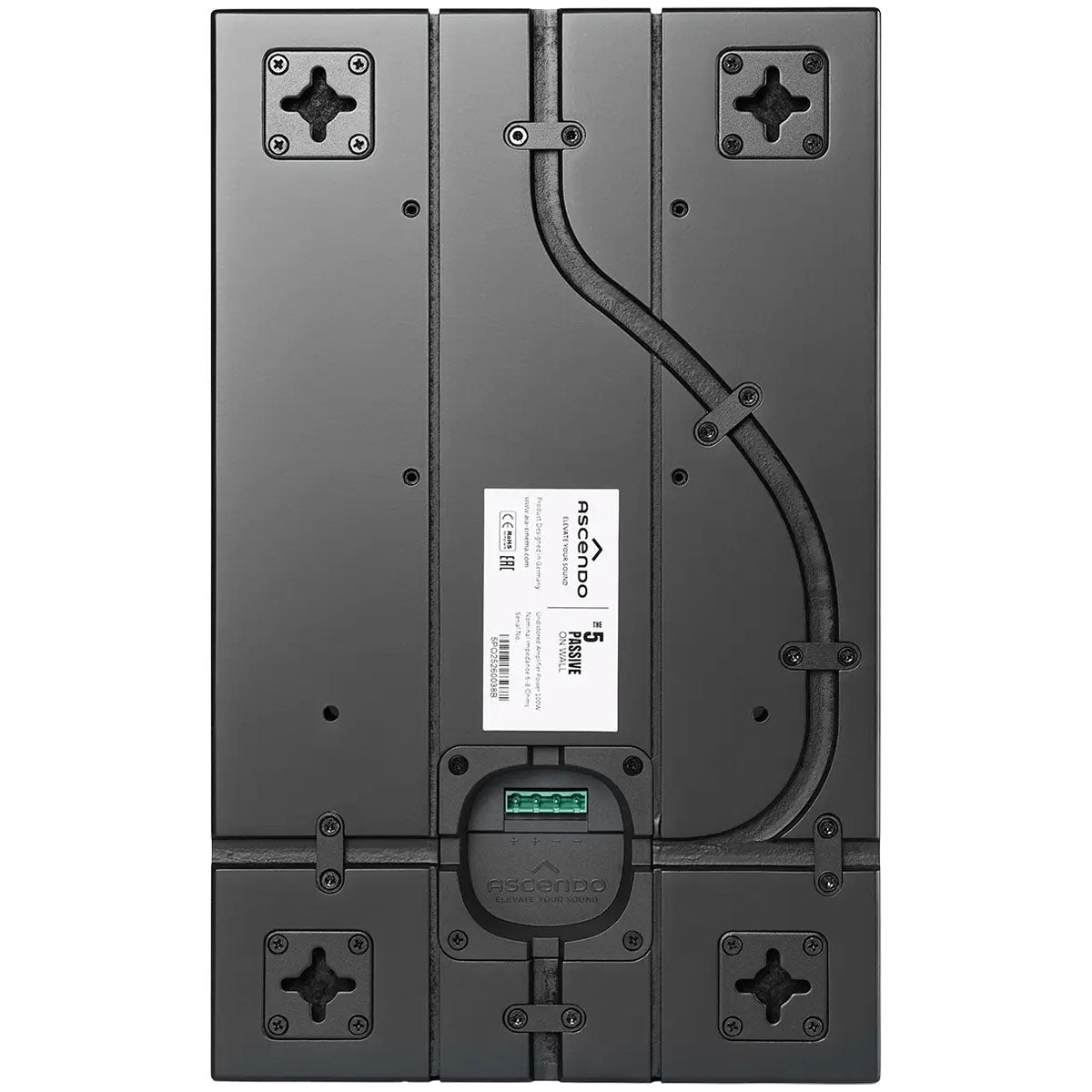

Mounting 4 × wall brackets for horizontal or vertical installation
2 through-holes for direct wall or ceiling mounting
VESA 100 mounting points
Included Front cover supplied as standard
