Item #12SAVII

Ascendo Audio The12 SUB

Active Vented MKII Subwoofer - Each
Item #12SAVII

Ascendo Audio The12 SUB

Active Vented MKII Subwoofer - Each
$1,650.00
Special Order: Free Shipping!

Overview

The new ASCENDO The12 SUB ACTIVE VENTED subwoofer sets the standard for bass output, low distortion, and affordability. With chest thumping bass that plays deep down, the The12 SUB AV subwoofer unleashes cinema-level volume, with the ability to convey and articulate the subtle nuances of music.

12" Woofer

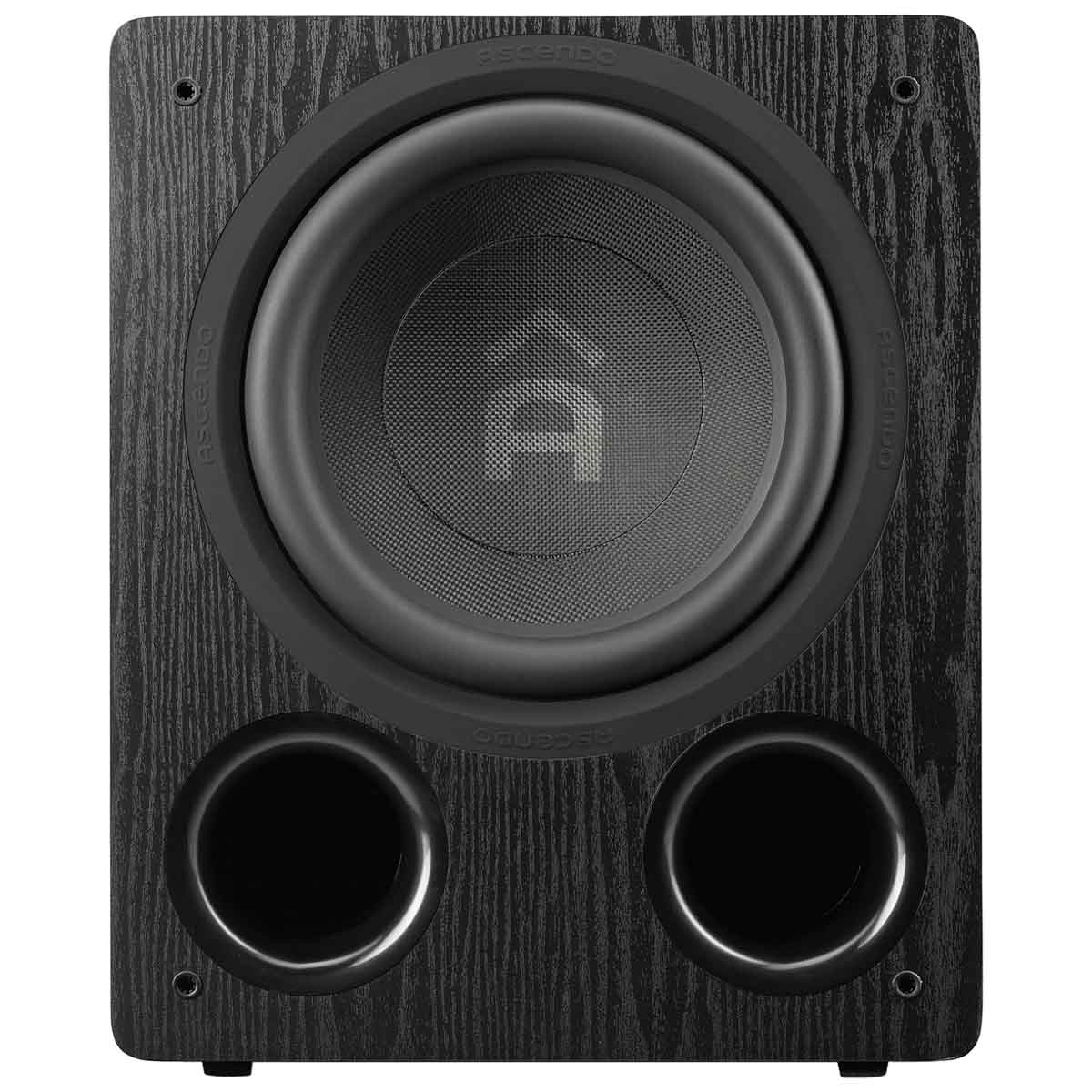

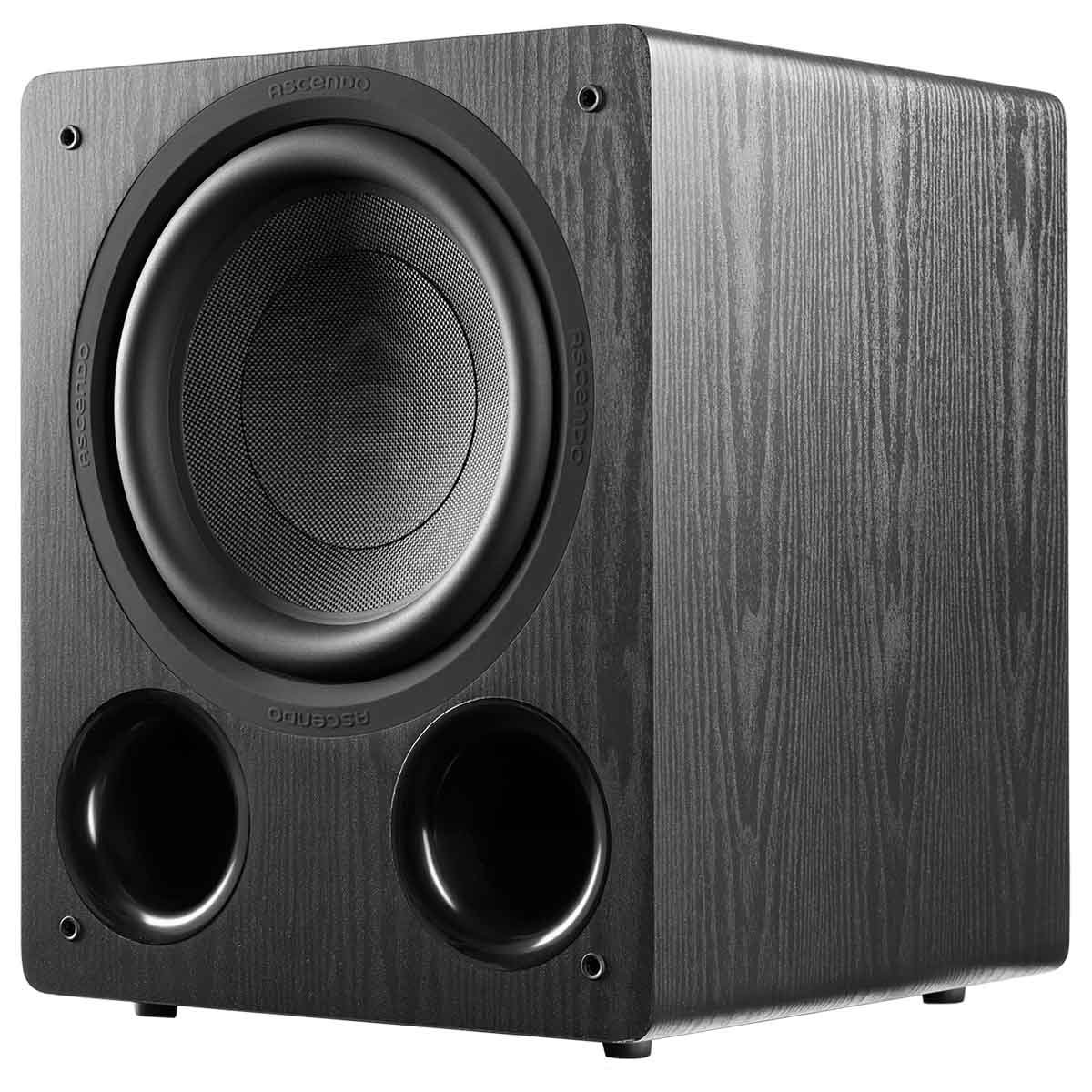

At the heart of the powered subwoofer is a composite cone driver with a very stiff sandwich cone paired with a large throw rubber surround. The The12 SUB AV driver was developed from the ground up, with a design focus on achieving output, accuracy, dynamics, and linearity, while minimizing distortion. Sophisticated computer modeling and measurement techniques are used extensively in the powered subwoofer design process. The woofer is enclosed in a cabinet made from HDF material outfitted with massive internal bracing and dual ports to minimize port turbulence.

600-Watt Amplifier

The 600W RMS amplifier is built around the high efficiency Class D amplifier module based on a proven topology with vast reserves of power for highly accurate, deep bass for your home theater or music system. A Variable crossover with adjustable phase control is used for easy integration with other speakers.

For convenience, an auto turn-on/off function was added. Audio can be supplied to the The12 SUB AV by either balanced XLR or RCA interconnects (LFE/line level inputs).


Measurements

The12 SUB Measurements
The12 SUB Measurements
The12 SUB Measurements
The12 SUB Measurements
The12 SUB Measurements
The12 SUB Measurements
The12 SUB Measurements
The12 SUB Measurements

Details & Specs

Model THE12 SUB ACTIVE VENTED
Speaker Type 12” forward-firing compositive cone woofer, 3” voice coil
XMAX 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion
Principle Vented
Passive | Active Active, built in DSP Amplifier
SPL Peak (Peak / Half Space 2pi) Measured Data
112 dB @ 28 Hz
Frequency Range Measured Data (Without DSP)
28 Hz - 400 Hz / -3 dB
Directivity Horizontal x Vertical in deg° 360°
Output Power 600 W
Power Supply Requirements 100-240 VAC, 50-60 Hz
230 VAC - 1/8 rated power (4 Ohm) 0.5 W / 75 A
120 VAC - 1/8 rated power (4 Ohm) 1 A / 75 W
Idle 12 W
Automatic Power Off Autosence

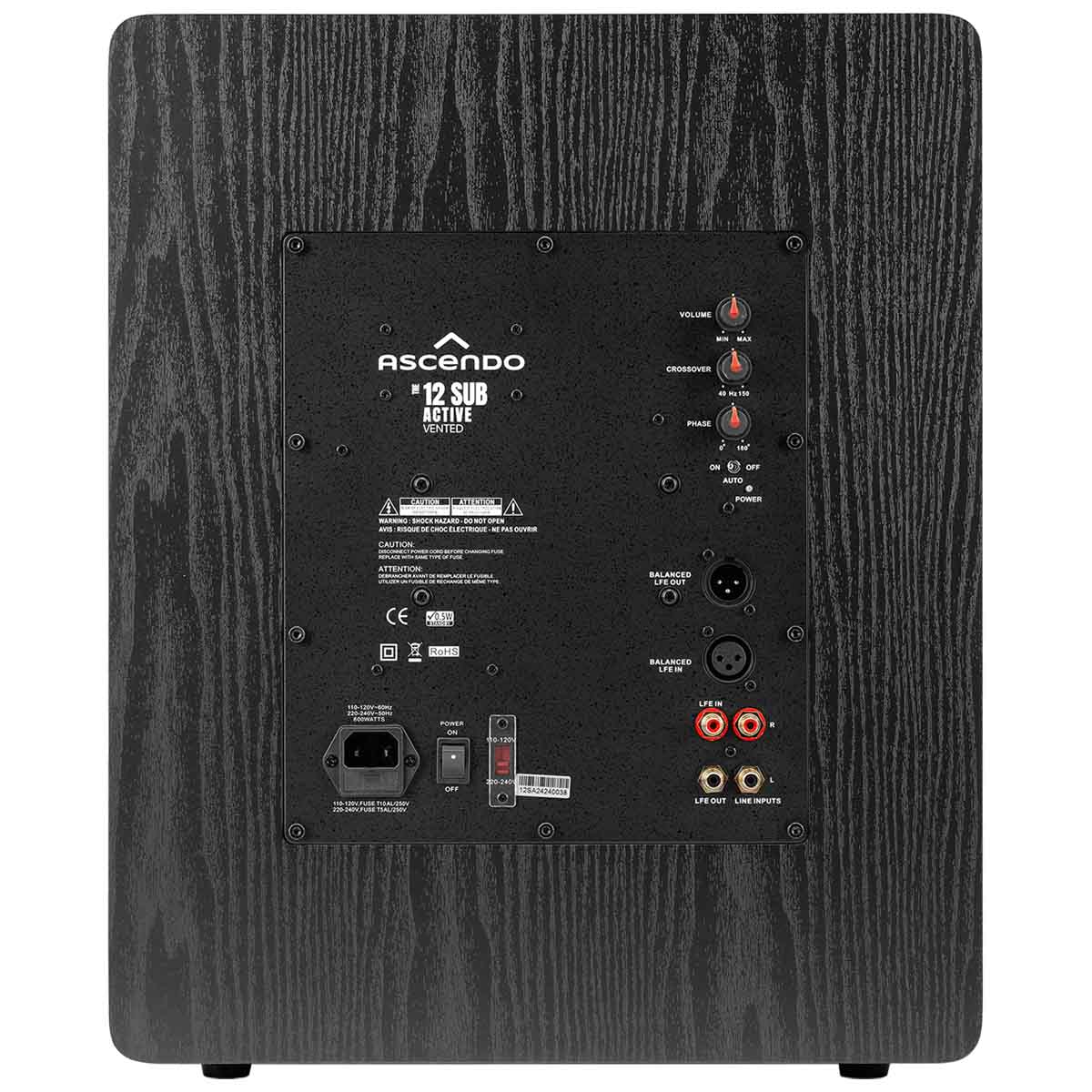

Input LFE: 1 x XLR Balanced Full Range / no crossover applied
Line Level: 2 x RCA summing / unbalanced
Output LFE: 1 x XLR Balanced
Line Level: 2 x RCA  / unbalanced
Power IEC
Protection Features Turn-on transients, Over-heating, DC, Short-circuit, Mismatched loads
Controller LP crossover 40 Hz to 150 Hz variable, phase 0º-180º, volume control, auto tun on/off
Converter N/A
Input IIR EQ Section Gain, Mute, Phase inversion,
(Parametric, Shelving, LP, HP, BP)
Dimensions (W/H/D) mm (Without Grille) 400 | 490 | 400
(Height without feet: 480)
(Depth with plug: 460)
Dimensions (W/H/D) inch (Without Grille) 15 3/4 | 19 2/7 | 15 3/4
(Height without feet: 18 8/9)
(Depth with plug: 18 1/8)
Packing Dimensions (W/H/D) mm 560 | 650 | 560
Packing Dimensions (W/H/D) inch 22 1/16 | 25 9/16 | 22 1/16
Weight 61.73 lbs | 28 kg
Gross Weight 70.55 lbs | 32 kg
Enclosure Internally braced MDF
Finish Matt black and white
Mounting Floorstanding with feet

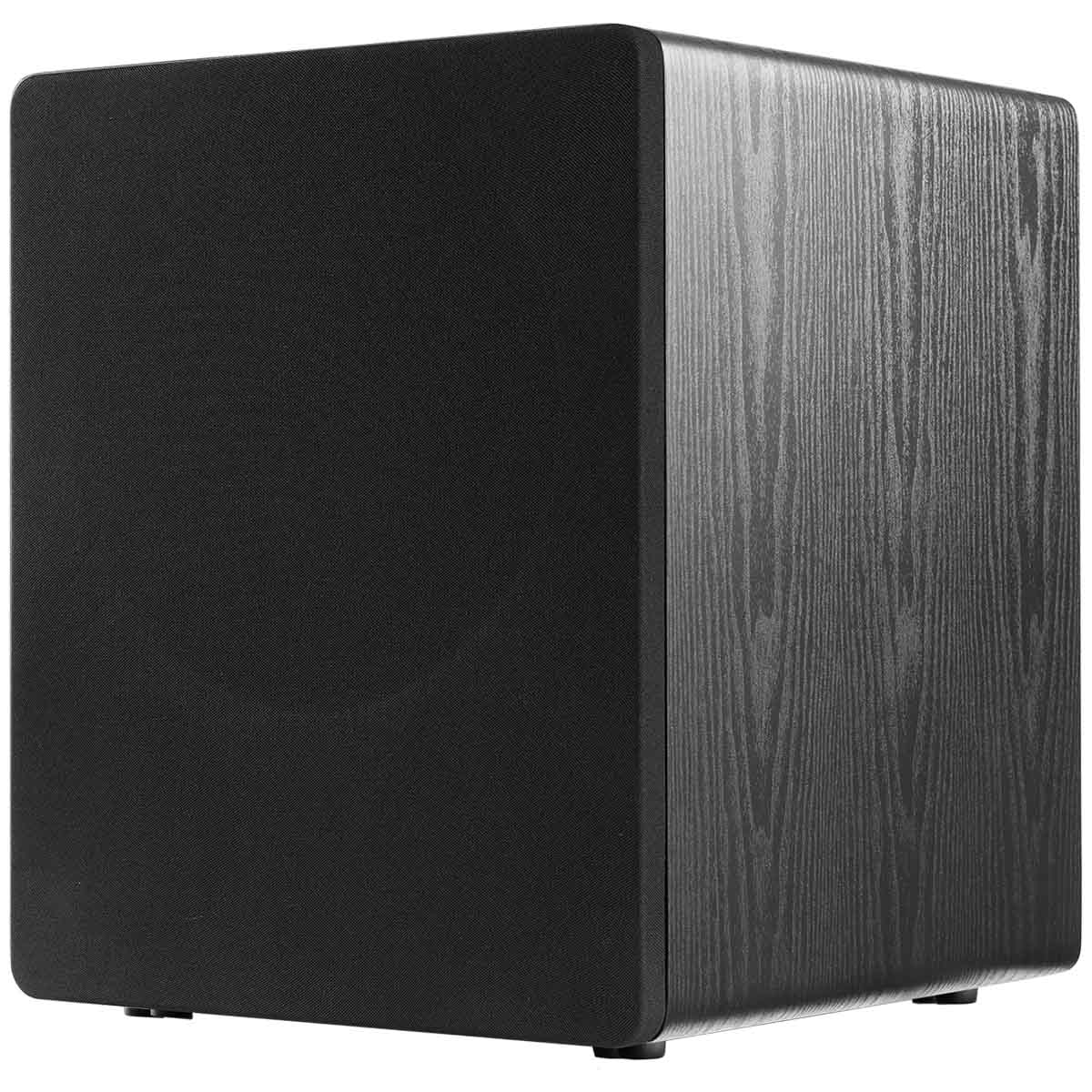

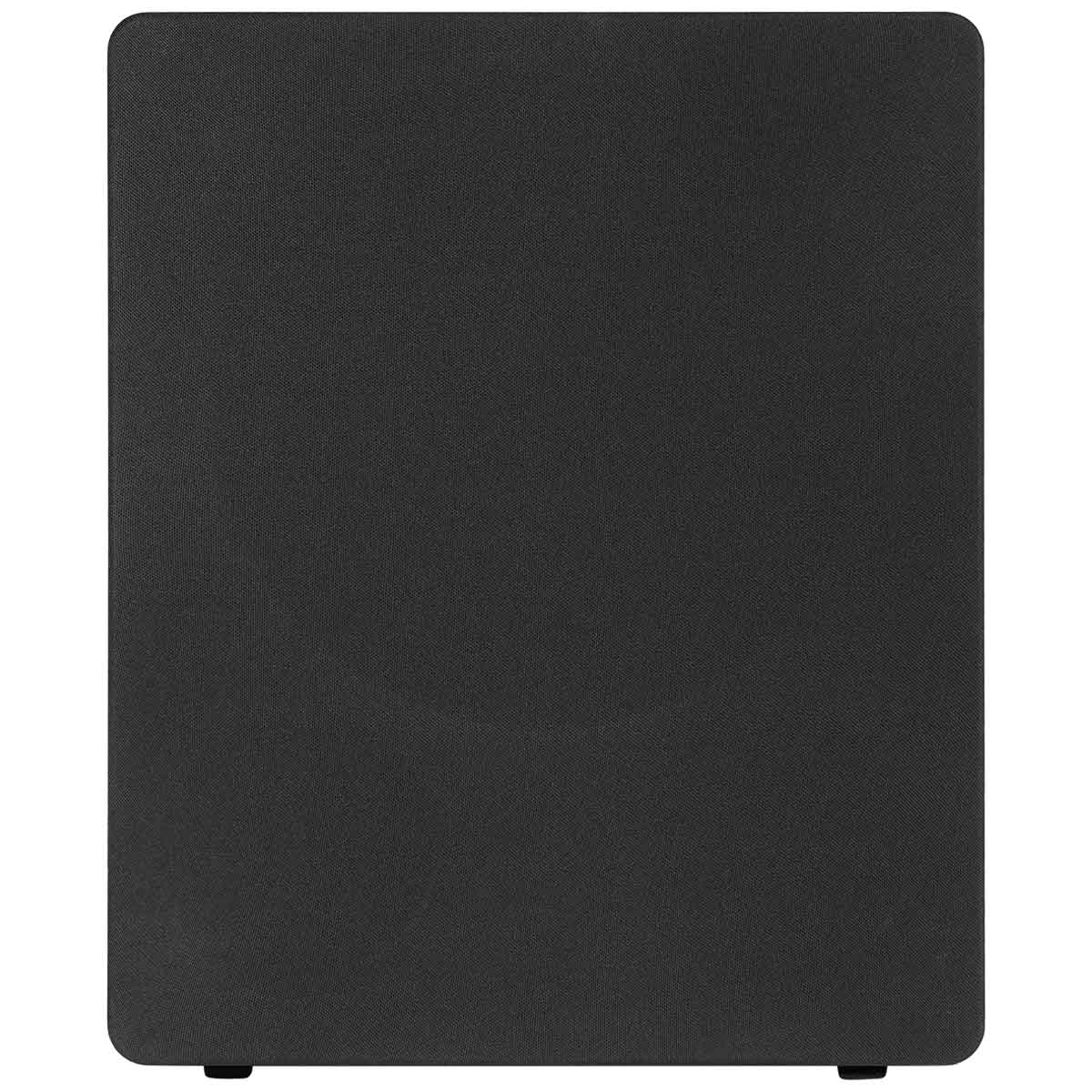

Grille The THE12 SUB ACTIVE VENTED is supplied with a front cover as standard
