Item #10PWB

Ascendo Audio The10 Passive Wedge 30

On-Wall Loudspeaker - Black/Black Grille - Each
Item #10PWB

Ascendo Audio The10 Passive Wedge 30

On-Wall Loudspeaker - Black/Black Grille - Each
$2,550.00
Special Order: Free Shipping!

Overview

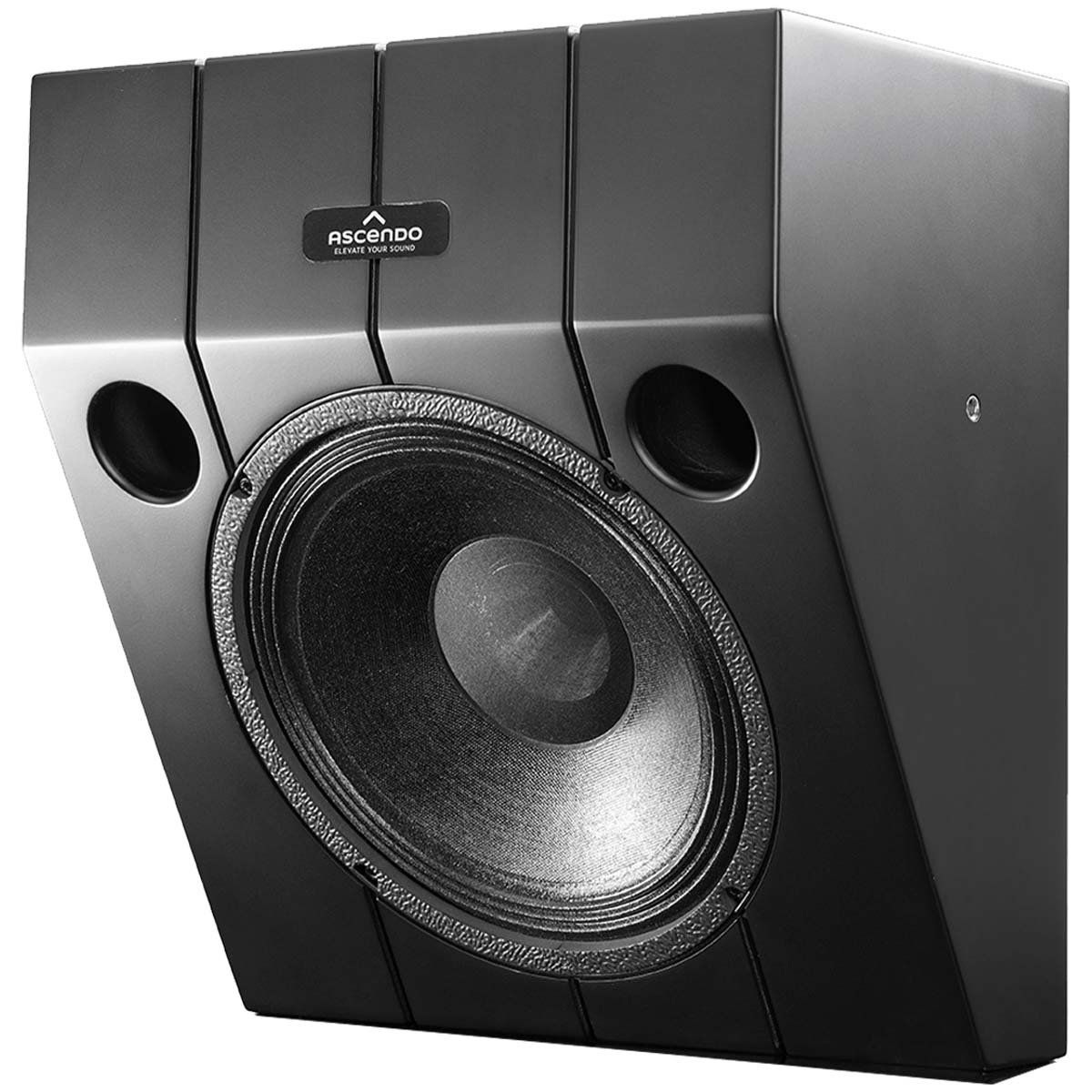

The10 PASSIVE WEDGE 30 combines the output capability of The10 with a pre-angled enclosure designed for locations where precise speaker aim is essential. Its 30-degree wedge geometry, wide coverage, and flexible mounting options make it well suited for Atmos, DTS:X, front wide, and surround applications. The result is powerful, immersive sound from a compact angled speaker built for demanding theater layouts.

The design objective for this model was to offer a pre-angled version of The10 PASSIVE ON WALL that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

The10 PASSIVE WEDGE 30 is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Details & Specs

Model The10 PASSIVE WEDGE
Speaker Type 10” time-coherent point-source coaxial
Principle Vented
Passive / Active Passive
Woofer 10” woofer
Tweeter 1-3/8” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers AIA2-1404, AIA2-2704, AIA4-2404, AIA8-2704, AIA8-6004
SPL (Half Space 2π) 120 dB (Cont.) / 130 dB (Peak)
Frequency Range 100 Hz – 20 kHz (-3 dB)
Power Handling 500 W
Efficiency 97 dB / 1 W/m (2π)
Impedance 8 Ω
Directivity Horizontal x Vertical 85° x 85°

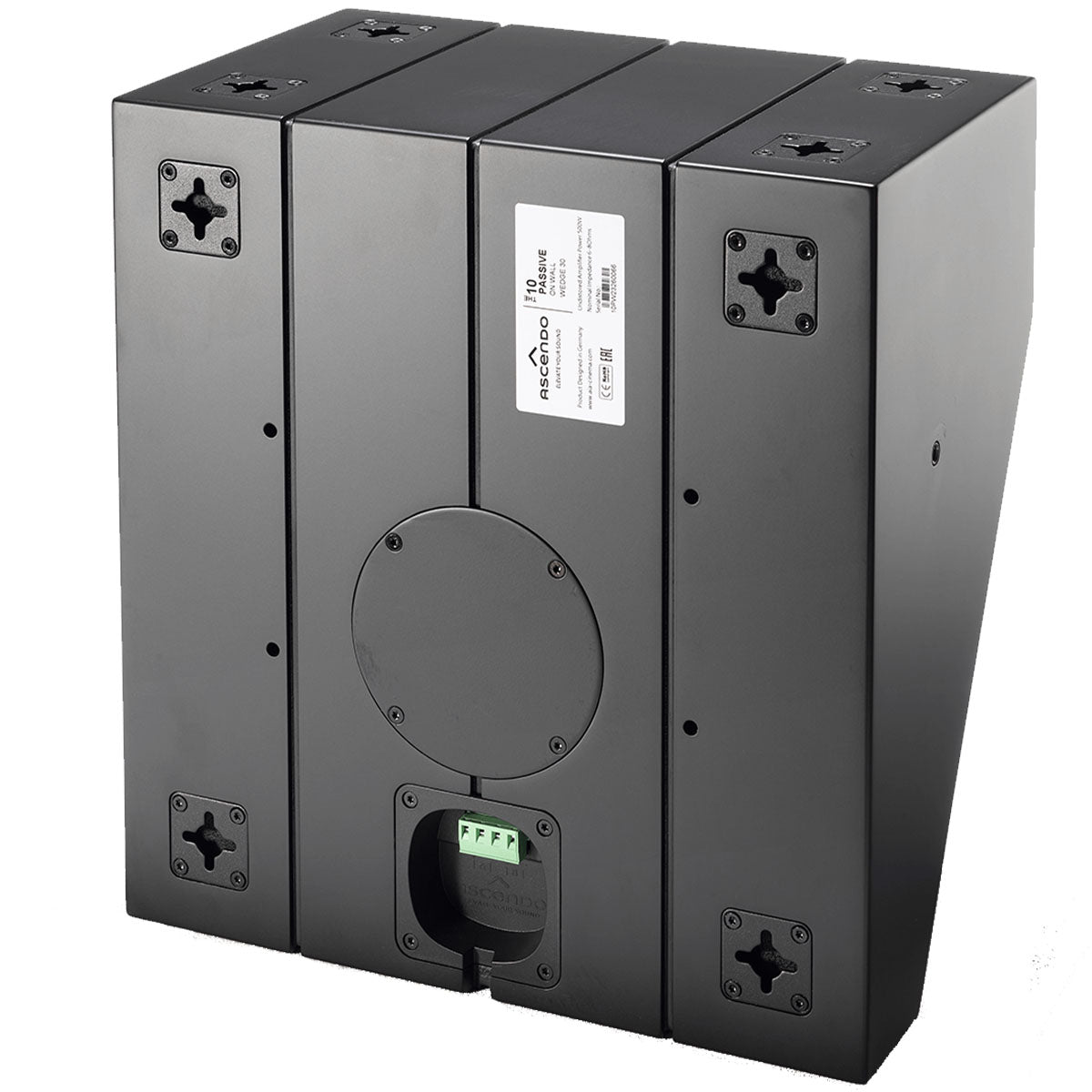

Input Terminal 4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions (W/H/D) Inch (Without Grille) 14-3/16 x 15-1/16 x 8-9/16 (Vertical)
14-3/16 x 8-9/16 x 15-1/16 (Horizontal)
Weight 24.69 lbs (11.2 kg)
Enclosure Internally braced MDF

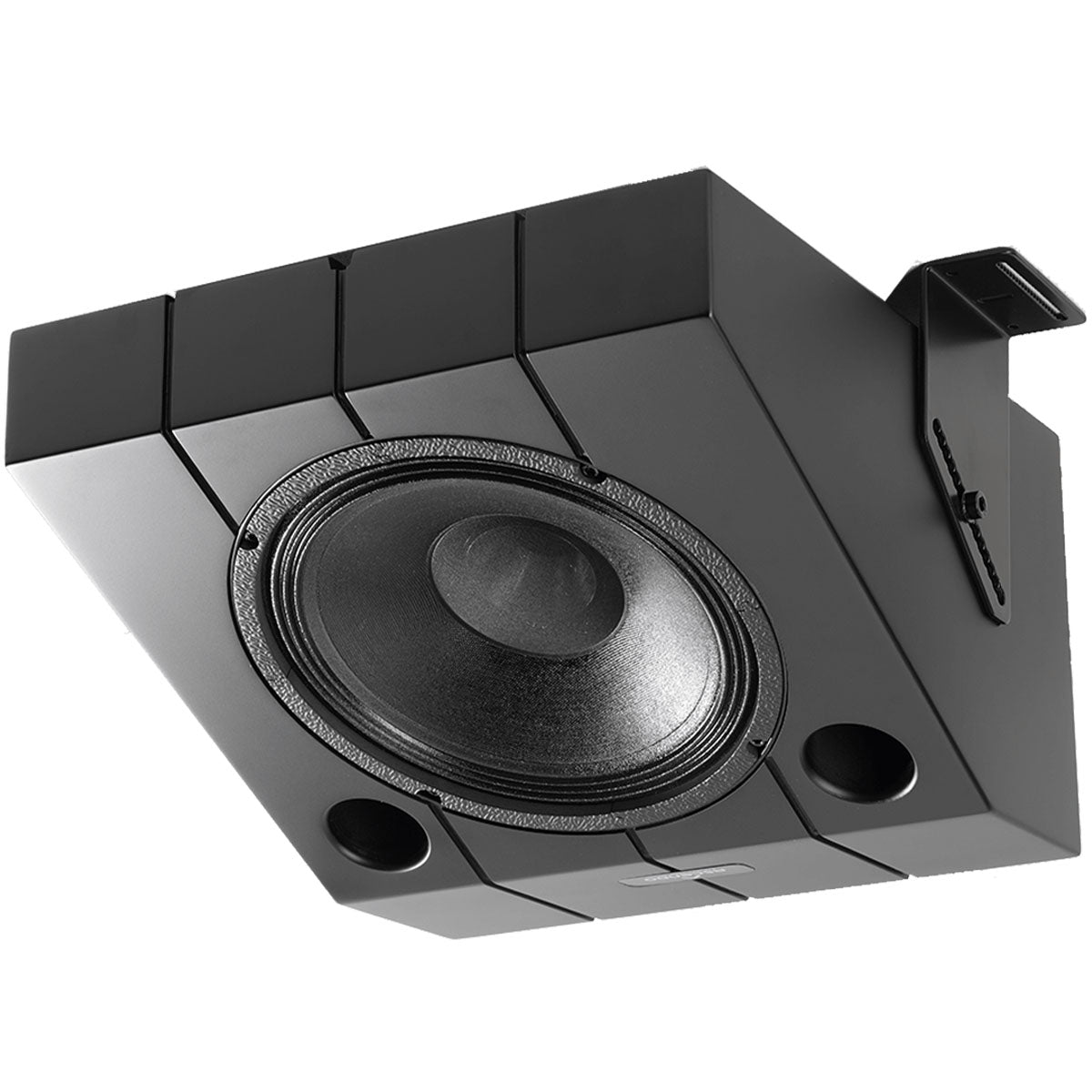

Mounting Metal wall or ceiling mounting brackets allowing further angling in two axes
8 x wall mount brackets for multiple hanging options
VESA 200 x 100 mounting points
