Item #10POB

Ascendo Audio The10 Passive

On-Wall Loudspeaker - Black/Black Grille - Each
Item #10POB

Ascendo Audio The10 Passive

On-Wall Loudspeaker - Black/Black Grille - Each
$2,550.00
Special Order: Free Shipping!

Overview

The10 PASSIVE ON-WALL delivers high-output performance from a compact enclosure designed for living rooms, media rooms, and high-performance home theaters. Its 10” time-coherent point-source coaxial driver provides controlled directivity, strong dynamics, and clear imaging from a speaker that remains easy to integrate on wall. Paired with subwoofers, The10 offers remarkably powerful sound for its size.

The10-P (Previous name: CCM10-P) is a very compact two-way passive loudspeaker system which utilizes a 10” (250mm) LF/1” (25mm) exit HF Coaxial driver. It is uniquely placed to meet the requirements of living room and high performance home theater systems as front speakers, as well as the varied architectural applications that require upfront sound levels from a very compact enclosure.

Use with Ascendo Audio's subwoofers will enable the The10-P to operate as small system that is remarkably powerful for its size.

Details & Specs

Model The10 PASSIVE ON-WALL

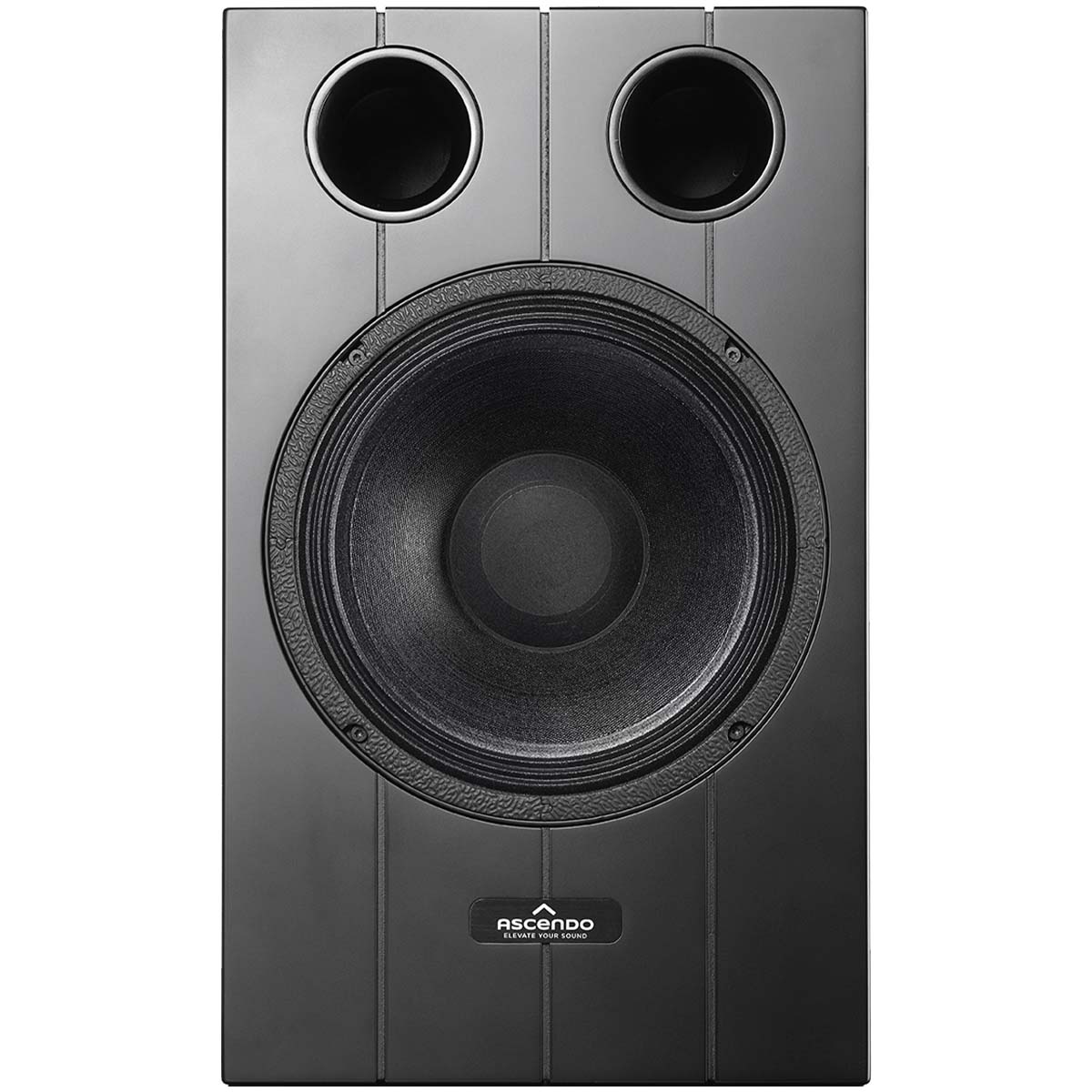

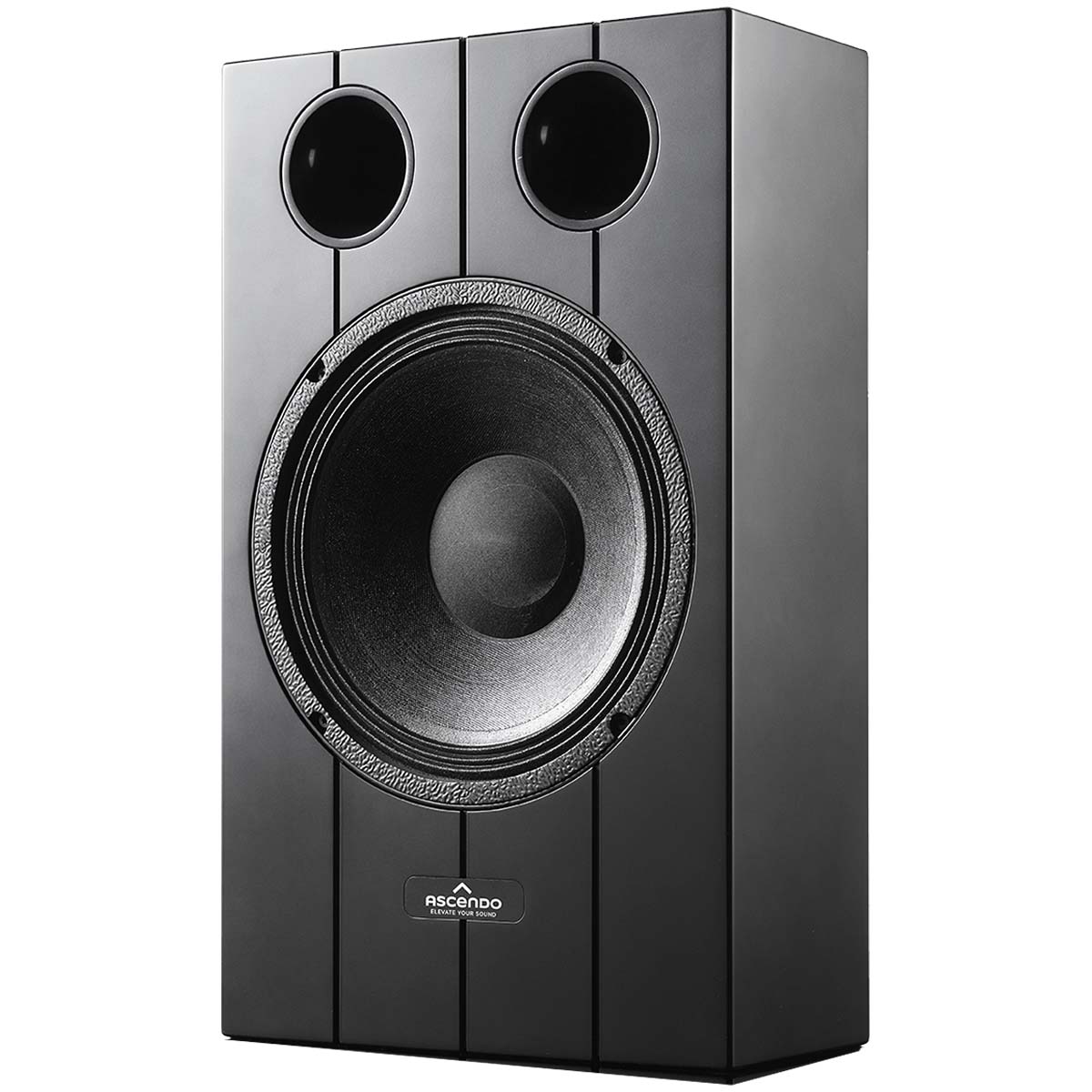

Speaker Type 10” time-coherent point-source coaxial
Principle Vented
Passive / Active Passive
Woofer 10” woofer
Tweeter 1-3/8” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers AIA2-1404, AIA2-2704, AIA4-2404, AIA8-2704, AIA8-6004
SPL (Half Space 2π) 120 dB (Cont.) / 130 dB (Peak)
Frequency Range 100 Hz – 20 kHz (-3 dB)
Power Handling 500 W
Efficiency 97 dB / 1 W/m (2π)
Impedance 8 Ω
Directivity Horizontal x Vertical 85° x 85°
Input Terminal 4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions (W/H/D) Inch (Without Grille) 11-13/16 x 19-11/16 x 5-11/16 (With grille: 6-1/16)
Weight 26.46 lbs (12.0 kg)
Enclosure Internally braced MDF

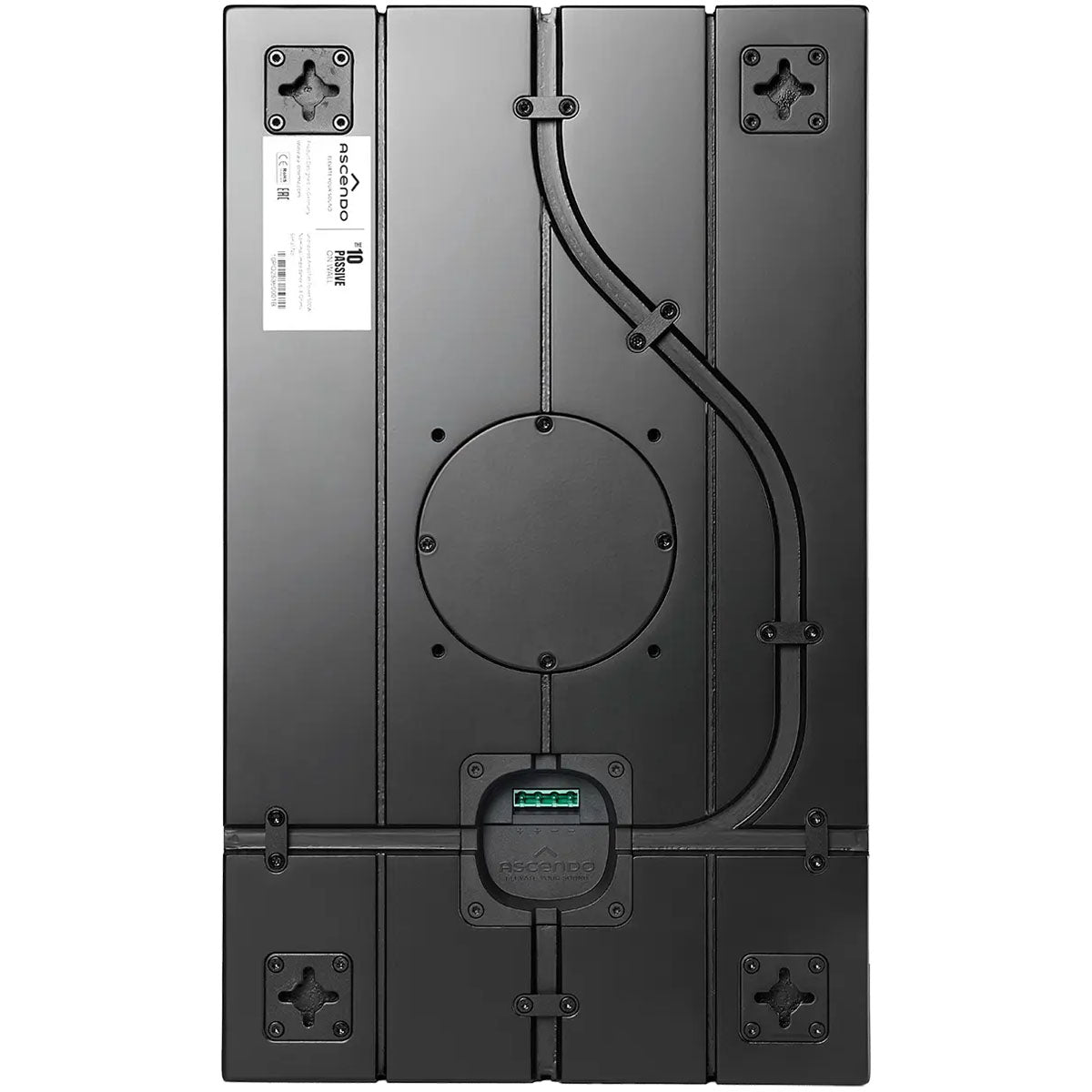

Mounting 4 x wall brackets for horizontal and vertical installation
VESA 100 x 100 mounting points
