Item #ARCPA410AM

Arcam PA410

Class AB Home Theater Power Amplifier
Item #ARCPA410AM

Arcam PA410

Class AB Home Theater Power Amplifier
Was $1,650.00 $899.00
Save $751
In Stock: Free 2-Day Shipping
Contact Us

Overview

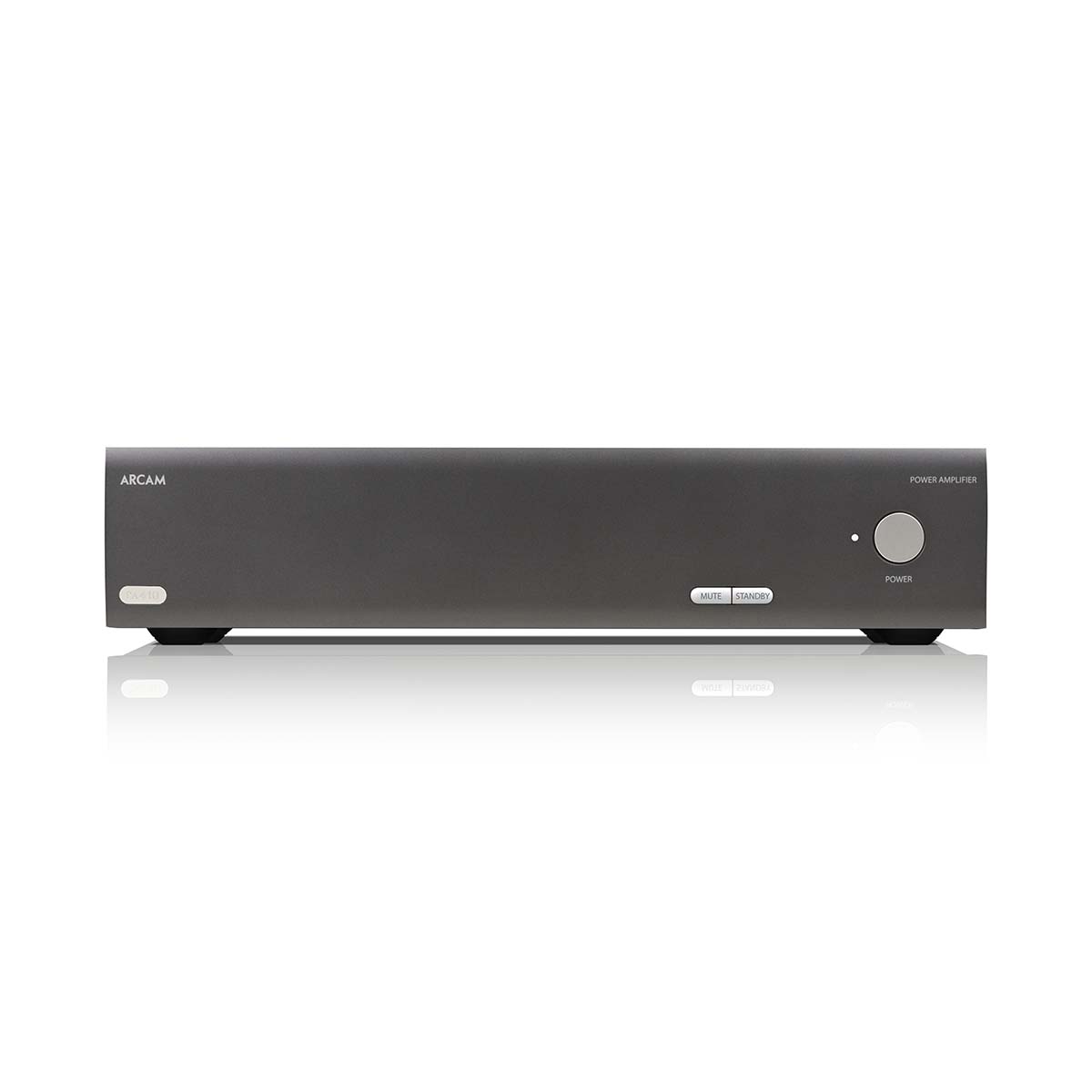

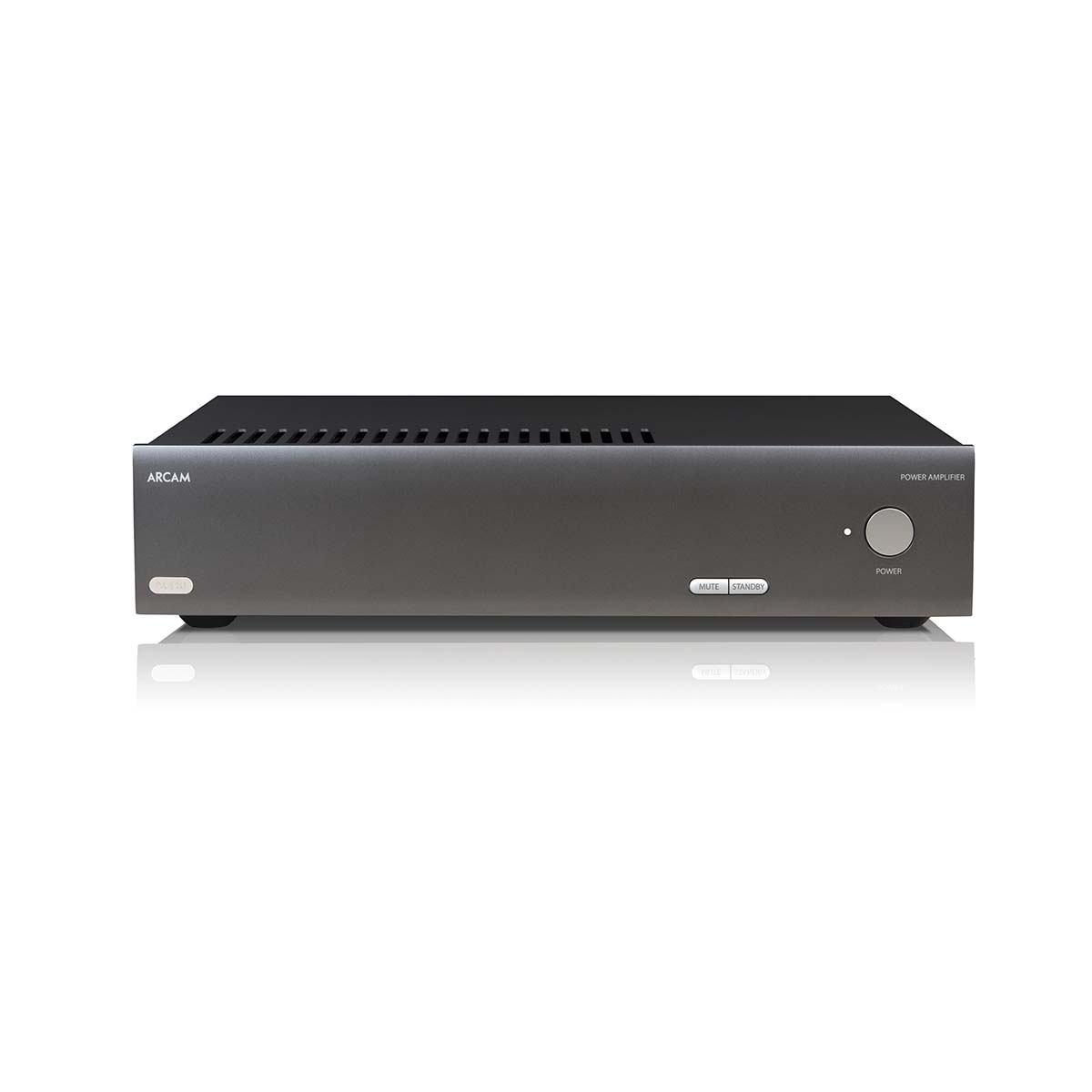

The PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification. With an impressive 70W per channel, the PA410 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal-based power supply, acoustically damped chassis, and exceptionally low levels of distortion, the PA410 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

Details & Specs

Continuous power output at 0.2% THD per channel

  • Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz: 70W / 50W
  • Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz: 90W / 60W
  • Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003%

Inputs

  • Input sensitivity 50W / 8Ω: 600mV RMS
  • Signal/Noise ratio (A-wtd) 50W / 8Ω: 105dB
  • Input impedance: 10kΩ
  • Frequency response: 20 - 20kHz +/-0.05dB

General

  • Mains voltage: 110–120V or 220–240V, 50–60Hz
  • Power consumption (maximum): 700W
  • Power consumption (idle, typical): 90W (Thermal dissipation approx. 340 BTU/hour)
  • Power consumption (standby): <0.5W
  • Dimensions W x H x D (including feet, control knob and speaker terminals): 17.05 x 12.8 x 4.13" (433 x 325 x 105mm)
  • Weight (net): 22.05 lbs (10kg)
  • Shipping Weight: 25.35 lbs (11.5kg)
