Item #ARCAVR21AM

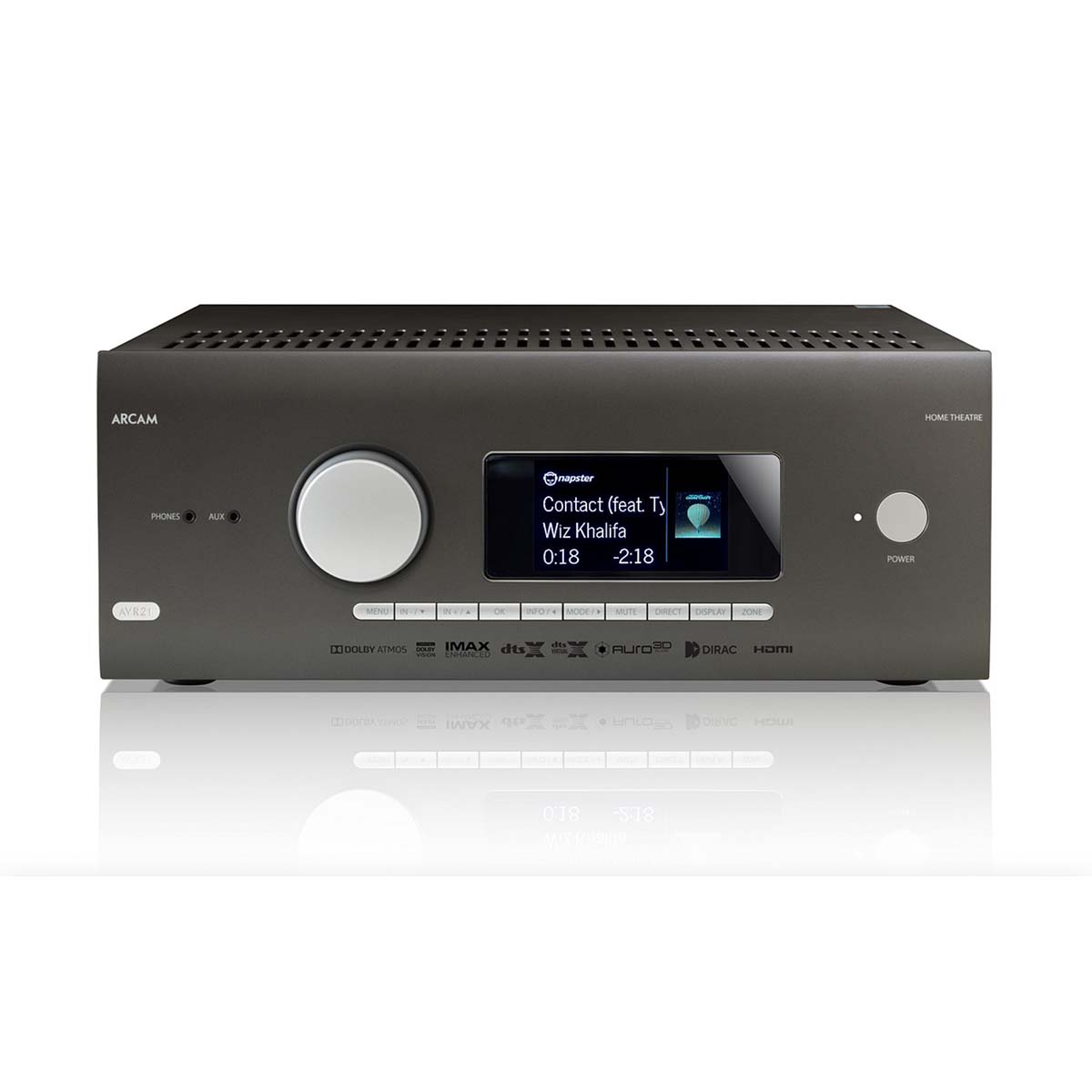

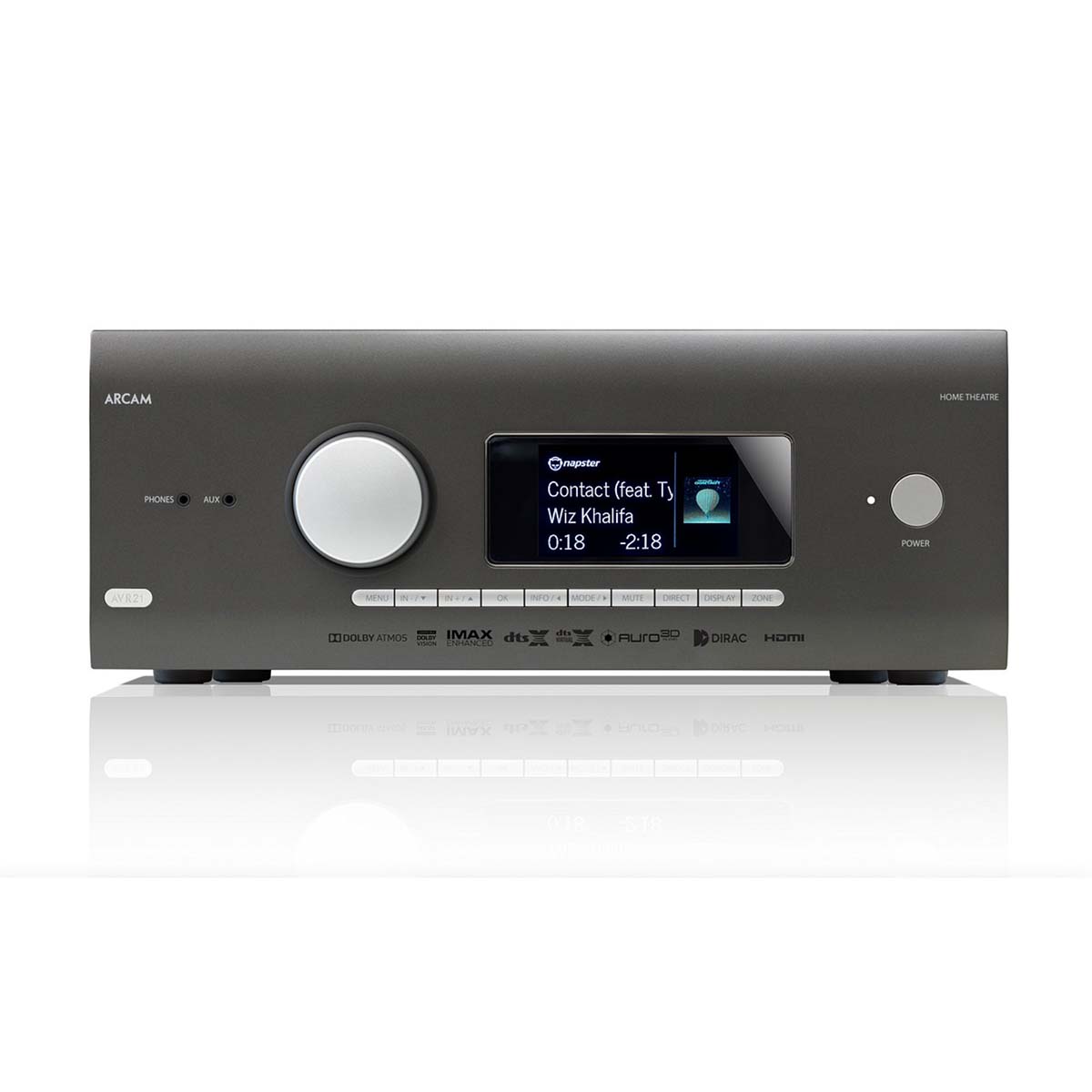

Arcam AVR21

15.2 Pre-Amplifier / 7 Amplifier Channel Class AB AV Receiver
Item #ARCAVR21AM

Arcam AVR21

15.2 Pre-Amplifier / 7 Amplifier Channel Class AB AV Receiver
Was $4,700.00 $3,199.00
Save $1,501
In Stock: Free 2-Day Shipping
Contact Us

Overview

The AVR21 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR21 can deliver incredible theatre experiences.
Watch our Comparison

Rich Musicality + Immersive Sound = Stunning Realism

The Arcam AVR21 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR21 features an over-engineered toroidal transformer for real-world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be assured with Dirac Live® room optimization included and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.

Details & Specs

Continuous power output, per channel, 8Ω/4Ω

  • 2 channels driven, 20Hz - 20kHz, <0.02% THD: 110W/175W
  • 2 channels driven, 1kHz, 0.2% THD: 125W/190W
  • 7 channels driven, 1kHz, 0.2% THD: 90W/110W
  • Residual noise & hum (A-wtd): <0.15mV

Stereo Line Inputs

  • Maximum input: 4.5V rms
  • Nominal sensitivity: 1V, 2V, 4V (user adjustable)
  • Input impedance: 47kΩ
  • Signal/noise ratio (A-wtd ref 100W) normal/stereo direct: 100dB/110dB
  • Frequency response: 20Hz—20kHz ± 0.2dB

Preamplifier Outputs

  • Nominal output level: 1V RMS (max. 5V RMS)
  • Output impedance: 560Ω
  • THD+N (20Hz—20kHz): –100dB

Headphone Output

  • Maximum output level into 32Ω: 5Vrms
  • Output impedance: <100Ω

General

  • Mains voltage: 110–120V or 220–240V, 50–60Hz
  • Power consumption (maximum): 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
  • Power consumption (idle, typical): 100W (Thermal dissipation approx. 350 BTU/hour)
  • Power consumption (standby): <0.5W
  • Dimensions W x D (including speaker terminals) x H (including feet): 433 x 425 x 171mm
  • Weight (net): 16.6kg
  • Weight (packed): 19.9kg
  • Supplied accessories:
    • Mains lead
    • Remote control with 2 x AAA batteries
    • Quick Start Guide (full manual online)
    • DAB/FM aerial
    • 3 x Wi-Fi/Bluetooth antennas
    • Calibration microphone
    • USB cable
