Item #1512051001

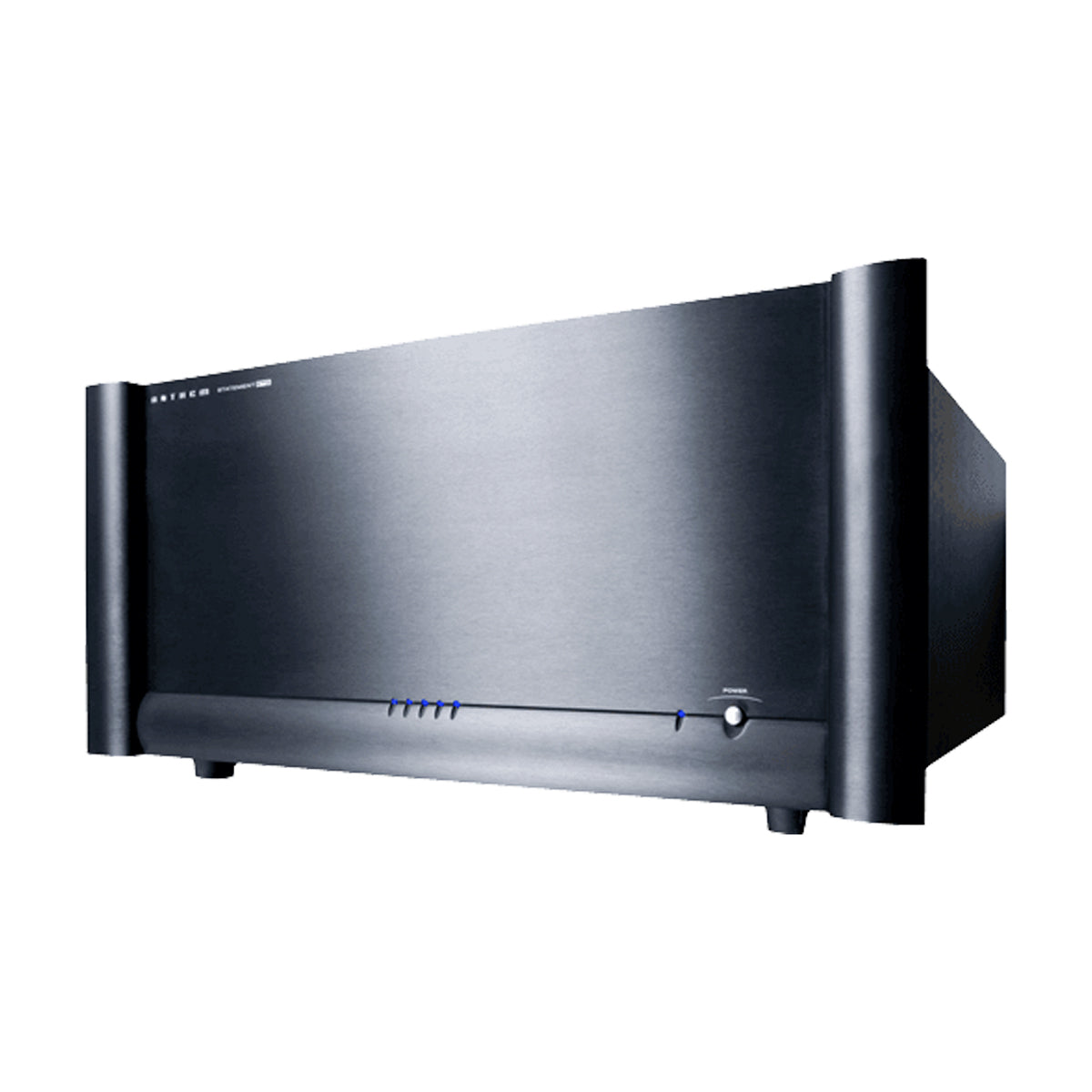

Anthem P5 5-Channel Power Amplifier

5-Channel Power Amplifier with 325 Watts Per Channel Continuous
Item #1512051001

Anthem P5 5-Channel Power Amplifier

5-Channel Power Amplifier with 325 Watts Per Channel Continuous
$8,999.99
Free Shipping: Delivers in 5-7 Days
Contact Us

Overview

The heart of an amplifier rests with its design and it is here that P2 and P5 amplifiers reveal their high-end lineage: multi-layered, hand-designed circuit boards with thick copper traces; rugged, independent power supplies with tuned toroidal power transformers for each amplifier channel; fourteen rugged bipolar output devices per channel; custom-designed convection-cooled heatsinks with serrated fins; a “no-fuse” design strategy. And the list goes on.

The heart of an amplifier rests with its design and it is here that P2 and P5 amplifiers reveal their high-end lineage: multi-layered, hand-designed circuit boards with thick copper traces; rugged, independent power supplies with tuned toroidal power transformers for each amplifier channel; fourteen rugged bipolar output devices per channel; custom-designed convection-cooled heatsinks with serrated fins; a “no-fuse” design strategy. And the list goes on.

Details & Specs

General
Inputs 5 Single-Ended, 5 Balanced, 1 Relay Trigger (3.5 mm Mono Jack)
Outputs 5 Pairs Speaker Binding Posts, 1 Relay Trigger (3.5 mm Mono Jack)
THD+N (225 W into 8 Ω) 0.0007% at 1 kHz, 0.008% at 20 kHz
IMD 0.00019% (CCIF, 325 W into 8 Ω)
POWER BANDWIDTH 10 Hz to 150 kHz
(+0 -3 dB, 325 W into 8 Ω)
FREQUENCY RESPONSE 20 Hz to 20 kHz (+0 -0.15 dB),
5 Hz to 100 kHz (+0 -2 dB)
INPUT SENSITIVITY (RCA and XLR 0 dB inputs) 1 Vrms in for 28.3 Vrms out
(100 W into 8 Ω)
INPUT IMPEDANCE 18 kΩ (RCA), 22 kΩ (XLR)
DAMPING FACTOR >600 at 20 Hz, 400 at 1 kHz (ref. 8 Ω)
S/N RATIO 125 dB, A-weighted (ref. 325 W)
CROSSTALK (between any two channels) -140 dB (20 Hz), -80 dB (20 kHz)
VOLTAGE GAIN 29 dB
SLEW RATE 40 V/µs
SWITCHES
Front Panel Power (On/Off)
Rear Panel On/Off Modes (Trigger, Manual, Auto), Inputs (RCA, XLR, XLR -6dB)
POWER OUTPUT
(Per channel, continuous RMS, 20 Hz to 20 kHz, <0.1% THD, one or all channels driven.)
Impedance
# of Channels Driven 1 All 1 All 1 All
325 W 325 W 500 W 500 W 675 W 675 W
Statement P2 and P5 amplifiers are stable into any impedance down to a short circuit at full output.
POWER REQUIREMENTS
SUPPLY VOLTAGE 105 to 130 V, 60 Hz
POWER CONSUMPTION 2 x 1800 W
DIMENSIONS
Height 9-3/8 inches (23.8 cm) including feet
Width Faceplate 19-1/4 inches (49 cm)
Chassis 17-1/4 inches (43.8 cm)
Depth 22-1/2 inches (57.2 cm) including handles
Weight (unpacked) 130 lb (59 kg)

Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Sonic POW !!
Now you can feel Batman's punch

First and foremost, this amp does not weigh 20 lbs.

It’s more like 135 lbs.

One Hundred and Thirty-Five groin kicking pounds, so have some help on hand just to help move and position this Amp. Once you do get this one in position, just know it’s gonna stay there. Hook up your connection and get ready. ( Mine - Kimber 12tc in Banana Terminations into a Bi-Wire setup, feeding a pair of B&W 803’s ).

This Amp is AWESOME !!! I’ve always ran Carver Amplifiers.
( M1.5t’s and Sunfire Research Amps ). NOTE: I’ve sold those off once I auditioned the Anthem P-5.

You know how you can hear a Choir of Angels singing as the Sun comes through the Clouds after a severe rainstorm?

Yeah! It’s like that!
