Rotel T11
FM/DAB+ Tuner
Item #ROTEL:T11
Overview

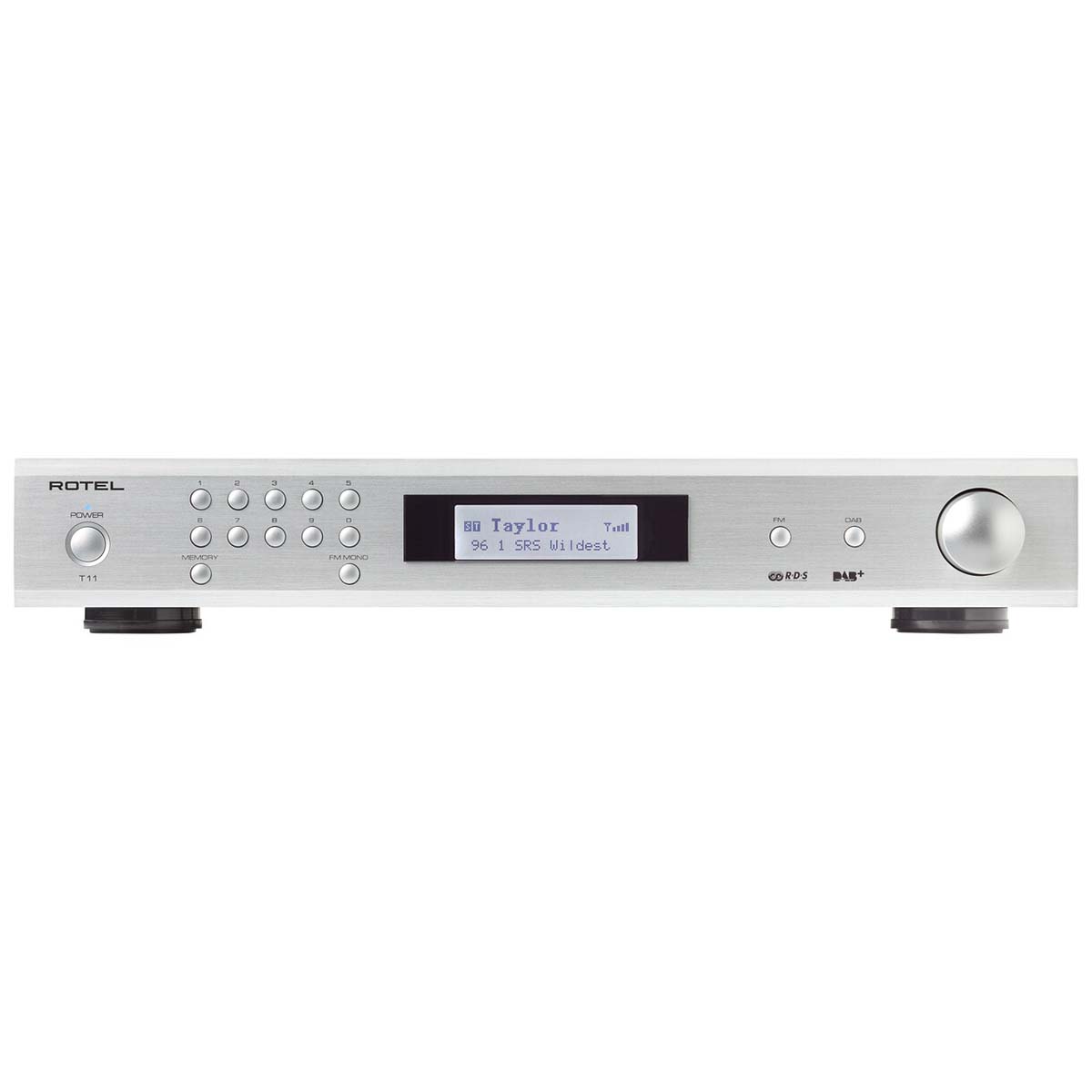

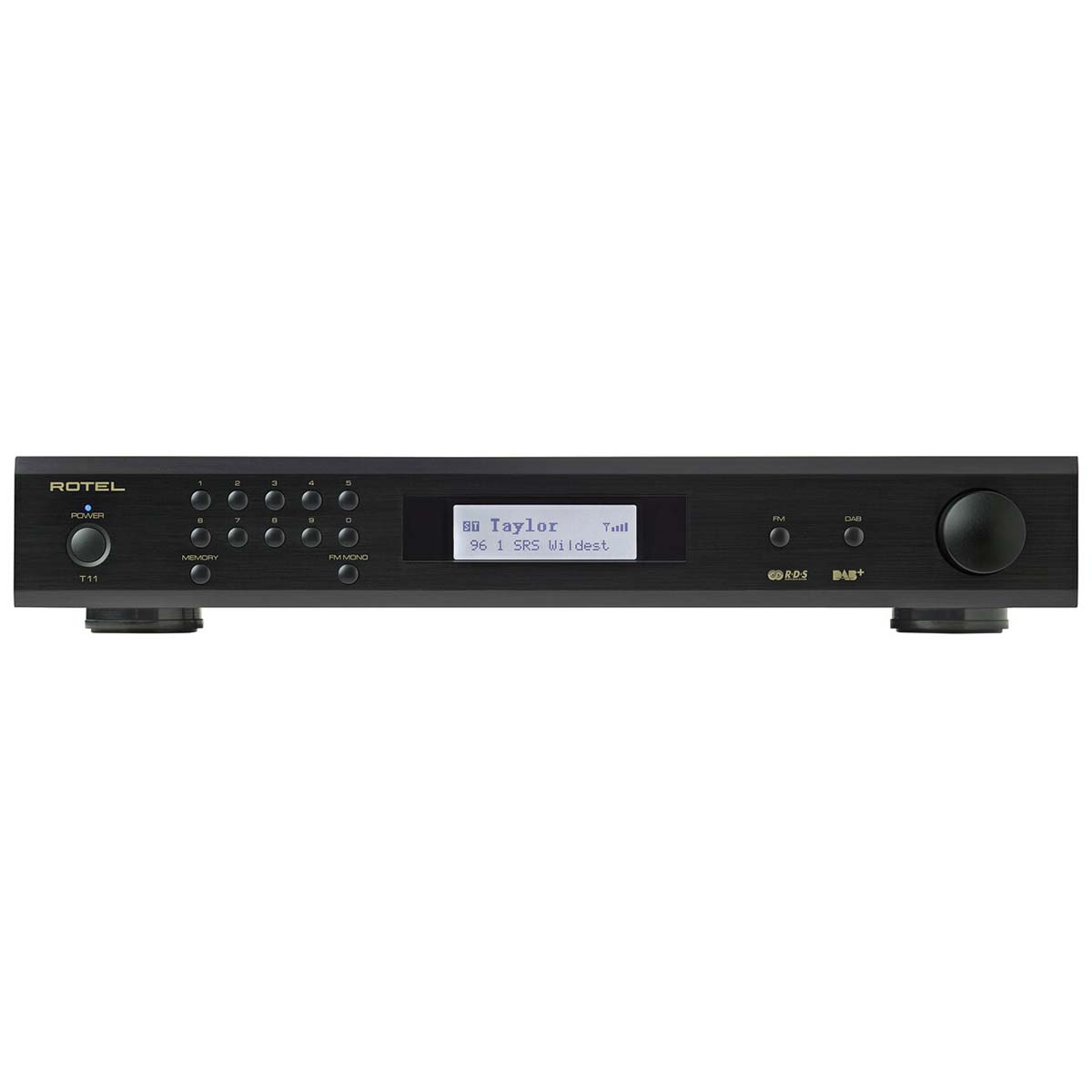

Rotel’s T11 is a high-quality FM/DAB+ tuner with up to 30 station presets. It provides a wealth of free music listening options.
Rotel has been producing quality tuners since the 1960s. One of the latest additions to this long-established line-up is the T11 FM/DAB+ tuner. It provides a wealth of listening options with easy access to classic analogue FM stations as well as newer DAB+ (Digital Audio Broadcasting) services.
Like the T14, T11 features the ability to easily store and recall up to 30 presets each for FM or DAB+ stations. A further useful feature common to all 14 Series products is the ability to dim the display panel and power LED to provide a comfortable visual reference in all lighting environments.
Details & Specs
- Dimensions (W × H × D): 430 × 73 × 330mm (17" × 2.9" × 13")
- Front Panel Height: 60mm (2.36")
- Power Requirements: 230V, 50Hz
- Power Consumption: 10W
- Standby Power Consumption: <0.5W
- Net Weight: 4.3kg (9lbs.)
- BTU Rating: 17 BTU/h
- DAB Sensitivity: -80dBm
- DAB Tuning Range: Band III (174-240MHz)
- DAB Audio Date Rate: 224Kbps Max
- DAB Frequency Response: 20Hz - 20kHz ±1dB
- DAB Analog Output: 2.1V at 0dBfs
- DAB Antenna Input: 75Ω F Connector
- FM Usable Sensitivity: 22.2dBf FM 50DB
- Quieting Sensitivity: 27.2dBf (Mono)
- FM Signal to Noise Ratio (at 65dBf):
- 63dBf (Mono)
- 60dBf (Stereo)
- FM Harmonic Distortion (at 65dBf):
- 0.2% (Mono)
- 0.3% (Stereo)
- FM Frequency Response: 10Hz - 15kHz ±3dB
- FM Stereo Separation (100Hz/1kHz): 40dB/37dB
- FM Output Level: 1V
- FM Antenna Input: 75Ω F Connector
