Revel C783

8" In-Ceiling Loudspeaker

Item #REVEL:C783
Item # C783

Revel C783

8" In-Ceiling Loudspeaker

$660.00
/EACH
More on the way! Order now to reserve risk free.
Details
Add to Wish List
  • Free Shipping Icon Free Shipping
  • 30-Day Returns Icon 30-Day Returns
  • Expert Advice Icon Expert Advice
  • Price Guarantee Icon Price Guarantee
Overview
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion

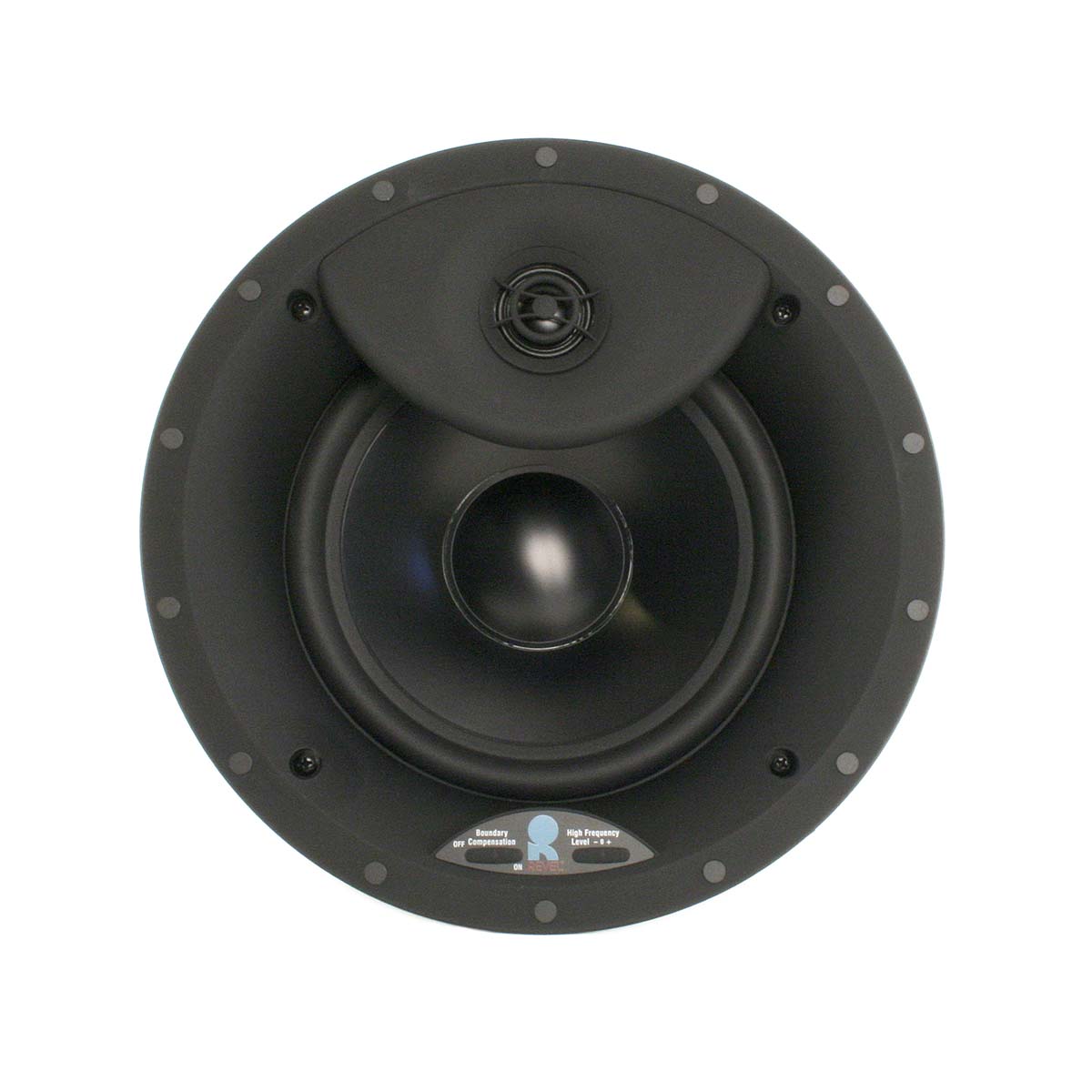

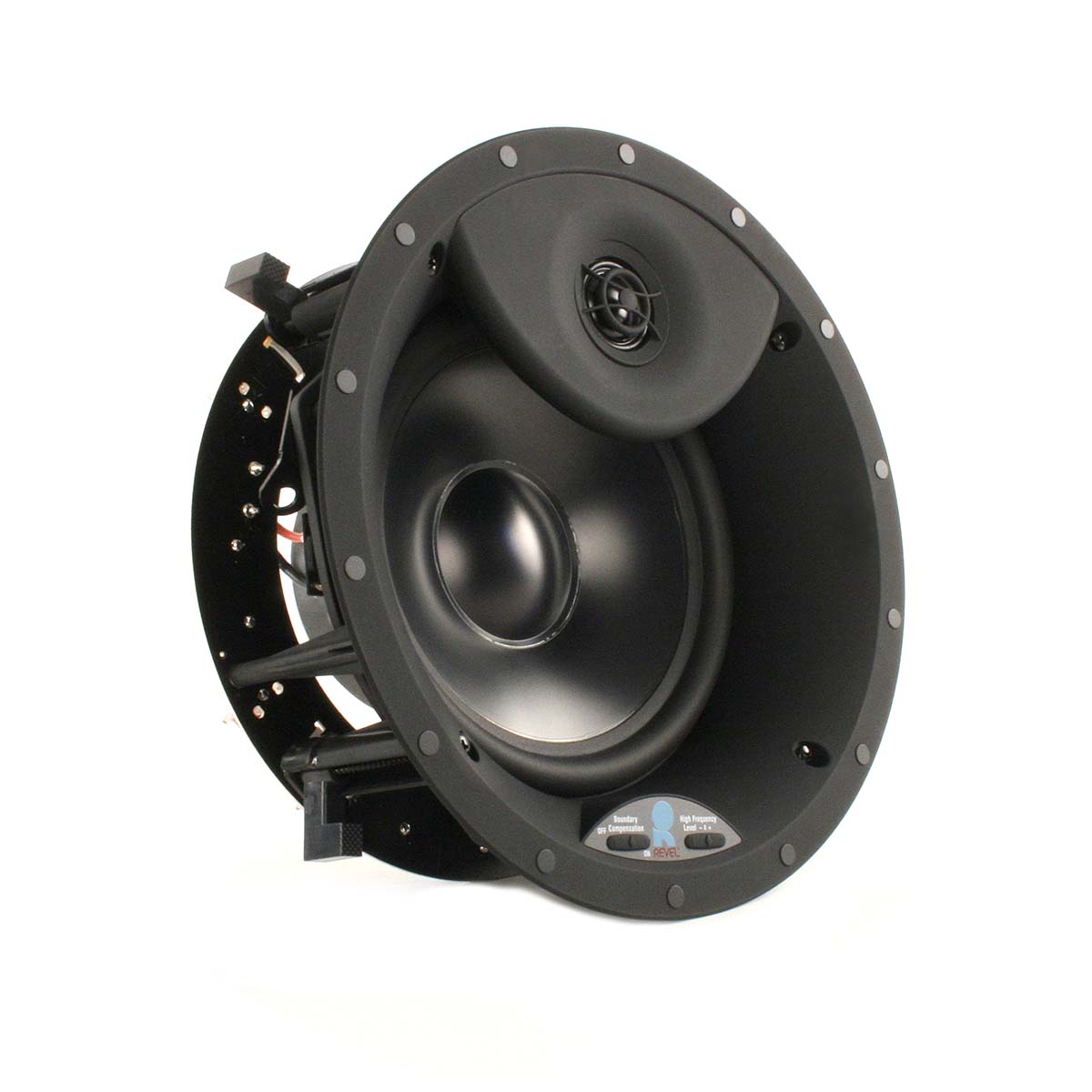

  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

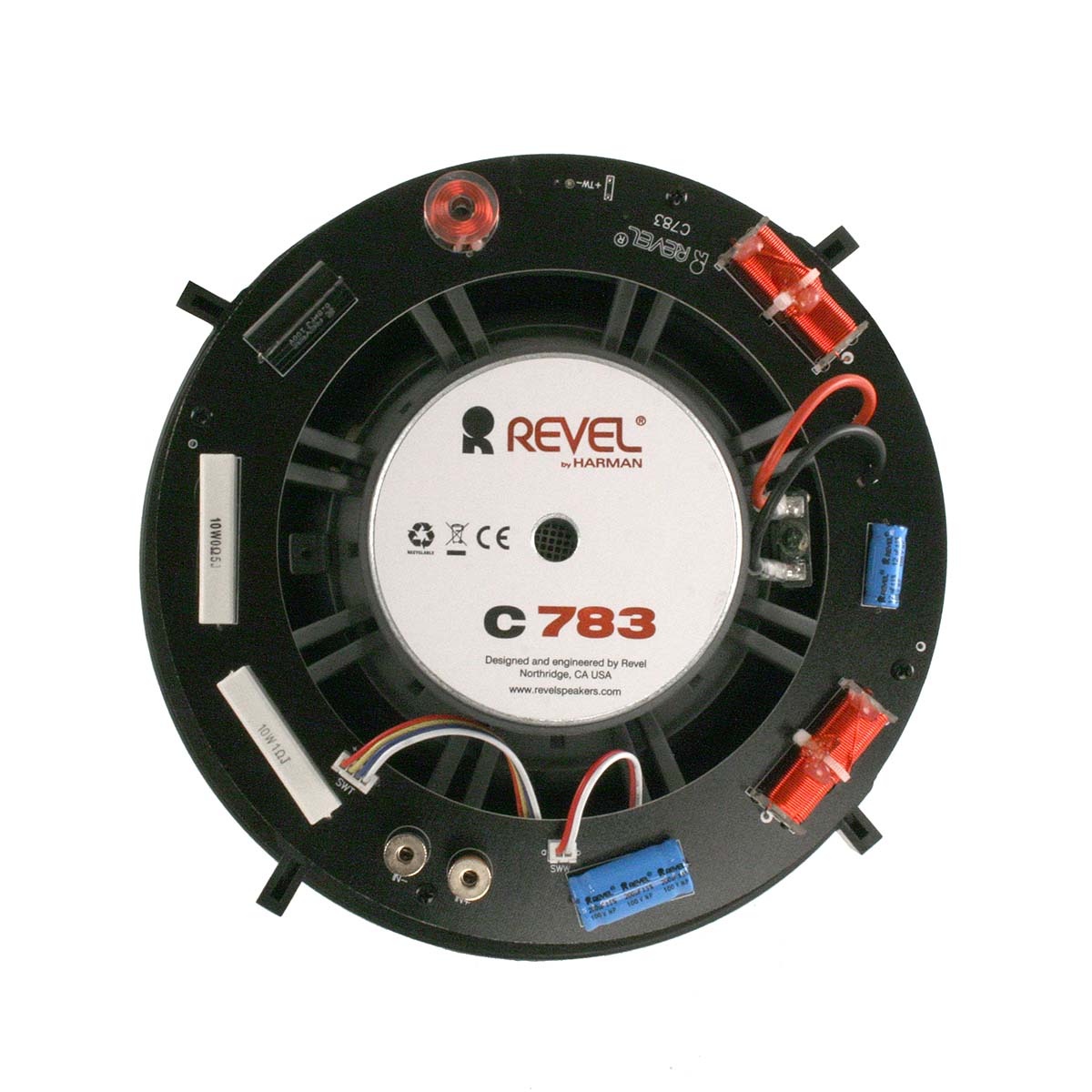

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Details & Specs
  • Height: Cutout dimensions (dia.) 9.6" (24.4 cm) Square grille finished Height 10.7" (27.2 cm)
  • Width: Square grille finished Width 10.7" (27.2 cm)
  • Depth: Mounting depth 5.2" (13.2 cm)
  • Weight: Weight 3.1 lb (1.4 kg) / Shipping weight 4.1 lb (1.9 kg)
  • Features:

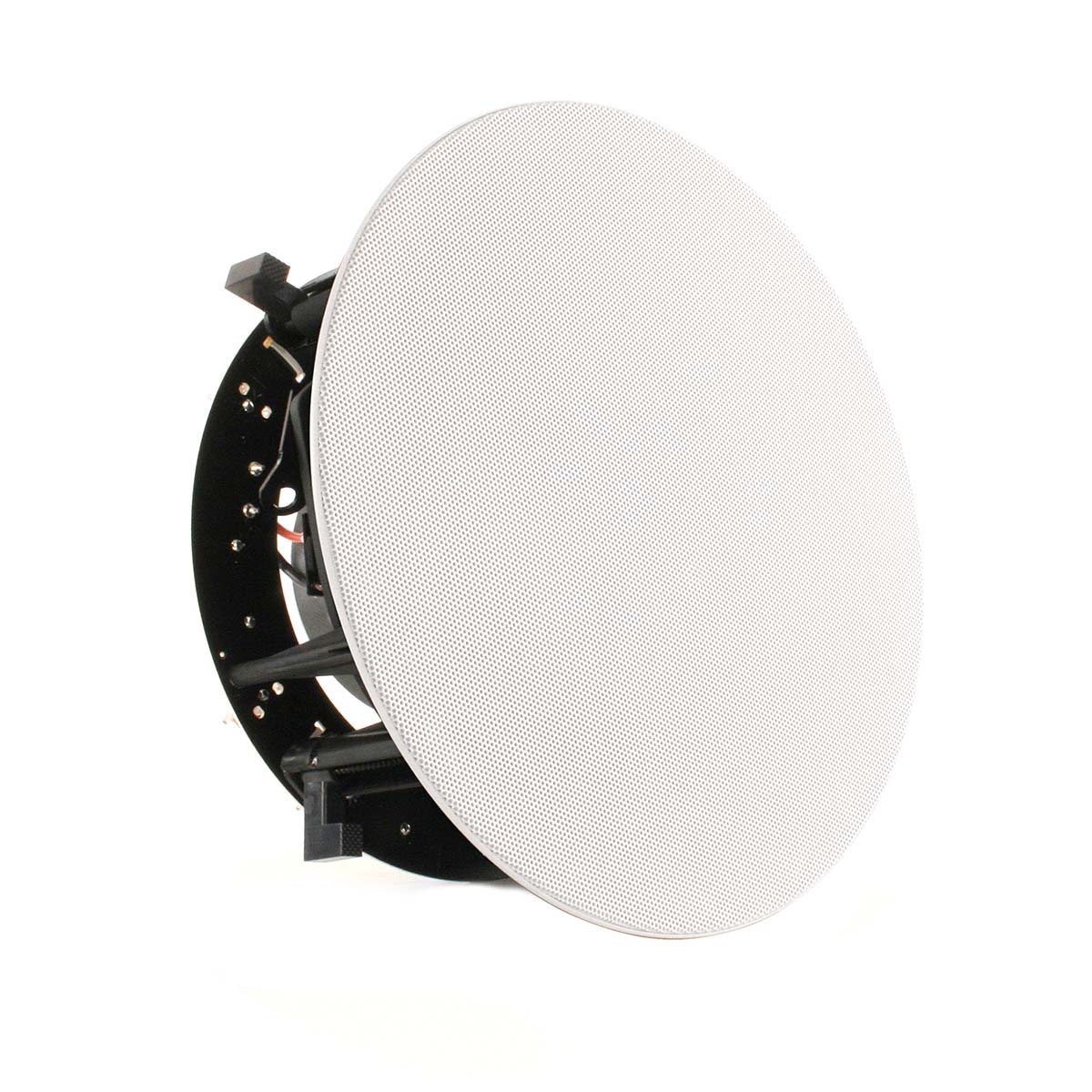

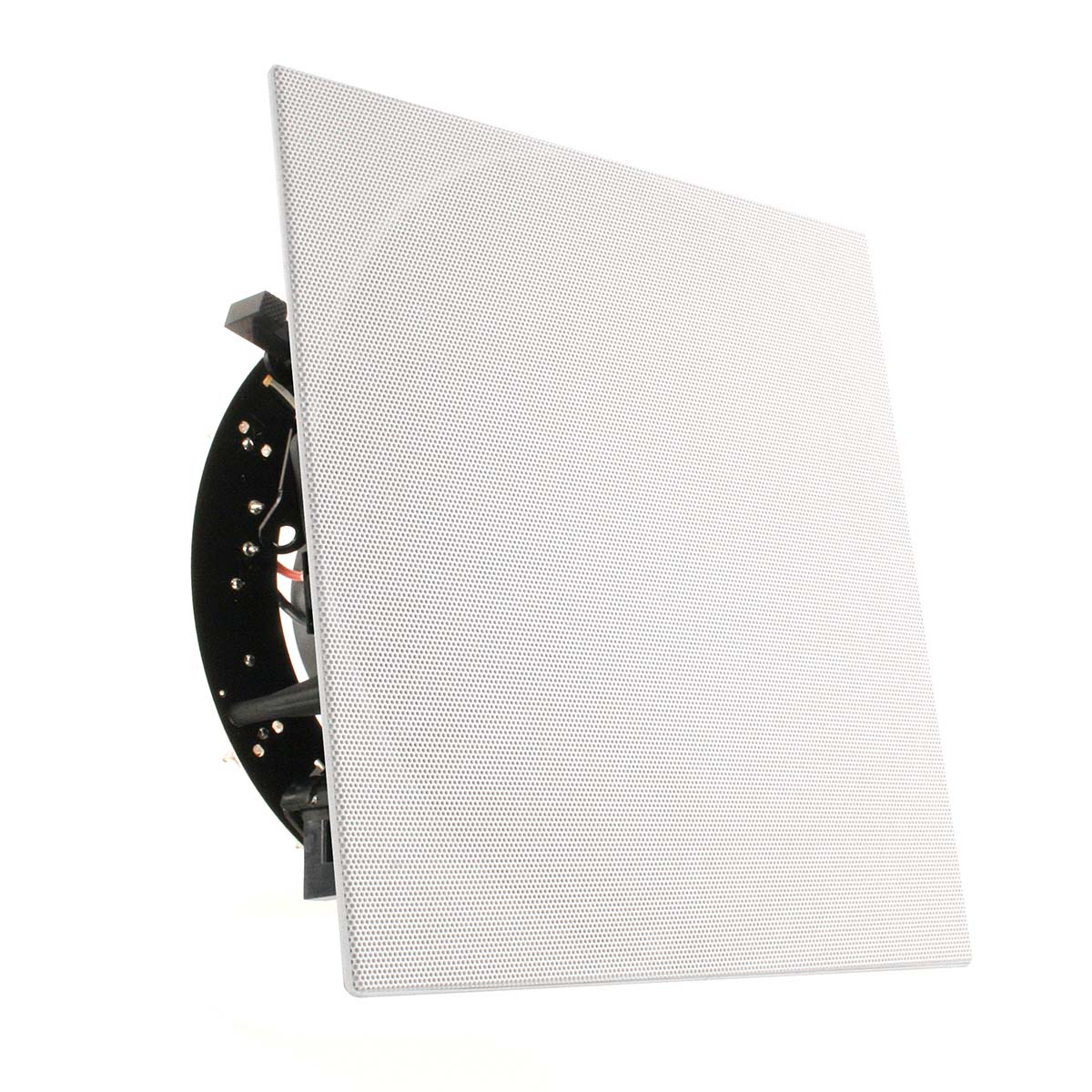

    • Includes both round and square zero-bezel magnetic grilles
    • Round grille finished dimension (dia.) 10.7" (27.2 cm)
  • High-Frequency Driver Components: 1" aluminum dome swiveling high-output tweeter with waveguide
  • Low-Frequency Extension: High-Frequency Extension 3-position HF level control / Low-Frequency Extension LF boundary compensation
  • Low-Frequency Driver Components: 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
  • Mounting:
    • C-2 fastening mechanism
    • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
  • Recommended Amplifier Power: 10 - 150 Watts RMS
More Information
UPC 848592000288
