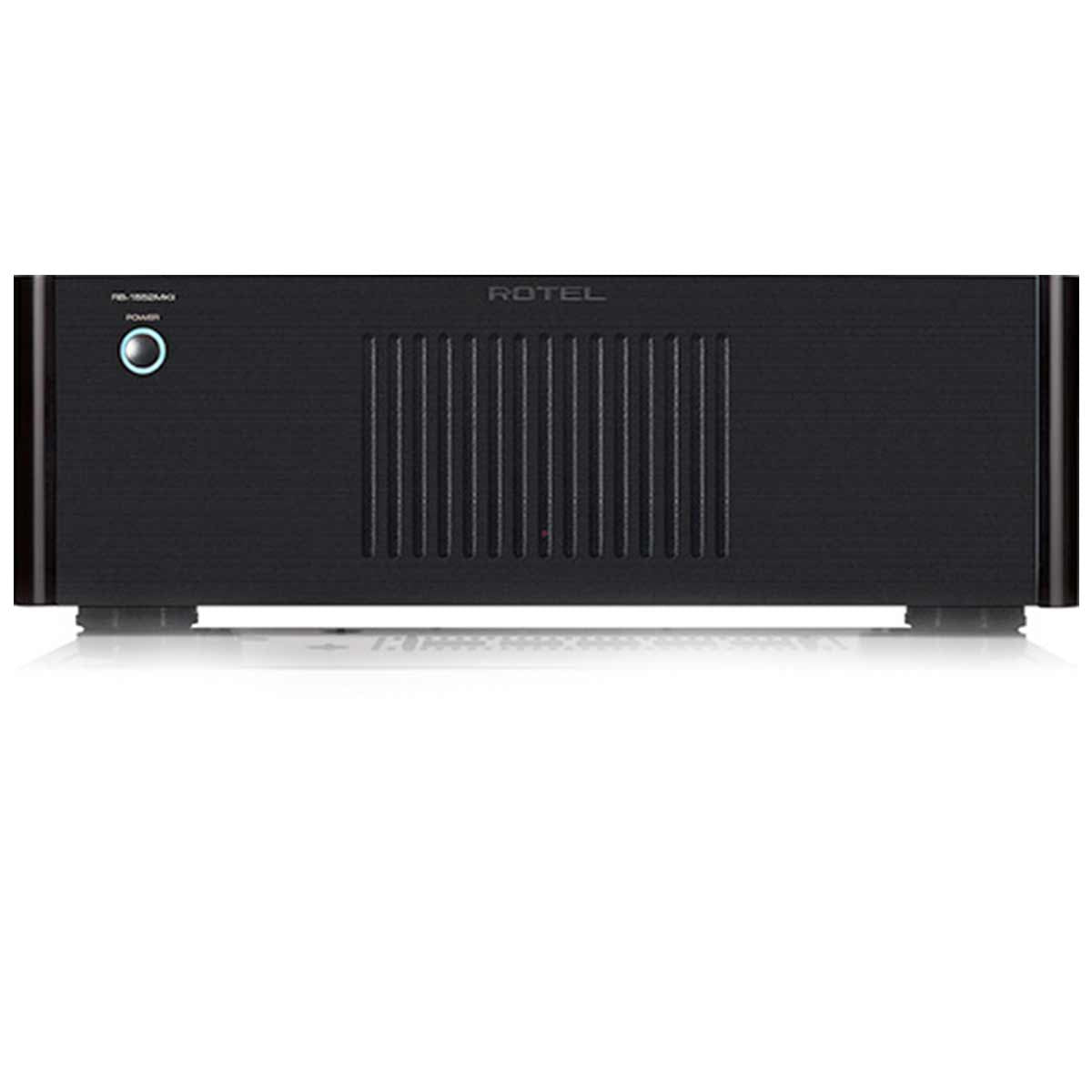

Rotel RB-1552 MKII

Stereo Class A/B Power Amplifier - Black

Rotel RB-1552 MKII

Stereo Class A/B Power Amplifier - Black
$1,499.00
Select Color Options:

Contact Us

Overview

The RB-1552 MKII is a 130 Watt per channel class AB amplifier. It is engineered to be powerful and robust, yet able to extract every last nuance out of even the most complex musical score.

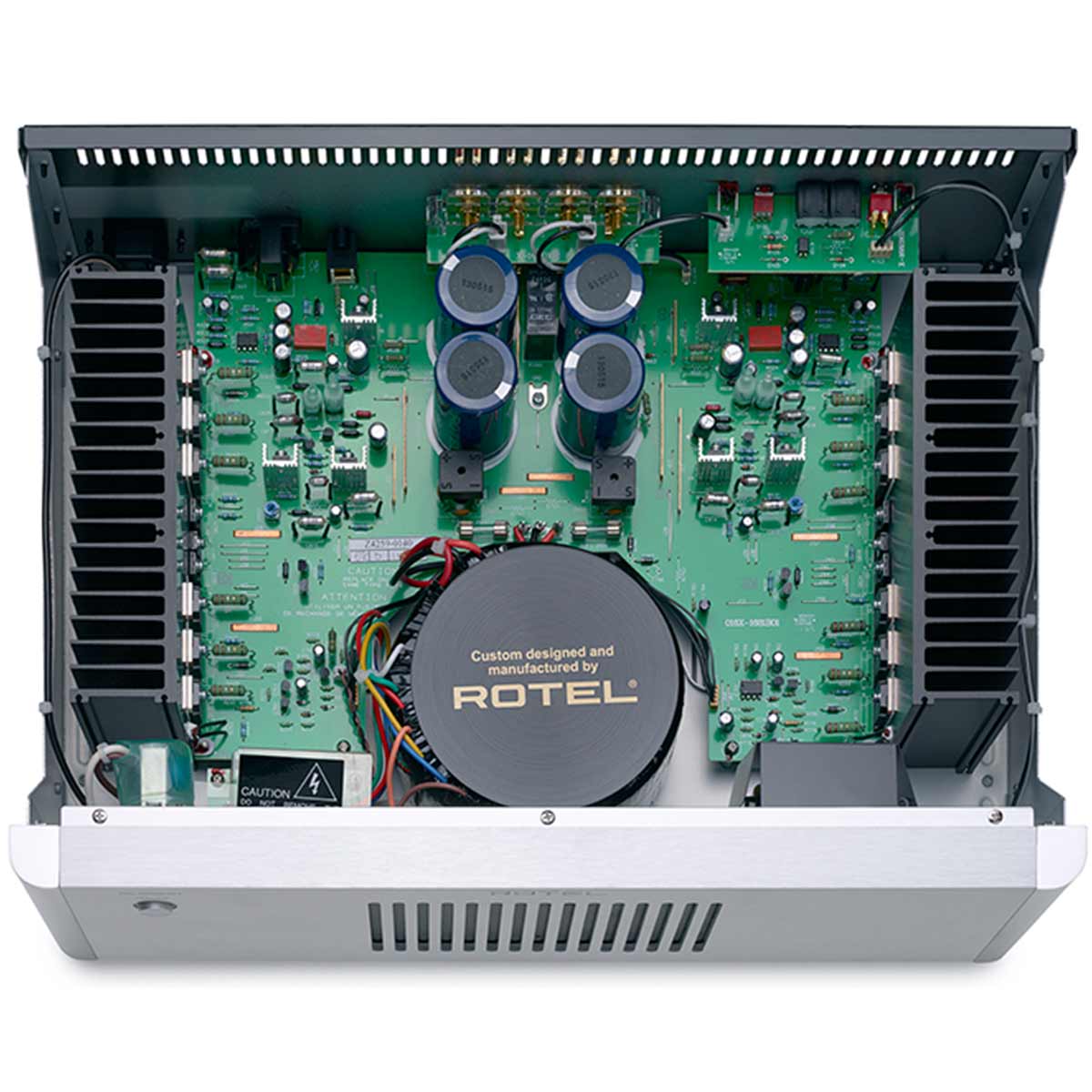

Rotel's fanatical attention to detail means the sum is greater than the parts, what they call the Balanced Design Concept. Each aspect of design is carefully considered holistically to result in maximum audio performance; from the selection of an over-sized power supply featuring a highly efficient, low magnetic field toroidal transformer to multiple, high-current bipolar output transistors. Circuit topology is planned, implemented, evaluated, and adjusted to achieve optimum results.

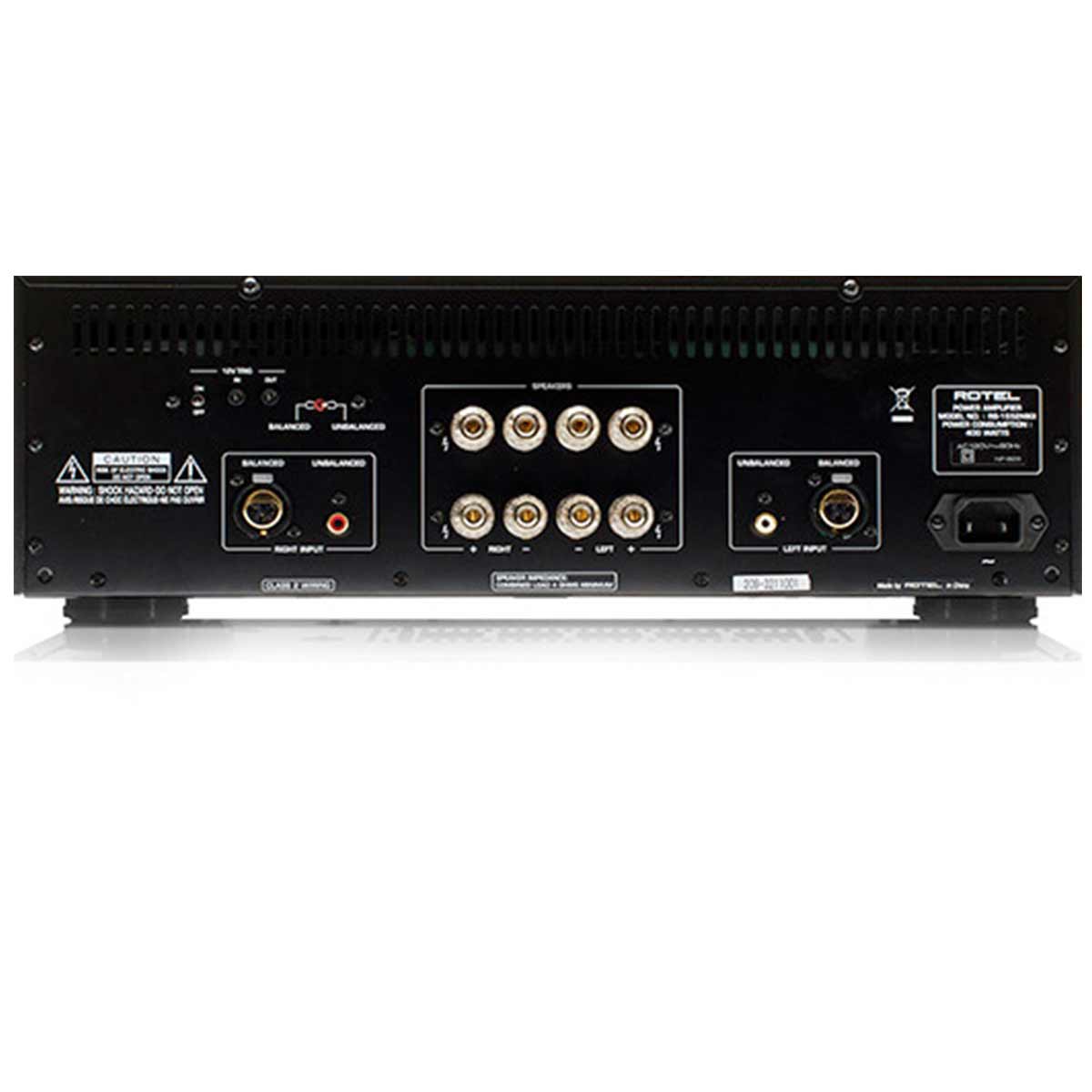

The RB-1552 MKII features independent left and right power rectification stages and decoupling, and is essentially a mono-block design. Further evidence of design overspec is in the selection of premium “slit-foil” capacitors, which provide plenty of reserve energy for extremely dynamic audio passages and are able to quickly replenish themselves due to the nature of their unique design. Input options are balanced XLR or unbalanced RCA connectors.

The RB-1552 MKII stereo amplifier has been engineered to provide high-resolution audio performance, yet it is very affordable, as has been the tradition with Rotel electronics for over 50 years.

Details & Specs

Model RB-1552 MKII
Continuous Power Output 130W/Ch (All channels driven, 8Ω)
Total Harmonic Distortion (20Hz–20kHz) less than 0.03%
Frequency Respons 10Hz - 100kHz ±0.5dB
S/N Ratio (IHF "A" Weighted) 120dB
Gain RCA: 26.5dB
XLR: 22.5dB
Intermodulation Distortion (60Hz:7kHz, 4:1) less than 0.03%
Damping Factor 450
Speaker Impedance 4Ω minimum
Input Sensitivity Line Level Inputs (RCA): 1.5V
Line Level Inputs (XLR): 2.5V
Input Impedance Line Level Inputs (RCA): 12kΩ
Line Level Inputs (XLR): 100kΩ
Power Requirements 120V, 60Hz
Power Consumption 400W
Standby Power Consumption 0.5W
BTU Rating 905 BTU/h
Front Panel Height 3U / 5.25" (132.6 mm)
Dimensions (WxHxD) 17" × 5.7" × 13.4"
431 × 144 × 339 mm
Net Weight 27 lbs
12.4 kg

Reviews

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
r
reimontalvo
Unheard of Performance at this Price Point!

First off, thanks to Mel and Jeff for assisting me with my purchase and for providing an unsurpassed customer experience. This amplifier is incredibly robust, dynamic and devoid of any coloration! Your music and movie soundtracks are going to be perfectly reproduced, just as the artists intended them to sound! There’s an impressive soundstage and plenty of power to spare for your speakers to truly shine! If you are in the market for an amplifier the Rotel RB-1552 MK II should be in your auditioning list!

R
Reimontalvo
Quality and Sonic Performance way above its price!

First off, thanks to Mel and Jeff for selling me this beauty! This amplifier is hefty and handsomely built! Rotel has a reputation for making high-end audio components at a price that most of us can afford and with the RB-1552 MK II they have earned that reputation! I have this paired with the Bowers and Wilkins 705 S2’s and my record collection has reaped the benefits of that union!

Wide soundstage, strong dynamics and no signs of fatigue at any point! It doesn’t matter whether I am listening at my favorite vinyl or watching the most action-filled movie, this amplifier recreates the sound in all its intended glory!

If you are looking for a power amplifier, go to Audio Advice and let tell you what you need to gain the same kind of audio nirvana I am enjoying now with their highly recommended Rotel RB-1552 MK II.
