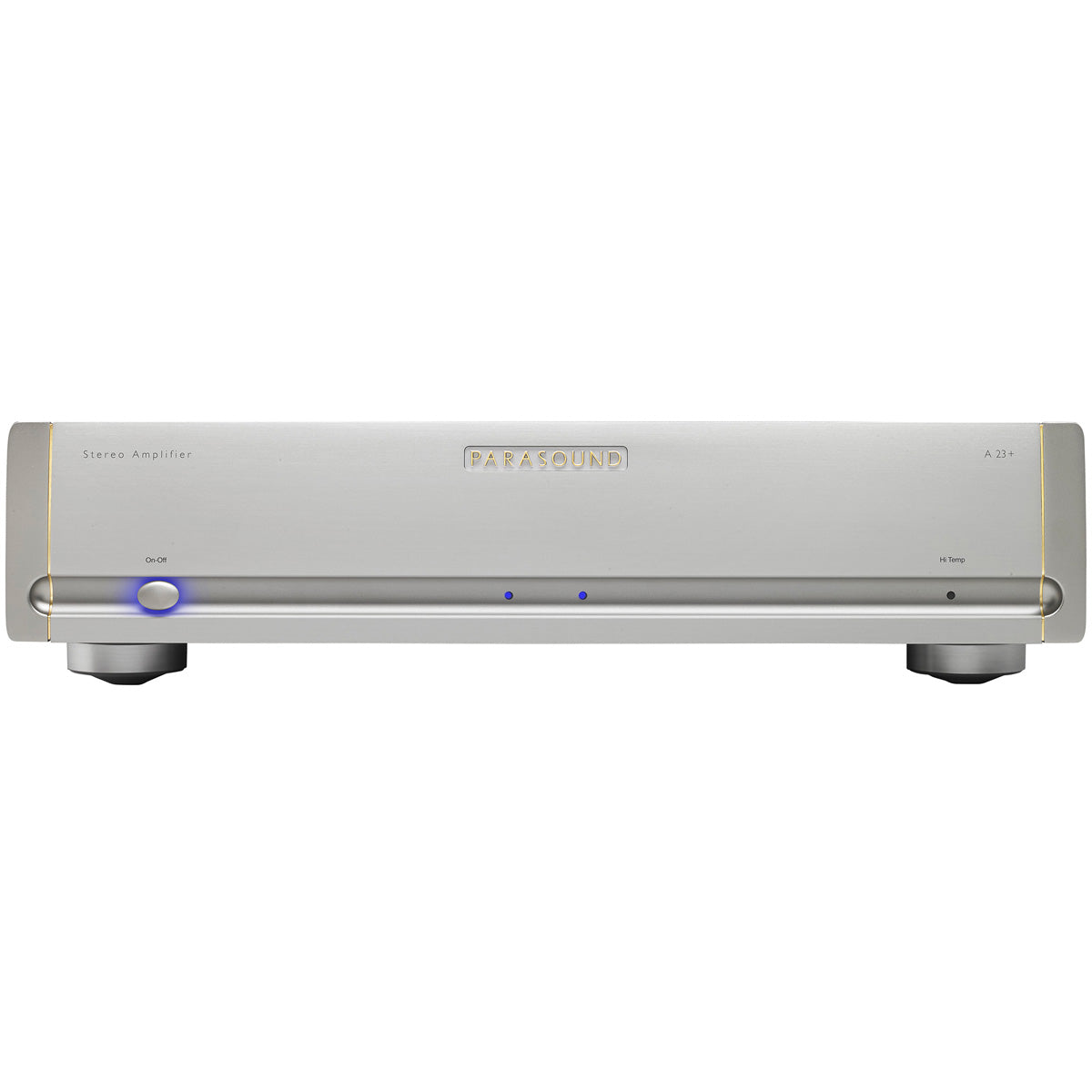

Parasound Halo A23+

Stereo Power Amplifier

Parasound Halo A23+

Stereo Power Amplifier
Was $1,999.00 From $1,749.00
Save $250
Select Color Options:

Contact Us

Overview

The Parasound Halo A23+ power amplifier delivers clean power perfect for driving small-to-midsized loudspeakers.

  • 160 watts x 2 @ 8 Ω RMS, both channels driven
  • 240 watts x 2 @ 4 Ω RMS, both channels driven
  • 500 watts x 1 @ 8 Ω, in bridged mode
  • Circuitry designed by legendary John Curl
  • High bias Class A/AB operation
  • 45 amperes peak current per channel
  • Stable with speaker impedance dips below 2 Ω

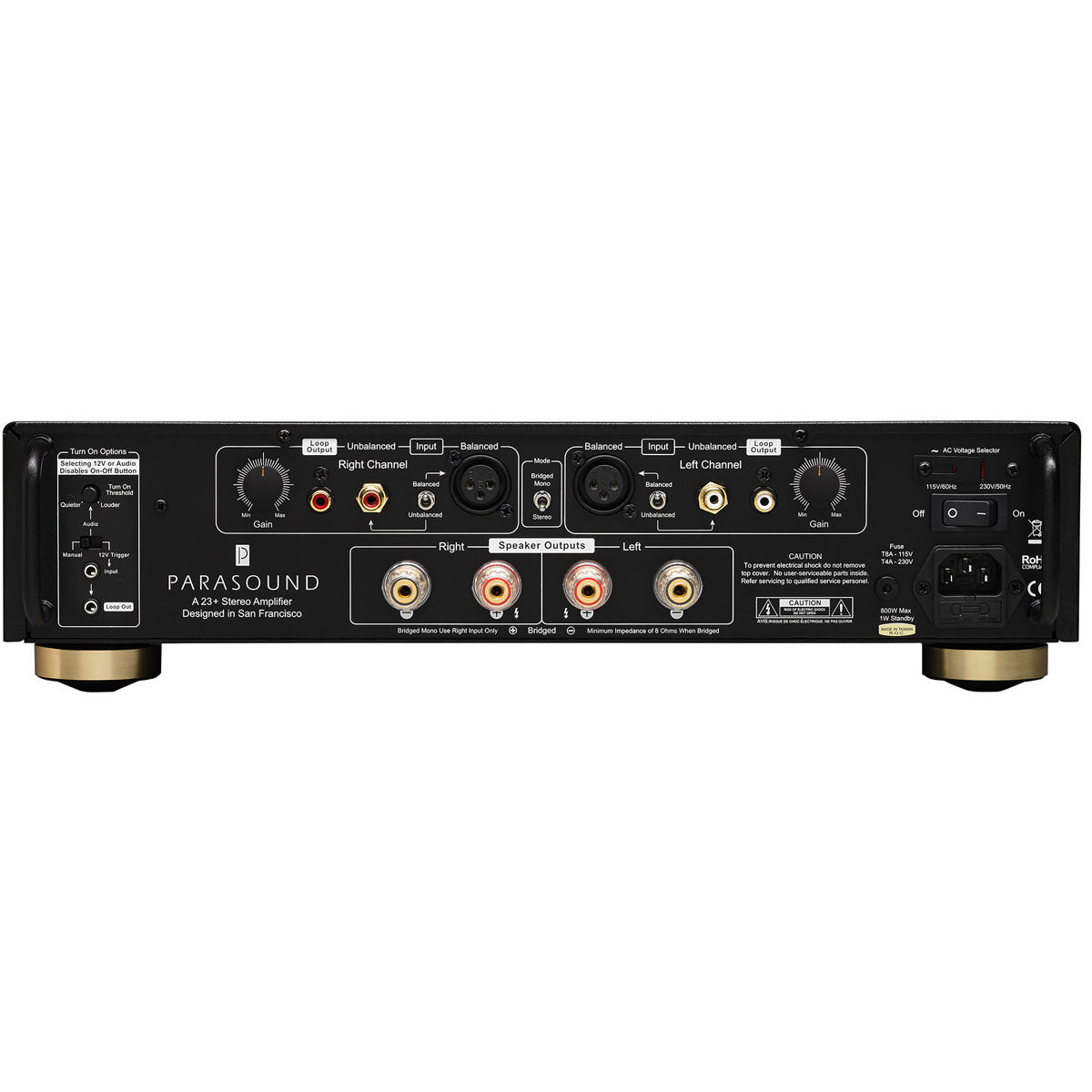

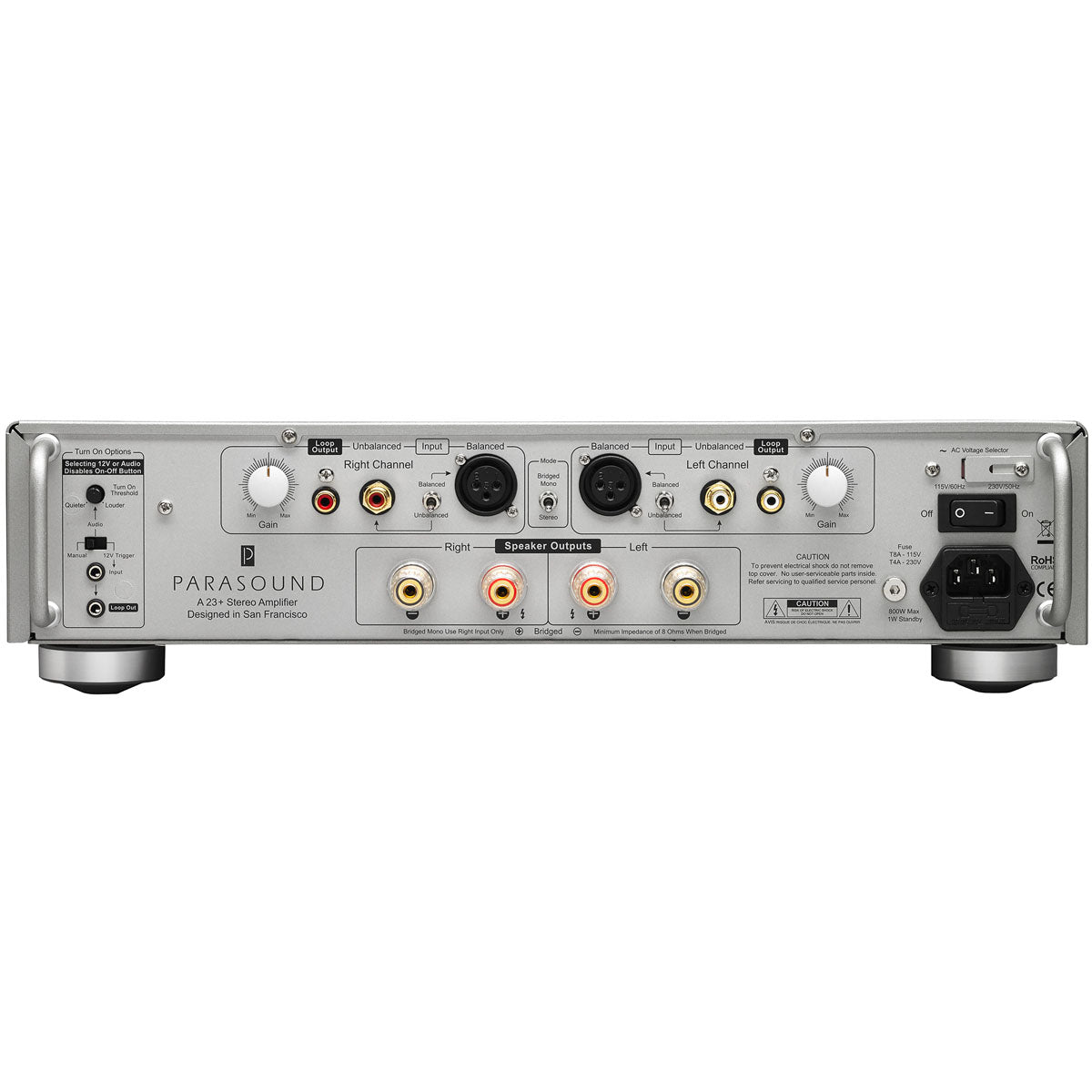

  • Balanced inputs with discrete circuits
  • Heavy-duty 24k gold-plated 5-way speaker binding posts
  • Gold-plated RCA input & loop output jacks
  • Direct-coupled signal path, no capacitors or inductors
  • DC Servo and relay protection circuits
  • AC turn-on inrush surge protection with relay bypass

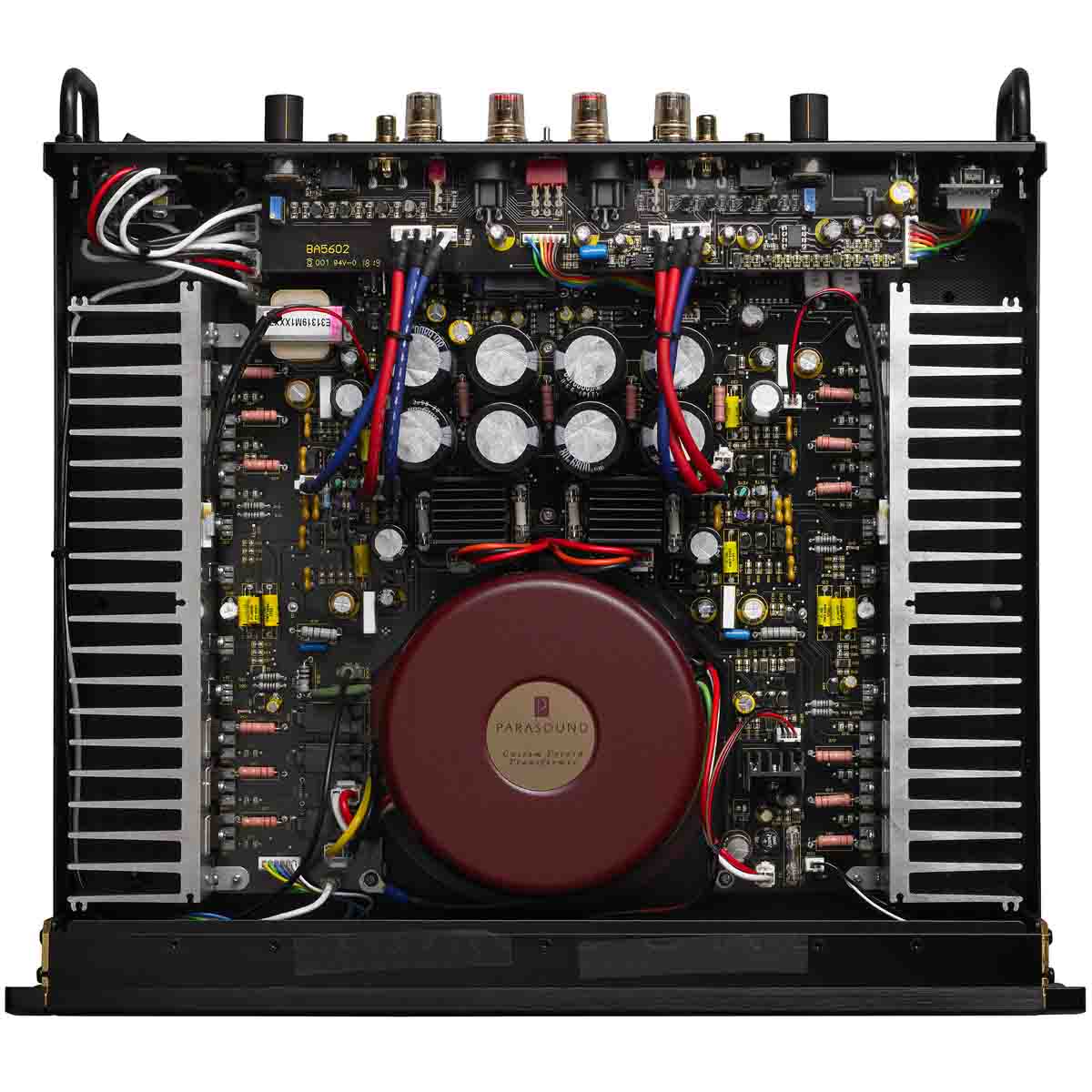

  • JFET input stage, MOSFET driver stage
  • 12 beta-matched 15 ampere, 60 MHz bipolar output transistors
  • 1.1 kVA shielded toroid transformer w/ independent windings for each channel
  • Independent power supplies for input stage, driver stage, and output stage
  • 54,400 µF filter capacitors for output stages
  • Full power is rated all the way down to 5Hz for unrestricted low-end bass
  • Harris hyper-fast soft-recovery bridge diode rectifiers
  • Automatic turn-on by 12 V trigger or audio sensing
  • 2 rack space chassis with rear carry handles
  • Rack mount hardware available separately

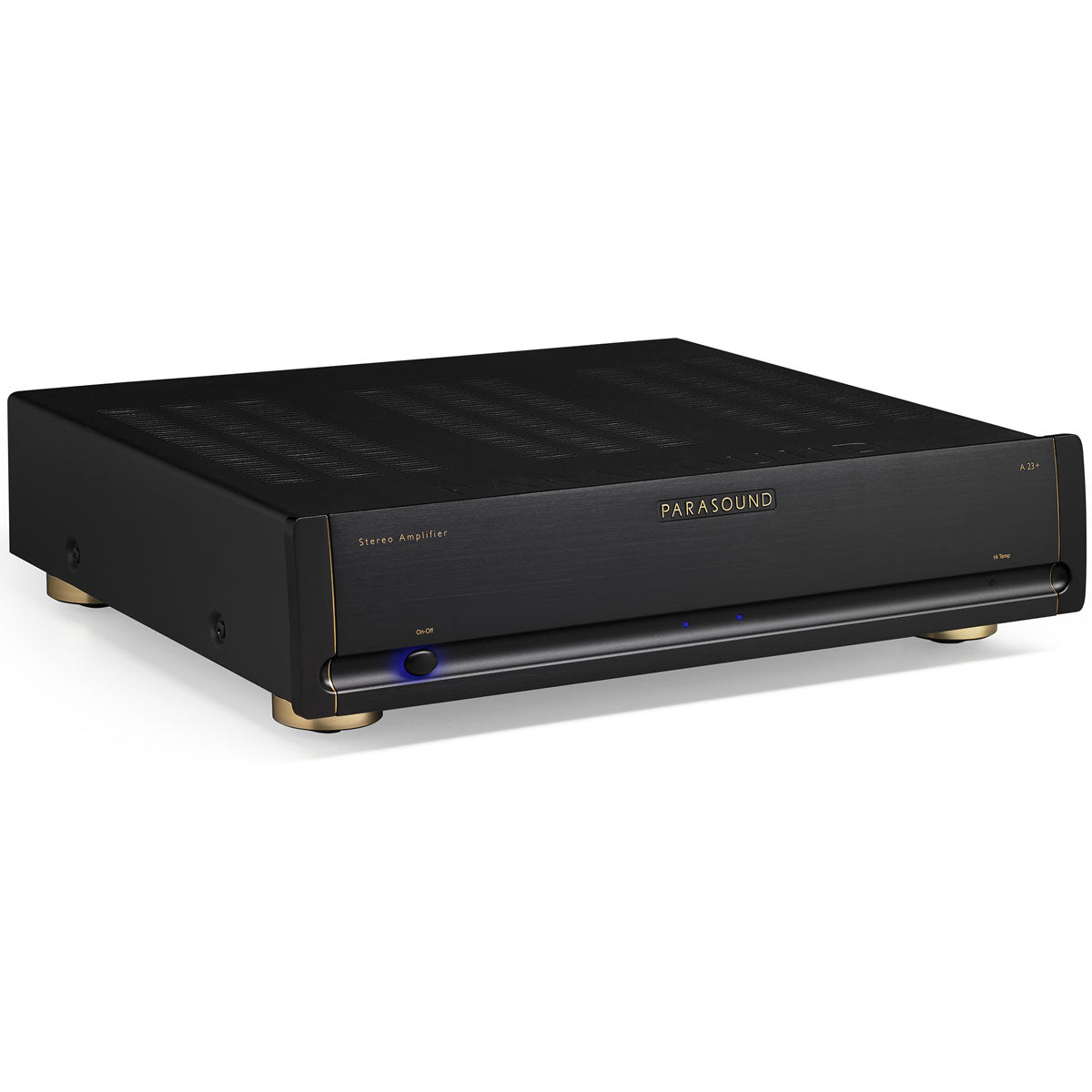

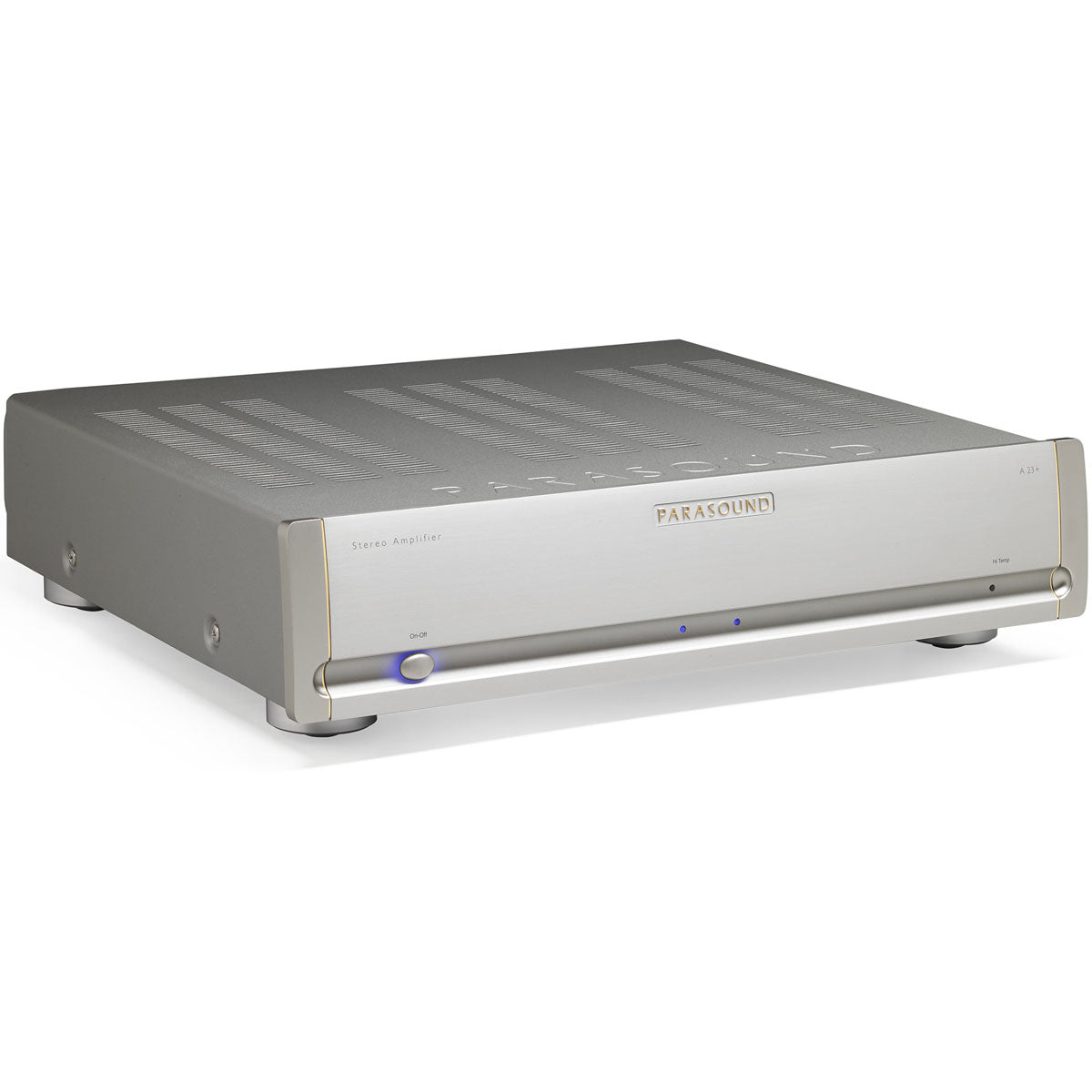

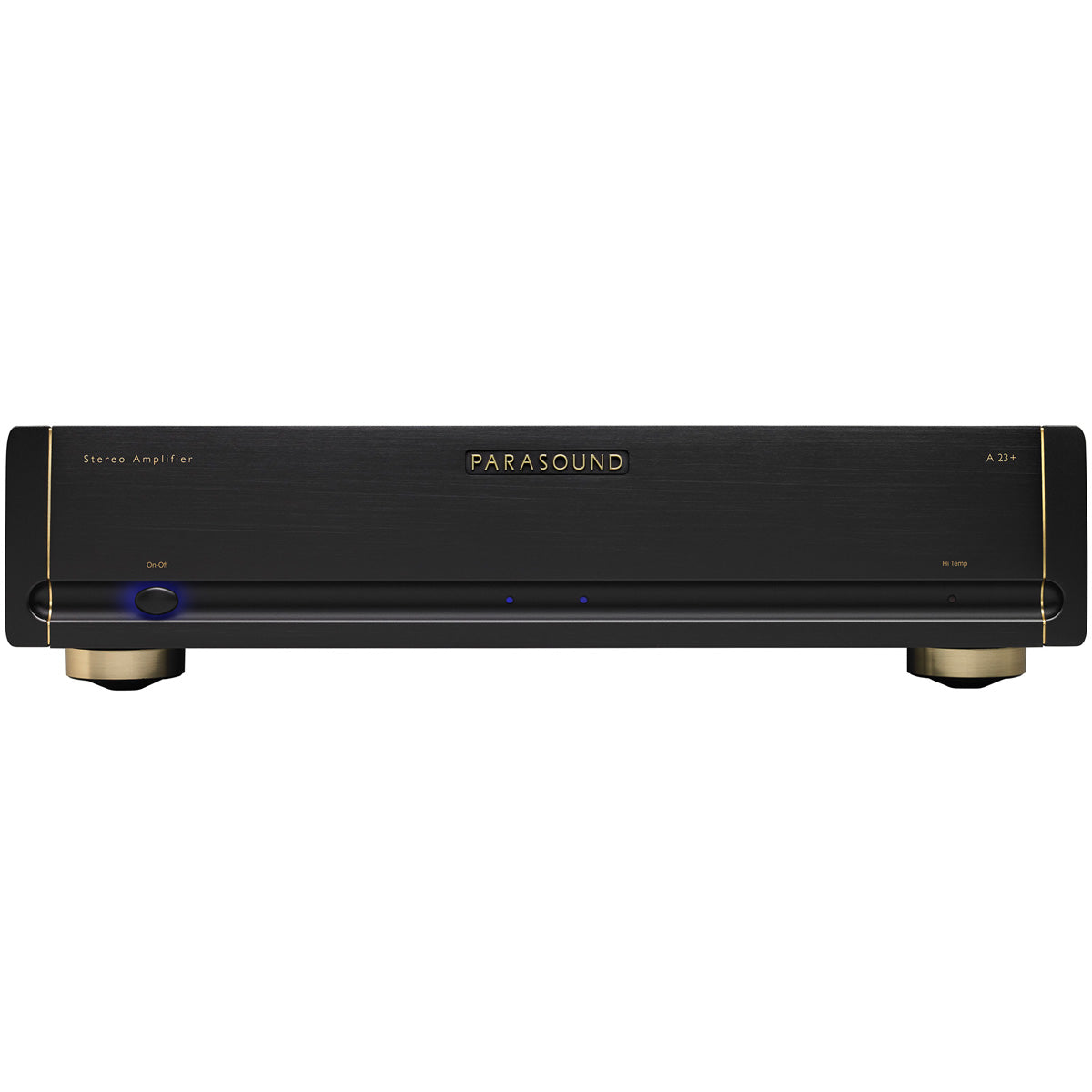

  • Available in silver or black
