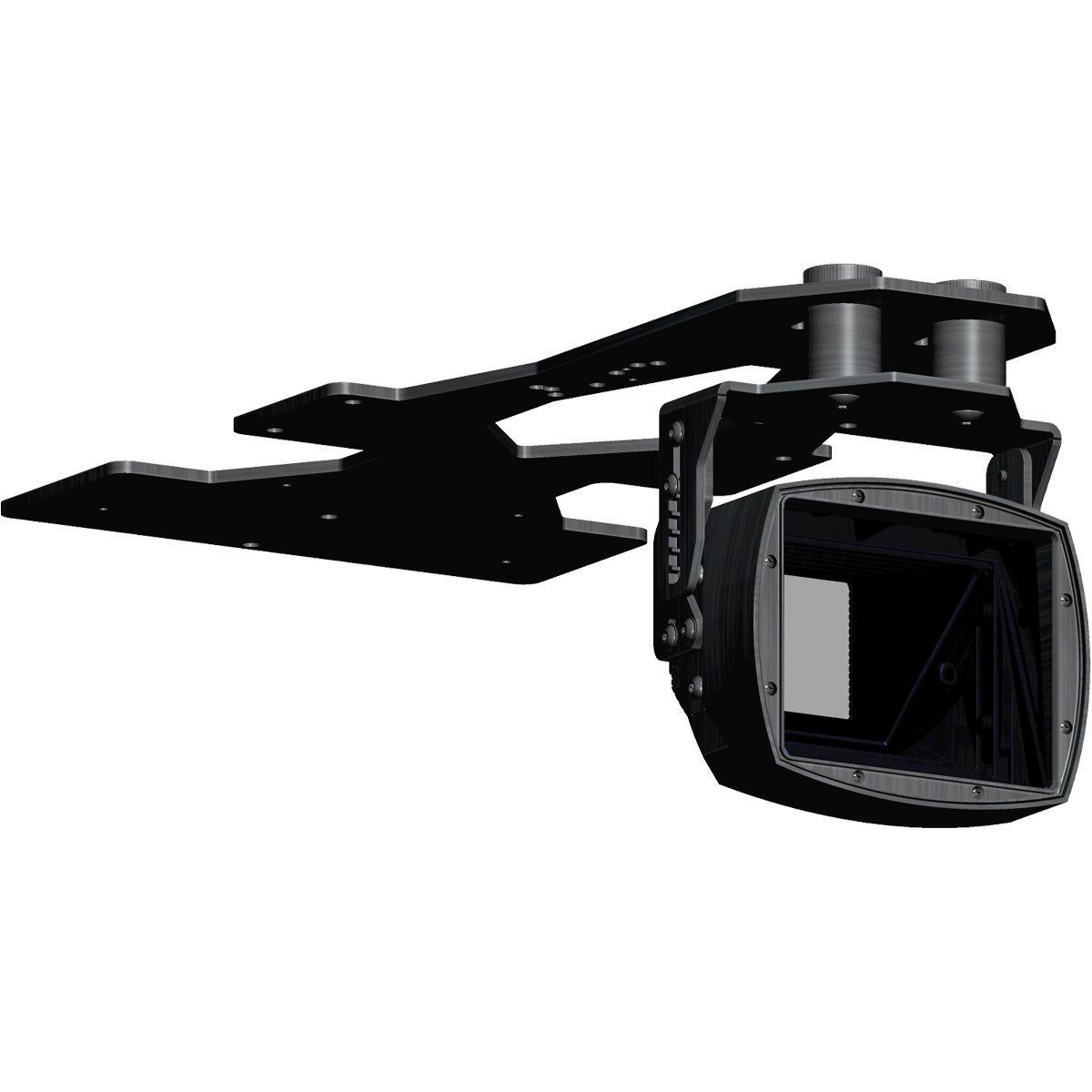

Panamorph CDR-G2

w/ XM3 Attachment Kit for Sony XW and Epson QB Series Projectors

Panamorph CDR-G2

w/ XM3 Attachment Kit for Sony XW and Epson QB Series Projectors
$6,995.00
Special Order: Free Shipping!

Overview

Leveraging the award winning DCR optics, the CDR-G2 (second generation) lens system is now packaged with the XM3 universal attachment kit for ceiling or shelf-mounting Sony XW and Epson QB series projectors.

Note that like the previous DCR and CDR lenses, these new models do not change the width of the image – only the height – as they convert the full native resolution of the projector to the 2.4:1 cinema format with millions of more pixels for higher brightness and detail.

Converting your Projector to Cinema 4K

Over 80% of the most popular movies are made in the standard commercial cinema 2.4:1 aspect ratio and even today’s streaming shows are migrating to this format. This content is meant and created to be the largest experience in your theater but on a flat panel TV or 16:9 projection system it is actually displayed as the smallest experience with the lowest performance because millions of display pixels are turned off to create black bars (yes, even with “lens memory zooming“). But now today’s most popular projector models also include anamorphic upconversion modes for use with an external anamorphic lens to convert their full 4K performance into the larger 2.4:1 cinema format for the highest brightness and detail – all while still providing modes for watching 16:9 content. The anamorphic big screen advantage means your projector can actually deliver higher detail than you’ll see in most commercial theaters and certainly higher than you can see with a flat-panel TV.

The Original Movie is Surrounded by Unused Black Display Pixels

Consumer cinema-format 4K movies are delivered using 3840 horizontal x 1600 vertical pixels to maintain their original 2.4:1 aspect ratio (ie 3840/1600=2.4). When displayed in the center of the 4096 x 2160 pixels of a 4K/4096 projector there are 2,703,360 unused black display pixels surrounding the movie or 2,150,400 unused display pixels when displayed in the center of the 3840 x 2160 pixels of a 4K/UHD 16:9 projector.

The Upconverted Movie Uses The Repurposed Black Pixels

Anamorphic upconversion is now an included option in many 16:9 4K (UHD) projectors. This upconversion applies digital scaling and possibly other image processing algorithms to convert the movie to a higher resolution of 4096 x 2133 (17:9 projectors) or 3840 x 2133 (16:9 projectors) using 43% (17:9) or 33% (16:9) more display pixels. While no real, additional source resolution is implied, upconversion from real movie content has been proven to not only provide substantial additional image brightness from these millions of additional pixels but also additional realistic detail and subsequently improved clarity. However, without an anamorphic lens, this enhancement leaves the movie appearing vertically stretched by 25% (17:9) or 33% (16:9).

The Upconverted Movie on a 2.40:1 Screen Through a Panamorph Lens

The upconverted movie is optically compressed through an external Panamorph anamorphic lens to correct the residual vertical stretch from the upconversion process. This restores the original 2.4:1 movie aspect ratio while retaining the significant performance enhancement from the upconverted pixels for greater visual clarity combined with a net brightness increase of approximately 38% over projection of the original movie.

Details & Specs

DCR-G2 is designed for JVC D-ILA projectors with 65mm lenses such as the NZ800 down to a 1.4:1 throw ratio and with 80mm lenses such as the NZ500/NZ700 and also the 100mm lens of the NZ900 with theater throw ratios of at least 1.6:1. Geometric performance is exactly the same as the DCR-J1 and DCR+XM2 which this model replaces.

CDR-G2 is designed for the Epson QB1000 (and also LS9000 through LS12000) and Sony XW5100, XW6100 and XW8100 projectors (full throw ratios with all models). The CDR applies a higher magnification than the DCR, so an additional amount of barrel distortion should be expected (although Epson has the “point correction” feature to remove distortion if desired).
