Item #TXRZ50

Onkyo OPEN BOX TX-RZ50 9.2-Channel Home Theater Receiver - Excellent Condition

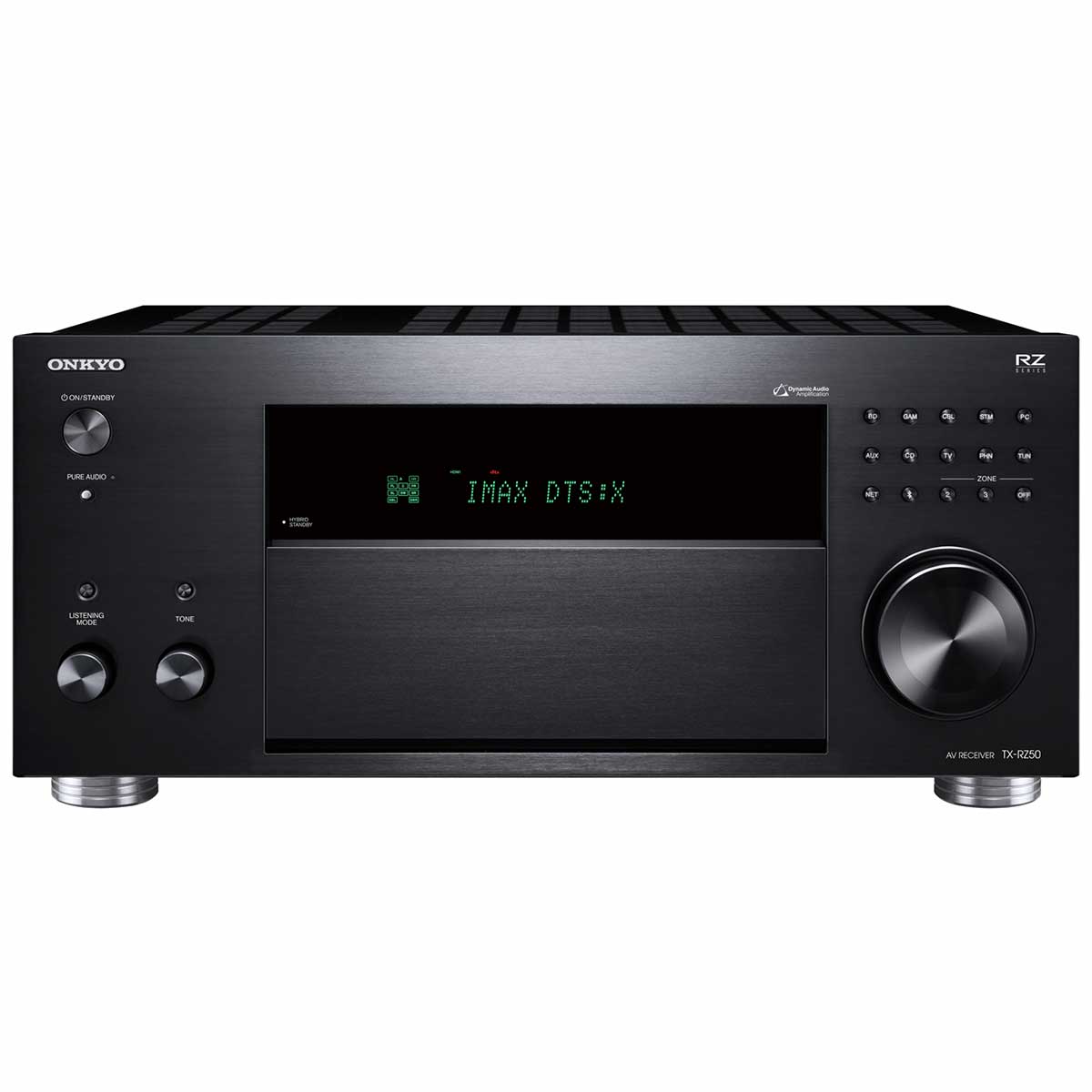

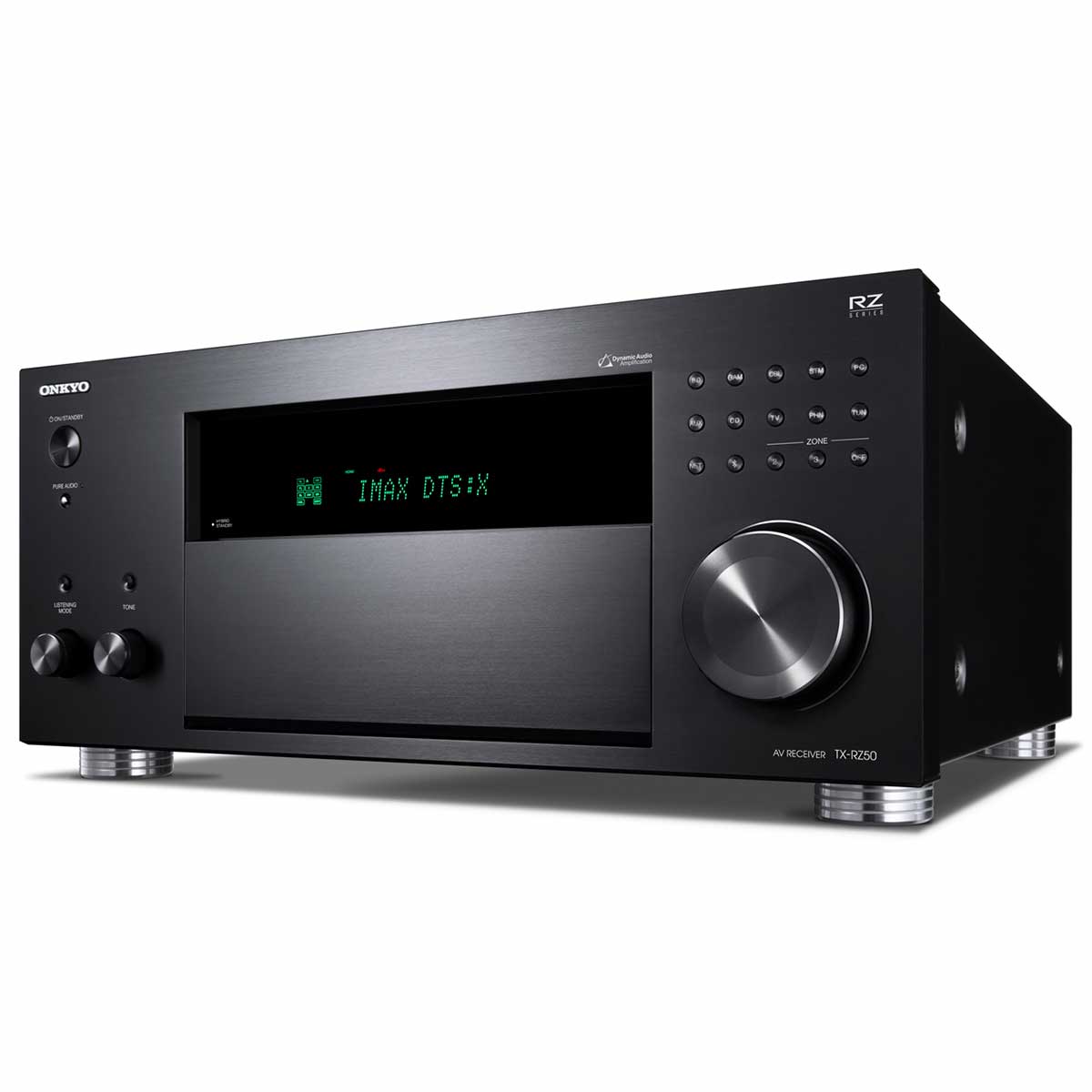

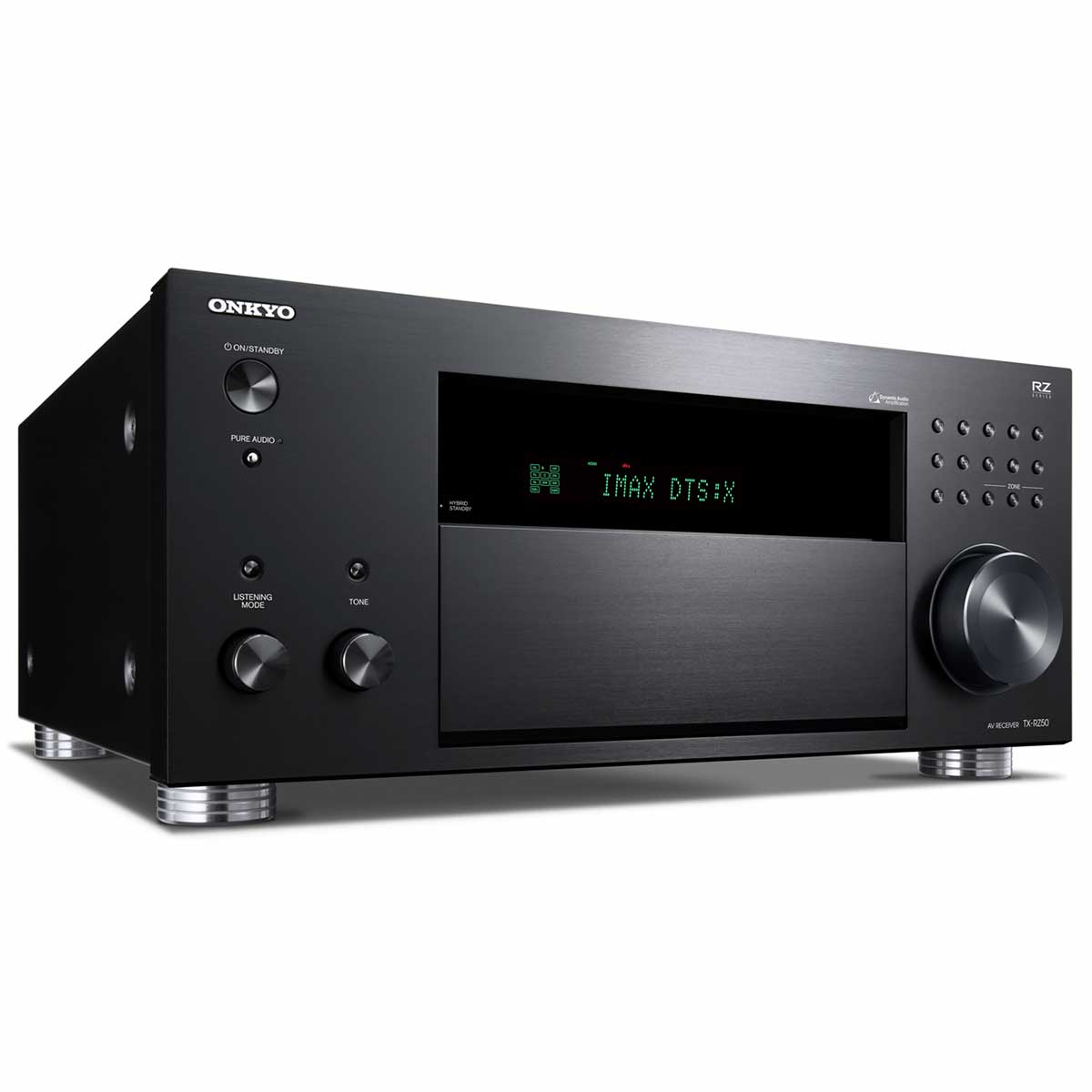

Onkyo Open Box TX-RZ50 9.2-Channel Home Theater Receiver
Item #TXRZ50

Onkyo OPEN BOX TX-RZ50 9.2-Channel Home Theater Receiver - Excellent Condition

Onkyo Open Box TX-RZ50 9.2-Channel Home Theater Receiver
Was $1,399.00 $899.00
Save $500
Out of Stock

Overview

Start your new entertainment life in the media room, where the Onkyo TX-RZ50 passes 8K HDR video to your display via HDMI®—optimized for lag-free gameplay— and feeds Dolby Atmos® or DTS:X® sound to your 5.2.4-ch speaker system with high-current power behind it. Move to another space and music follows with three-zone powered audio and the SMART AV Receiver suite controlled by voice with easy access to streaming services. The AVR fits into your Sonos system and plays to headphones over bidirectional Bluetooth® wireless technology. With 75 years of hi-fi knowhow elevating Onkyo's THX® Certified Select and IMAX® Enhanced certified RZ Series custom amp design, music, film scores, and game soundtracks thrill with emotion, sound perfected by Dirac Live® Room Correction. This AVR has features others don’t, such as front-to-height stereo switching for background listening, DSP vocal/dialog enhancement, My Volume presets, and an OSD function that compares source data to output settings so playback can be optimized before entertainment kicks off.

All items are tested for functionality and have all required cables in the box unless otherwise noted. Learn more about our Open Box Guarantee

Light scratches on top of unit

Unleash the IMAX® Enhanced experience

IMAX Enhanced uses DTS:X® technology optimized for the IMAX signature experience and reproduces the full dynamic range of IMAX theatrical mixes. IMAX Mode delivers IMAX Enhanced content as the filmmakers intended.

THX® Certified Select theater-reference sound

Experience the same reference volume of a commercial theater in rooms where the screen-to-seat distance is about 12 ft. (3.5 m). Certified receivers must pass 2,000 bench tests in 75 categories.

Welcome to 8K Ultra HD with the latest HDMI®

Onkyo TX-RZ50 Features defined in HDMI 2.1 enable 8K/60p passthrough to a compatible display. As well as HDR10 and HLG, HDR10+ and Dolby Vision formats optimize brightness, contrast, and color frame-by-frame. All HDMI terminals support HDCP 2.3, while eARC on Main Out passes multichannel audio (including Dolby Atmos® or DTS:X) from TV to AVR for decoding and amplification. QMS (Quick Media Switching) reduces screen blanking when switching HDMI sources. Note: features defined in HDMI 2.1 supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output.

Experience lag-free gameplay

Transform virtual worlds with 3D sound and get a competitive edge with all-new HDMI features for gamers. VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) eliminate lag, stutter, and frame-tearing for more fluid and responsive gameplay. Note: features supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output.

Dolby Atmos and DTS:X

Onkyo TX-RZ50 Dolby Atmos and DTS:X formats map sound origins as they are perceived in real life and transpose them around your audience for a captivating entertainment experience. Enjoy 3D sound through a 5.2.4 or 7.2.2 layout or connect a stereo amp and expand to 7.2.4 channels. Rediscover classic titles through your height-enabled system with Dolby Surround® and DTS® Neural:X. These technologies analyze legacy soundtracks for spatial cues and up-mix for immersive 3D playback.

Dolby Atmos Height Virtualizer

Dolby Atmos Height Virtualizer enhances Dolby® formats for a more immersive experience. It creates virtual surround and height effects using a traditional speaker layout. Exclusive refinements for clear sound HDMI board has short signal paths and well-finished grounds that suppress noise. SoC board is isolated from audio circuitry, reducing interference. Reinforced power-supply line and refined power-amp grounds with copper bus bar reduce circuit noise for thick, clear, and detailed sound.

SMART AV Receiver multi-room entertainment

SMART AV Receiver is the heart of your home entertainment system. Access streaming content from Amazon Music HD*, Pandora®, Spotify®, TIDAL, Deezer, and TuneIn and share sound as part of a multi-room system via Works with Sonos, Chromecast built-in, AirPlay 2, and DTS Play-Fi®.* Amazon Music HD is supported via DTS Play-Fi.

Works with Sonos

Add this Onkyo TX-RZ50 receiver to your Sonos Home Sound System just by pairing it with a Sonos Connect or Port*. The AVR ties into the Sonos ecosystem, changing inputs and responding to volume commands from the Sonos app*.* Sonos Connect and Port sold separately. Connection of 1–3 Sonos devices is supported. Sonos app is available free for compatible iPad, iPhone, and Android devices at the App Store and the Google Play Store.

Chromecast built-in works with Hey Google

Stream music from your smartphone, laptop, or PC to the receiver via Chromecast built-in and control playback from Chromecast-enabled apps from iPhone, iPad, Android phone or tablet, Mac or Windows® PC, or Chromebook. Cue, play, and control audio on this and other supported devices just by using your voice.

Works with Alexa

Use your voice to control the Onkyo TX-RZ50 AVR by issuing commands through an Alexa device. Whether you want to listen to music, radio stations, or podcasts, all you have to do is ask. It also supports multi-room music played on multiple devices. * Multi-room music may require a firmware update.

Connect speakers for powered multi-room sound

Separate Zone 2 outputs connect passive speakers in another room in addition to your 5.2.4 or 7.2.2 speaker system. Switch freely between 7.2.2/5.2.4 or 7.2/5.2.2 + Zone 2 playback. Together with MAIN, Zone 2 and Zone 3 DACs support D/A audio playback (including HDMI, SPDIF, and NET) in three rooms. You can sync the same track or play different songs in each room using Onkyo Controller to manage your entertainment. Note: Zone 3 supports analog/NET only. Zone 2 HDMI audio available via inputs 1–3. HDMI and SPDIF support PCM only.

5 GHz/2.4 GHz Wi-Fi® supports 802.11ac standard

Isolated 1.8 GHz quad-core SoC performs multiple processing tasks at once. It evolves network functions and supports the 802.11ac (2×2 MIMO) standard for stable multi-room audio streaming. Note: some countries or regions have regulations that affect wireless signal strength and the use of Wi-Fi channels.

Bidirectional Bluetooth® wireless technology

Send or receive audio via Bluetooth wireless technology. Stream from your laptop, digital audio player, or mobile to the receiver over SBC or AAC, or share what’s playing in the main zone* to a pair of wireless headphones using SBC, aptX, or aptX HD codecs.* Audio via Chromecast built-in and Works with Alexa excluded.

Convenient Zone 2 and Zone B pre-/line-out

RCA pre-/line-out has two modes: Zone 2 supports connection of active speakers or a hi-fi system and can sync D/A audio in MAIN and Zone 2 or play a different source in each. Zone B plays MAIN audio through compatible wireless headphones via a connected headphone dock. Note: Zone 2 mode supports HDMI audio via inputs 1–3. SPDIF and HDMI support PCM only. Zone B mode is line-level only and supports encoded or PCM signals (all inputs) in MAIN and Zone B.

Dirac Live® Room Correction

Onkyo TX-RZ50 Dirac Live analyzes your audio system and listening environment by examining acoustic data measured with a setup mic. It corrects both the timing and amplitude aspects of sound coloration using a mixed-phase correction filter throughout the listening area, not just a particular zone. Correction is performed automatically using a proprietary app for smartphone or tablet*. Dirac Live improves staging, localization, clarity, voice intelligibility, and bass response. * Mobile device and AVR must be connected to the same local network.

Flexibility for customized setups

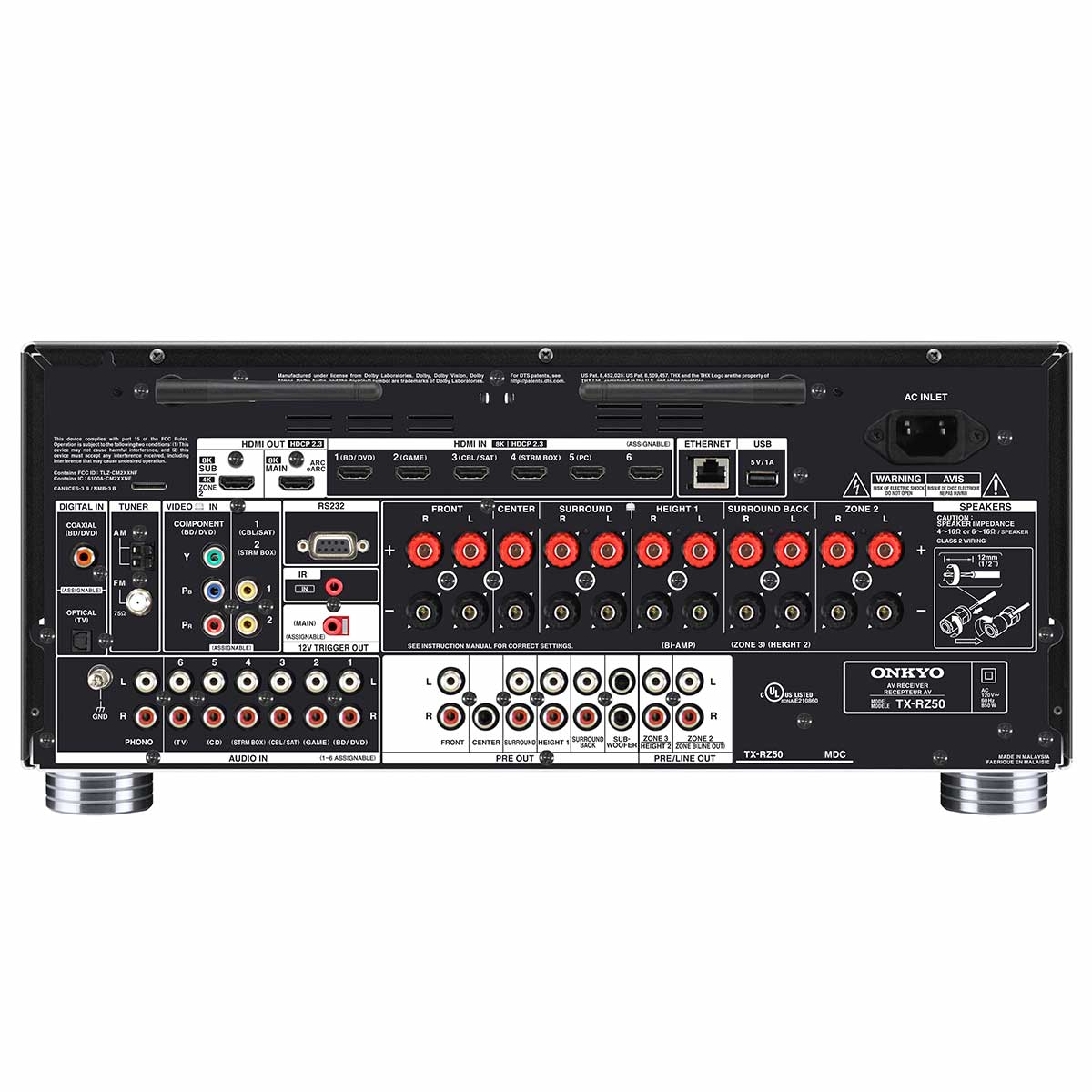

Connect an external power amp or motorized projector screen via the AVR’s 12 V trigger output and power them up automatically with your AVR, with CEC performing the same task for media players over HDMI. An IR repeater input lets you conceal the AVR away from the screen, ideal for bespoke theaters. Ethernet and RS-232 terminals integrate the AVR into your automation system, with the former supporting setup and web browser control via PC.

Details & Specs

Amplifier Section

  • Power output (All channels) -
    • 250 W/Ch -(6 ohms, 1 kHz, 10% THD, 1 channel driven)
    • 120 W/Ch (8 ohms, 20 Hz–20 kHz, -0.08% THD, 2 channels driven, FTC)
  • Dynamic power -
    • 250 W (3 ohms, Front)
    • 220 W (4 ohms, Front)
    • 130 W (8 ohms, Front)
  • THD+N (Total Harmonic Distortion + Noise) - 0.08% (20 Hz–20 kHz, half power)
  • Input sensitivity and impedance -
    • 200 mV RMS/47 k-ohms (Line)
    • 3.5 mV RMS/47 k-ohms (Phono MM)
  • Rated RCA output level and impedance -
    • 1 V RMS/470 ohms (Subwoofer pre-out)
    • 200 mV RMS/470 ohms
    • (Zone 2/Zone B line-out)
  • Frequency response - 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
  • Tone control -
    • ±10 dB, 20 Hz (Bass)
    • ±10 dB, 20 kHz (Treble)
  • Signal-to-noise ratio -
    • 106 dB (Line, IHF-A)
    • 80 dB (Phono, IHF-A)
  • Speaker impedance - 4–16 ohms

Video Section

  • Input sensitivity/output level and impedance -
    • 1.0 Vp–p/75 ohms (Component Y)
    • 0.7 Vp–p/75 ohms (Component Pb/Pr)
    • 1.0 Vp–p/75 ohms (Composite)

Tuner Section

  • Tuning frequency range -
    • FM 87.5 MHz–107.9 MHz
    • AM 530 kHz–1,710 kHz
  • FM/AM preset memory - 40 stations

General

  • Power supply - AC 120 V~, 60 Hz
  • Power consumption - 850 W
  • Power consumption (standby) - 0.1 W
  • Dimensions (W x H x D) - 17 1/8 ̋ x 7 15/16 ̋ x 15 11/16 ̋ (435 x 201.5 x 398 mm)
  • Weight - 30.9 lbs. (14.0 kg))
  • Shipping Dimensions (W x H x D) - 22 7/16 ̋ x 13 3/16 ̋ x 19 5/16 ̋ (570 x 335 x 490 mm)
  • Shipping Weight - 37.5 lbs. (17.0 kg)
  • Channels - 9.2
  • HDMI Inputs - 7
  • HDMI Outputs - 2
  • Multi-Room Zones - 2
  • Ports - AM/FM Antenna, Audio In, Audio Out, Bluetooth / Wi-Fi Antenna, USB
