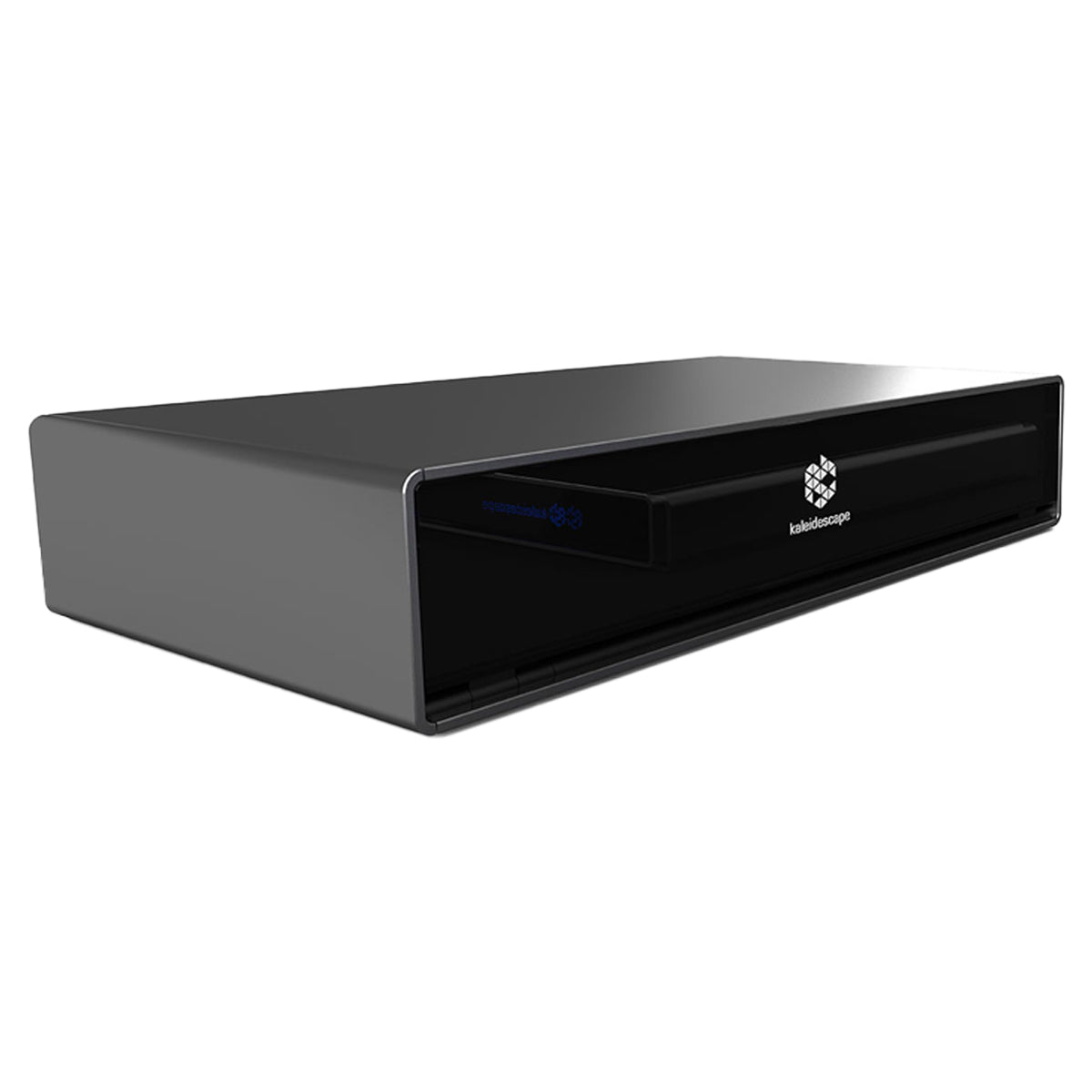

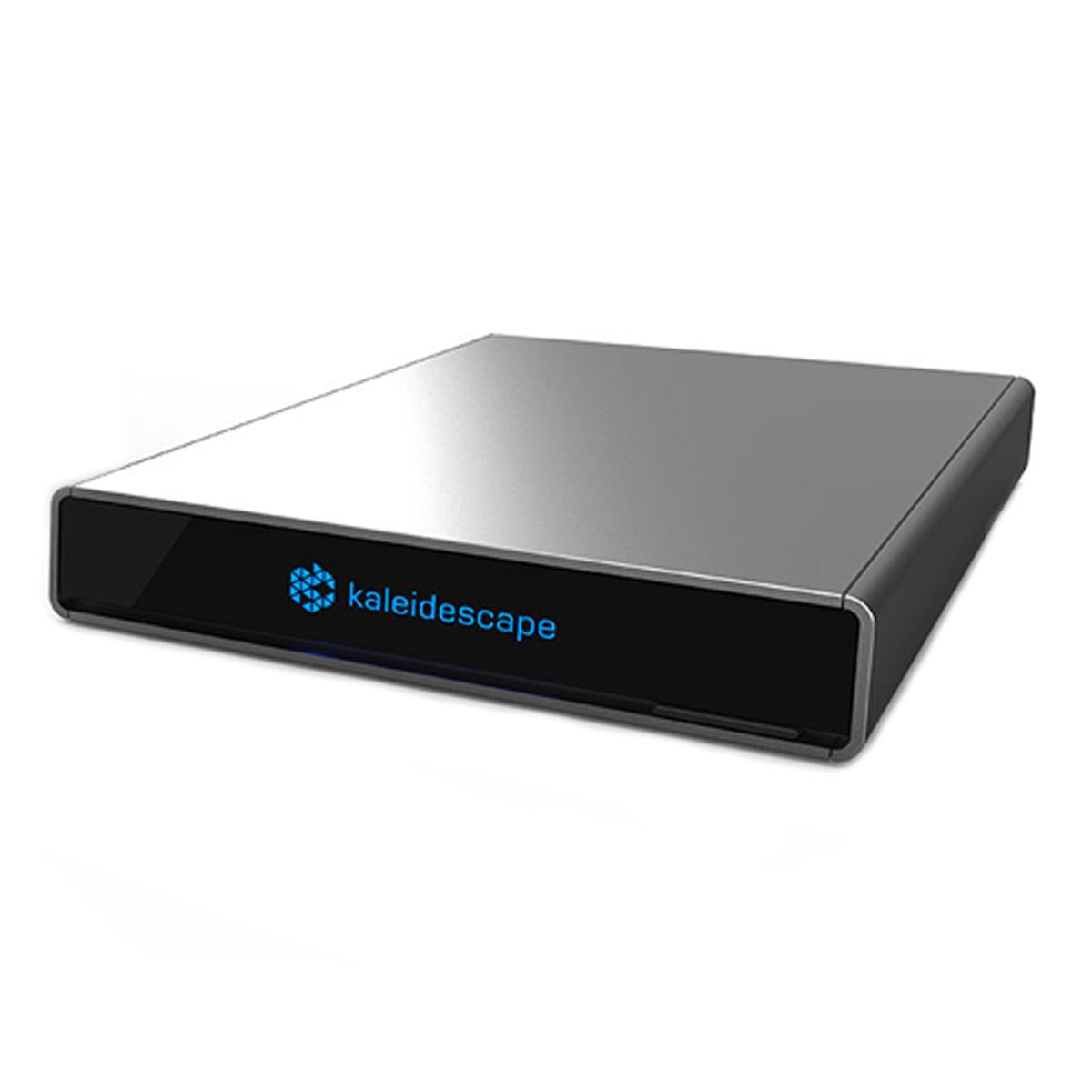

Kaleidescape Terra/Compact Terra Prime

Movie Server - w/ Solid State Drive (SSD)

Kaleidescape Terra/Compact Terra Prime

Movie Server - w/ Solid State Drive (SSD)
From $9,995.00
Contact Us

Overview

Terra Prime Solid-State is the fastest and quietest movie server available, the ideal choice for marine and state-of-the-art installations.

Watch our Comparison

The new Terra Prime Solid-State is the only dedicated movie server with 2.5 Gigabit Ethernet and data center grade solid-state drives, enabling the fastest downloads and the most simultaneous movie playbacks.

Made in the USA, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance that other solutions can’t guarantee.

Kaleidescape’s operating system (kOS) is custom developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market.

Terra Prime Solid-State movie servers can download a Kaleidescape high-bitrate 4K movie in as little as four minutes, with properly configured 2.5 Gbit/sec capable networking, hardware, and ISP.

Key Features

  • Next-generation movie server with ultimate performance
  • 2.5 Gigabit Ethernet
  • Data center grade solid-state drives
  • Low power, quiet operation
  • Storage options for approximately 500 (31TB) or 125 (8TB) 4K movies
  • Downloads a Kaleidescape high-bitrate 4K movie in as little as four minutes
  • Kaleidescape 4K movies have lossless audio and reference video
  • All movies are stored securely and protected by cloud backup
  • Distributes up to 25 simultaneous playback streams
  • Movies can be downloaded on up to five systems; perfect for multiple residences and yachts
  • Terra movie servers enable large configurations
  • Up to four Terra servers can be combined for more storage
  • Custom rack mounts sold separately

Details & Specs

Model Terra Prime Solid-State
Shared Specifications
Movie Server Downloads Kaleidescape high-bitrate 4K movies in as little as 4 minutes
Serves up to 25 simultaneous playbacks of Kaleidescape high-bitrate 4K movies
Network 2.5 Gigabit Ethernet (recommended)
1 Gigabit Ethernet (minimum)
Other Connection USB 3.0 (reserved)
Environment Operating: 41 to 95°F (5 to 35°C)
Storage: -4 to 140°F (-20 to 60°C)
Relative humidity: 20 to 80% (operation), 5 to 90% (storage)
Maximum operating altitude: 10,000ft (3,048m)
Ventilation Airflow:
Full Size - 10 CFM (17 m3/hr) max
Compact - 5 CFM (8.4 m3/hr) max
Minimum 1" (2.5cm) space at the front
Minimum 2" (5cm) space at the rear
Certifications CSA 62368-1
IEC 62368-1
FCC CLASS B
CE
RoHS Compliant
Full Size - 123 TB
Dimensions (WxHxD) 17.0 x 3.5 x 10.0"
43.2 x 8.9 x 25.4 cm
Weight 15.4 lb (7.0 kg) with no drives installed
19.8 lbs (9.0 kg) with four solid-state drives + heat sink cartridges installed
Fan Noise Typical: 21 dB(A)
Power Max consumption: 28W
Typical: 22W
External power adapter:
2.6 x 1.4 x 6.5" (6.6 x 3.5 x 16.5 cm)
150W with detachable line cord
100-240V, 50-60Hz universal input
12VDC @ 12.5A
Storage Four removable solid-state TLC flash drives (123 TB total)
Stores:
~2000 Kaleidescape high-bitrate 4K movies
Full Size - 31 TB
Dimensions (WxHxD) 17.0 x 3.5 x 10.0"
43.2 x 8.9 x 25.4 cm
Weight 15.4 lb (7.0 kg) with no drives installed
19.8 lbs (9.0 kg) with four solid-state drives + heat sink cartridges installed
Fan Noise Typical: 21 dB(A)
Power Max consumption: 28W
Typical: 22W
External power adapter:
2.6 x 1.4 x 6.5" (6.6 x 3.5 x 16.5 cm)
150W with detachable line cord
100-240V, 50-60Hz universal input
12VDC @ 12.5A
Storage Four removable 7.68 TB solid-state TLC flash drives (30.72 TB total)
Stores:
~500 Kaleidescape high-bitrate 4K movies
~800 HD movies
~4,600 SD movies
Rack Mount (sold separately) Rack shelf available for mounting one unit in a 19" rack
2RU space
Compact - 8 TB
Dimensions (WxHxD) 7.87 x 1.52 x 14.33"
20.0 x 3.9 x 36.4 cm
Weight 6.6 lbs (3.0 kg)
Fan Noise Typical: 17 dB(A)
Power Max consumption: 22W
Typical: 16W
External power adapter:
2.6 x 1.4 x 6.5in (6.6 x 3.5 x 16.5 cm)
150W with detachable line cord
100-240V, 50-60Hz universal input
12VDC @ 12.5A
Storage One integrated 7.68 TB solid-state TLC flash drive
Stores:
~125 Kaleidescape high-bitrate 4K movies
~200 HD movies
~1,150 SD movies
Rack Mount (sold separately) Rack shelf available for mounting one or two units in a 19" rack
1RU space
