Item #KPROMO-1261

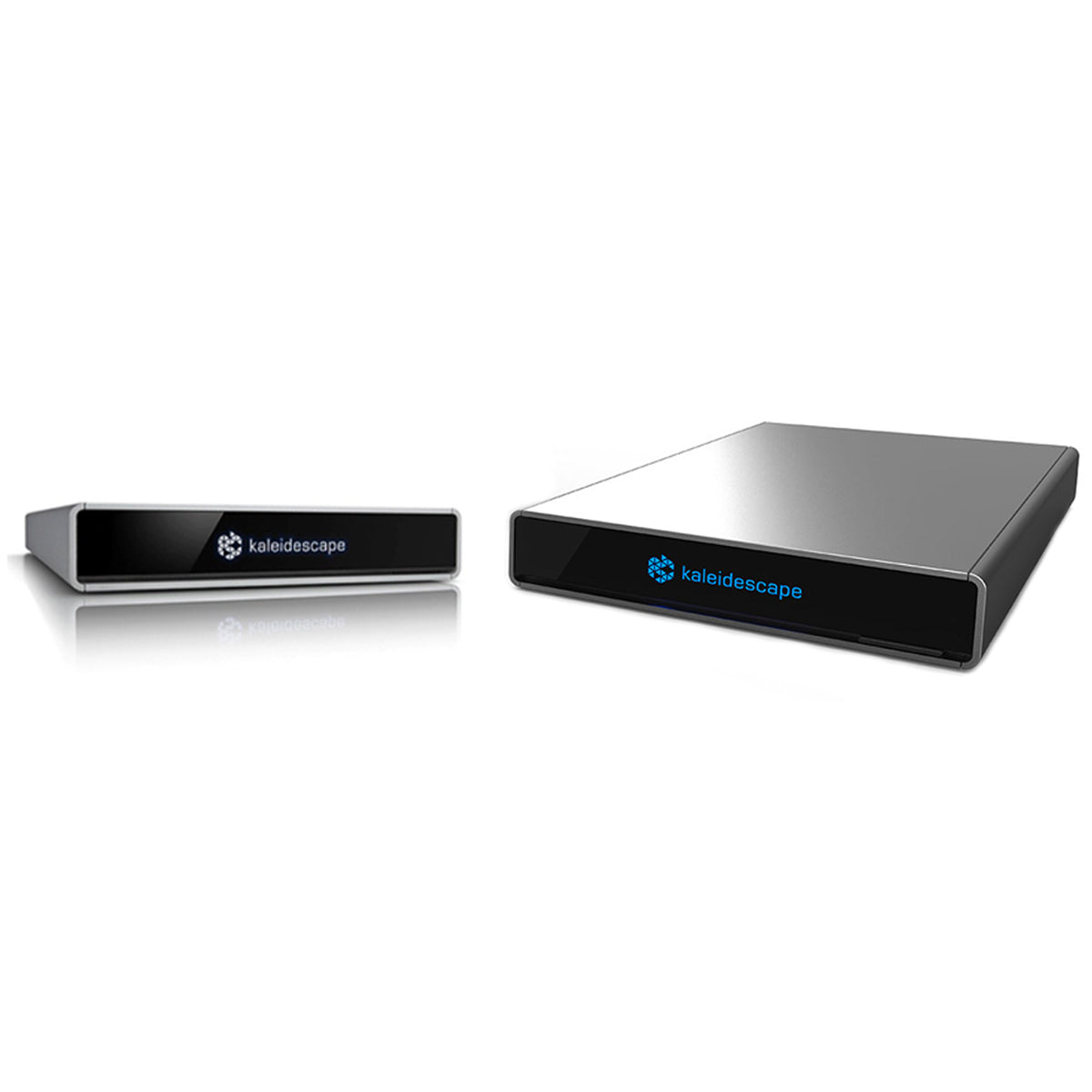

Kaleidescape Strato C + Terra Prime 24TB Bundle

Item #KPROMO-1261

Kaleidescape Strato C + Terra Prime 24TB Bundle

Was $14,990.00 $12,990.00
Save $2,000
Special Order: Ships Free From Manufacturer

Overview

Transform your home theater with the Kaleidescape Strato C 4K Movie Player, delivering breathtaking 4K Ultra HD and HDR video with lossless, multichannel audio. Designed for audiophiles and cinephiles, Strato C provides a cinematic experience that surpasses most commercial theaters. Enjoy movies at up to 100 Mbps and 60 fps with no startup delays—far superior to streaming. Strato C plays downloaded 4K movies from a Kaleidescape Terra server or another player, with advanced upscaling for Blu-ray and DVD content. Its intuitive 4K onscreen interface ensures smooth navigation, while support for 10-bit HDMI 2.0a HDR guarantees stunning visuals on projectors and TVs.

Terra Prime movie servers feature an all-new board design, faster processing power, and a faster network. Offering faster downloads than its predecessor, with the highest capacity. Terra Prime adds increased performance and storage capabilities.

Strato C

Strato C plays downloaded movies in stunning 4K Ultra HD at up to 100 Mbps and 60 frames per second, without any startup delay. Unlike streaming services, each movie is downloaded and stored on a hard drive, on either a Kaleidescape Terra movie server or another movie player. Strato C plays downloaded Blu-ray and DVD quality movies in 4K using advanced upscaling algorithms.


Strato C supports lossless multichannel audio and plays high dynamic range movies on televisions and projectors that can process open standard 10-bit HDMI 2.0a HDR. The Strato onscreen user interface is displayed in full 4K Ultra HD at 60 frames per second, resulting in fluid animation and a stunning visual impact.
Strato C plays 4K Ultra HD movies from a Terra movie server, or a Strato movie player. You can start the movie instantly, or you can jump right to your favorite scene or song.


The Kaleidescape Movie Store is the world's only source for movies with full-fidelity audio and video to match the capabilities of luxury home cinema equipment. The premier online store offers a library of the finest content from Hollywood’s major movie studios ranging from new releases to the gems from the past 100 years. The Kaleidescape Movie Store offers the best selection of 4K Ultra HD titles with high dynamic range support, and thousands of movies in full Blu-ray HD quality. These Blu-ray quality movies provide superb results when Strato scales them up to 4K. Both Blu-ray quality and 4K Ultra HD movies are available with lossless multichannel and object-based audio, including Dolby Atmos.

Key Features

  • Plays 4k Ultra HD movies over a home network at up to 100 Mbps, and up to 60 frames per second
  • Support for high dynamic range (HDR)
  • Superb upscaling of Blu-ray and DVD quality content to 4K resolution
  • Seamless switching between 4K Ultra HD, 4K upscaled Blu-ray quality or DVD quality content, and the 4K onscreen user interface
  • Lossless multichannel and objectbased audio, including Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio
  • Strato C can play back from Kaleidescape Terra movie servers or Kaleidescape Strato or Alto players
  • Compatible with popular control systems and universal remotes
  • Silent operation. Internal cooling is only active in unusually warm environments
  • Custom rack-mount hardware is available (sold separately)

Terra Prime Server

Terra Prime stores movies, TV series, and concerts on an array of enterprise-class high-capacity hard drives or data center grade solid-state drives. Content stored on the movie server is played back on Strato players.

The new Terra Prime Solid-State is the only dedicated movie server with 2.5 Gigabit Ethernet enabling the fastest downloads and the most simultaneous movie playbacks.

Made in the USA, Kaleidescape movie servers are custom designed and manufactured for reliable, premium performance.

Kaleidescape’s operating system (kOS) is custom developed, managed, and controlled internally, with automatic updates, providing the best experience of any movie server on the market.

Key Features - All Models

  • 2.5 Gigabit Ethernet
  • Kaleidescape 4K movies have lossless audio and reference video
  • All movies are stored securely and protected by cloud backup
  • Movies can be downloaded on up to five systems; perfect for multiple residences
  • Terra movie servers enable large configurations
  • Up to four Terra servers can be combined for more storage
  • Custom rack mounts sold separately

Key Features w/ High-Capacity Hard Drives (HDD)

  • Next-generation movie server with high capacity
  • Enterprise-class hard disk drives
  • Storage options for approximately 400 (24TB), or 200 (12TB) 4K movies
  • Downloads a Kaleidescape high-bitrate 4K movie in as little as eight minutes
  • Distributes up to 5 simultaneous playback streams (compact)
  • Distributes up to 10 simultaneous playback streams (full-size)

Details & Specs

Model Strato C
Dimensions 7.87in x 1.52in x 10.0in (W x H x D)
(20.0cm x 3.9cm x 25.4cm)
Weight 4.2lb (1.91kg)
Power Max consumption: 20W
Typical: 17W
High power standby: 12W
Lower power standby: 0.5W
External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground
Network Gigabit Ethernet (1000 Base-T)
Other Connection USB (for disc cataloging)
Control Front-panel IR receiver window
IR input (1/8in mini plug)
Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)
Lutron RA3 and HomeWorks control over Ethernet
Environment Operating: 41 to 95°F (5 to 35°C)
Storage: -4 to 140°F (-20 to 60°C)
Relative humidity: 20–80% (operation), 5–90% (storage)
Maximum operating altitude: 10,000ft (3,048m)
Heat output: 68 BTU/hr (20W) max
Airflow: 3.5 CFM (8.4 m³/hr) max
Ventilation Minimum 1in (2.5cm) space at the front
Minimum 2in (5cm) space at the rear
Mounts (sold separately) Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space
Wall mount available for mounting behind TV displays
Certifications CSA 62368-1
CSA 60950-1
IEC 62368-1
IEC 60950-1
FCC Class B
CE
RoHS Compliant
Video Output HDMI 2.0a (labelled “VIDEO”)
HDCP 2.2 copy protection
Video Display Formats Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p
Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only
Color spaces: BT.2020, BT.709, BT.601
Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable
HDR: HDMI 2.0a with support for SMPTE ST 2084 EOTF, SMPTE ST 2086 metadata
Movie playback up to 4K; UI in 4K
Audio Outputs HDMI 2.0a (combined with video on the VIDEO connector)
HDMI 1.4 (audio-only on the DIGITAL AUDIO connector)
Digital (coaxial RCA and TOS-link connectors)
Audio Formats (HDMI Connector) Dolby Atmos
DTS:X
Dolby TrueHD
DTS-HD Master Audio
Dolby Digital Plus
DTS-HD High Resolution Audio
Dolby Digital
DTS Digital Surround
Dolby MAT PCM
PCM (up to 7.1ch, 96kHz/24-bit)
Audio Formats (Coaxial RCA & TOS-link) PCM (2ch, up to 96kHz/24-bit)
Storage No internal storage. Strato C accesses content stored on a Terra or Strato (with internal storage) when connected via network
Media Kaleidescape movie store downloads, including high-bit-rate 4K Ultra HD movies in 10-bit color, with and without HDR, and movies that meet or exceed the quality available on Blu-ray Disc and DVD
Model Terra Prime HDD
Specifications
Movie Server Downloads Kaleidescape high-bitrate 4K movies in as little as 8 minutes
Compact serves up to 5 simultaneous playbacks of Kaleidescape 4K movies
Full-size serves up to 10 simultaneous playbacks of Kaleidescape 4K movies
Network 2.5 Gigabit Ethernet (recommended)
1 Gigabit Ethernet (minimum)
Other Connection USB 3.0 (reserved)
Environment Operating: 41 to 95°F (5 to 35°C)
Storage: -4 to 140°F (-20 to 60°C)
Relative humidity: 20 to 80% (operation), 5 to 90% (storage)
Maximum operating altitude: 10,000ft (3,048m)
Ventilation Airflow:
Full Size - 10 CFM (17 m3/hr) max
Compact - 5 CFM (8.4 m3/hr) max
Minimum 1" (2.5cm) space at the front
Minimum 2" (5cm) space at the rear
Certifications CSA 62368-1
IEC 62368-1
FCC CLASS B
CE
RoHS Compliant
Compact - 24 & 12 TB
Dimensions (WxHxD) 7.87 x 1.52 x 14.33"
20.0 x 3.9 x 36.4 cm
Weight 7.2 lbs (3.3 kg)
Fan & Drive Noise Typical: 25 dB(A)
Power Max consumption: 29W
Typical: 24W
External power adapter:
2.6 x 1.4 x 6.5in (6.6 x 3.5 x 16.5 cm)
150W with detachable line cord
100-240V, 50-60Hz universal input
12VDC @ 12.5A
Storage 24TB configuration stores:
~400 Kaleidescape high-bitrate 4K movies
12TB configuration stores:
~200 Kaleidescape high-bitrate 4K movies
Rack Mount (sold separately) Rack shelf available for mounting one or two units in a 19" rack
1RU space
