JBL OPEN BOX Synthesis SDA-1700 Class D Subwoofer Amplifier Excellent Condition

Class D Subwoofer Amplifier

JBL OPEN BOX Synthesis SDA-1700 Class D Subwoofer Amplifier Excellent Condition

Class D Subwoofer Amplifier
Was $1,320.00 $999.00
Save $321
More on the way! Order now to reserve risk free.

Overview

The SDA-1700 is a custom amplifier solution, optimized for the highest level of performance and reliability.

All items are tested for functionality and have all required cables in the box unless otherwise noted. Learn more about our Open Box Guarantee >

Audio AdviceAudio Advice Our Open-Box Guarantee Our Open Box Guarantee Welcome to our Open Box Outlet, where you will find incredible deals on home audio and home theater products. When someone purchases a product, breaks the seal...

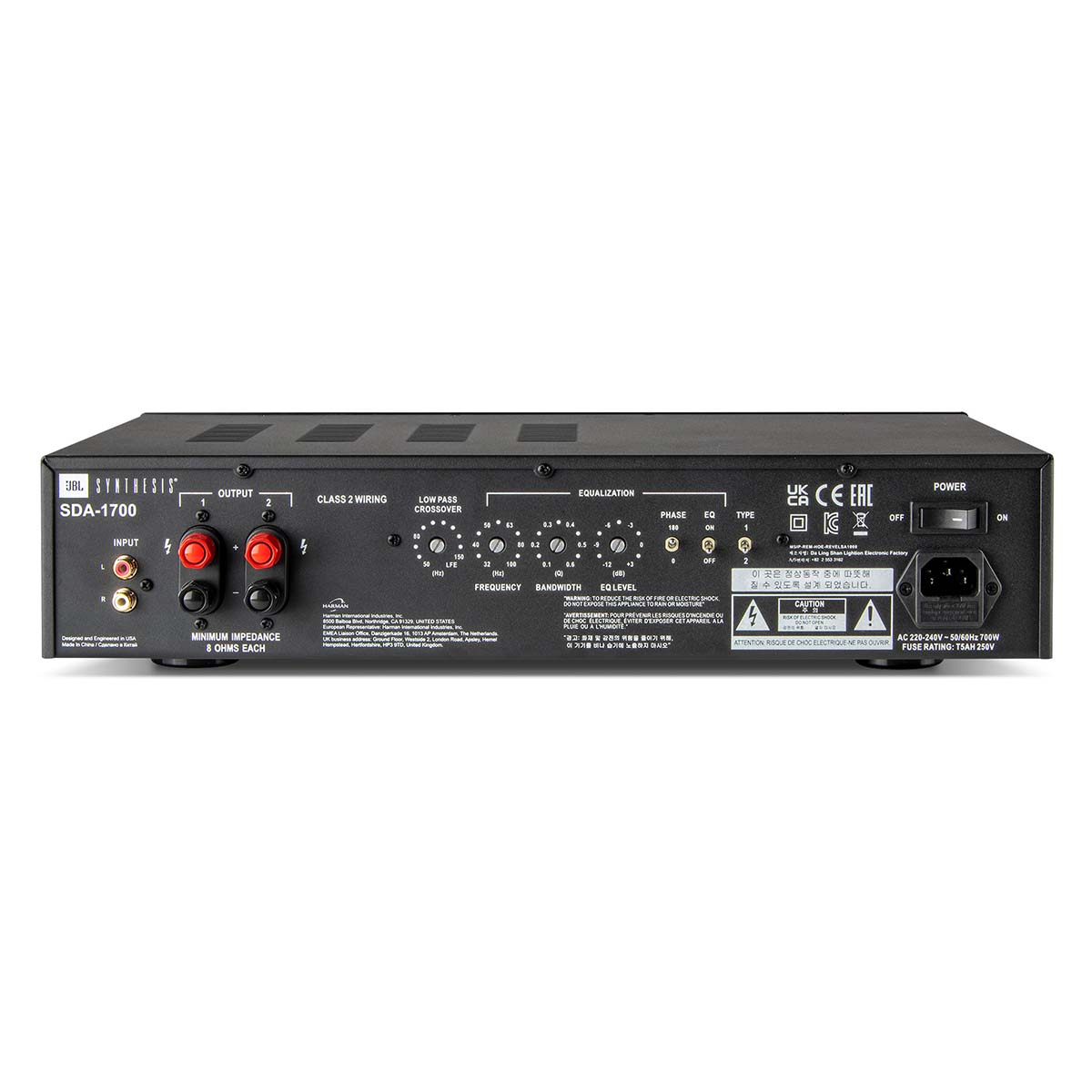

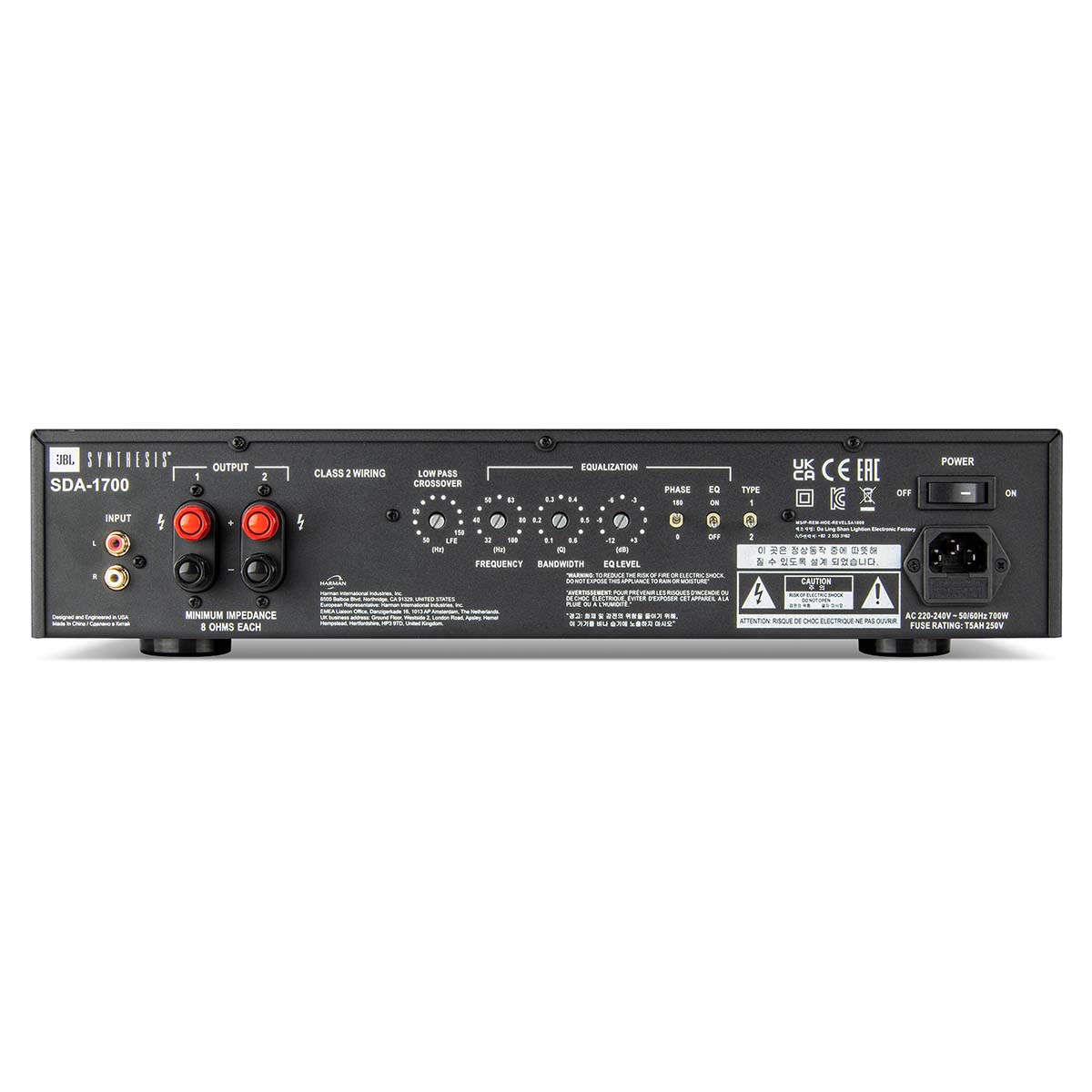

This rackmount amplifier includes user features on the front panel, and a custom installer focused feature set on the rear panel. As part of JBL Synthesis custom in-wall subwoofer system, this rack mountable Class D component is designed to power the SSW-3 and SSW-4 in-wall subwoofers.

Key Features

  • Connect up to two SSW-4 Subwoofers or one SSW-3 Subwoofer with each SDA-1700 Amplifier
  • 2 EQ modes (Customized for in-wall subwoofers)
  • User-adjustable Single-band equalization
  • Low distortion and low noise
  • Short-circuit and over-current protection
  • Over-temperature compensation
  • Automatic signal sensing Turn-On and Turn-Off

Details & Specs

Model SDA-1700
Rated Output Power (RMS) at 4 Ohms 700 Watts
Peak Power 1500 Watts
Rated Impedance 8 Ohms per speaker output
Minimum Load Impedance 4 Ohms
Input Sensitivity to 1W @ 50Hz 16.3mVrms +/- 1dB (Single input driven) Gain=41.7dB
Input Impedance > 10K Ohms
Input Overload (Both inputs driven) > 2.0Vrms
Low Pass Crossover Range 50-150Hz
THD+N at 1W < 0.3%
Signal-to-Noise Ratio to 1W > 65dBA
Power Consumption (Standby) 0.5 W
Auto Turn On Input Sensitivity @ 50Hz Typical 10mV
THD+N at Rated Output Power < 1%
Dimensions (WxHxD) 17 x 3.5 x 11.04"
Weight 14 lbs
