Item #0315002

iFi Zen CAN Signature 6XX Balanced Desktop Headphone Amp and Preamp with 4.4mm Outputs

Balanced Desktop Headphone Amp and Preamp with 4.4mm Outputs
Item #0315002

iFi Zen CAN Signature 6XX Balanced Desktop Headphone Amp and Preamp with 4.4mm Outputs

Balanced Desktop Headphone Amp and Preamp with 4.4mm Outputs
$299.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

The original ZEN CAN, the all-analogue headphone amplifier, excelled at driving demanding headphone loads with its balanced circuit design, extremely low distortion, and exceptional sonics. The ZEN CAN Signature takes this design further, featuring enhanced circuitry and audiophile-grade components. Its balanced, symmetrical dual-mono circuitry can deliver a maximum of 1,890mW (11.0V) into 64-ohm loads and offer over 15V to loads of 600 ohms or higher, all through its balanced output.

Superior Engineering

Extremely low distortion and noise from a circuit design inspired by iFi's flagship headphone amp which uses a dedicated input stage that level matches to your source, allowing the signal to flow freely through the Class A output stage, literally music to your ears.

Power Realized

Maximize the performance of your headphones, more than just getting loud, but realizing the full dynamic range of the drivers and experiencing soft vocals as well as heart pounding drums, never missing a beat. Delivers up to 1890mW of power at 64 ohms.

Immersive Sound

Enhanced with our signature analog signal processing to deliver accurate and more natural bass frequencies through XSpace, and headphone corrections optimized for Sennheiser HD 6XX headphones.

The Ins and Outs

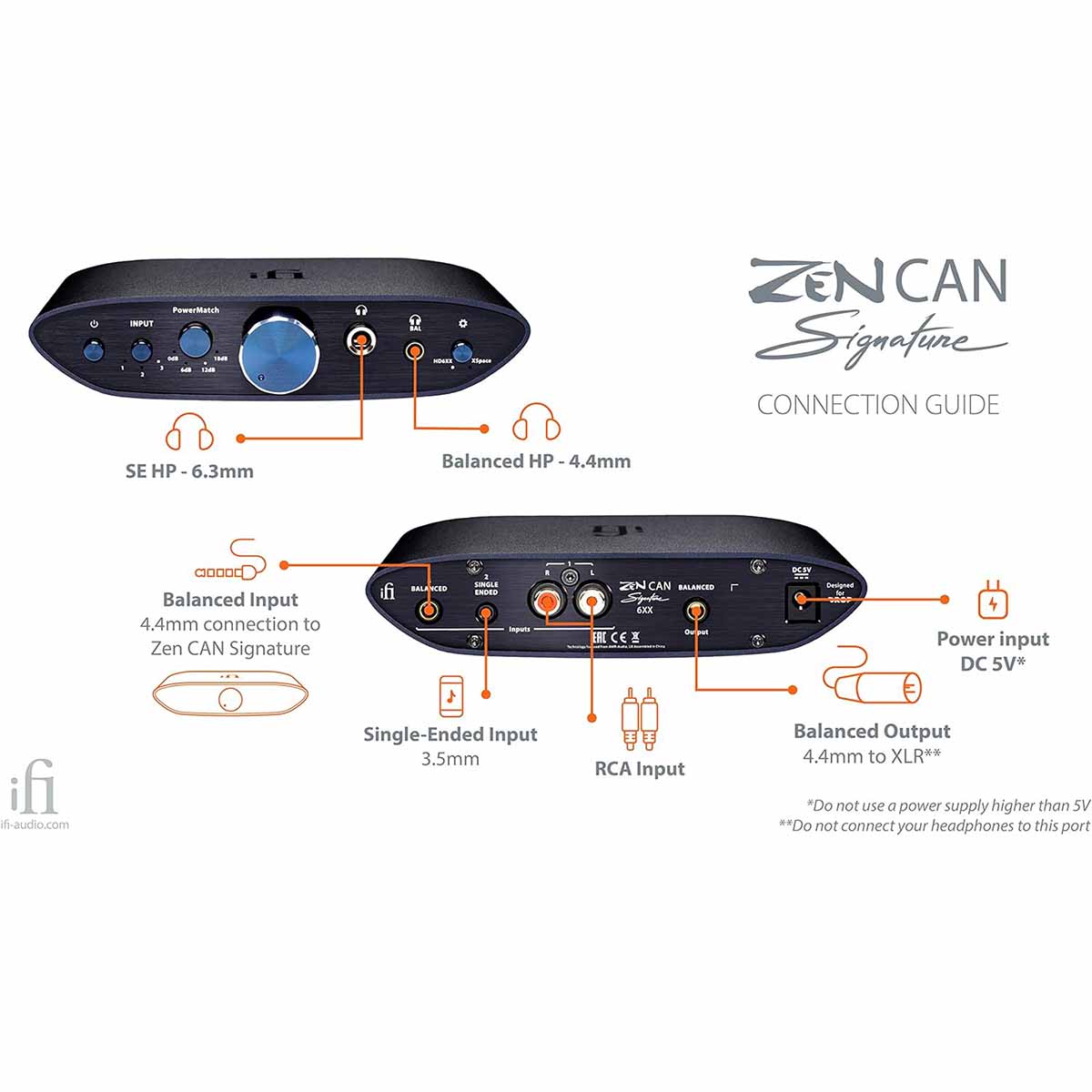

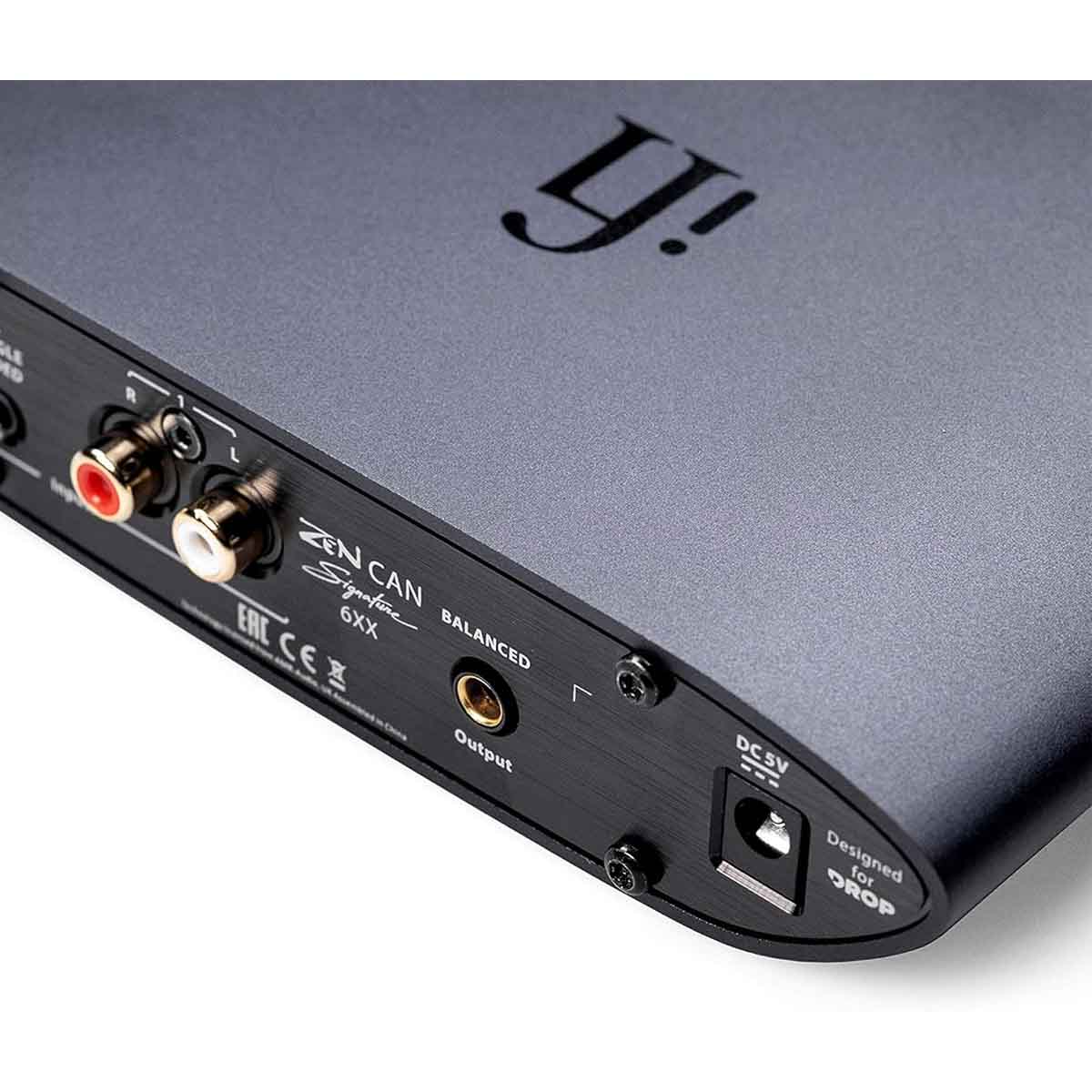

Features both a balanced 4.4mm pentacon and a single ended 6.3mm (1/4”) headphone output on the front as well as three inputs on the back, including a 3.5mm line out, RCA left and right sockets, and a 4.4mm balanced pentacon connector. Additionally there is a 4.4 balanced output to connect to a power amplifier or active speakers for use as a preamplifier.

Ultimate Power

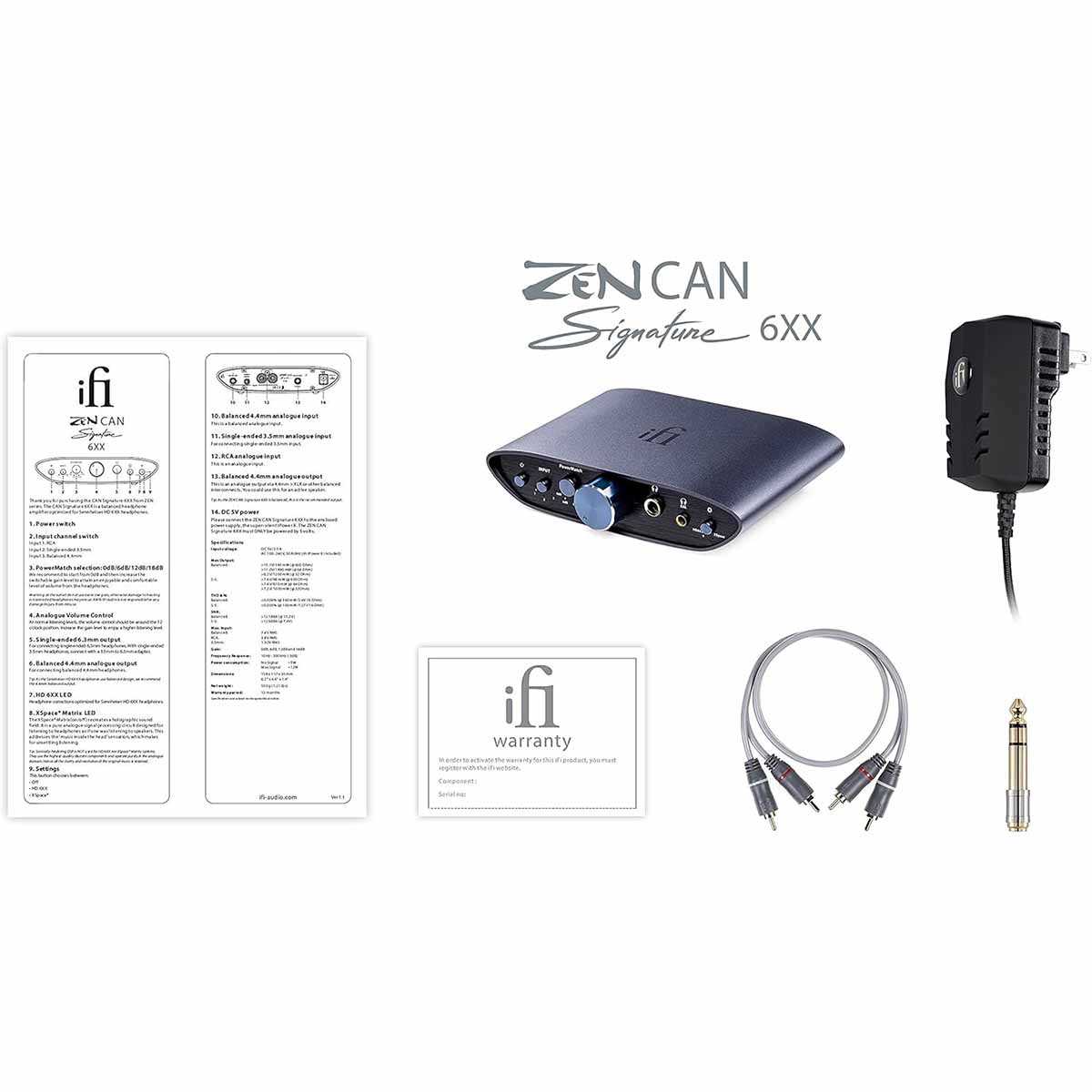

Every purchase of the ZEN CAN Signature includes the iPower2 power supply. When it comes to low-noise, few power supplies compare.

Details & Specs

Model iFi Zen CAN Signature 6XX
Input Voltage 5V/2.5A
Output (RMS) Balanced >15.1V/385 mW (@ 600 Ohm) >11.0V/1890 mW (@ 64 Ohm) >6.2V/1200 mW (@ 32 Ohm) Single-Ended >7.6V/98mW (@ 600 Ohm) >7.4V/870 mW (@ 64 Ohm) >7.2V/1600 mW (@ 32 Ohm)
THD&N <0.006% @ 360 mW/2.4V 16 Ohm <0.005% @ 100 mW/1.27V 16 Ohm
SNR Balanced >121dBA (@ 15.2V ) Single-Ended >120dBA (@ 7.6V )
Output Balanced 7.4V RMS RCA 3.8V RMS 3.5mm 1.92V RMS
Gain 0dB, 6dB, 12dB and 18dB
Frequency Response 10Hz - 200kHz (-3dB)
Power consumption No Signal ~5W Max Signal ~12W
Dimensions 6.2" x 4.6" x 1.4"
Weight 1.21 lbs
Frequency Response 10Hz - 200kHz (-3dB)
