Item #DAC-Z8

EverSolo DAC-Z8

DAC & Headphone Amp
Item #DAC-Z8

EverSolo DAC-Z8

DAC & Headphone Amp
Was $749.00 $699.00
Save $50
In Stock: Free 2-Day Shipping
Contact Us

Overview

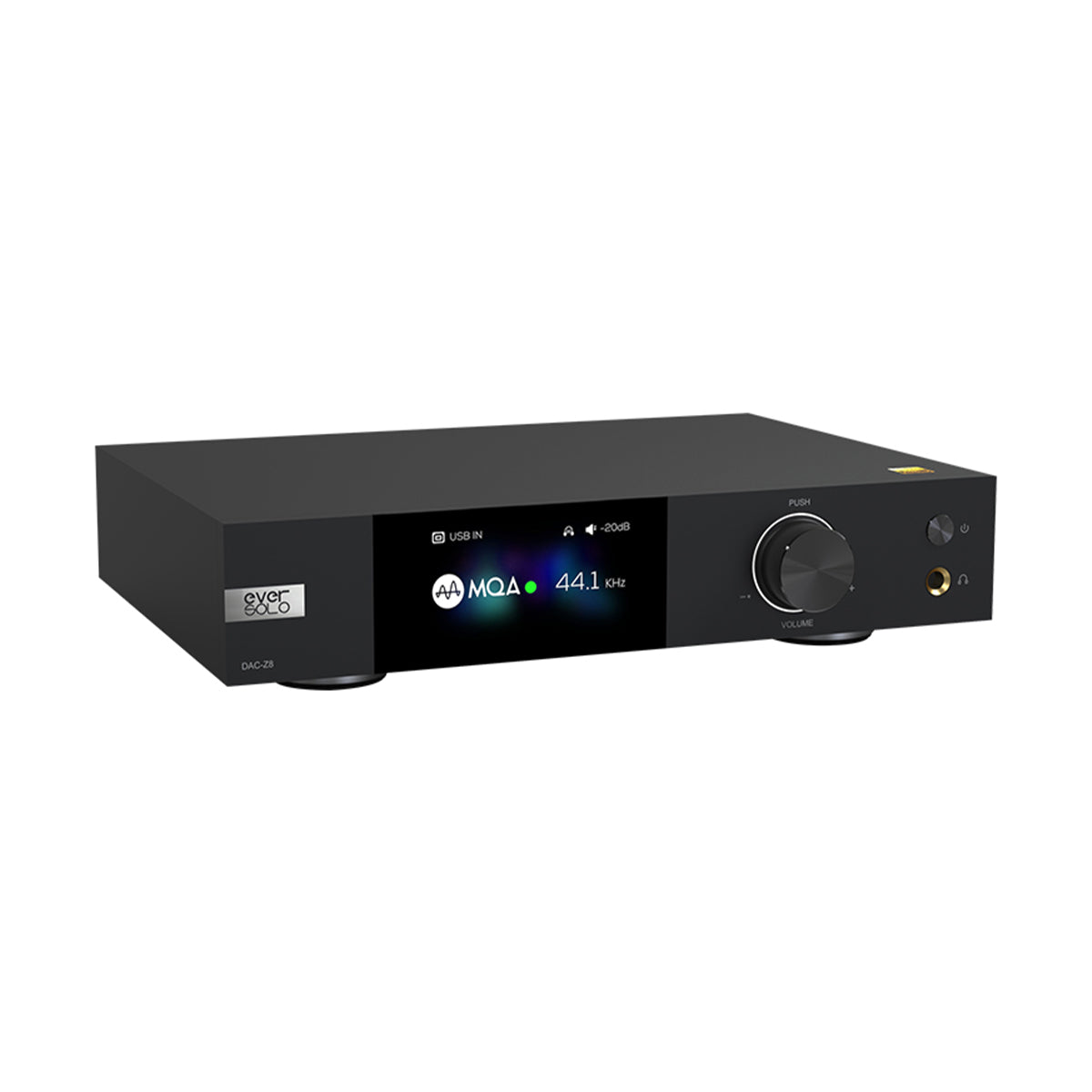

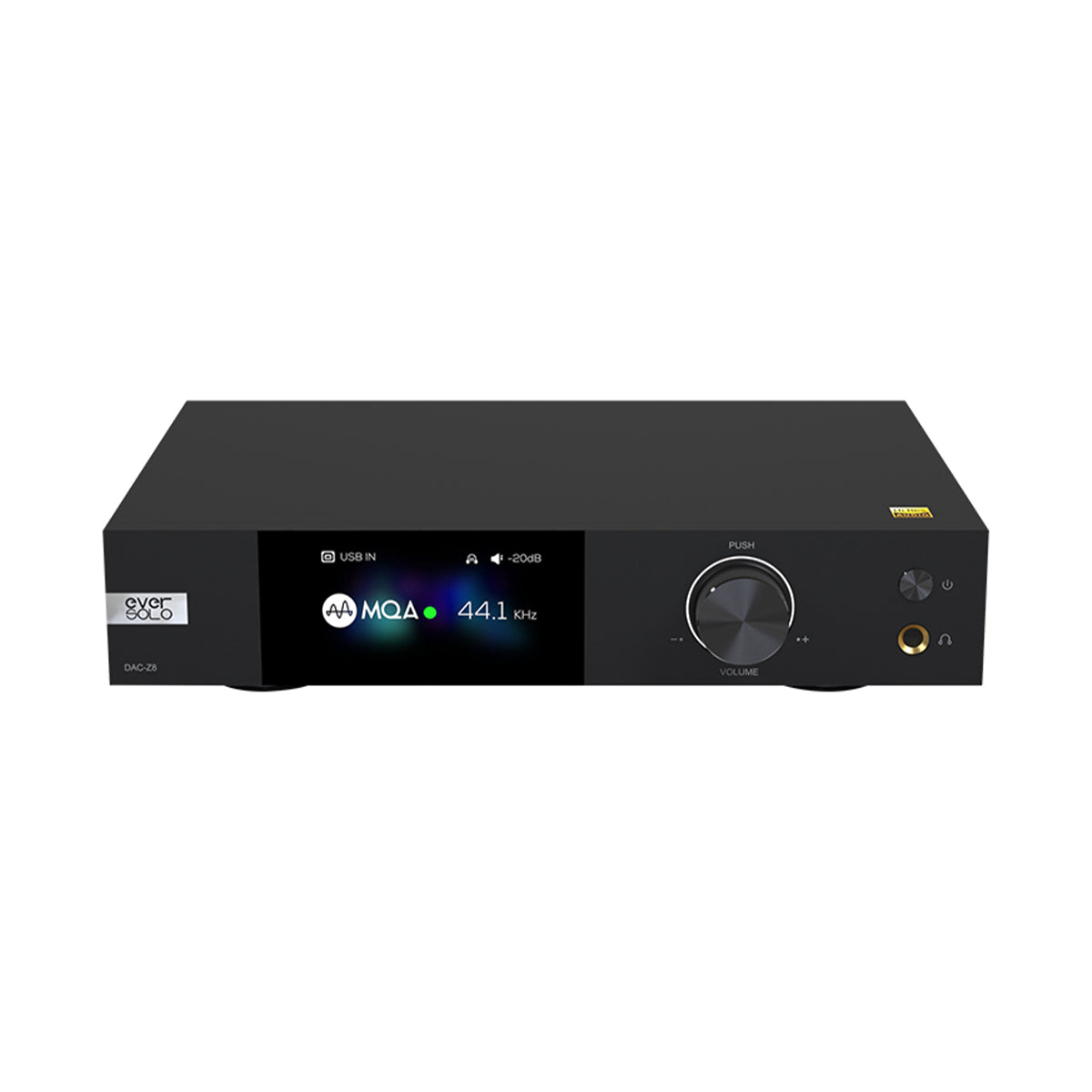

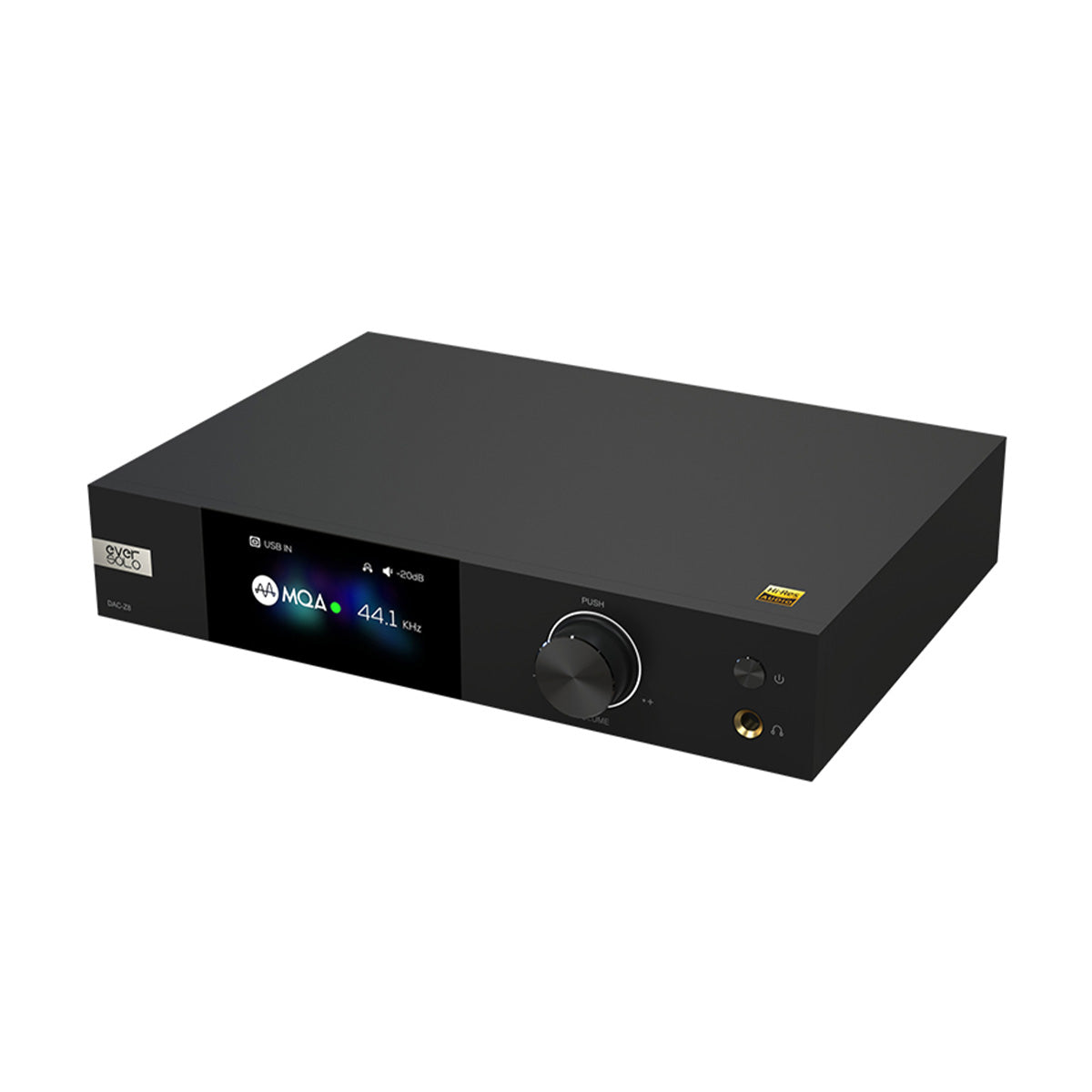

DAC-Z8 is a compact digital to analog converter with excellent workmanship and high performance.

Enjoy exceptional sound quality, great preamp performance and a convenient built-in headphone amplifier. Featuring the XMOS 316 processor and flagship ES9038 Pro DAC chip, it supports up to DSD512, PCM 768Khz @ 32Bit, and MQA full decoding.

Convenient control options and a rich set of inputs make the device a worthy pairing with high end headphones and stereo speakers.

High Performance ES9038Pro DAC

The ESS flagship ES9038Pro DAC chip is known as the industry benchmark, with eight channels of headroom and extremely low noise and distortion.

Ideal Implementation

Just as — if not more — important as the DAC chip is how it's been implemented in a system. Thanks to EverSolo development engineers' rich experience in analog circuit design, DAC-Z8 has a professional-grade calibration and circuit design. The total harmonic distortion ratio which has been measured is -124dB (0.000062%), while signal-to-noise ratio and dynamic range are 133dB. These industry-leading indicators are a solid foundation for great sound quality.

Abundant Digital Filters

Choose from a variety of digital filter modes in the DAC setting menu to meet different demands and preferences. DAC-Z8 features 7 PCM filters and 4 DSD filters from which to select.

High Precision Clock Oscillators

Two low jitter clock oscillators (45.1584MHz and 49.152MHz) are integrated in DAC-Z8, which correspond to 44.1 KHz and 48KHz multiplied sampling management. The result is more accurate audio decoding.

XMOS 316 Processor for Format Support

The 3rd generation XMOS 316 has faster speed and better USB bandwidth than previous processors, which ensures lossless transmission for high-definition audio data. The USB output supports DSD512 Native, PCM768@32bit, and MQA full decoding. Optical and Coaxial outputs support DSD64 (DoP) and PCM192@24Bit.

MQA Full Decoding

DAC-Z8 includes MQA (Master Quality Authenticated) technology through USB, Optical, and Coaxial, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

Op-Amps

DAC-Z8's I/V (current to voltage) circuit is made up of eight OPA1612 Op-Amps. Multichannel signal shunt compensation technology has also been incorporated. The result is that XLR, RCA, and headphone output signals remain lossless, with improved channel separation, dynamic range, and sound integrity.

Differential Amplifier Circuit and Balanced Preamp

The analog audio circuit is a fully balanced design. The XLR, RCA, and headphone outputs are all processed by a balanced differential amplifier circuit. Unwanted noise has been eliminated by resolving the crosstalk of the shared loop, also improving channel separation. The high-fidelity preamp circuit supports refined and precise volume adjustment, without the need to connect with an additional preamp.

Low Ripple Power Module

A low-noise regulated power supply module and dedicated ultra low-noise audio filter capacitor are tailored for DAC-Z8. It powers the audio circuit and ensures clearer sound, with low ripple and less interference.

Wide Variety of Inputs

DAC-Z8 has a rich selection of ports for digital audio input, including Coaxial, Optical, asynchronous USB-B, and USB-C. The Bluetooth audio input option can also be used to wirelessly connect with sources.

Qualcomm QCC5125 Bluetooth Module

In addition to wired inputs, DAC-Z8 also features a built-in Bluetooth audio receiver in the form of the Qualcomm QCC5125 module. Thanks to support for the full suite of SBC, AAC, aptX, aptX LL, aptX HD, and LDAC codecs, you'll know you're getting the best possible Bluetooth quality when you pair your mobile phone, tablet, or computer.

Separate RCA and XLR Output

In order to reduce the possible signal interference of the RCA and XLR outputs operating simultaneously, DAC-Z8 can control its output separately to achieve higher audio performance. If desired, through the menu system, the RCA and XLR outputs can also be manually enabled for simultaneous output.

Headphone Amplifier

The professional headphone amp circuit in DAC-Z8 has excellent sound; the focus was prioritizing quality of output over sheer power. This high-performance headphone amplifier drives the majority of popular HiFi headphones with both high and low gain output options.

Aluminum Chassis

DAC-Z8 is made of aviation-grade CNC aluminum, creating a stable chassis structure. Enjoy a combination of modern visual appearance and classic build quality.

User Interface

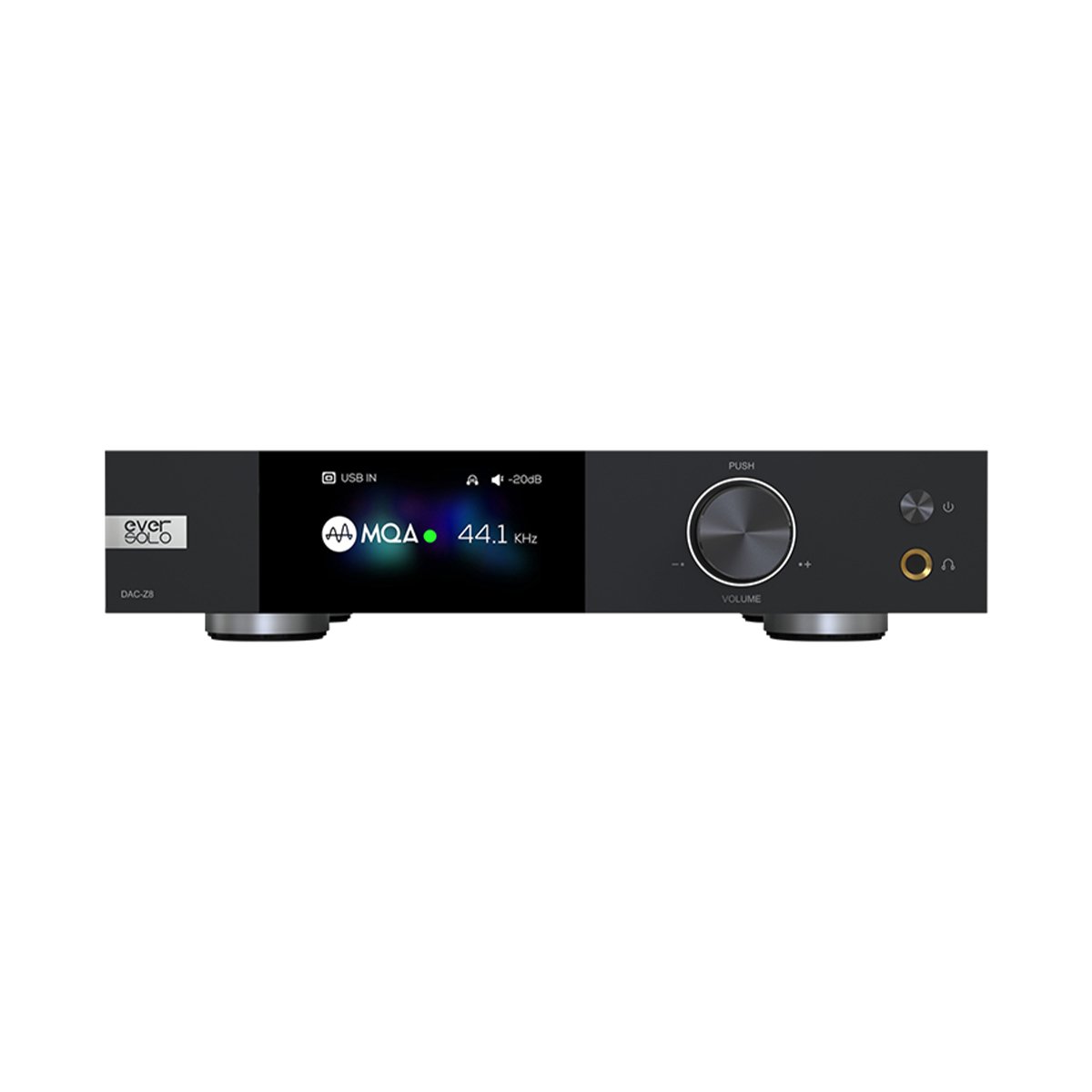

The 3-inch LCD screen on DAC-Z8 displays the colourful and intuitive user interface. Navigate menu settings, audio source selection, enable VU meters, and display playback info.

VU Meters

Don't just hear your music — enjoy it visually, too. Multiple VU meter designs elevate DAC-Z8 even higher, a feature and design polish not often seen at this price point.

On-Board Control

The knob on the front panel is multifunctional, controlling more than just volume adjustment. Press the knob to access input source switching, output selection, filter modes, VU meters, system language setup, firmware updates, and more.

Remote Control

The DAC-Z8 includes a remote control for easy adjustment of volume, input, and settings — even if you're sitting on the other side of the room.

App Control

DAC-Z8 can even be controlled remotely using your smartphone with the EverSolo Controller app. Connect via Bluetooth and access the comprehensive settings menu, just like you would on the on-board display.

Details & Specs

Model EverSolo DAC-Z8
Display Screen 3-inch LCD Screen
Chassis Aviation aluminum alloy
DAC ES 9038Pro
Audio Processor XMOS XU316
OPA Chip OPA1612*10
Power Supply Low noise switching power supply
Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, BT5.0, Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
USB-B DAC Input Compatible with Windows (7, 10), Mac, Android and IOS, Up to stereo DSD512, PCM 768KHz 32Bit and MQA
USB-C DAC Input Compatible with Windows (7, 10), Mac, Android and IOS, Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical Audio Input Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Coaxial Audio Input Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Analog Audio Output Preamp output: XLR (balanced), RCA; Headphone amp output: 6.35mm single-ended
USB Port USB2.0*1(only for firmware upgrade
Control Methods Remote control, mobile APP control and knob control
Headphone Impedance 16-300Ω (low gain mode:16-32Ω/high gain mode: 32-300Ω
XLR Audio Characteristics
  • Output level(Vrms): 4.1Vrms@0dBFS
  • THD+N@A-wt: 0.000062%@1kHz(-124dB@1kHz)
  • THD+N@No-wt:0.000069%@1kHz(-123dB@1kHz)
  • Noise@No-wt: <1.2uVrms
  • SNR @No-wt: 133dB@1kHz
  • Frequency response: 20Hz-20kHz(±0.1dB)
  • Crosstalk: -130dB@1kHz
  • DNR @No-wt: 133dB@1kHz
RCA Audio Characteristics
  • Output level (Vrms): 2.3Vrms@0dBFS
  • THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz)
  • THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz)
  • Noise @No-wt: <1.5uVrms
  • SNR @No-wt: 126dB@1kHz
  • Frequency response: 20Hz-20kHz(±0.1dB)
  • Crosstalk: -123dB@1kHz
  • DNR@No-wt: 126dB@1kHz
Headphone (low gain mode)
  • Output level(Vrms): 1.2Vrms@0dBFS
  • Maximum undistorted power: 45 mW@32Ω
  • THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz)
  • THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz)
  • Noise @No-wt: <2uVrms
  • SNR@No-wt: 124dB@1kHz
  • Frequency response: 20Hz-20kHz(±0.1dB)
  • DNR @No-wt: 119dB@1kHz
Headphone (high gain mode)
  • Output level(Vrms): 2.8Vrms@0dBFS
  • Maximum undistorted power: 26 mW@300Ω
  • THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz)
  • THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz)
  • Noise@No-wt: <2uVrms
  • SNR@No-wt: 124dB@1kHz
  • Frequency response): 20Hz-20kHz(±0.1dB)
  • DNR @No-wt: 124dB@1kHz
Power Input AC 110~240V 50/60Hz
Rated Power 9W
Dimensions 270mm(W) * 187mm(D)* 50mm(H)
Packing List Remote control*1, power cable*1, USB cable*1, product manual*1
