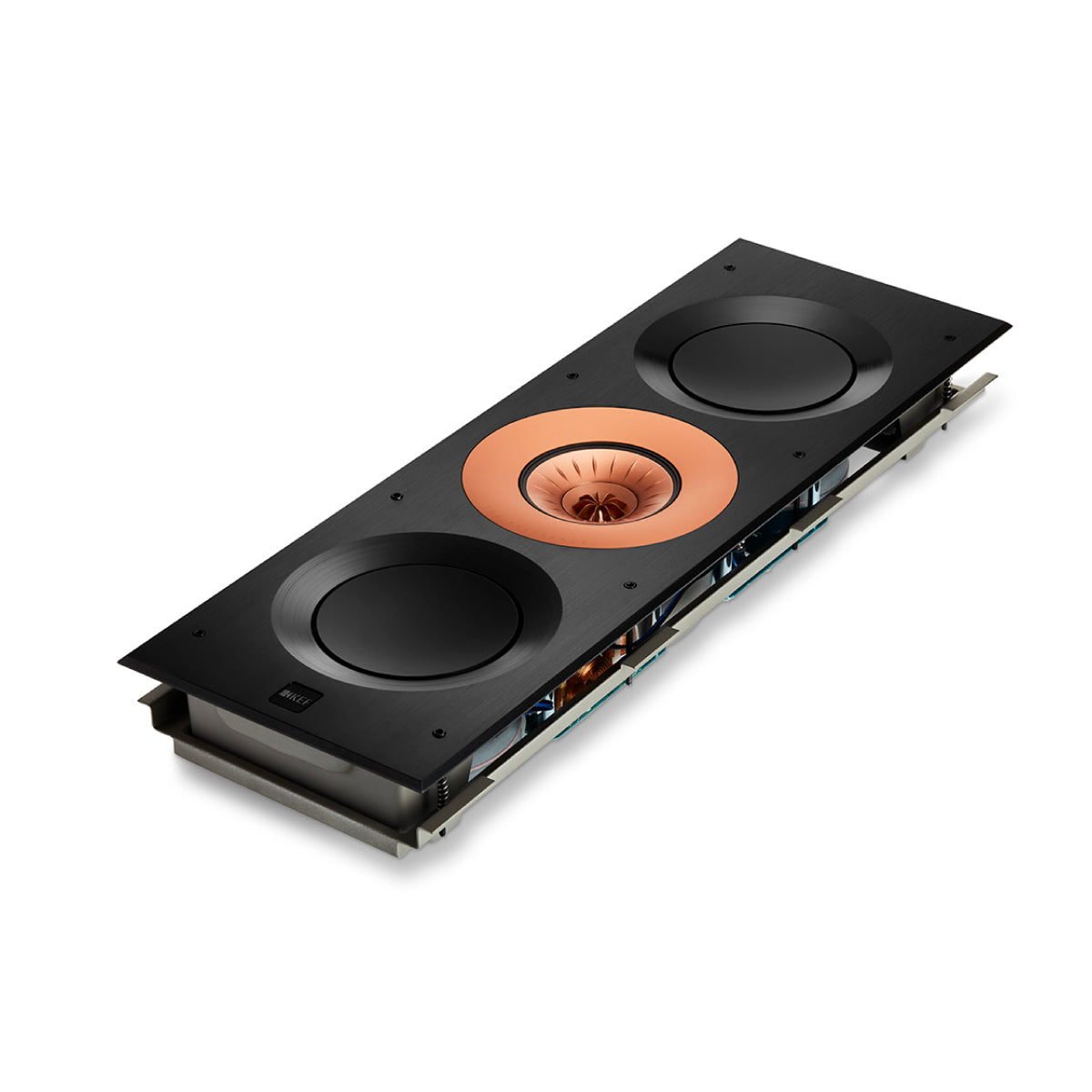

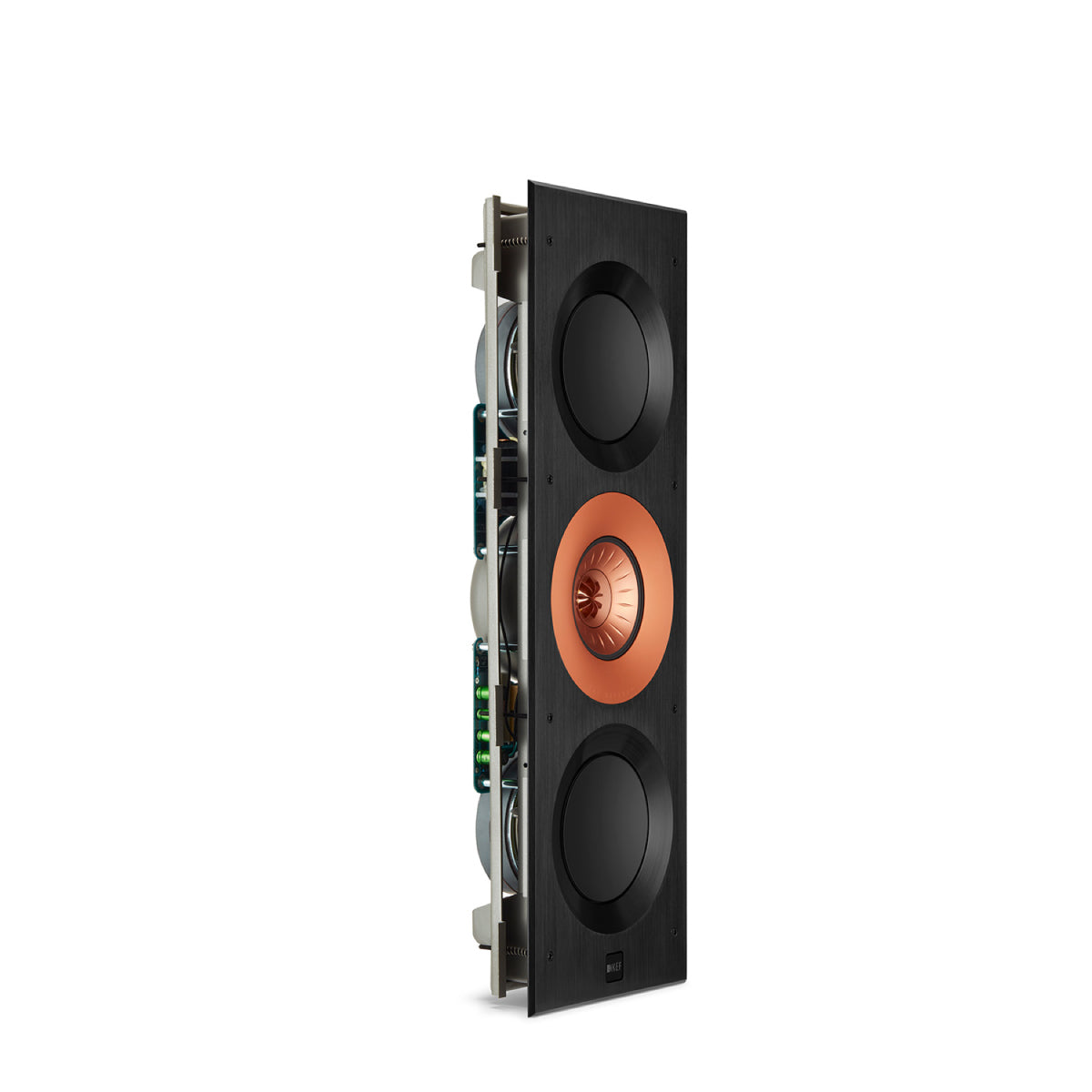

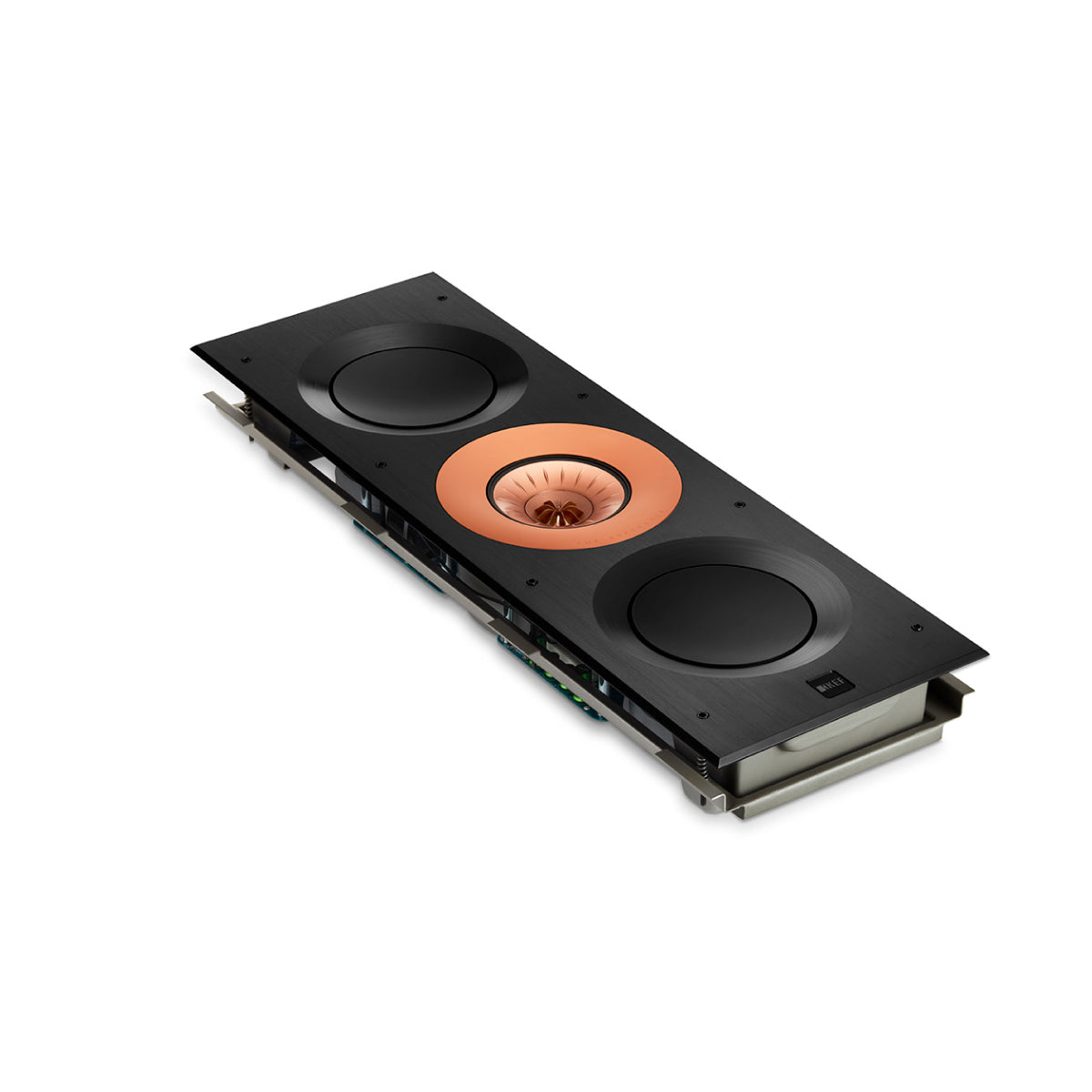

KEF Ci3160REF-THX
Reference In-Wall THX Ultra2 Speaker - Copper Black - Each
The standards of architectural speakers have been reset forever. The in-wall KEF Ci3160REF-THX meets KEF’s standards for Extreme Theater as well as THX Ultra Certification.

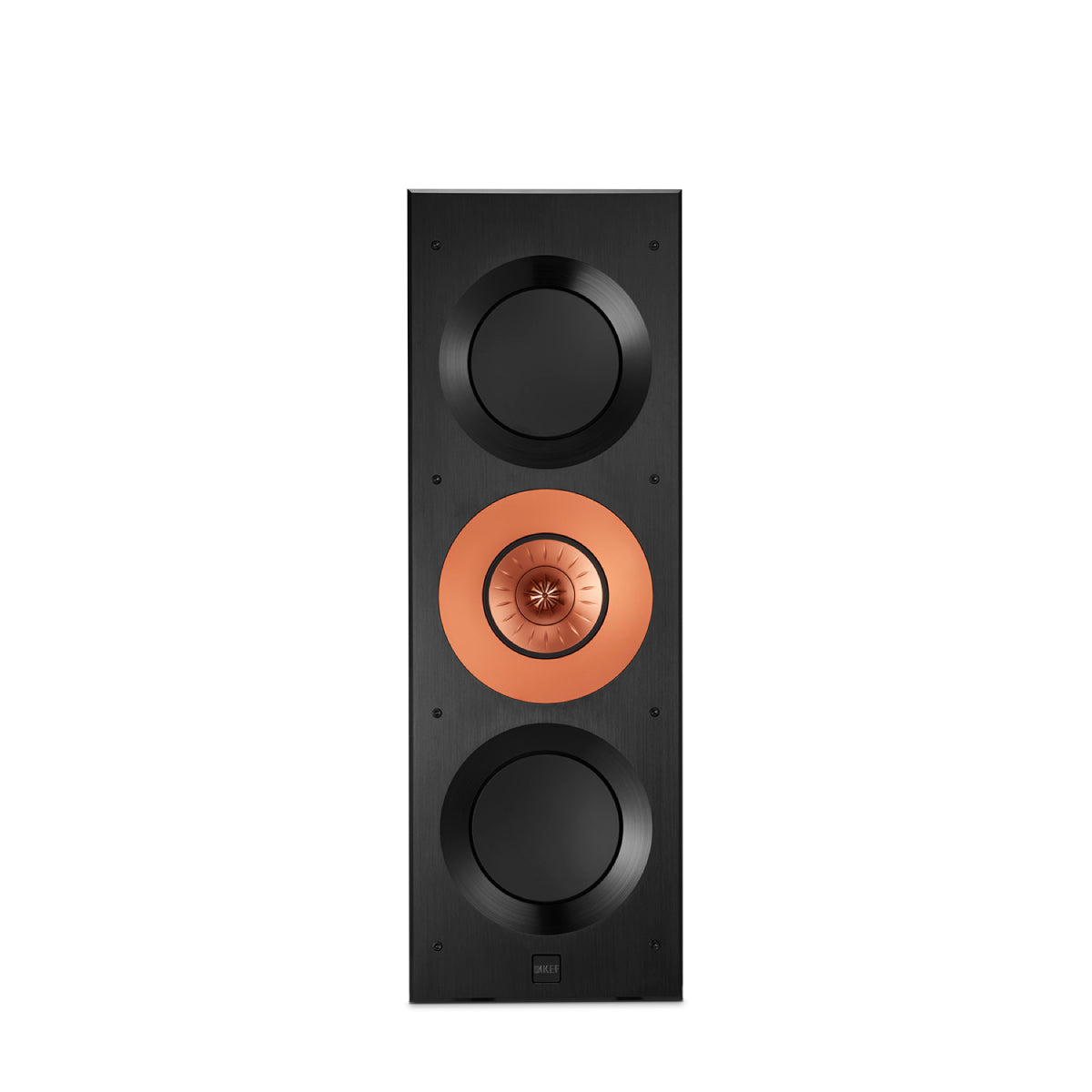

Uni-Q driver array

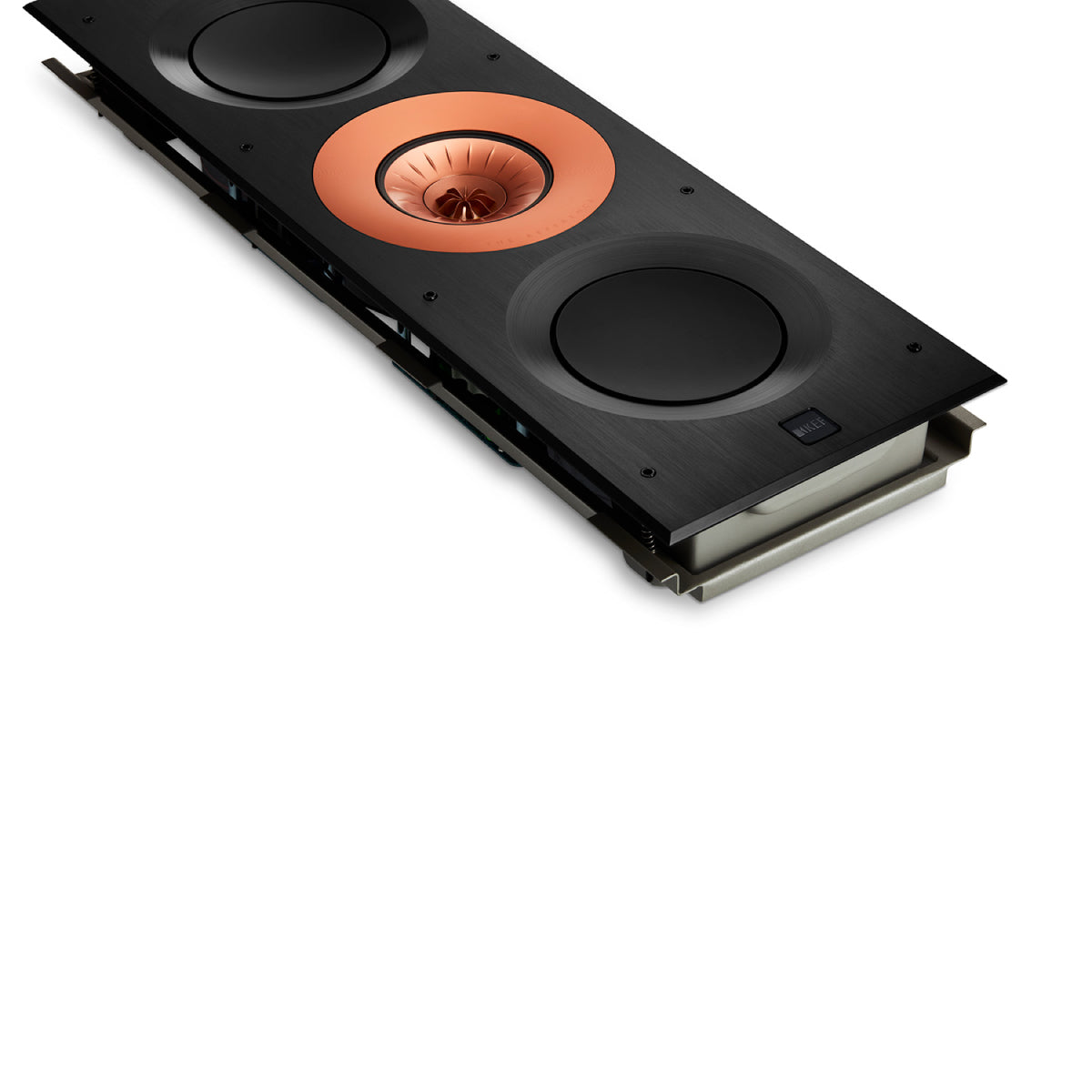

At the heart of the Ci3160REF-THX is the 11th generation of the KEF’s signature innovation: the Uni-Q point source MF/HF driver array. With a 25mm vented aluminum dome tweeter at the exact acoustic center of a 125mm mid-range driver, both act as a single source that floods the listening space evenly with a flawless natural sound field.
Bass drivers

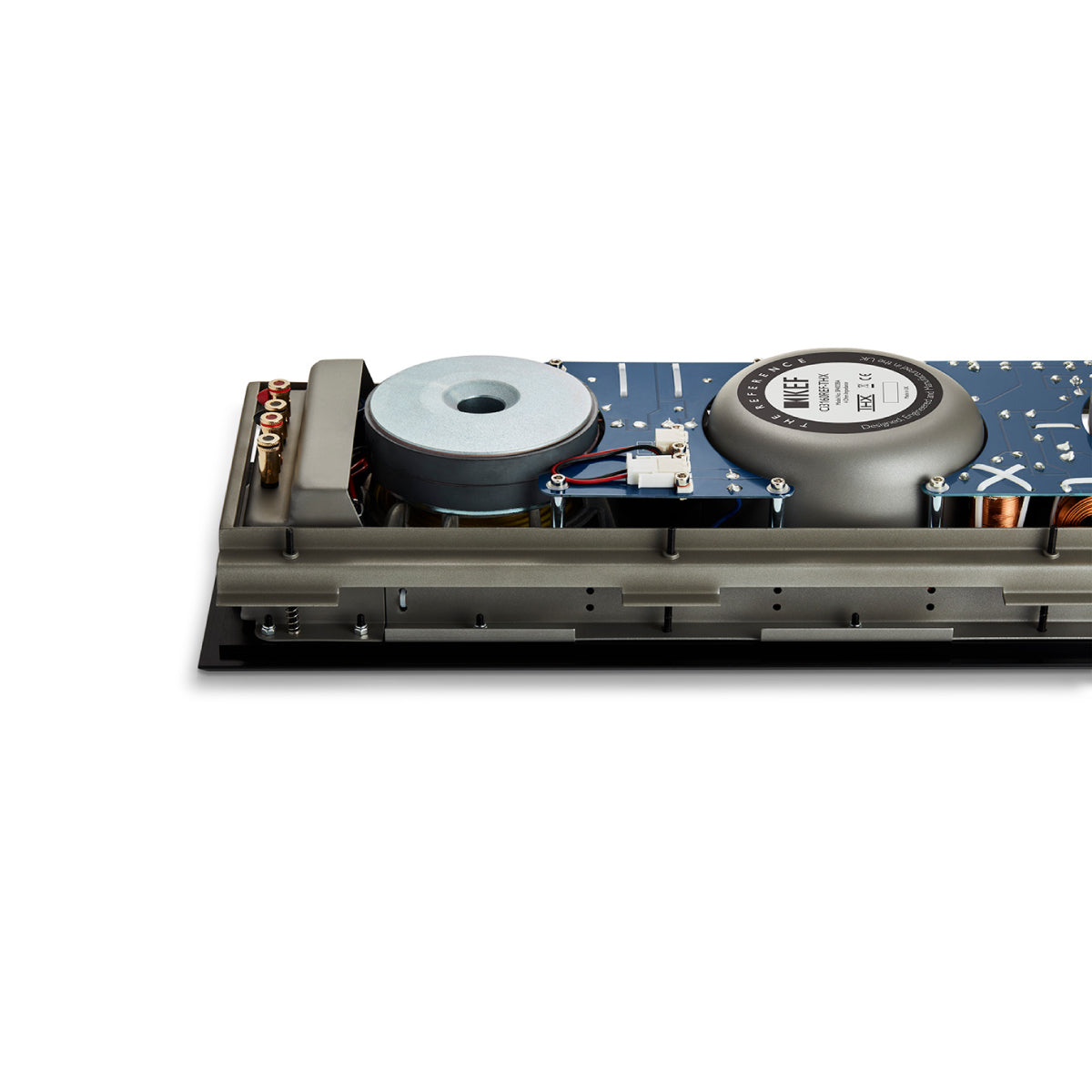

Like everything else about THE REFERENCE, the bespoke 160mm LF driver optimized for use in-wall, is a class apart. With a massive vented magnet assembly and a large aluminum wire voice coil driving an exceptionally light, stiff, and strong alloy cone, the dynamics and power handling are superb.
Crossover

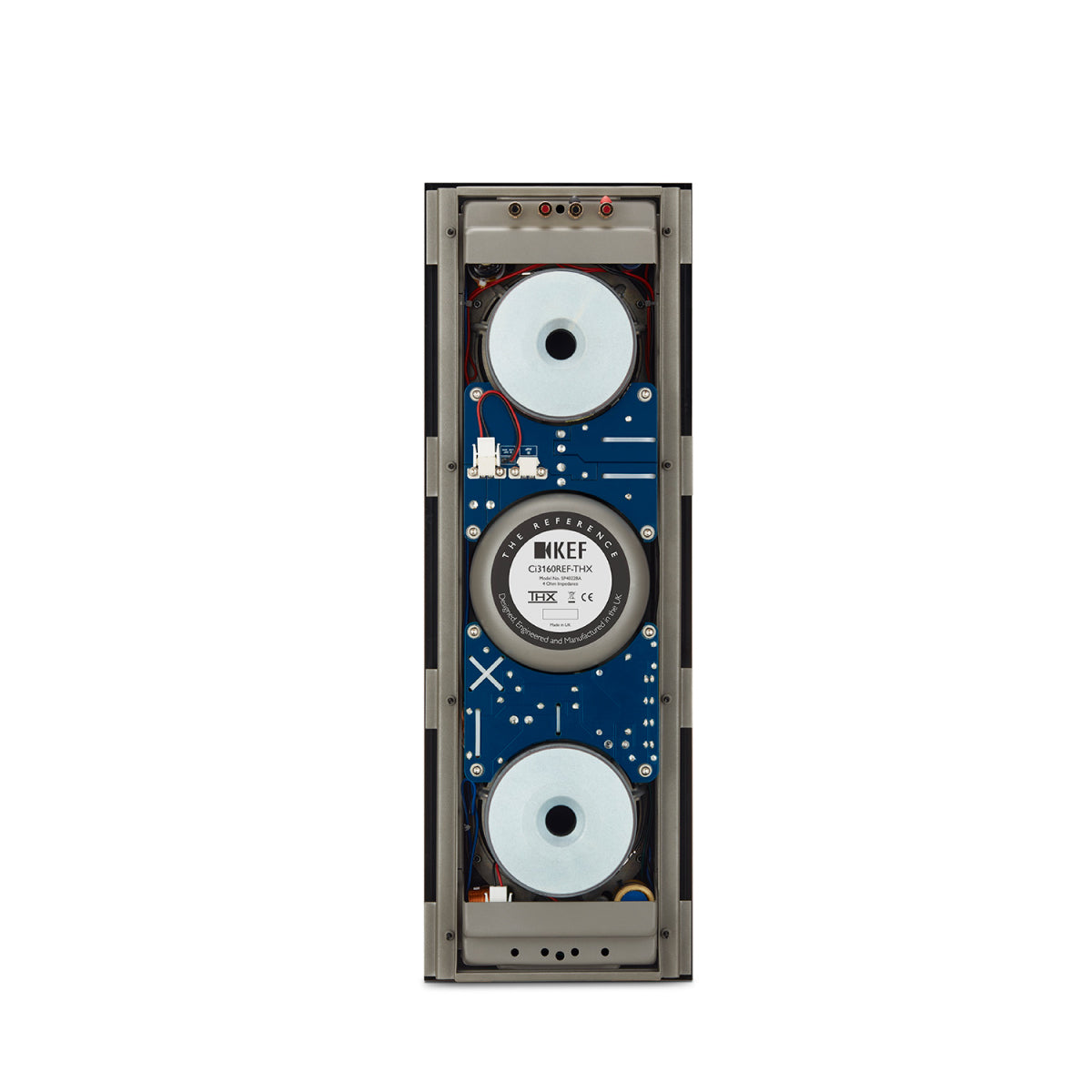

KEF engineers computer-modeled the ideal crossover networks before exhaustively auditioning every high-grade component to select those with the lowest distortion and the smoothest response. Perfectionism takes time, but the difference is clear. Nothing is overlooked – the HF and LF crossovers are even mounted on separate boards to minimize crosstalk.
Ci5160REF-THX
The KEF Ci3160REF-THX is built to the same exacting standards as the REFERENCE speakers. And like all REFERENCE speakers, the Ci3160REF comes with the REFERENCE Build Certificate signed by the craftsman who built it.
Model | Ci3160REF-THX |
---|---|
Nominal Impedance | 4Ω |
Sensitivity (2.83V/ 1m) | 90dB |
Frequency response (±6dB) | 40Hz - 28kHz (±6dB) open backed |
Frequency range (-10dB) | 32Hz - 30kHz |
Crossover frequency | 350Hz, 2.7kHz |
Drive units | LF: 2 x 160mm (6.5 in.) MF: 125mm (5.25 in.) HF: 25mm (1 in.) Uni-Q |
Recommended Amplifier Power | 40 - 350W |
Product external dimensions (H x W x D) | 26.77 x 9.06 x 4.16 in 680 x 230 x 105.7 mm |
Cut-out dimensions (H x W) | 25.98 x 8.23 in 660 x 209mm |
Net Weight | 29.54 lbs 13.4 kg |
Mounting depth from surface | 3.9 in 99mm |
** KEF reserves the right, in line with continuing research and development, to amend or change specifications.**
UPC | 637203217661 |
---|
