JBL Synthesis

SCL-7 2-Way Dual 5.25" In-Wall Speaker

The SCL-7 is the smallest in-wall model in the expanded JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for deployment in high-performance immersive audio systems in small to medium size rooms. The SCL-7 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with two 5.25-inch (130 mm) Advanced Aluminum Matrix cone cast-frame woofers into a precision molded baffle assembly. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 45 degrees from the listening position. The SCL-7 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution.
Rating:
0%
$1,000.00
/EACH
Special Order: Extended Delivery Time
Learn More
Bread Checkout


The SCL-7 is the smallest in-wall model in the expanded in the JBL Synthesis Custom Loudspeaker (SCL) series. It is designed for deployment in high-performance immersive audio systems in small to medium-size rooms. The SCL-7 features JBL’s patented 2410H-2 1-inch (25mm) compression driver mated to an offset High Definition Imaging (HDI™) horn. This patented horn design is integrated with two 5.25-inch (130mm) Advanced Aluminum Matrix cone cast-frame woofers into a precision-molded baffle assembly. The innovative configuration yields incredibly smooth and consistent performance for off-axis placement up to 45 degrees from the listening position. Premium components are used throughout the crossover network including a boundary gain adjustment switch while high-quality gold-plated push-type speaker terminals ensure a secure connection. Installation is simple and quick with the new Cat Claw mounting mechanism that allows the speaker to be securely clicked into place freeing up two hands for tightening it down flush and level to the wall. A zero bezel magnetically attached grille is included and can be painted to match any décor. The SCL-6 is acoustically designed to match any of the JBL Synthesis Custom Loudspeakers (SCL series) as part of a complete JBL Synthesis immersive audio solution.

SCL-7 Highlights

  • 2-way in-wall loudspeaker system designed for off-axis listening as LCR and surround channels

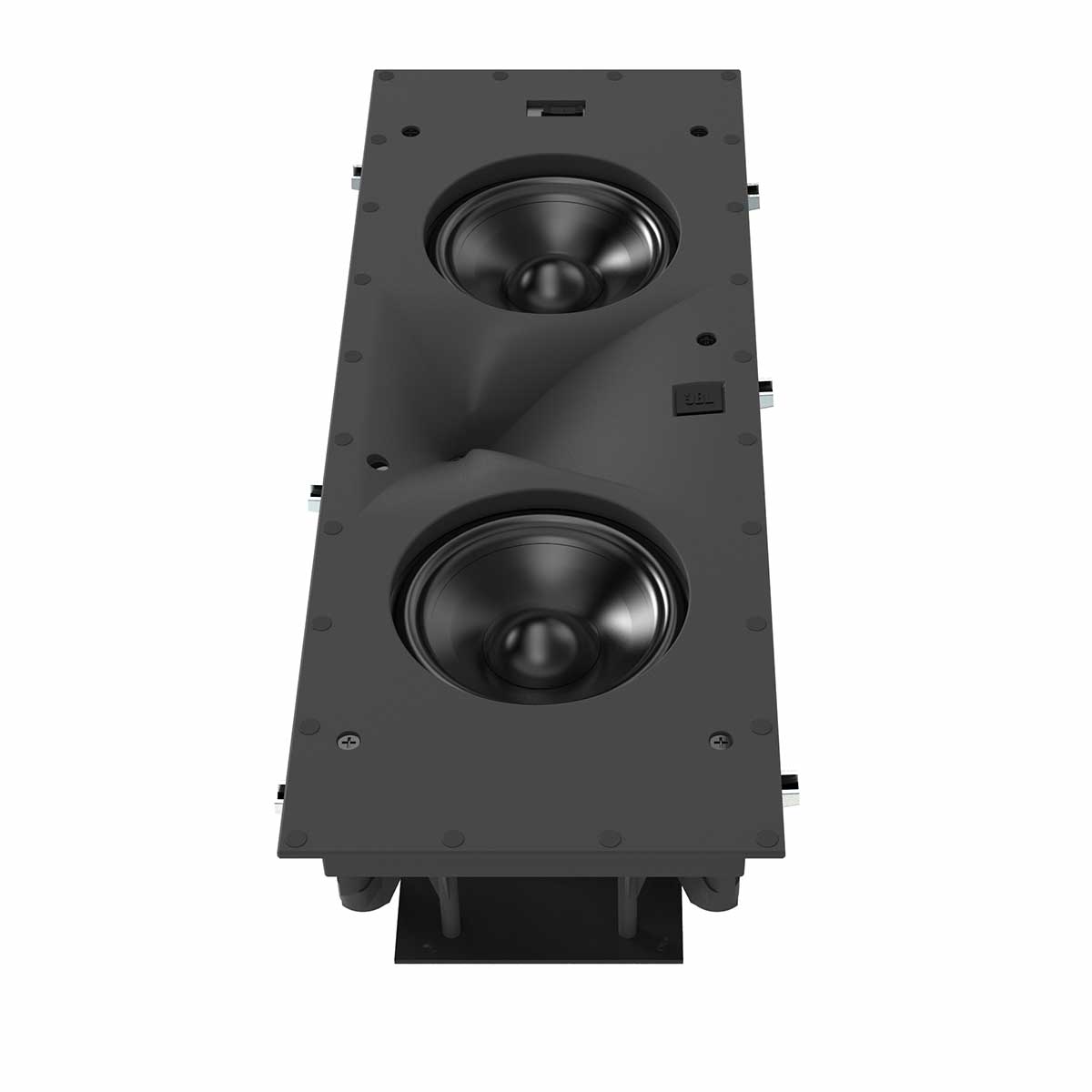

  • 1-inch 2410H-2 compression driver tweeter mated to a JBL patented High-Definition Imaging (HDI™) horn precision-molded baffle assembly
  • Two 5.25-inch (130mm) Advanced Aluminum Matrix cone cast frame woofers
  • Can be mounted vertically or horizontally
  • Patented Cat Claw installation mechanism
  • Gold plated, spring-loaded binding posts

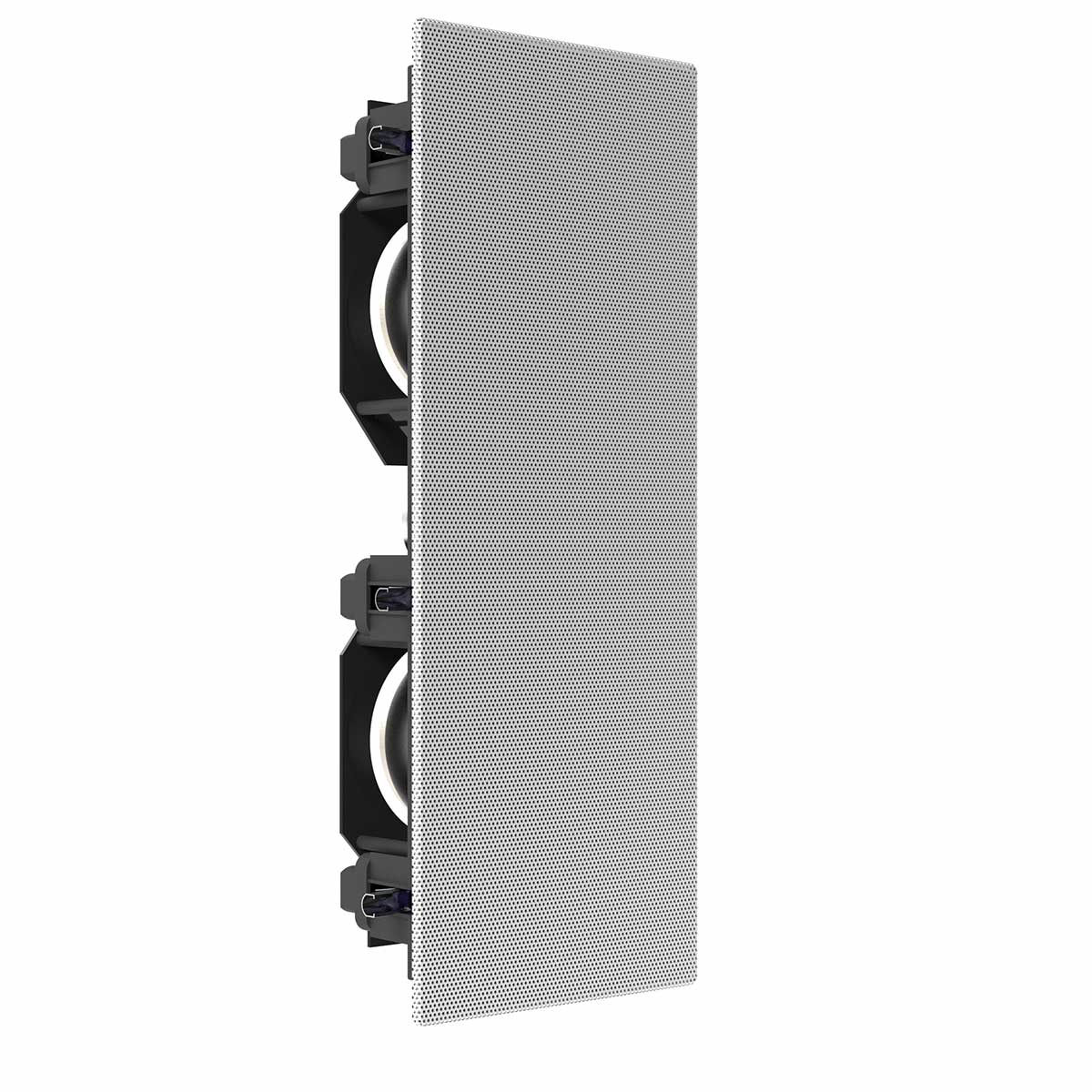

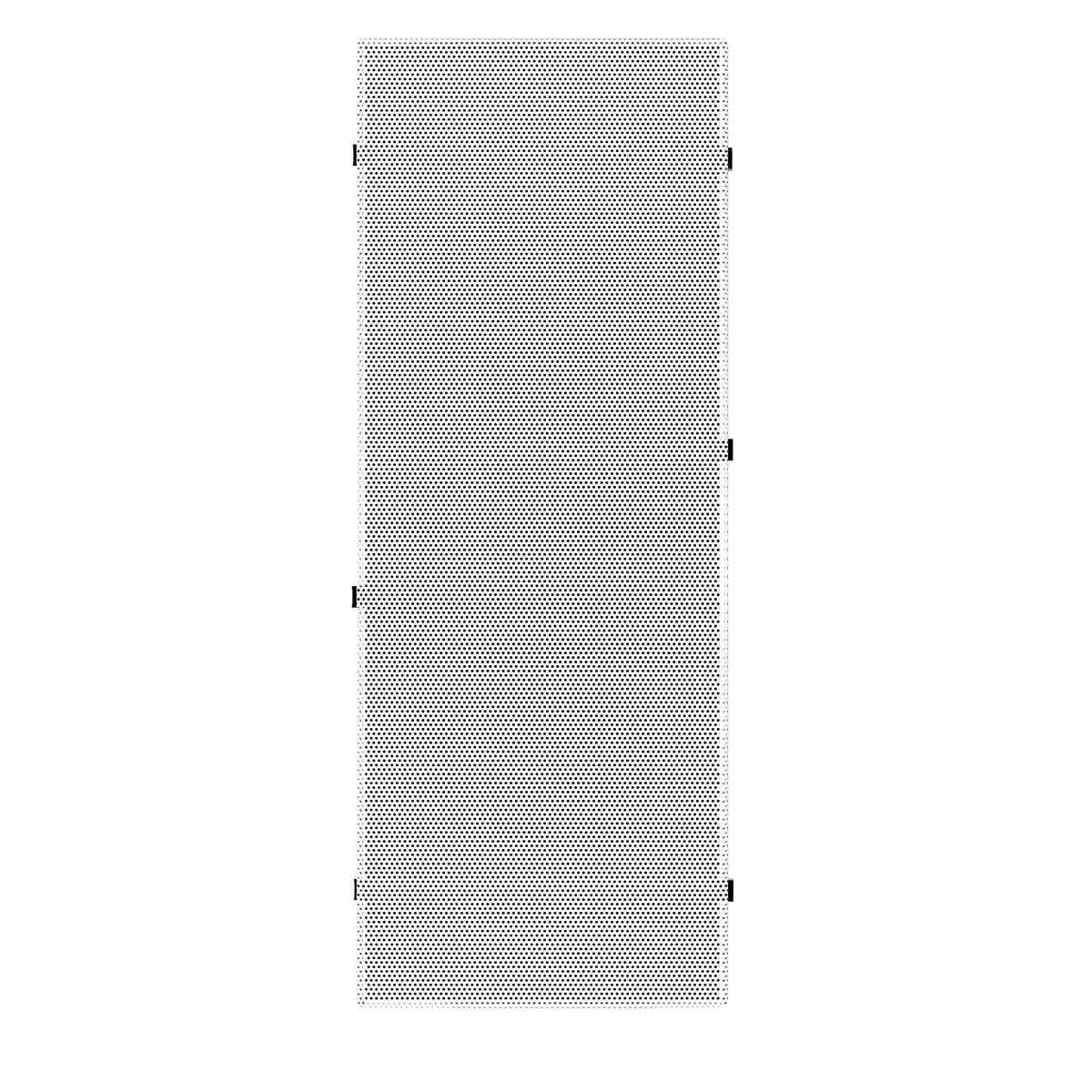

  • Includes paintable zero-bezel, magnetically attached grilles

General Specifications

  • Type - 2-Way In-wall loudspeaker
  • Low-Frequency Driver - Two 5.25” (130 mm) advanced Aluminum Matrix cone cast-frame woofers (JW13Al-4)
  • High-Frequency Driver - 1" (25 mm) 2410H-2 Teonex annular ring-diaphragm compression driver
  • Recommended Amplifier Power - 25 – 150W RMS
  • Impedance - 4 Ohm
  • Loudspeaker Sensitivity - 88 dB/2.83V/1m (2pi anechoic)
  • Frequency Response - 55Hz - 30kHz (-6 dB on-axis), 2pi anechoic
  • Crossover Frequency - 2.0 kHz
  • High-Frequency Coverage Angle (-6 dB) - 60° Vertical, 90° Horizontal (Left 30°, Right 60°, from center line), from 2 kHz to 15 kHz
  • Enclosure Type - Open back
  • Controls - Boundary Proximity Control
  • Grille Dimensions - 7.32” (186 mm) x 19.15” (486 mm)
  • Product Dimensions (with grille) - 7.32” (186 mm) x 19.15” (486 mm) x 3.88” (99 mm)
  • Cut-out Dimensions - 6.18” (157 mm) x 18.03” (458 mm)
  • Rough-in Bracket - WB52
  • Mounting Depth - 3.64” (93 mm)
  • Input Type - Gold-plated spring-loaded binding posts
  • Product Weight - 12.6 lbs (5.72 kg)
  • Shipping Weight - 14.6 lbs (6.62 kg)
  • Warranty - 5 Years
More Information
MPNJBLSCL7
UPC050036380522
SeriesSynthesis
Sold AsEACH
Weight12.60 lbs
Color OptionsBlack
FeaturesWall Mountable, Wired
Warranty5 Years
