Item #DLA-NZ500

JVC DLA-NZ500 D-ILA

Laser Projector
Item #DLA-NZ500

JVC DLA-NZ500 D-ILA

Laser Projector
$5,999.95
Pre-Order: Shipping in November
Contact Us

Overview

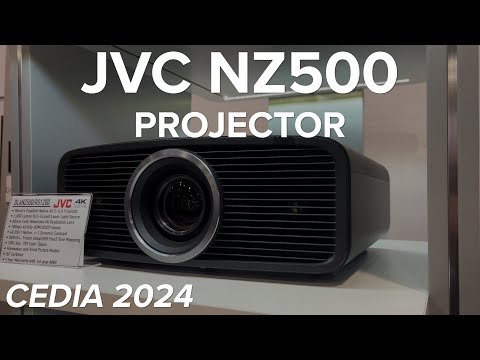

Watch our Comparison

All Components Redesigned

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

Volume Reduction

The DLA-NZ700/NZ500/RS2200/RS1200 has a dimension reduction of 35% compared to the previous DLA-NZ7/RS2100, while still incorporating a laser light source and native 4K D-ILA device.

Re-design of Air Intake and Exhaust

By placing the heat source exhaust at the rear, the potential impact of the image on the projection screen has been eliminated. This provides more flexibility for installation.

Environmental Considerations

The design of the new projector models uses significantly less plastic, which also reduces transportation costs. This leads to a product that is much more environmentally friendly.

Native 4K

The proprietary 0.69 inch native 4K D-ILA device enhances video quality and black details.

High native contrast

The DLA-NZ500 achieves 40,000:1* native contrast by simultaneously improving alignment control and pixel flatness.

Uniform brightness

The Manufacturing process has improved uniformity of brightness across the entire screen, with beautiful image quality to every corner.

Low Latency

Low Latency design further improves response to the player’s rapid operations, making it effective for displaying high frame-rate gaming content on large screens.

New BLU-Escent Laser

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ500 achieves a high brightness of 2,000lm with a laser life expectancy of approximately 20,000 hours.

Improved Power Efficiency

The DLA-NZ500’s brightness per watt of effective power is approximately 2 times that of the first model equipped with BLU-Escent Laser (the DLA-Z1 was released in January 2017, with a brightness of 3,000lm).

Controlling the Luminance in 101 Steps

BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control by slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can be used to make fine adjustments to match the target luminance in the environment and on the screen.

Newly Designed fully Motorized 4K Lens

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

Installation flexibility

Fully electric (Zoom, Focus, Shift), with 70% vertical and 28% horizontal shifts for easy installation.

Ultimate Dynamic range

HDR Drastically Improves Expressive Power of Images

When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut, and 10-bit gradation, rely on the new D-ILA projectors. The DLA-NZ500 supports all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.

DML (Display Mastering Luminance) for Better HDR Experience

DML (Max Display Mastering Luminance) metadata, which represents the nit level of the professional monitor used to grade the movie to the director's standards, is used to set the dynamic range of the title for improved HDR tone mapping. On the DLA-NZ500, both DML and MaxCLL values are used for the HDR levels.

HDR10+ described

In HDR10, the basic standard for reproducing HDR content, there are only two pieces of information: MaxCLL, which represents the maximum brightness of the content, and MaxFALL, which represents the average maximum brightness. However with HDR10+, the luminance information for each scene is embedded in the content as metadata, which allows for scene-specific tone mapping and faithfully reproduces the HDR image intended by the creator.

Gen2 Frame Adapt HDR Function for Brighter and More Colorful HDR Images

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful, and have a wider dynamic range.

Deeper Blacks for Richer Gradation

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

JVC Advanced Technology

Equipped with Vivid picture mode that reproduces SDR content in rich colors

Vivid picture mode is a standard dynamic range (SDR) picture mode that reproduces content in rich colors. You can enjoy popular SDR video content, such as animation, in bright, rich colors and clear images.

Proof of high-grade, high-quality projectors licensed with ISF Certifications

All models are licensed with the ISF C3 (Certified Calibration Controls) mode, enabling trained dealers to professionally calibrate them to desired screen surfaces, lighting environments and video sources, and then securely store these precise settings into the projector.

6-axis Color Management System

A 6-axis matrix of red, green, blue, cyan, magenta, and yellow enables the precise adjustment of hue, saturation, and intensity. Users can make adjustments suitable for the content as the projector allows precise management of colors.

Auto Calibration function

Using an optical sensor and proprietary software*2, optimum calibration can be applied in just a few easy steps to match the changes in optical characteristics caused by the installation situation of the projector. Auto-Calibration optimizes all essential elements found in the image, including color balance, gamma characteristics, color space, and color tracking. In the past, multiple calibrations were required, but now it's possible to complete the calibration with a single calibration.

*2: An optical sensor and proprietary software, which is downloadable from JVC website, are required to perform auto calibration function. Refer to the JVC website for details.

Convenient Features

Installation Mode

These projectors are equipped with Installation Mode that allows users to centrally manage settings related to installation in order to enjoy projected video optimized for each environment. As shown in the graphical interface, eight settings for Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Setting, Installation Style, Keystone, and Aspect can be adjusted. Additionally, 5 different mode settings can be stored in memory and named as desired. Installation modes stored in memory for various environments can be called up immediately.

Screen Adjustment Mode

Screen Adjustment Mode is one of the nine Installation Modes described above. When the user selects a setting that best suits the screen being used from the Screen Adjustment Mode settings, the projector adjusts the image with natural color balance to match the screen. The mode is compatible with the latest models offered by the world's major screen manufacturers.

Digital Keystone Function*

These projectors feature Digital Keystone Function. Digital Keystone adjusts keystone distortion that occurs when the projector is placed in a tilted position.

* : Digital Keystone Function cannot be used simultaneously. Keystone adjustment corrects only in the vertical direction.

Anamorphic mode for wide cinematic films

A 2.35:1 aspect ratio for wide cinematic films can be enjoyed by combining the projector with a third-party anamorphic lens to create dynamic picture reproduction just as can be seen in a movie theater.

USB Back-up

The USB Back-up function can save and write settings on the main unit menu to a third-party USB flash drive all at once. It is important to save adjustments made by an installer or specialist, or to undo unintended adjustments made by children or family members.

Details & Specs

Model NZ500
D-ILA Technology Yes
Chip Type 0.69-inch 4K D-ILA device
Native Resolution 4096 x 2160
Number Of Chips 3
Display Resolution 4096 x 2160
Laser Yes
Type BLU-Escent Laser Diode
Life Time (Standard Mode) 20000 hours
Brightness 2000 lm
Dynamic Contrast ∞ : 1
Native Contrast 40000 : 1
Dynamic Light Power control Yes
Modes Low,High,Balance,Off
Manual Aperture Yes
Range -15 (stops down) to 0 (opens up)
100% REC 709 Yes
Color Bit Depth 12 bit
ISFccc Certification Yes
HDR10 Yes
HDR10+ Yes
Frame Adapt HDR Yes
HLG Yes
Mastering Info Display Yes
Info data MaxCLL, MaxFALL , DML
Deep Black Tone Control Yes
Zoom 1.6 x
Throw Ratio 1.34 - 2.14 (16:9)
1.26 - 2.01 (17.9)
Diameter 80 mm
Build 15-element, 11-group.
Lens Shift Yes
Range Horizontal ± 28 %
Range Vertical ± 70 %
Motorized Zoom Yes
Motorized Shift Yes
Motorized Focus Yes
Projection Display size (diagonal) 60 - 200 inch
Memory Function Yes
Number of user presets 5
Lens Cover Yes
HDMI Yes
Number of Inputs 2
Data Rate 32 Gbps
HDCP Version 2.3
4K60P signal input Yes
Video Signal range 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes Standard, Option1 , Option2  (older hardware may need to use Option1 or Option2 settings)
LAN Yes
Connector RJ45
Service Yes
Connector USB (Type A) for firmware update or backup
Picture Modes Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color Temperatures 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth 12 bit
Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Vivid, 3 Custom modes
Color Management 6-Axis adjustable CMS
MPC Yes
Filmmaker Mode Yes
Low Latency Mode Yes
Auto Calibration Yes
Installation Mode Yes
Number of modes 5
Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes 4 Modes (A, B, C, D)
Control4 SDDP Yes
Power Requirement AC100-240V, 50/60Hz
Projector in Use 280W
Standby Eco-mode: 0.3W
Network Standby 1.5W (LAN)
Eco Mode Yes
Standby Timer Yes
Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80%
Installation Angle Horizontal +/- 10 degree / Vertical +/- 10 degree
Installation Height Below 2,000 m
Remote Control Yes, RM-MH27
Quick Guide Yes
Power Cord Yes
Batteries Yes, 2 x AAA-size batteries
Product Dimensions (WxHxD) 450 x 181 x 479 (mm)
Product Weight 14.6 Kg
Package Dimensions (WxHxD) 585 x 361 x 600 (mm)
Package Weight 18.9 Kg
