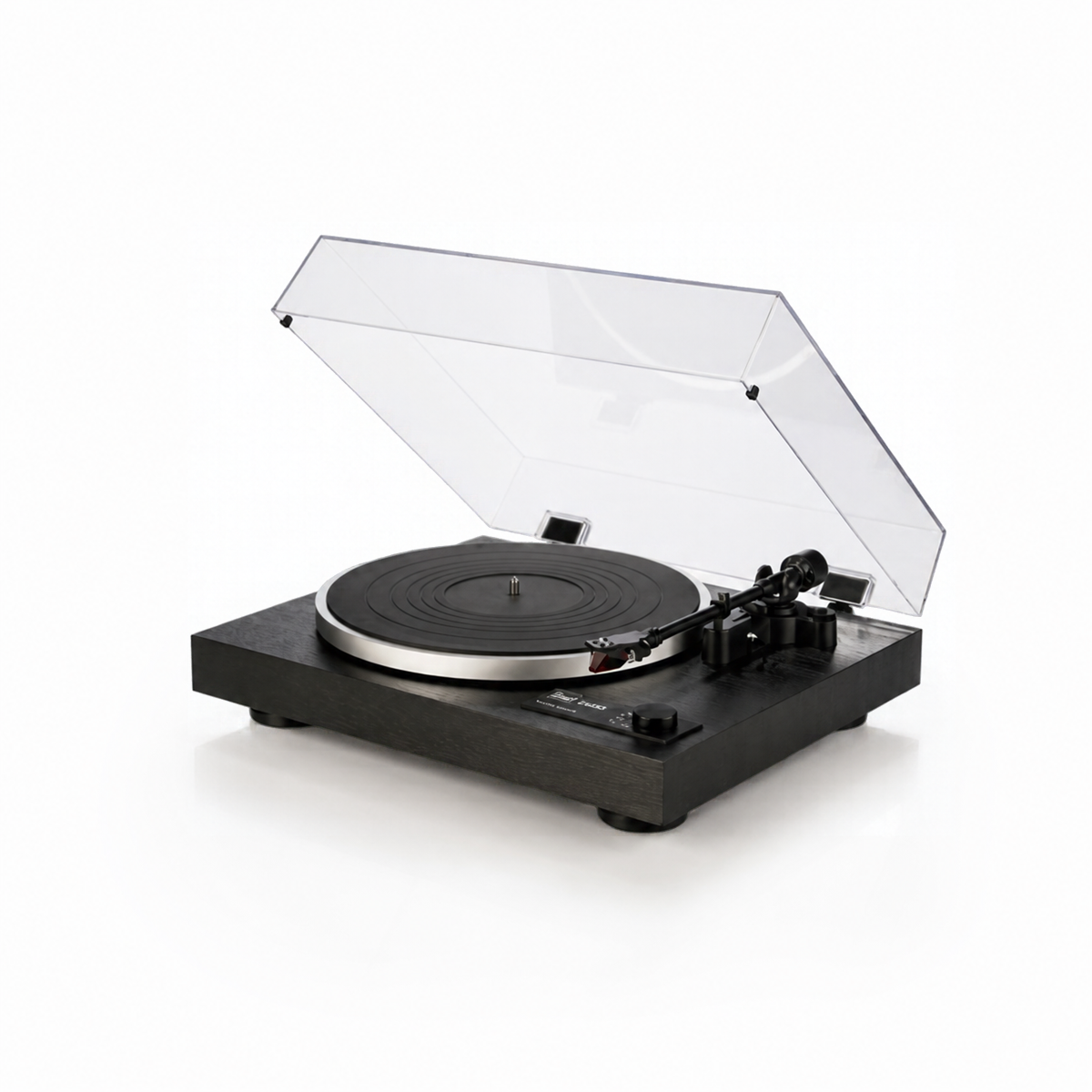

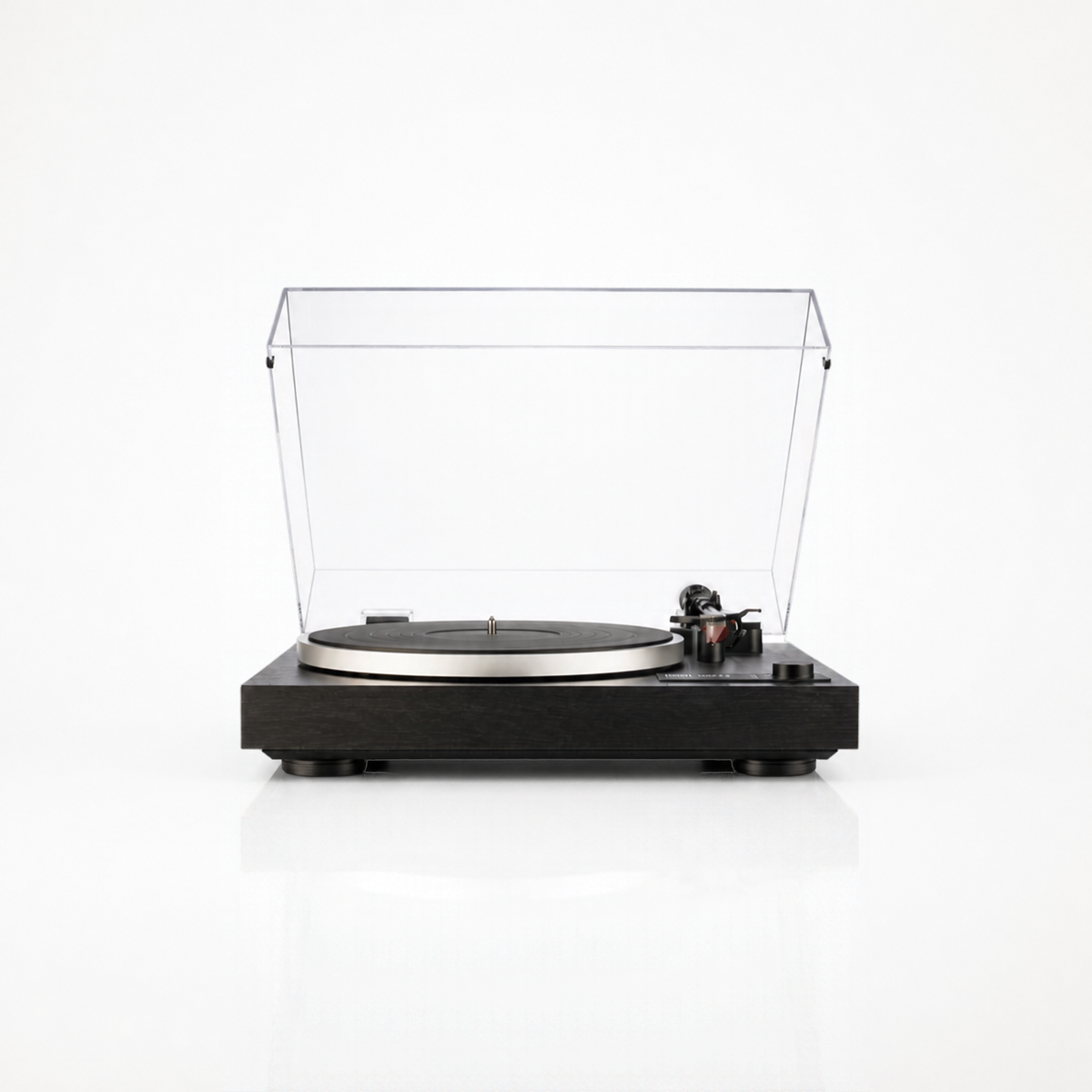

Dual CS 518

Manual Hifi Turntable

Dual CS 518

Manual Hifi Turntable
From $899.00
Select Color:


Overview

Dual CS 518 elevates any sound system setup with a belt driven DC motor, aluminium platter, and twin gimbal tonearm supported by four pivot ball bearings. Complete with an Ortofon 2M Red cartridge and switchable MM phono preamp, it delivers balanced playback across three distinct speeds.

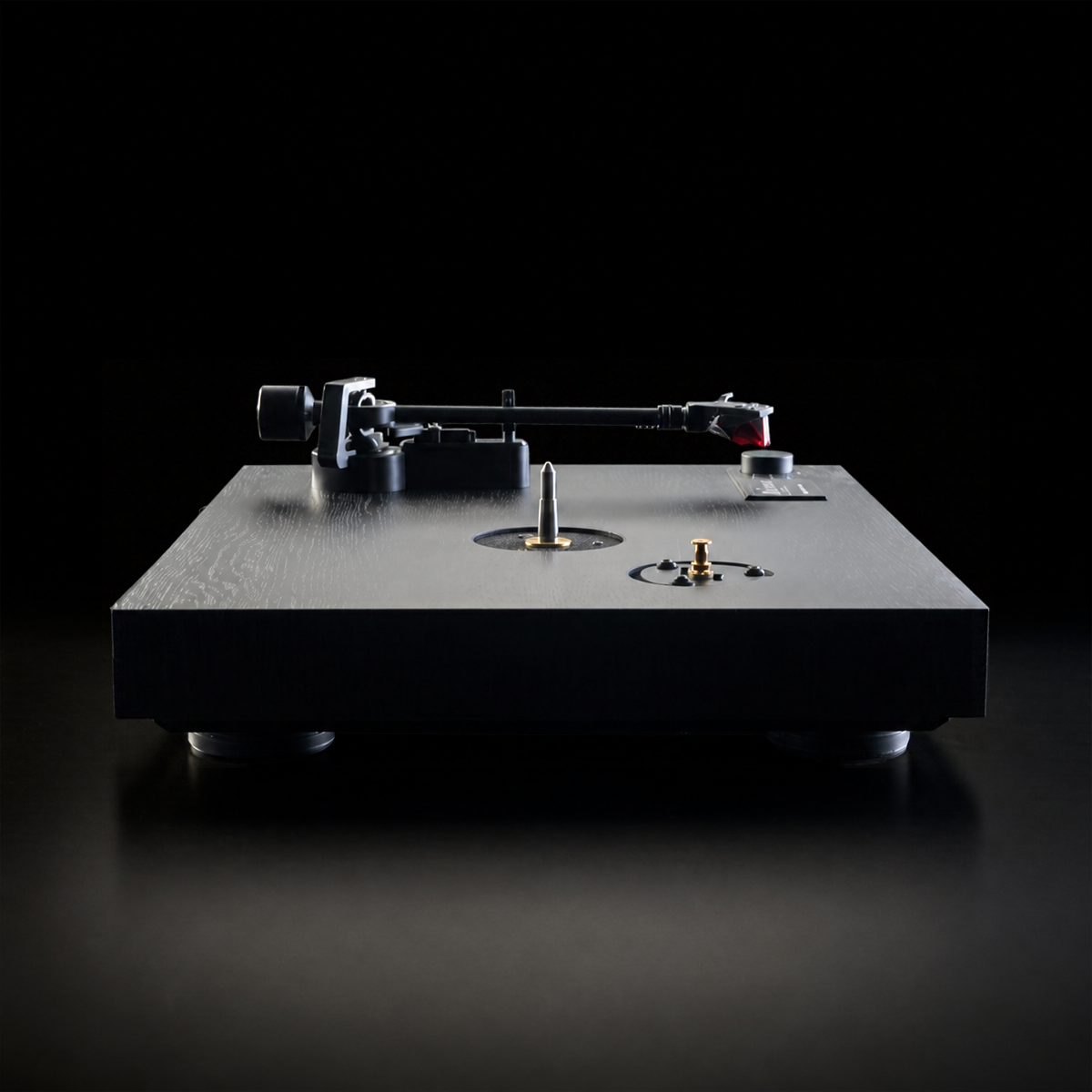

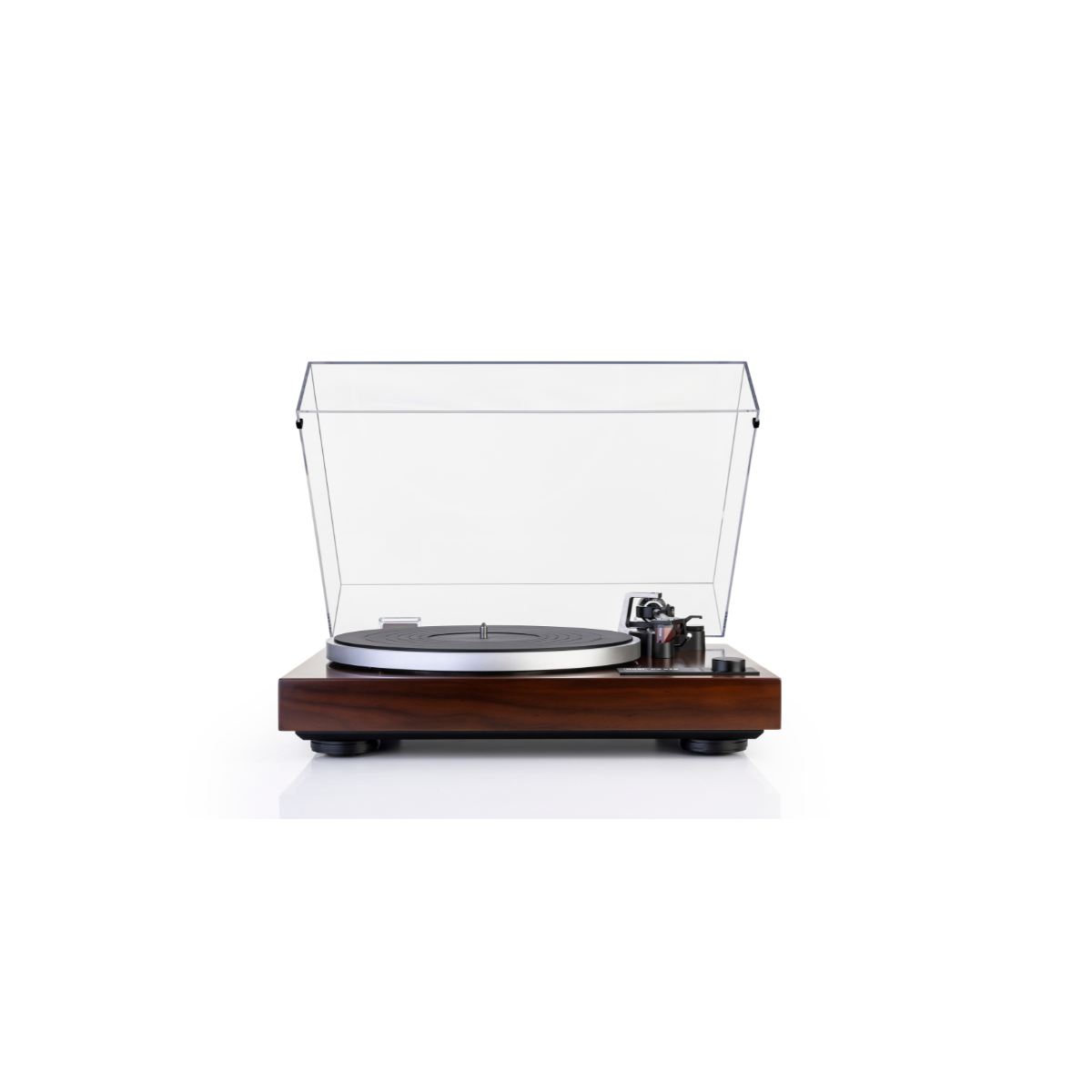

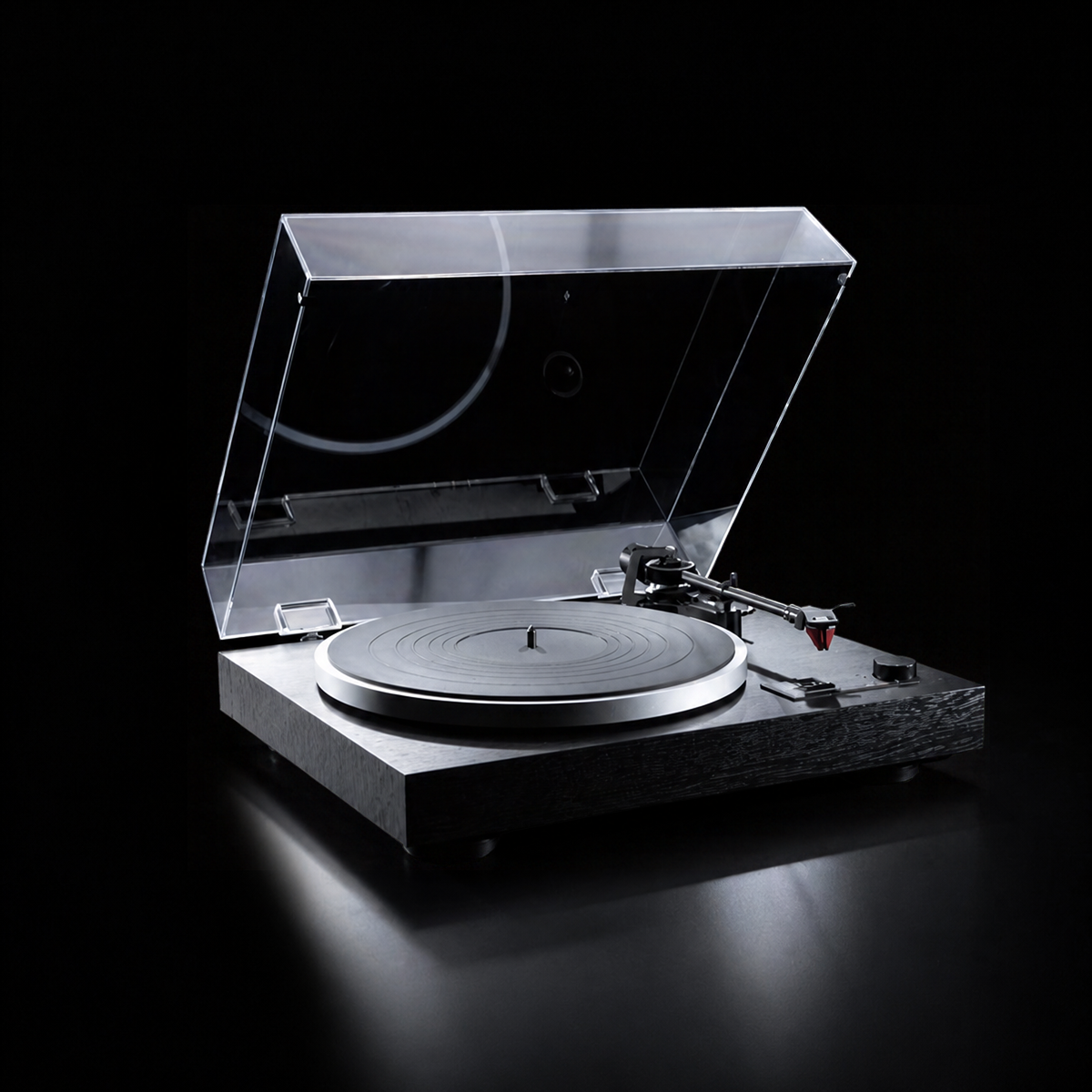

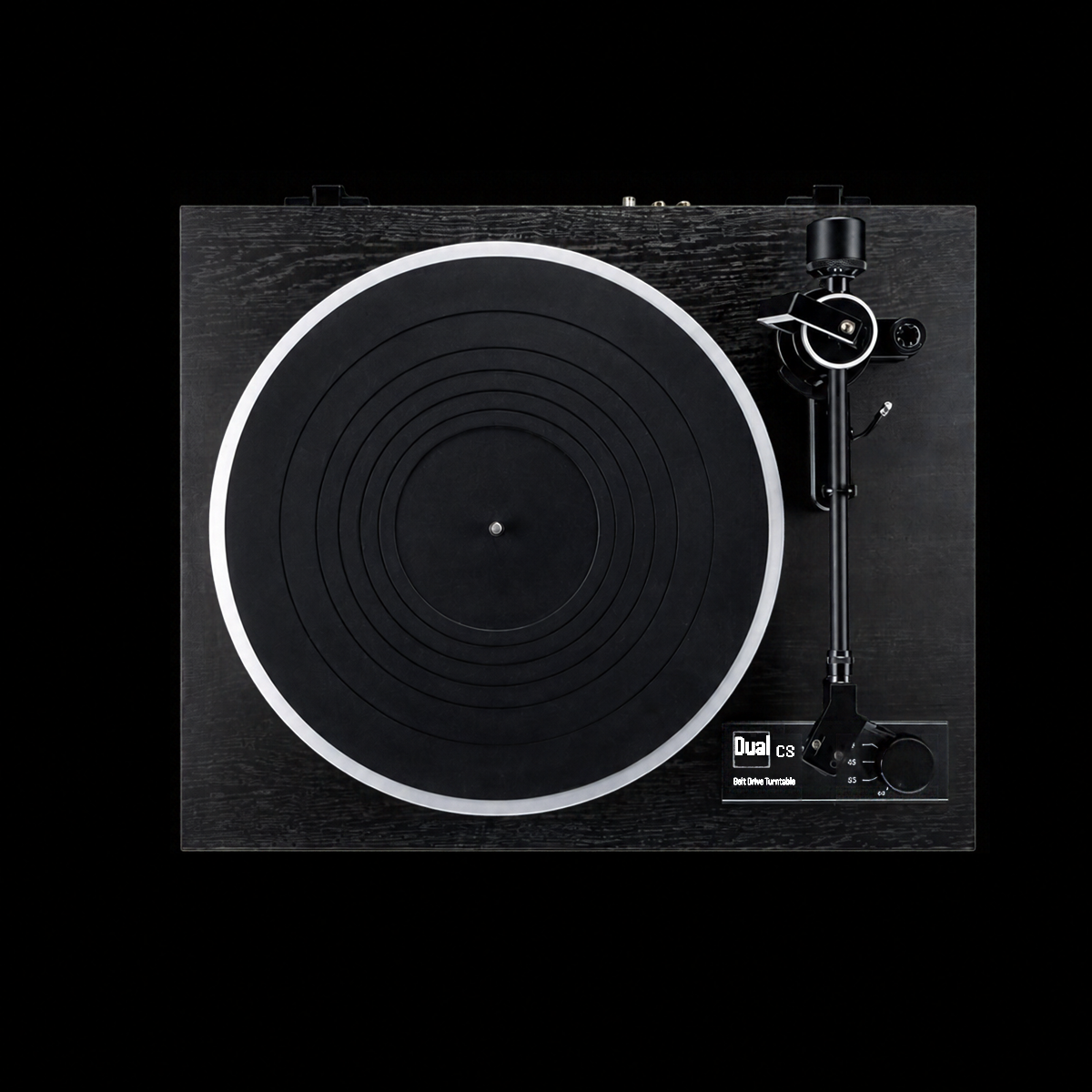

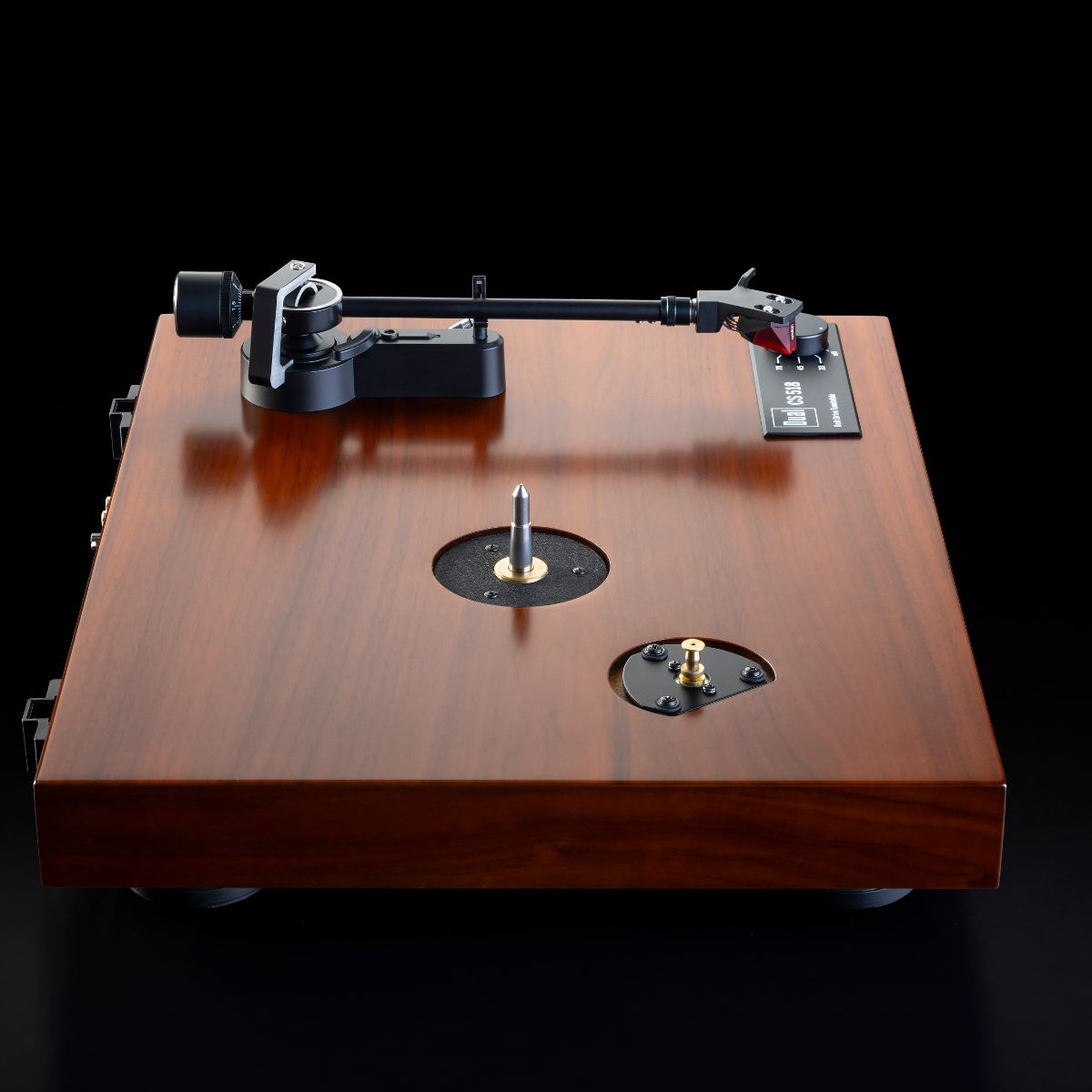

The Dual CS 518 manual turntable introduces listeners to high end analog playback with focused engineering and dependable build quality. At its base, a solid MDF plinth comes finished in black vinyl or optional walnut veneer, resting on sixty two millimeter feet fitted with elastomer vibration absorbers to isolate acoustic resonance. A die cast aluminium platter rotates smoothly on a hardened steel spindle housed inside a brass bushing, backed by a heavy two and a half millimeter rubber mat that effectively damps unwanted ringing.

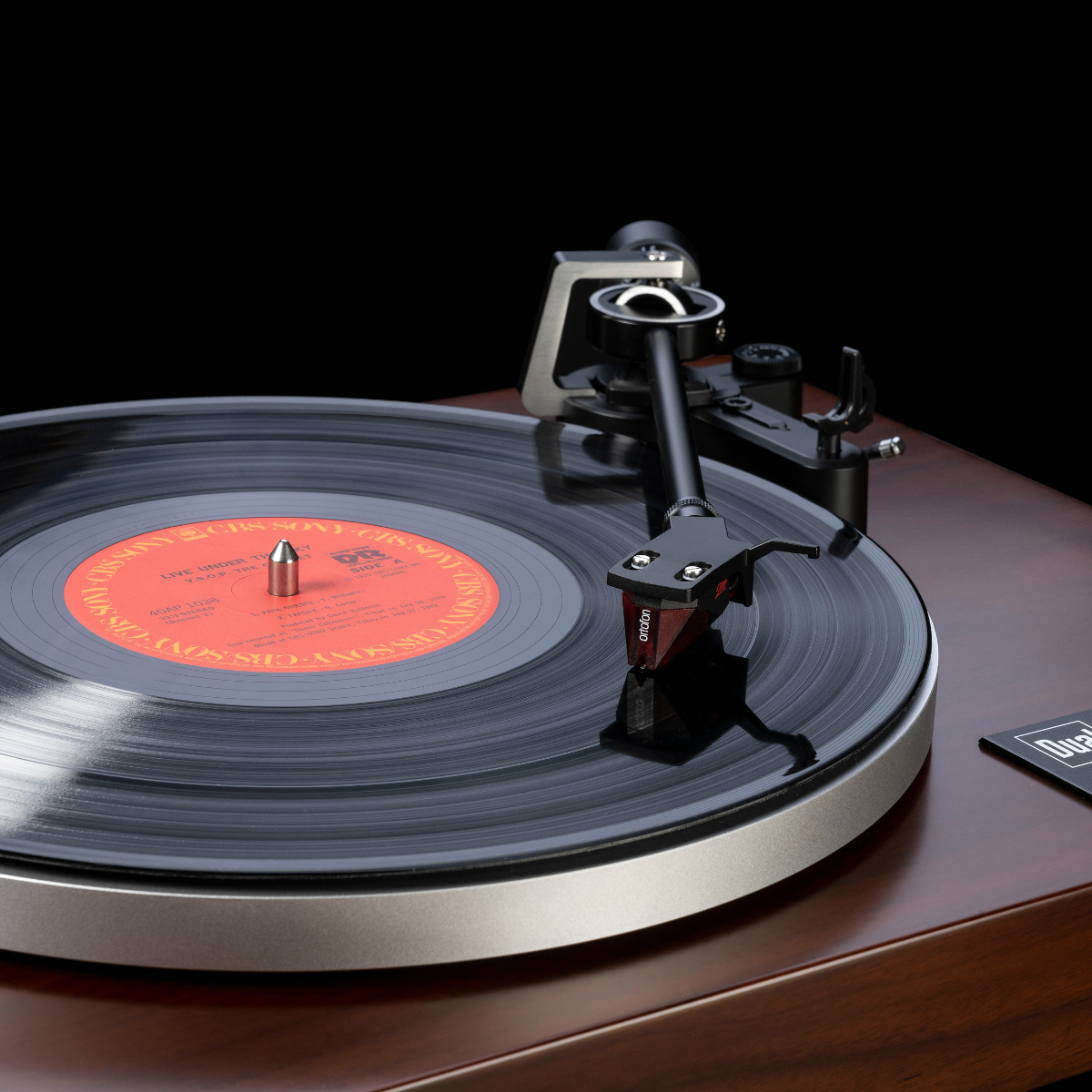

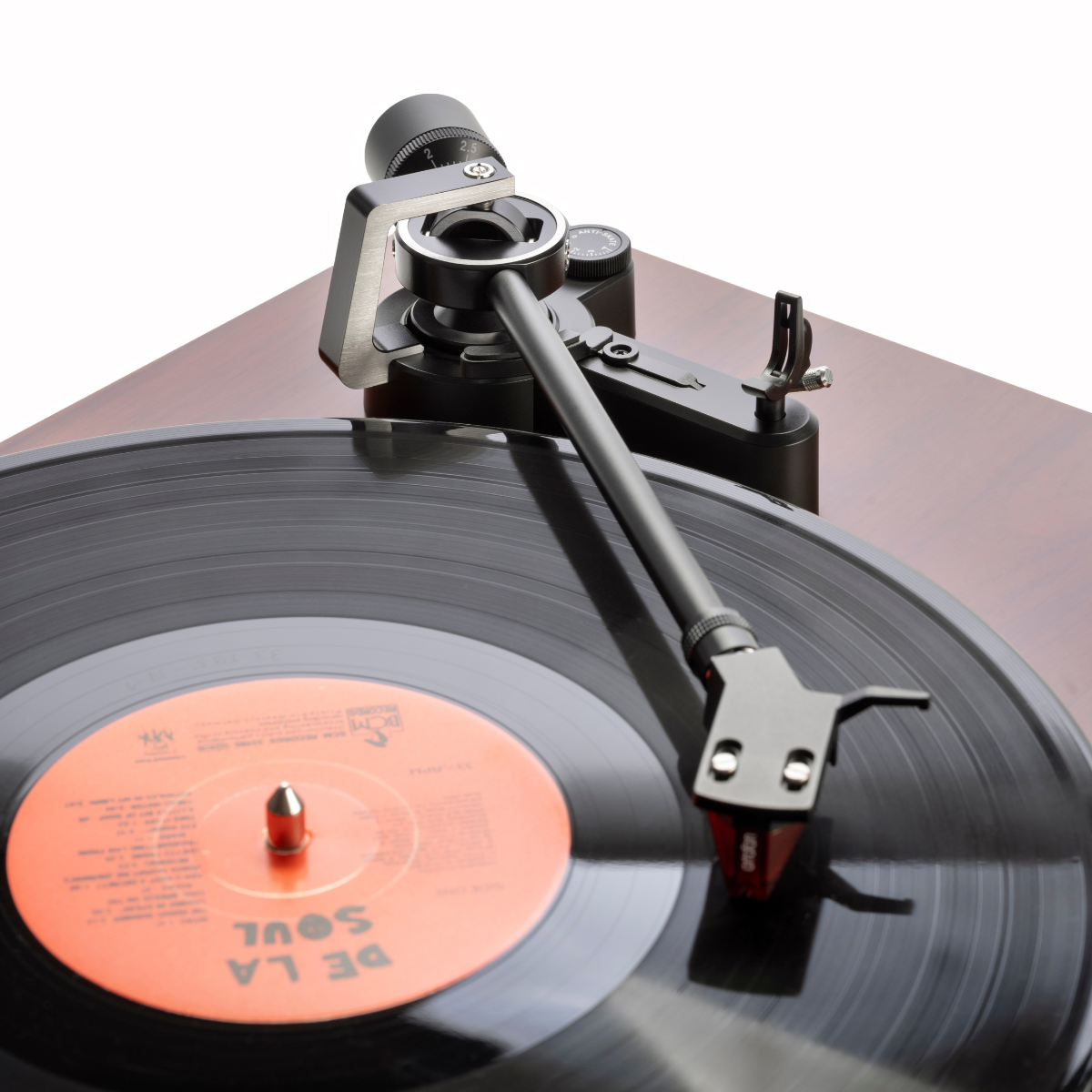

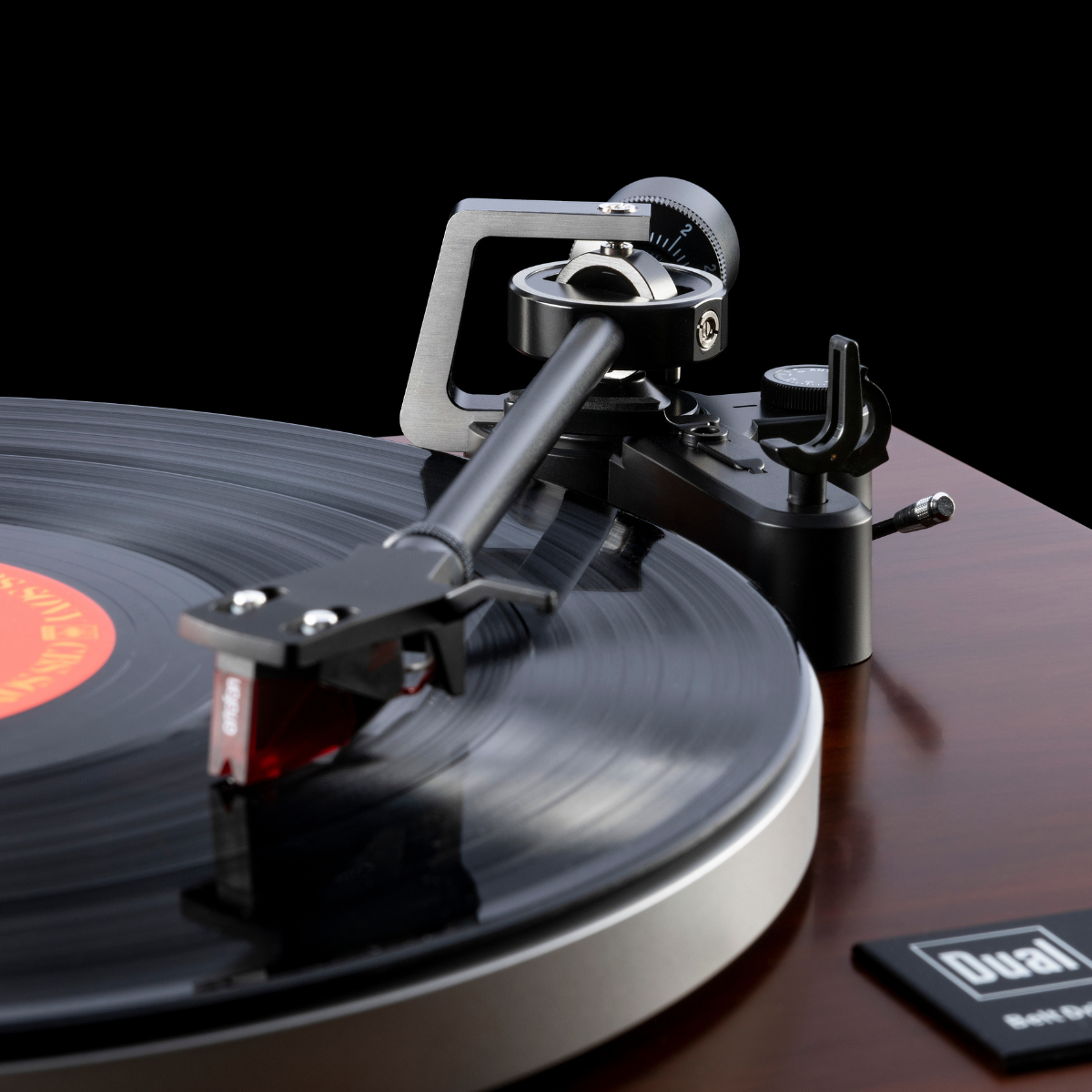

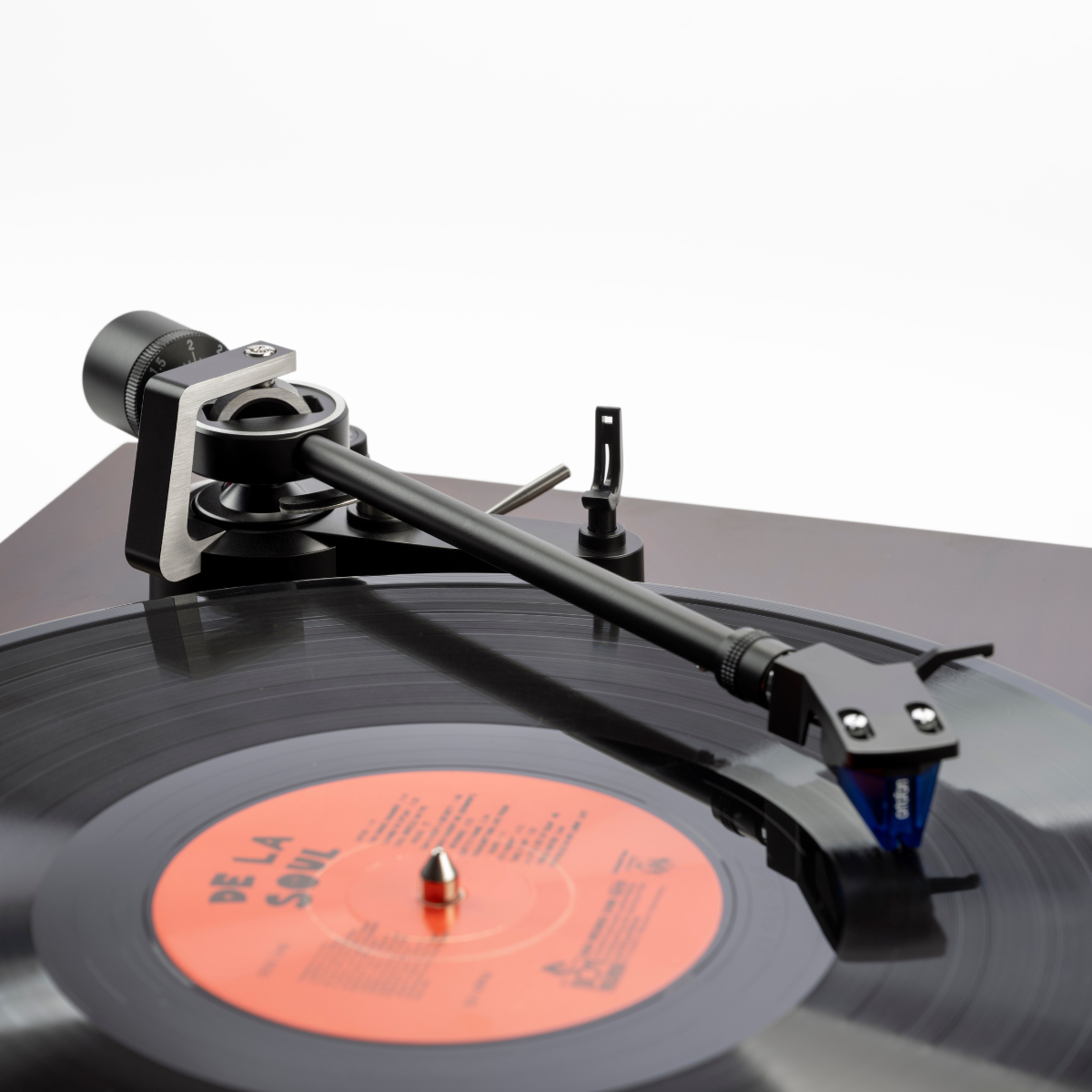

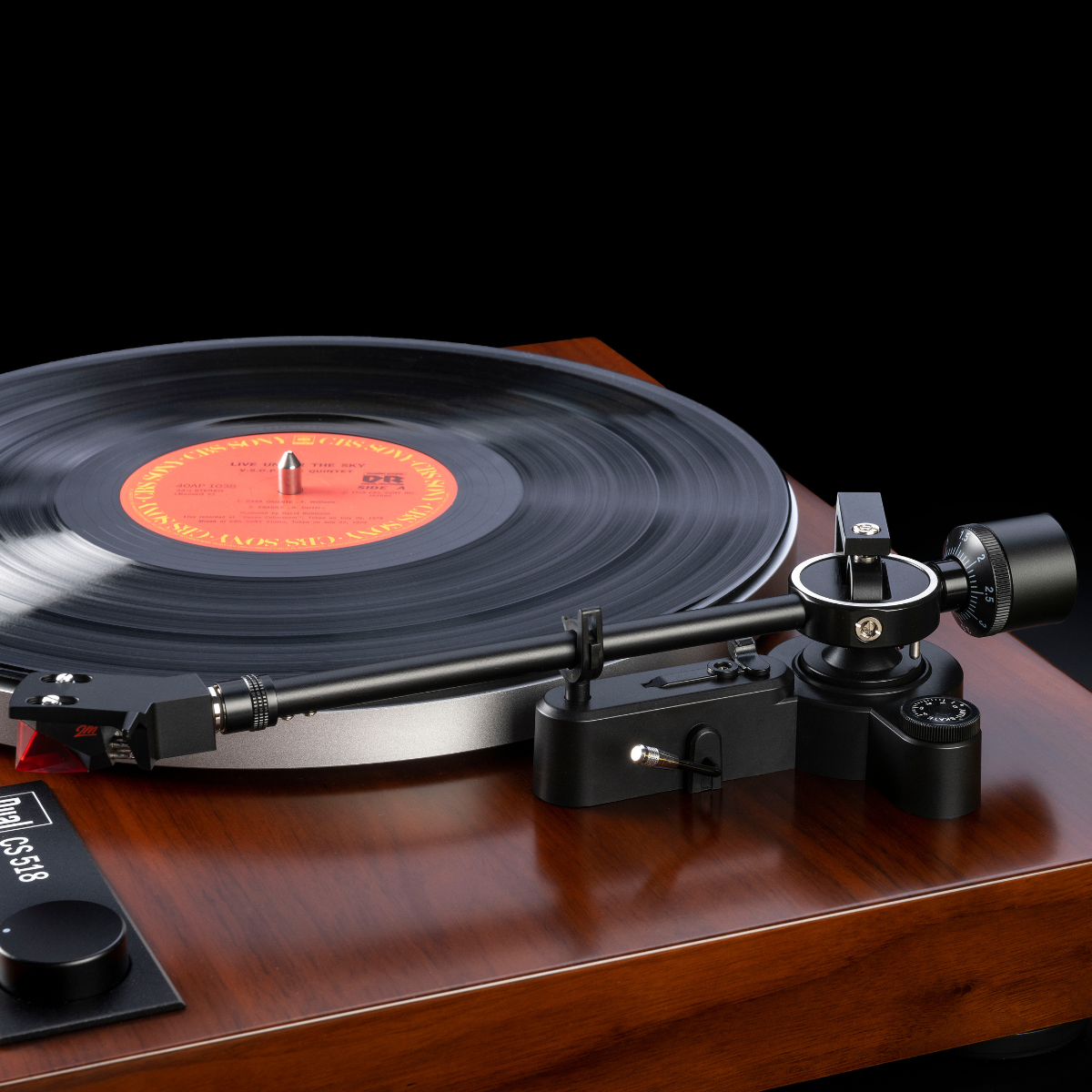

Rotation comes from a belt driven DC motor, decoupled with rubber mountings to eliminate motor noise and maintain wow and flutter below point one percent. A top mounted rotary switch provides swift electronic speed changes between 33, 45, and 78 RPM. For precise tracking, the straight aluminium tonearm relies on a twin gimbal design with four fine pivot ball bearings. Setting stylus pressure remains straightforward through the statically balanced counterweight, while spring loaded antiskating adjusts accurately via an indexed dial.

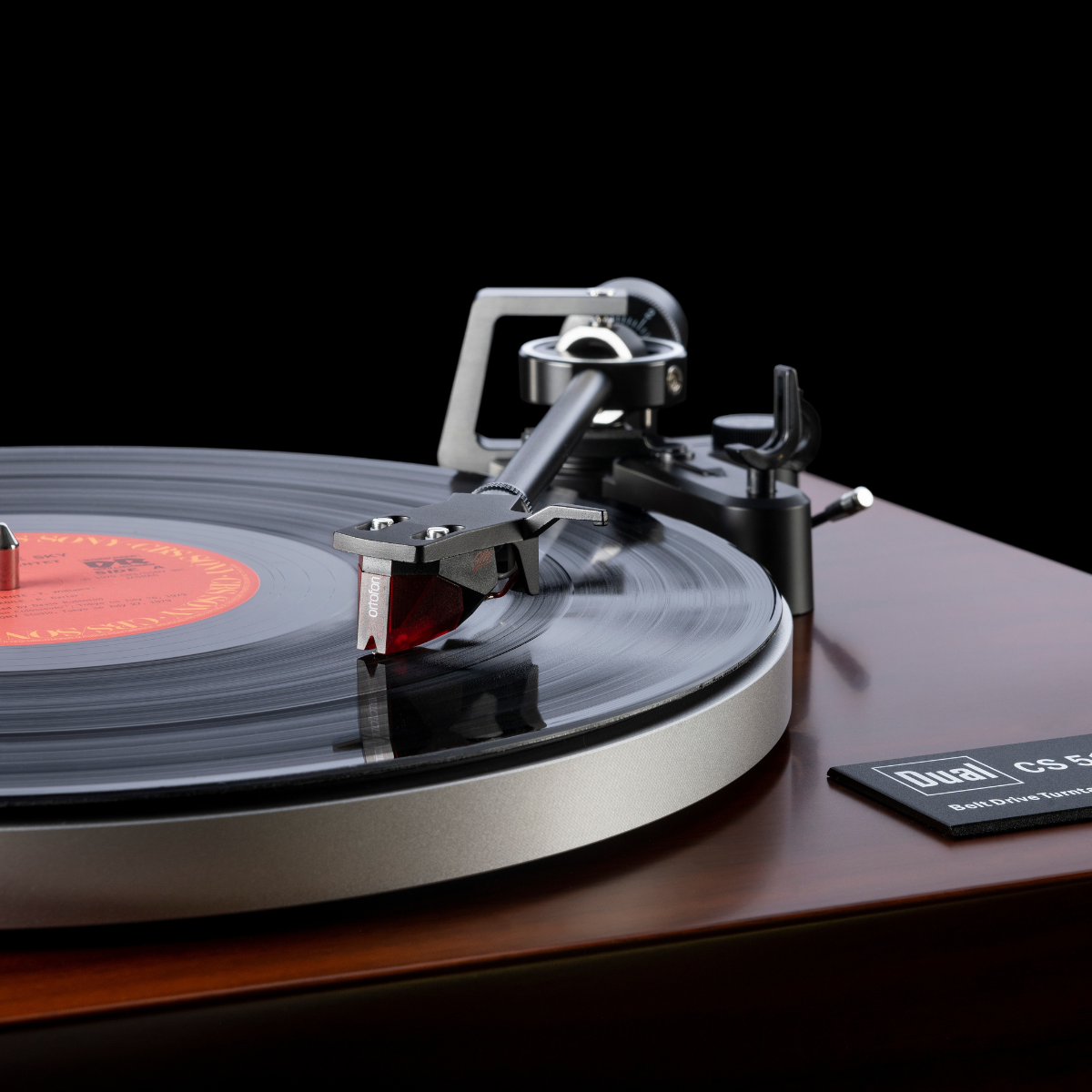

Connecting the turntable into an existing sound system setup requires minimal effort. A factory fitted Ortofon 2M Red cartridge delivers balanced response on a removable headshell, while an integrated, switchable MM phono preamplifier enables clean pairing with line level stereo inputs as well as dedicated phono stages.

Details & Specs

Model CS 518
Drive
Drive Type Belt Drive
Speed Settings 33/45/78
Wow and Flutter < ±0.1% (DIN rated)
Platter
Material Die-Cast Aluminum
Mat Rubber, 2.5 mm
Bearing Hardened Steel Spindle, Brass Bushing
Diameter 305 mm
Weight (Including Mat) 850 g
Tonearm
Auto-Start/Stop Function No
Bearing 4 Pivot Ball Bearings / Twin Gimbal Mounting
Headshell Removable
Tonearm Tube Aluminum
Effective Length 221.5 mm
Height Adjustable Not specified
Offset Angle 25.6°
Overhang 19 mm
Tracking Force Statically Balanced
Stylus Pressure Range 0–4 g
Cartridge Weight Range 5–9 g
Factory-Installed Cartridge Ortofon 2M Red
Plinth and Connectivity
Plinth Material MDF
Surface Finish Vinyl Veneer / Black; Optional Walnut Veneer
Feet Ø 62 mm, Elastomer

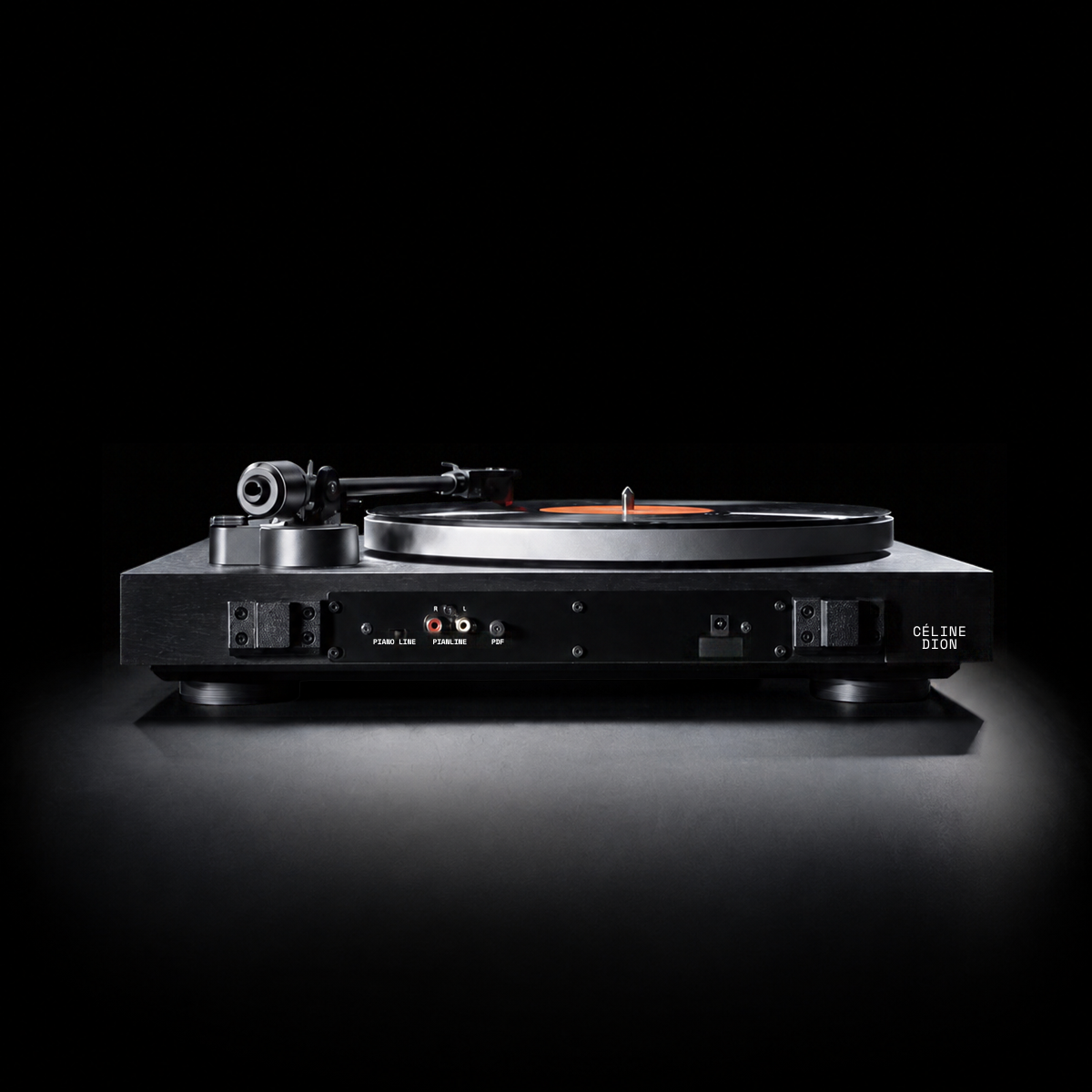

Connection RCA Socket
Phono Input Connection Yes
Line Input Connection Yes
Digital Output No
Dimensions and Weight
Dimensions (Dust Cover Closed) 435 × 367 × 145 mm
Dimensions (Dust Cover Open) Depth: 415 mm / Height: 400 mm
Weight 5.8 kg
