Bowers & Wilkins CCM 7.5 S2

In-Ceiling Speaker - Each

Item #BW:CCM7.5S2
Bowers & Wilkins Item # FP41114

Bowers & Wilkins CCM 7.5 S2

In-Ceiling Speaker - Each

In Stock - Free 2-Day Shipping!
Add to Wish List
  • Free Shipping Icon Free Shipping
  • 30-Day Returns Icon 30-Day Returns
  • Expert Advice Icon Expert Advice
  • Price Guarantee Icon Price Guarantee

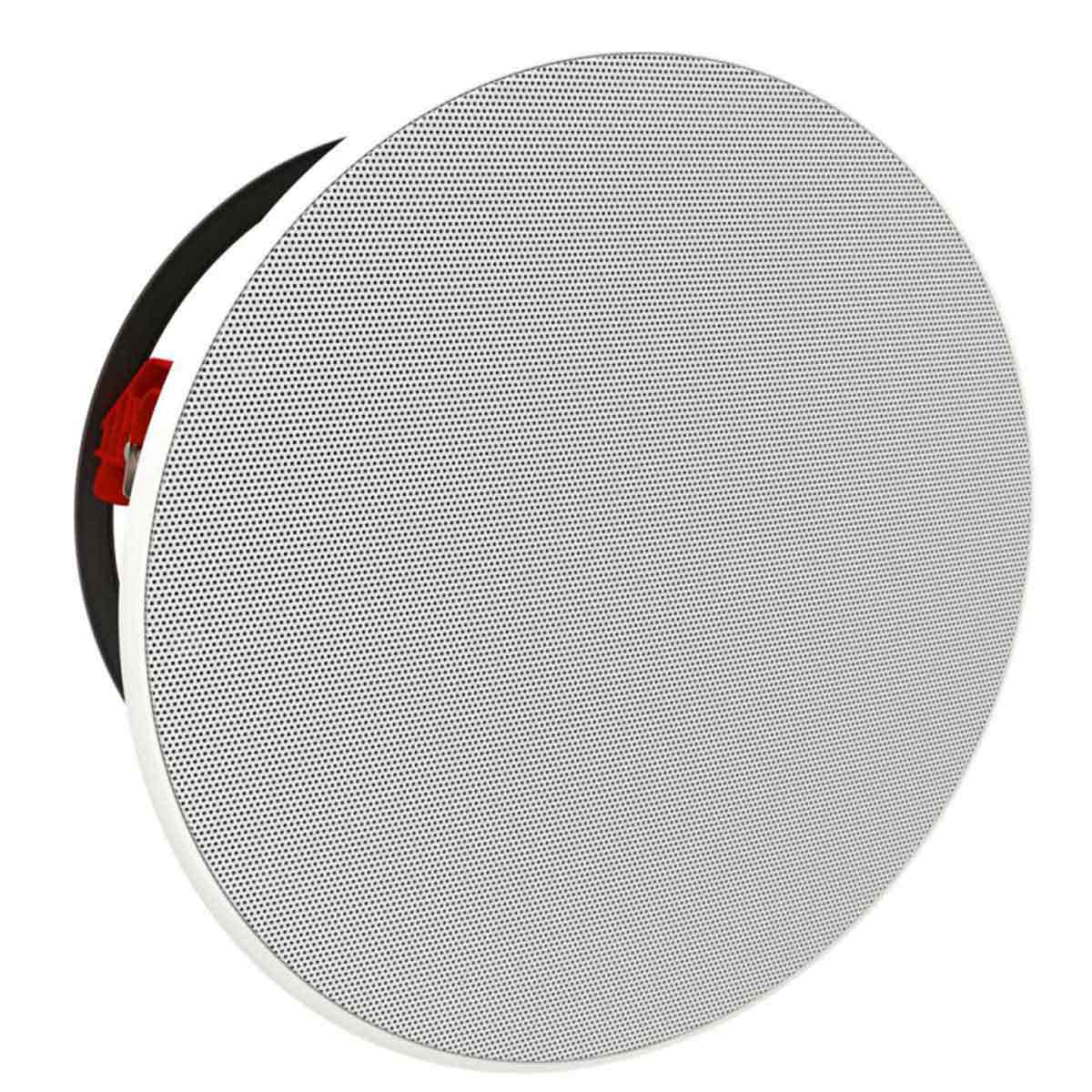

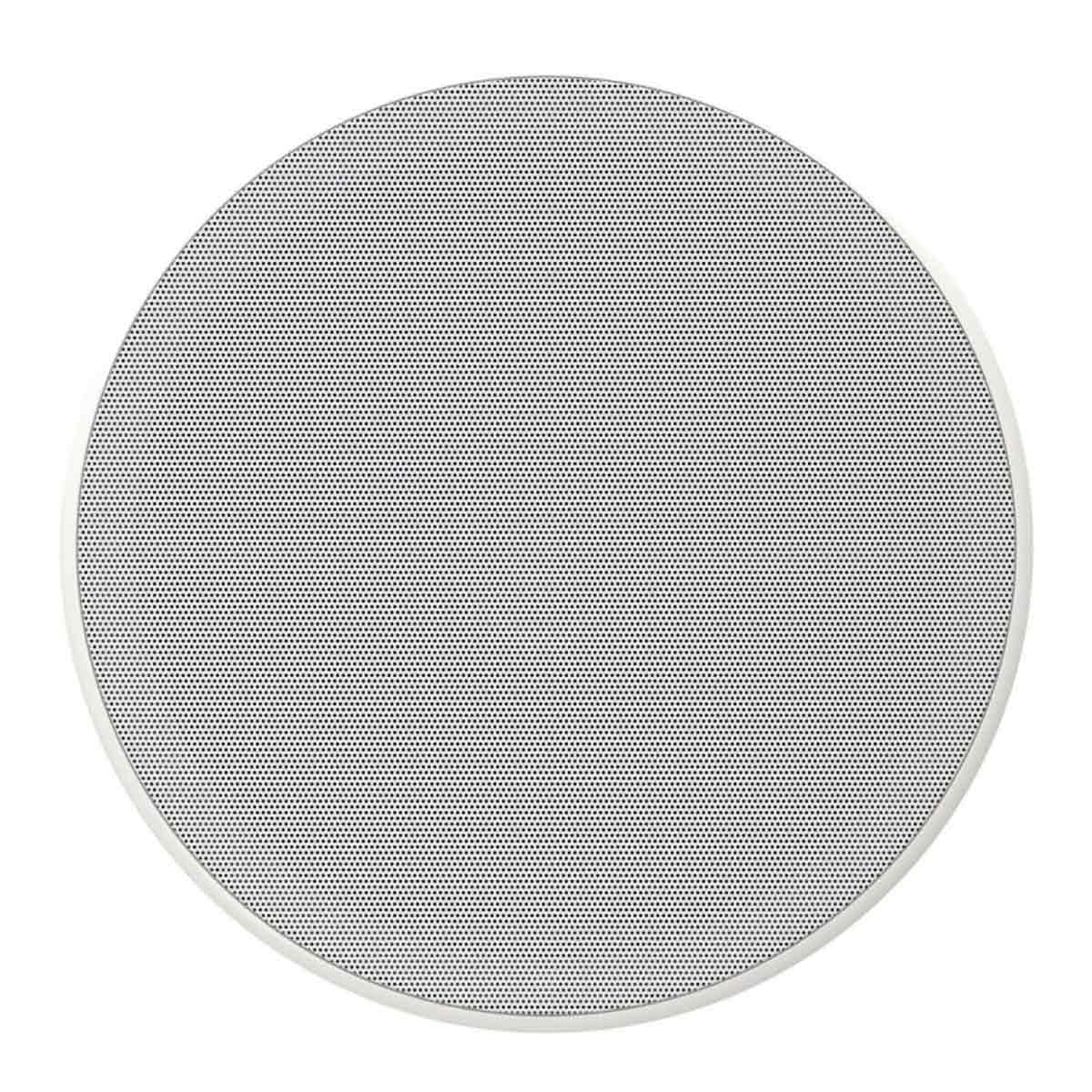

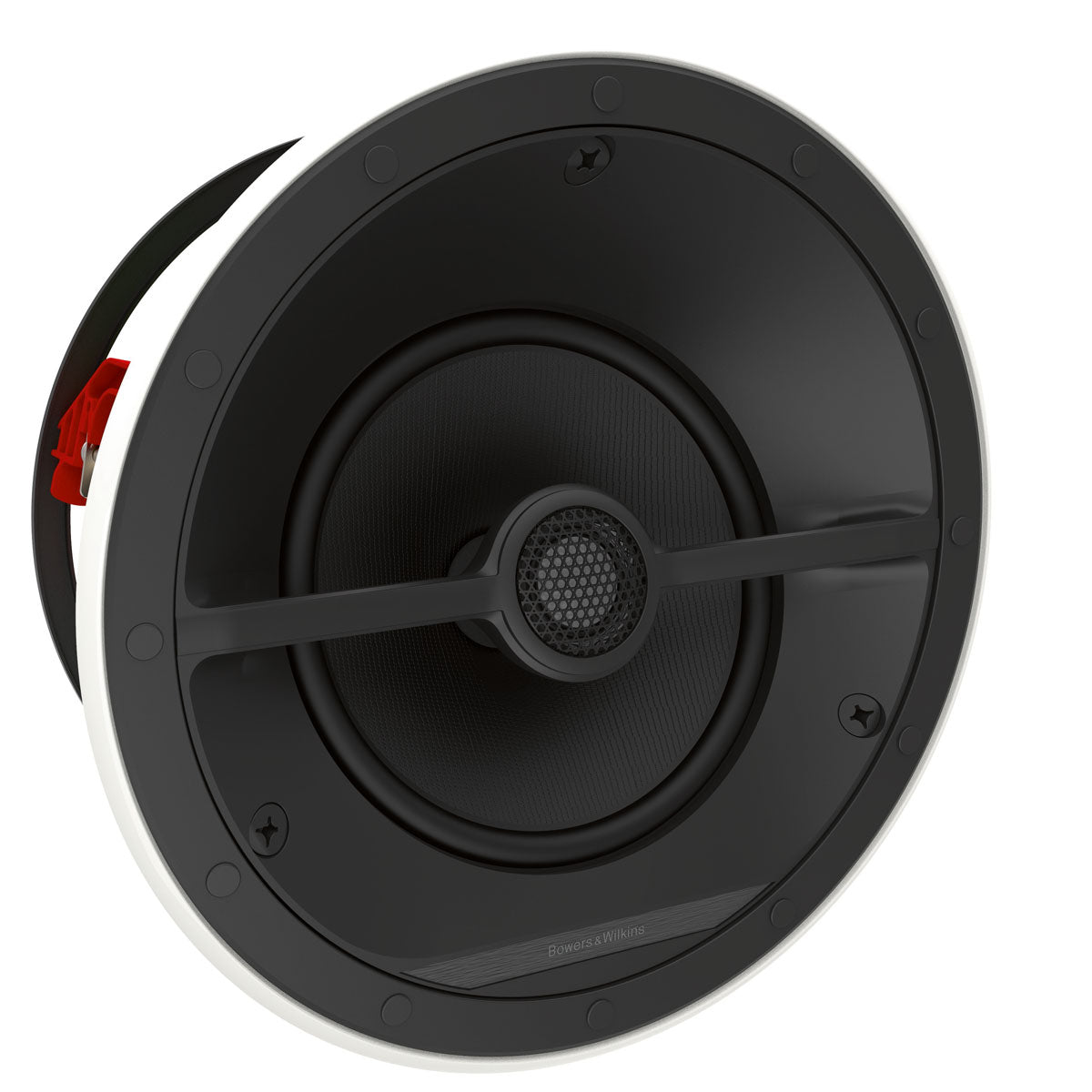

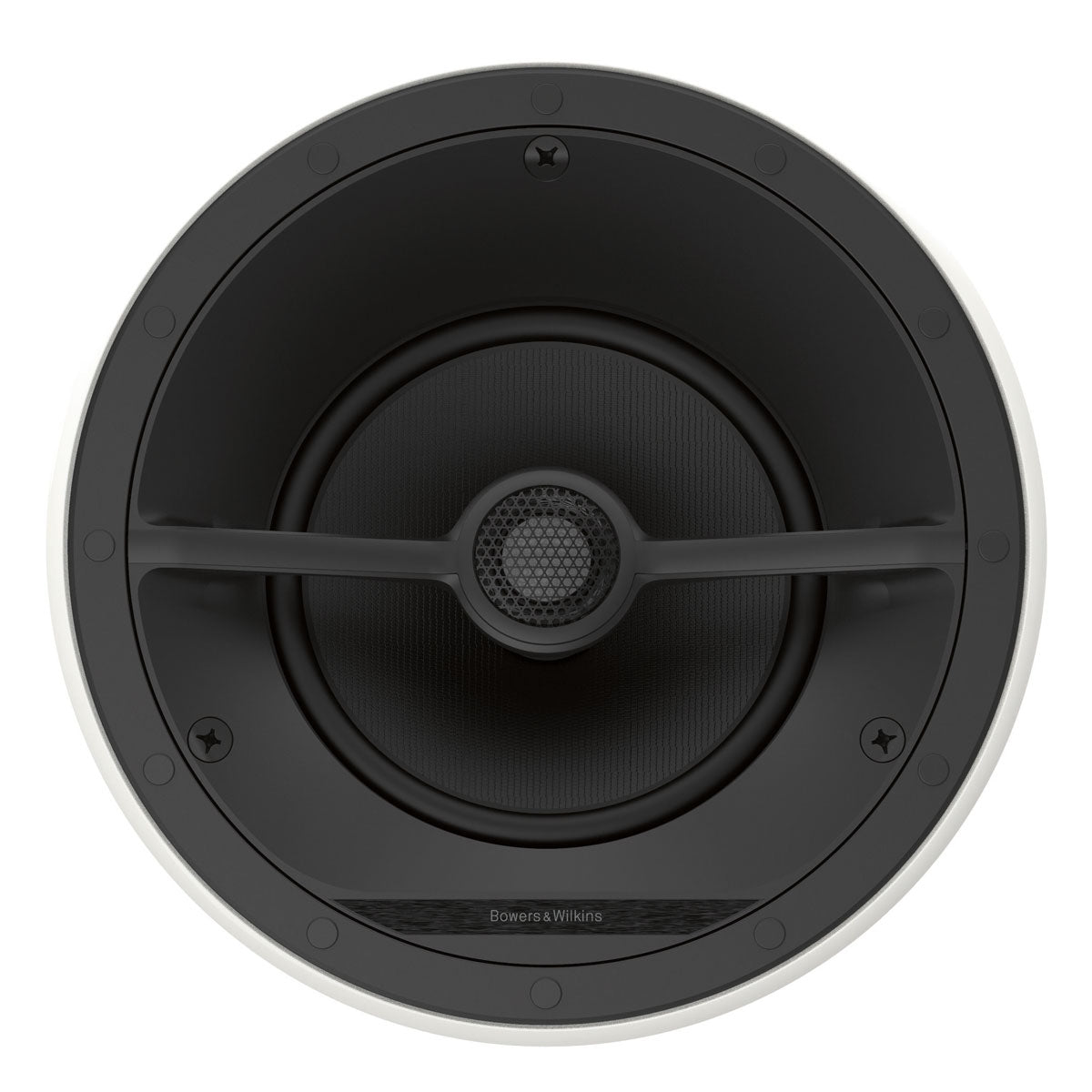

Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, center, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/ bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, the dialogue is crystal clear, and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogs fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.

This is a very serious in-ceiling speaker. If you own a 700 series B&W speaker or even some of the top-of-the-line 800 models, you probably know all about the Continuum mid/bass driver they use. B&W developed this special driver a few years ago for their new 800 models and has been moving its great tech into more affordable products like the 700 series.

We were really impressed to see the S2 version of the 7.5 added this tech with a 7” version of it. The great news for home theater is in the CCM 7.5 S2, the entire driver assembly is at an angle, so you simply rotate the entire speaker at the listening area when you install it.

Even more impressive is just how low in bass response this speaker can reach. Their 3dB down point is 32 Hz which is incredible for an in-ceiling speaker! These move up to the same Carbon Dome tweeter found in the 700 series. For more information on the great tech in these, check out our full overview of the 700 S2 series.

Needless to say, the CCM 7.5 S2 is ideal for Atmos height channels in a serious B&W home theater system. For those of you wanting to do an all in-ceiling 5.1 system in a family room, 3 of these across the front with their angled enclosure can serve you well as your main front channels and simply add another pair for the rears.

Details & Specs


  • Design: 2-way in-ceiling system
  • Technical Features
    • Carbon Dome tweeter
    • Continuum mid/bass
  • Drive units
    • 1x 25mm (1") Carbon Dome high-frequency
    • 1x 180mm (7") Continuum cone mid/bass
  • Frequency range (-6dB): -6dB at 25Hz - 33kHz
  • Frequency Response -3dB: 32Hz - 28kHz ±3dB
  • Sensitivity: 90dB spl (2.83Vrms, 1m)
  • Harmonic distortion
    • 2nd and 3rd harmonics (90dB, 1m)
    • <1% 70Hz - 33kHz
    • <0.5% 100Hz - 28kHz
  • Impedance Nominal (min): 8 Ohm (Minimum 4.8 Ohm)
  • Recommended amplifier power: 25W - 150W into 8 Ohm on unclipped program
  • Recommended Back Box: BB 6C
  • Square Grille Option (Sold Separately): GR68SQ

Approximate Dimensions

  • Frame Diameter: 11.4"
  • Depth (Behind Surface): 5"
  • Cutout Diameter: 10"
  • Protrusion: 0.33"

Approximate Weight

  • Unit: 6.83 lbs
  • Shipping: 10 lbs
More Information
UPC 714346332205
Design 2-way in-ceiling system
Distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 70Hz - 33kHz
<0.5% 100Hz - 28kHz
Drivers 1x ø25mm (1in) Carbon Dome high-frequency
1x ø180mm (7in) Continuum cone mid/bass
Frequency Response 32Hz - 28kHz ±3dB
Frequency Variance -6dB at 25Hz - 33kHz
Impedance 8Ohms (4.8Ohms minimum)
Sensitivity 90dB spl (2.83Vrms, 1m)
Total Amp Power Recommended 25W - 150W into 8Ohms on unclipped program
Tweeter Carbon Dome tweeter
