Revel Performa4 Series: A New Chapter for One of Audio’s Most Respected Speaker Lines

What Is the Revel Performa4 Series?

The Revel Performa4 series is the latest generation of Revel’s premium loudspeaker lineup, replacing the long-running Performa3 family. It includes bookshelf speakers, floorstanding speakers, a center channel, and a subwoofer, all designed around Revel’s long-standing commitment to neutral, accurate, and scientifically engineered sound.

For anyone searching for a detailed Revel Performa4 review, the short version is simple. This is not a light refresh. Revel has meaningfully reworked the platform with new waveguide technology, new tweeter and woofer materials, redesigned driver frames, and updated cabinet construction.

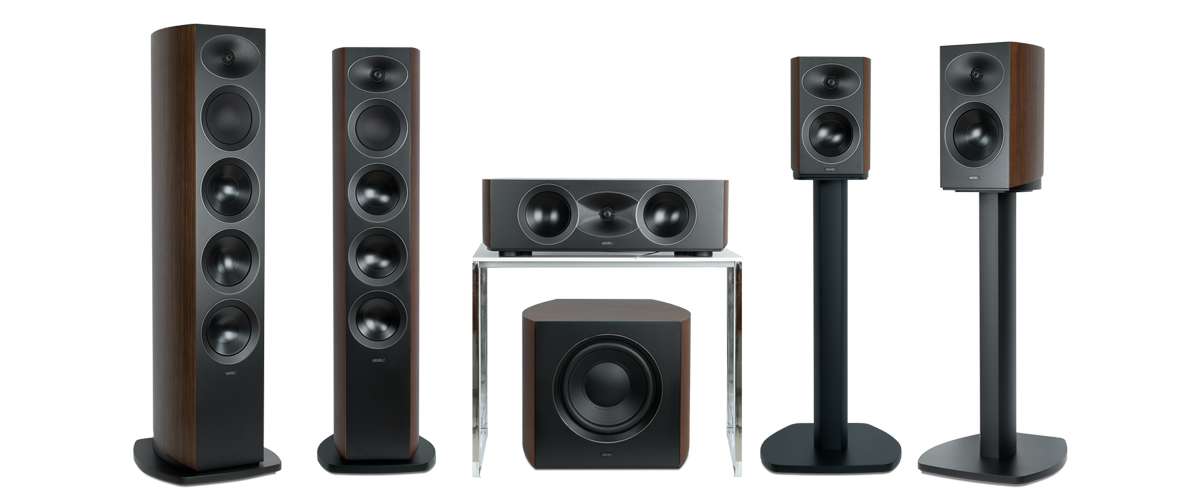

The lineup includes the Revel M145, Revel M146, Revel F345, Revel F346, Revel C245, and Revel B140. Whether you are building a serious stereo system or a premium home theater, the Performa4 family offers a complete set of options.

What’s New in the Revel Performa4 Series?

The biggest story with the Performa4 lineup is how much of the speaker has been reworked.

7th Generation Acoustic Lens Waveguide

One of the most important changes is Revel’s new 7th Generation Acoustic Lens Waveguide.

Revel has long been known for waveguide design because it plays a major role in how a speaker behaves in a real room. The waveguide helps control how high frequencies disperse, allowing the tweeter to blend more smoothly with the midrange around the crossover point. When that is done well, you get a broader, more stable soundstage and more consistent tonal balance across a wider listening area.

With the Performa4 series, Revel is aiming for even wider dispersion and even more seamless integration than the already well-regarded Performa3 generation.

New DCC Tweeters and Midrange Drivers

The new tweeters and the dedicated midrange drivers in the floorstanding models now use Deep Ceramic Composite, or DCC.

That matters because driver material plays a big role in clarity, distortion, and refinement. In a perfect world, a driver moves like a rigid piston. If it flexes or breaks up, distortion rises and detail suffers.

DCC is designed to be very rigid while also remaining well damped. That should help the driver stay cleaner across its operating range and push unwanted breakup behavior farther out of the audible band. In real-world terms, that should mean strong detail and openness without tipping into harshness.

New MCC Woofers

Revel has also developed new Micro Ceramic Composite, or MCC, woofers for the Performa4 lineup.

Bass quality is not just about extension. It is also about speed, control, and integration. A good woofer needs to stay composed under load, start and stop cleanly, and avoid adding coloration to the lower frequencies.

That appears to be the goal here. The new MCC woofers are designed to stay rigid enough for control while remaining well-damped enough to avoid sounding smeared or overly mechanical.

Redesigned Cast Aluminum Driver Frames

Revel has also redesigned the driver frames using cast aluminum construction. These new frames are intended to improve rigidity, reduce weight, and optimize rear airflow.

That may not sound flashy, but it matters in a premium speaker. Better airflow can help reduce compression, while a more rigid frame helps the driver operate more consistently with less unwanted vibration.

Cleaner Baffle and Reduced Diffraction

The Performa4 speakers also use an inverted surround design and trim rings that hide the mounting hardware.

That gives the speakers a cleaner, more refined appearance, but it also serves an acoustic purpose. By minimizing visual interruptions and hard edges on the front baffle, Revel can help reduce diffraction. That can improve clarity, imaging, and the sense of openness.

Updated Cabinets and Finishes

The cabinets themselves have also been updated. The Performa4 series uses heavily braced bass-reflex enclosures and now comes in Wood Veneer Matte finishes, including Walnut and Black Walnut.

For many buyers, this will be a welcome change. Matte veneer tends to feel more timeless and can work especially well in dedicated listening rooms and darker home theater spaces where glossy finishes sometimes reflect too much light.

Revel Performa4 Series Models

Why it Stands Out

Because it uses a smaller 5.25-inch woofer, it is not meant to be a bass-heavy speaker. But that smaller mid-woofer can offer real advantages when it comes to integration with the tweeter, imaging precision, and center image stability. That makes the M145 especially appealing for listeners who care more about soundstage accuracy and refinement than sheer output.

Buying Advice

At 85dB sensitivity and a 6-ohm nominal impedance, this is not the kind of speaker you want to pair with weak amplification. The M145 should benefit from a quality amplifier with good current delivery. For a compact but serious setup, it is very promising.

Why it Stands Out

The move to a 6.5-inch woofer brings more bass extension, more output capability, and a greater sense of scale. With low-frequency extension down to 43Hz at -6dB, the M146 should feel more complete on its own than the M145, especially in a stereo system where a subwoofer may not be part of the plan right away.

Why it Stands Out

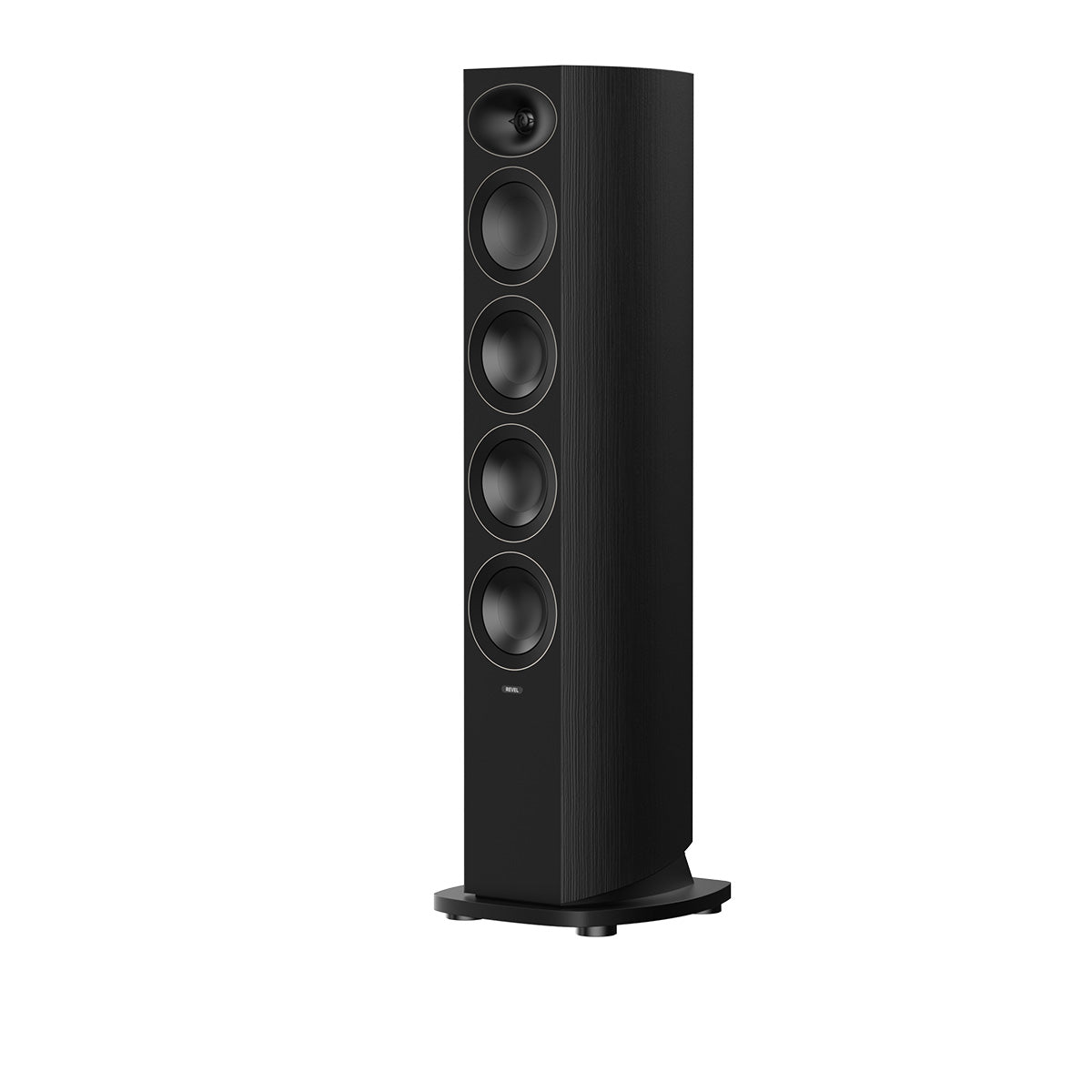

The F345 uses a true 3-way design, which is important. A dedicated midrange driver can handle the critical vocal band and other core musical information without also being asked to reproduce deep bass. That usually means cleaner mids, less intermodulation distortion, and a more effortless presentation.

Using three smaller woofers also allows Revel to keep the cabinet relatively slim while still delivering meaningful bass and output.

Why it Stands Out

The F346 builds on the same formula as the F345 but scales nearly everything up. The larger midrange should offer even more ease and dynamic capability in the vocal range, while the triple 6.5-inch woofers give it the kind of bass extension and output that can anchor a very serious stereo or theater system.

Reaching down to 30Hz at -6dB is impressive, and in the right room this speaker should deliver real authority before a subwoofer even enters the picture.

Buying Advice

Like the rest of the lineup, it still deserves quality amplification. A speaker at this level should not be underpowered.

Who it’s Best for

Anyone building a Revel Performa4 theater should treat the C245 as an essential part of the system, not an afterthought. It is purpose-built for buyers who want clean dialogue, seamless panning, and a front soundstage that feels unified.

Who it’s Best for

The B140 is a smart choice for anyone building a complete Revel Performa4 home theater or stereo system who wants musical, well-integrated bass rather than just raw impact.

Revel Performa4 Placement Tips

Because the entire Performa4 series uses rear-firing bass reflex ports, speaker placement is going to matter.

A good starting point is to leave about 18 to 24 inches of space from the back wall. Placing rear-ported speakers too close to the wall can exaggerate bass and make the midrange sound less clean.

The good news is that Revel’s waveguide design should make these speakers more forgiving than some others when it comes to seating position. You likely will not need aggressive toe-in. Start with the speakers aimed mostly forward, then angle them slightly inward until the center image locks into place.

Revel Performa4 vs Performa3

A lot of buyers will naturally want to compare the Revel Performa4 vs Performa3.

That is a fair question, because the Performa3 lineup already had an outstanding reputation. The good news is that Performa4 appears to bring meaningful changes rather than just cosmetic updates.

The biggest differences include:

• New DCC tweeters and midranges
• New MCC woofers
• New 7th Generation Acoustic Lens Waveguide
• Updated cast aluminum driver frames
• Cleaner front baffle design for reduced diffraction
• Refined cabinet construction and matte wood veneer finishes

If the Performa3 series was already one of the most respected premium speaker lineups in its category, the Performa4 series looks designed to refine that formula even further.

Final Thoughts on the Revel Performa4 Series

Revel has never been a brand that chases hype for its own sake. That is part of what makes the Performa4 launch so interesting.

This does not look like a flashy redesign meant to grab attention with gimmicks. It is a carefully executed next generation of a speaker family that was already deeply respected. Better materials. Better driver integration. Better dispersion. Better cabinets. The same commitment to neutral, revealing, expertly engineered sound that has defined Revel for years.

If you want a speaker that adds warmth or sparkle to everything you play, the Revel approach may not be what you are after. But if you want accuracy, clarity, strong imaging, and a speaker that gets you closer to what is actually on the recording, the Performa4 series is extremely promising.

For buyers shopping premium stereo speakers or a high-end home theater speaker system, this is absolutely a lineup worth paying attention to.
