Supported cartridges:
Moving magnet and moving coil

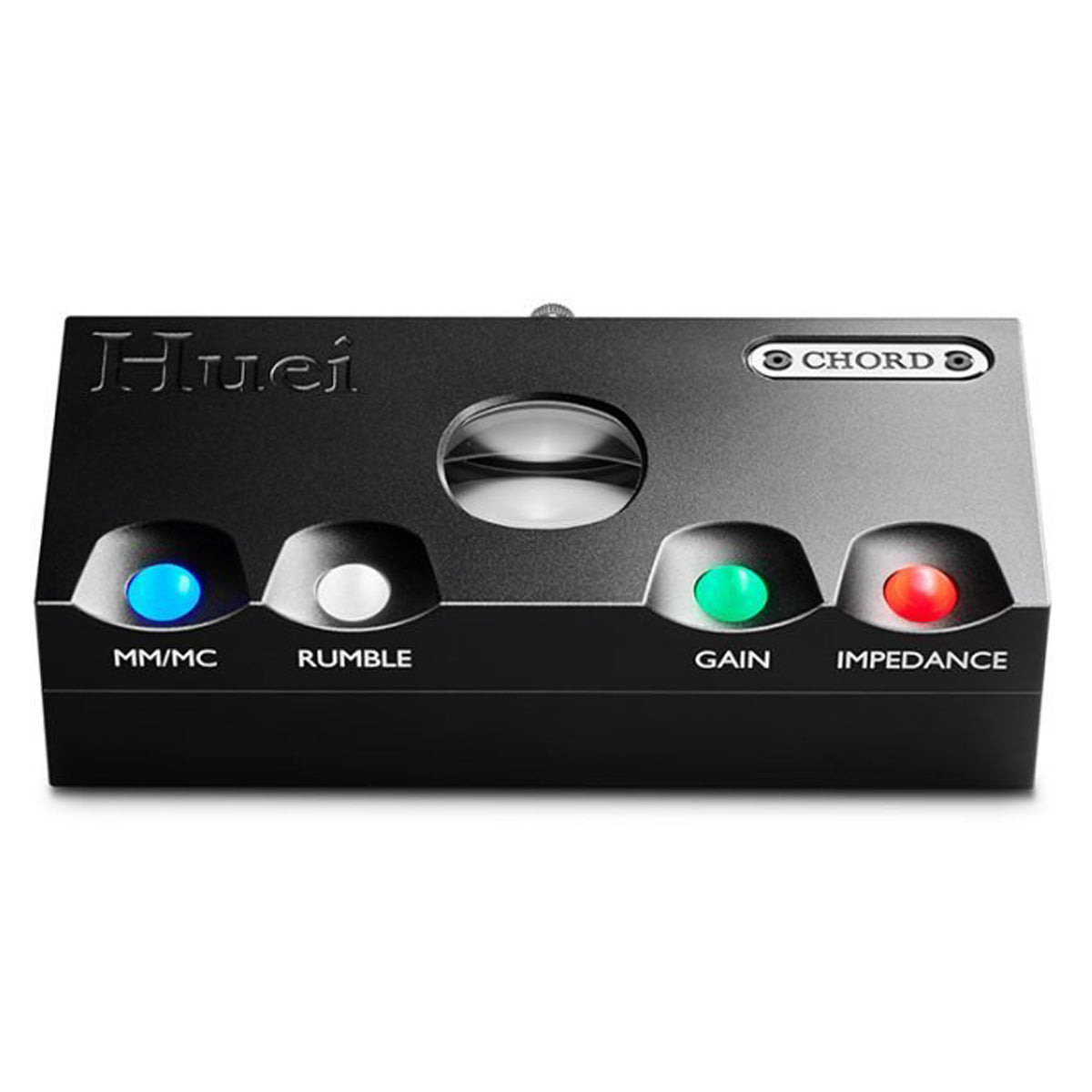

The Huei will be compatible with just about any type of phono cartridge as the loading range is very wide for moving coils. You have a choice of 3,700, 1000, 470, 320, 150, or 100 ohms and each of these have an option to add the 2.2 µF of loading to damp some ringing cartridges. The quick front panel direct access makes it really easy for listeners to experiment to find the best setting for their system. This will make it super simple to start at the recommended loading point for a cartridge then experiment up or down one step to fine-tune the Huei to a cartridge. The Huei also remembers where you had things set when you turn it off, so there is no need to reset the loading each time.
The rumble filter will come in very handy for situations where your turntable has to be placed very close to your speakers. Engaging it in a case like this should not only reduce any background rumble, but also improve clarity.
The adjustable gain is the most flexible we have ever seen. Both moving coil and moving magnet cartridges vary quite a bit in their output. It is best to adjust the gain of a phono stage to match the output of the cartridge. The Huei gives you a very wide range of adjustments for both moving coil and moving magnet with a 41db swing between the least and most gain with changes in very slight steps of mostly 1db in the midpoint of the gain adjustment.
The Huei appears to be another great example of Chord Electronics thinking outside the box to produce a super flexible product that should greatly improve the performance of any vinyl playback system.
Inputs:
1x Stereo unbalanced RCA input
Outputs:
1x Stereo unbalanced RCA output
1x Stereo balanced XLR output
