Ortofon MC X Series

MC X20 w/ Nude Elliptical Diamond

Ortofon MC X Series

MC X20 w/ Nude Elliptical Diamond
$539.99
Select Model

In Stock: Free 2-Day Shipping

Overview

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

Exceptional Signal Clarity

Pure Silver Coil System - All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Maximum Magnetic Efficiency

Magnet System - The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Precision Engineering for Unmatched Stability

Custom-Developed Rubber Dampers - In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

Experience the Depth - Hear Every Detail

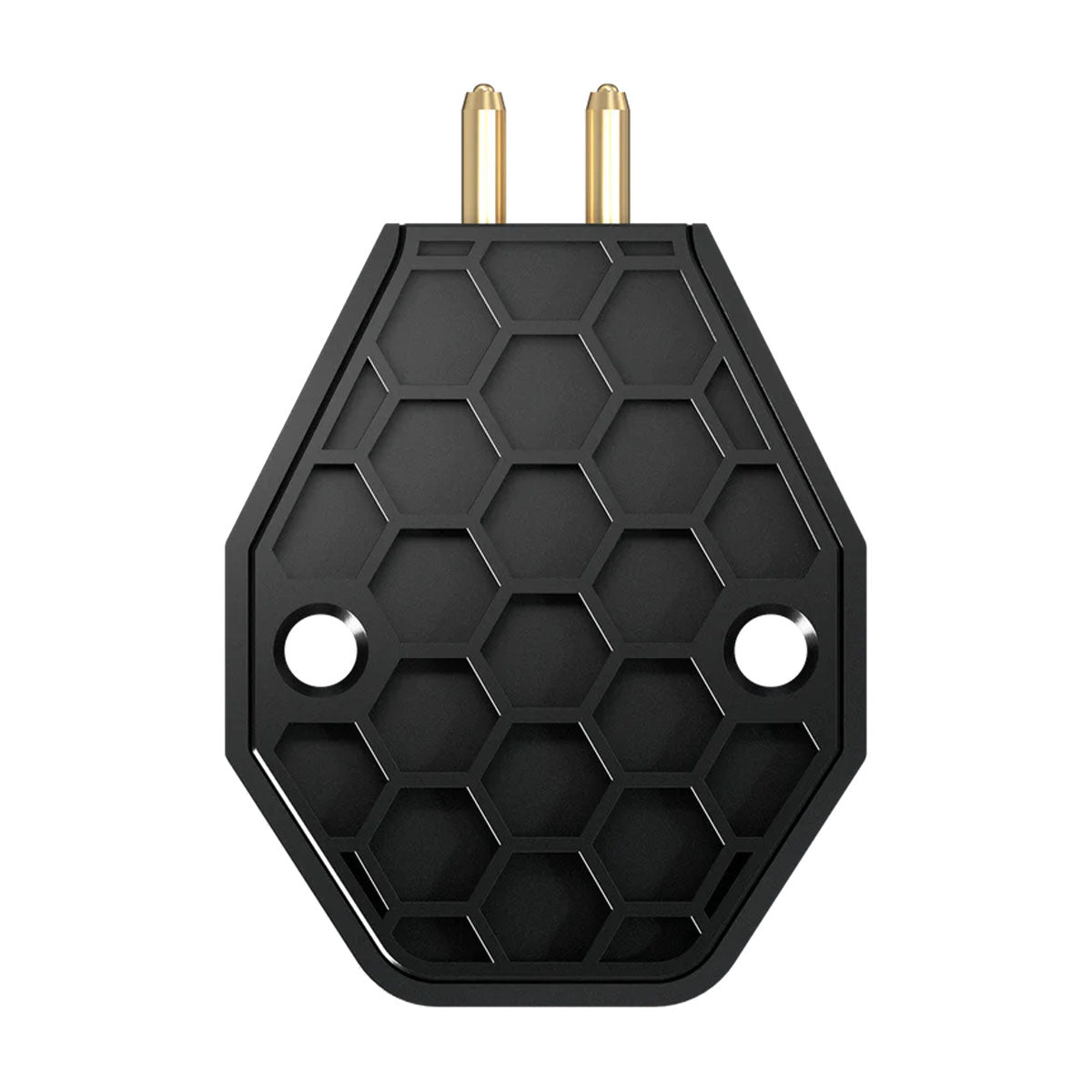

MIM-Molded Honeycomb-Structured Core - At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction. After molding and sintering, a Physical Vapor Deposition (PVD) surface treatment is applied to enhance surface appearance and maintain material integrity over time.

Modern Elegance with Distinctive Design

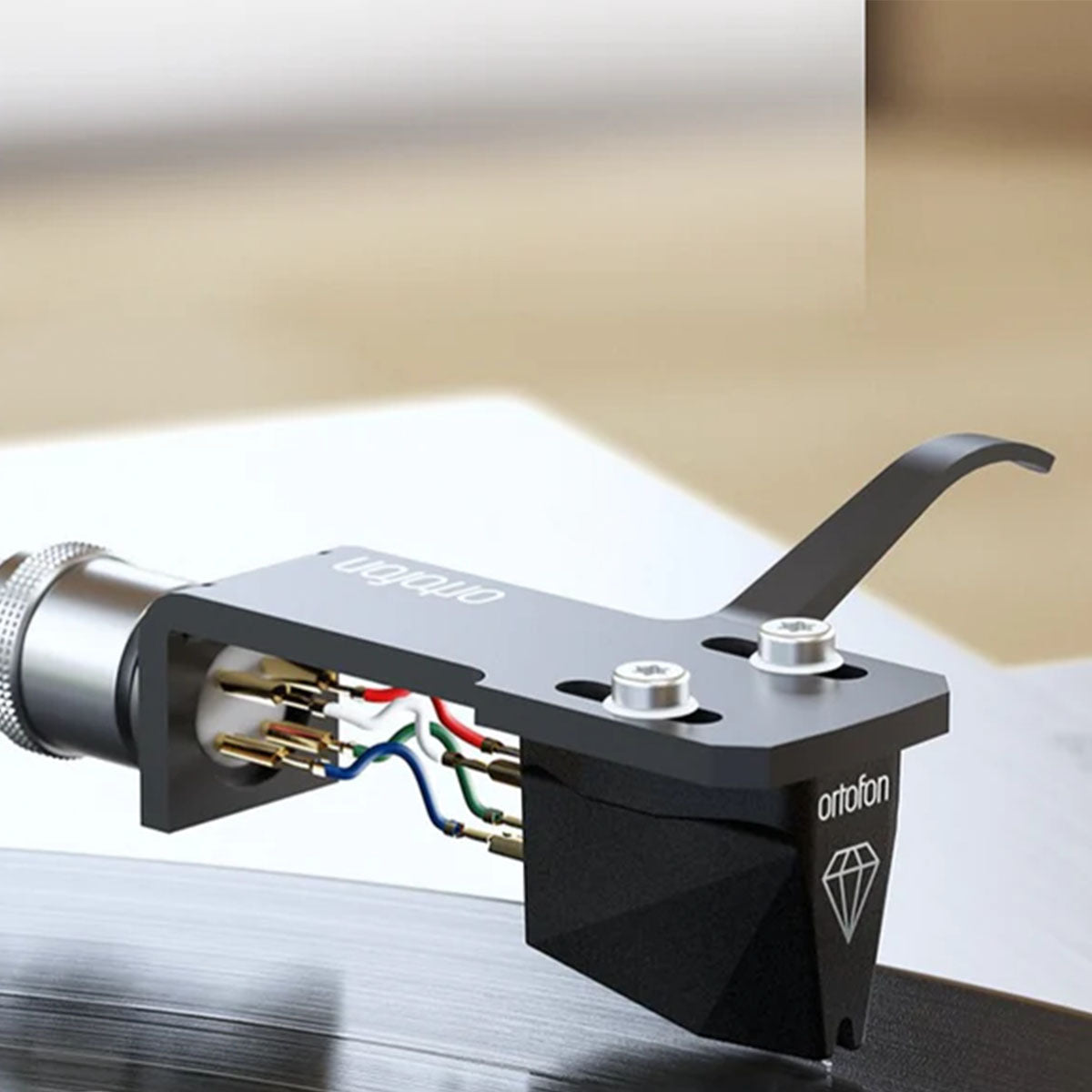

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

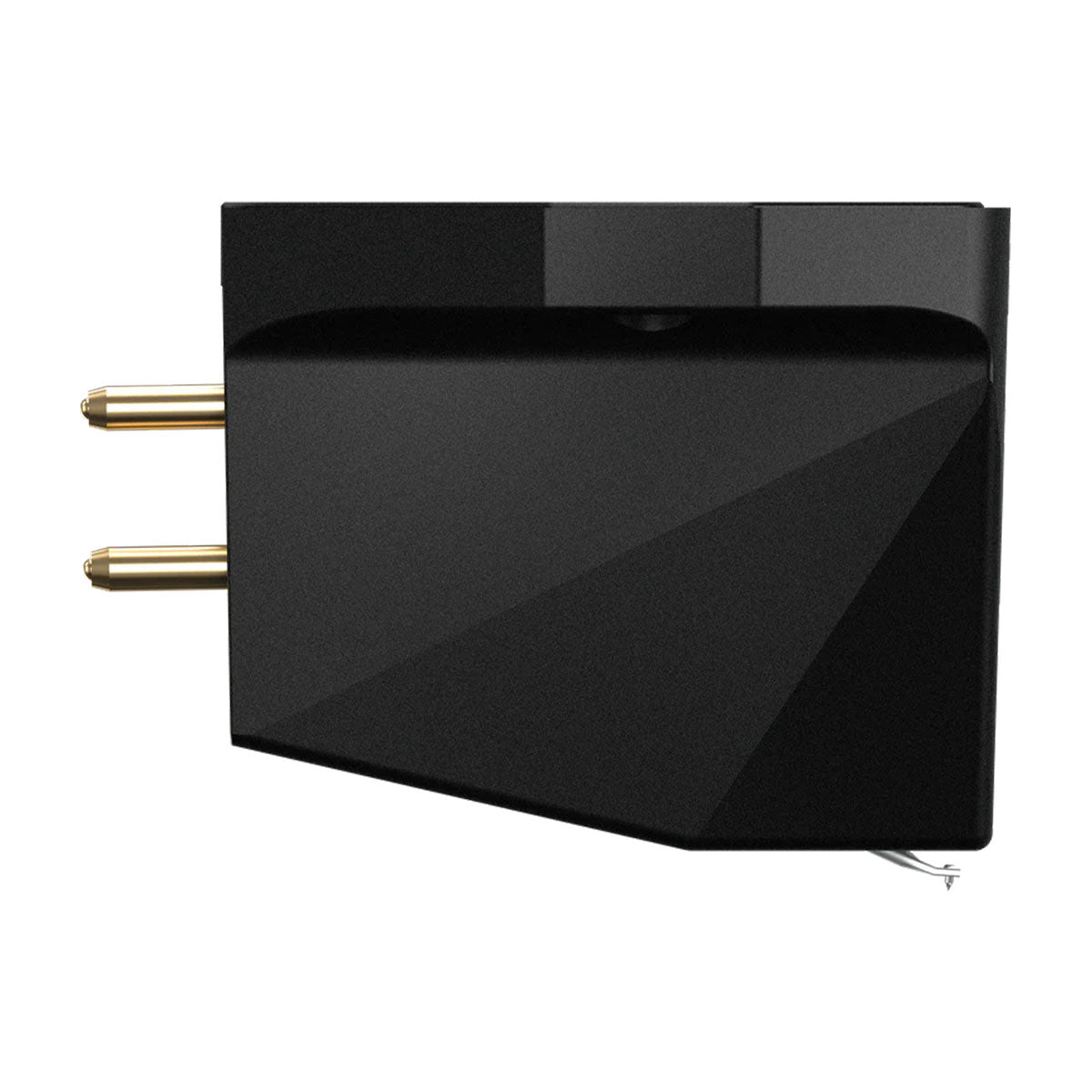

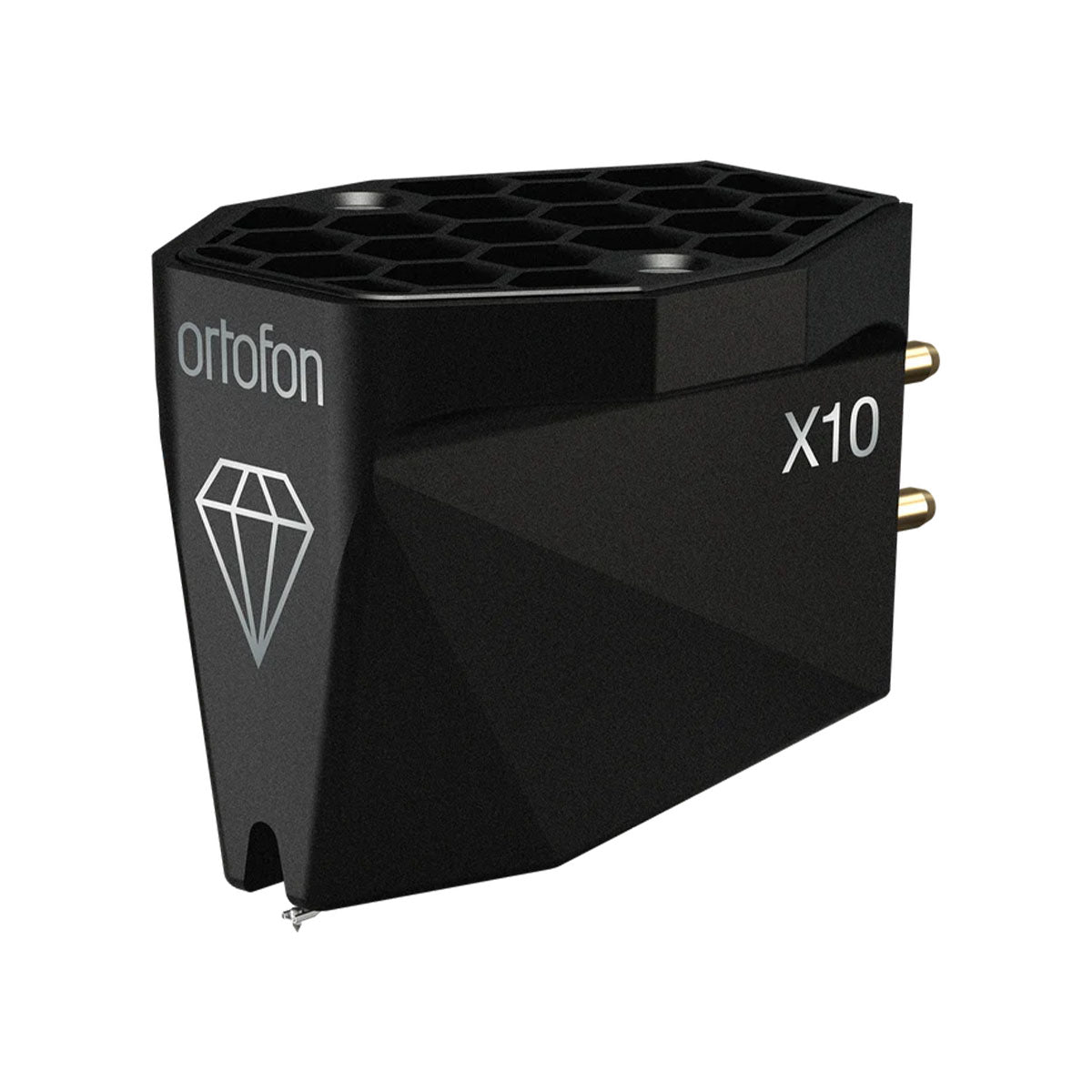

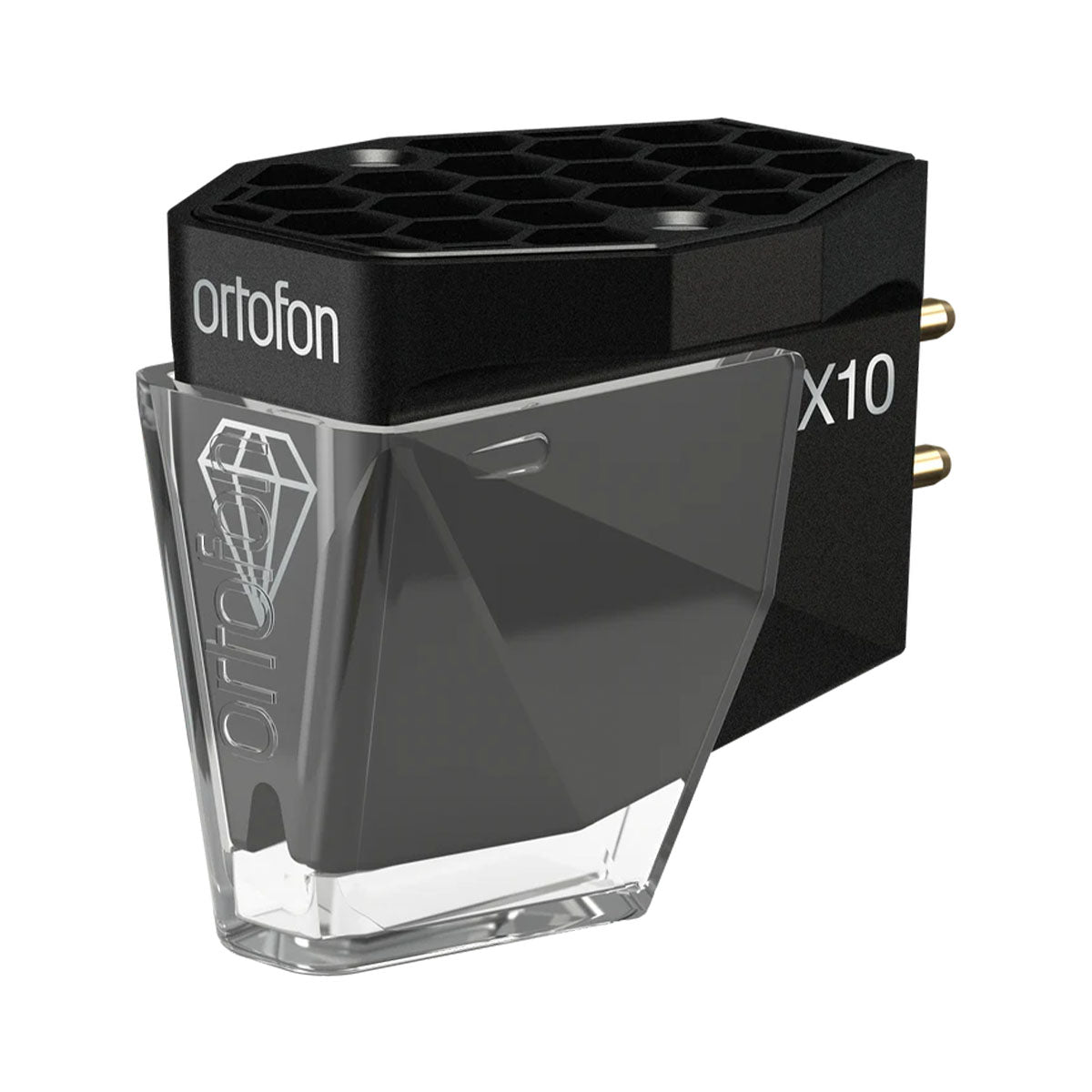

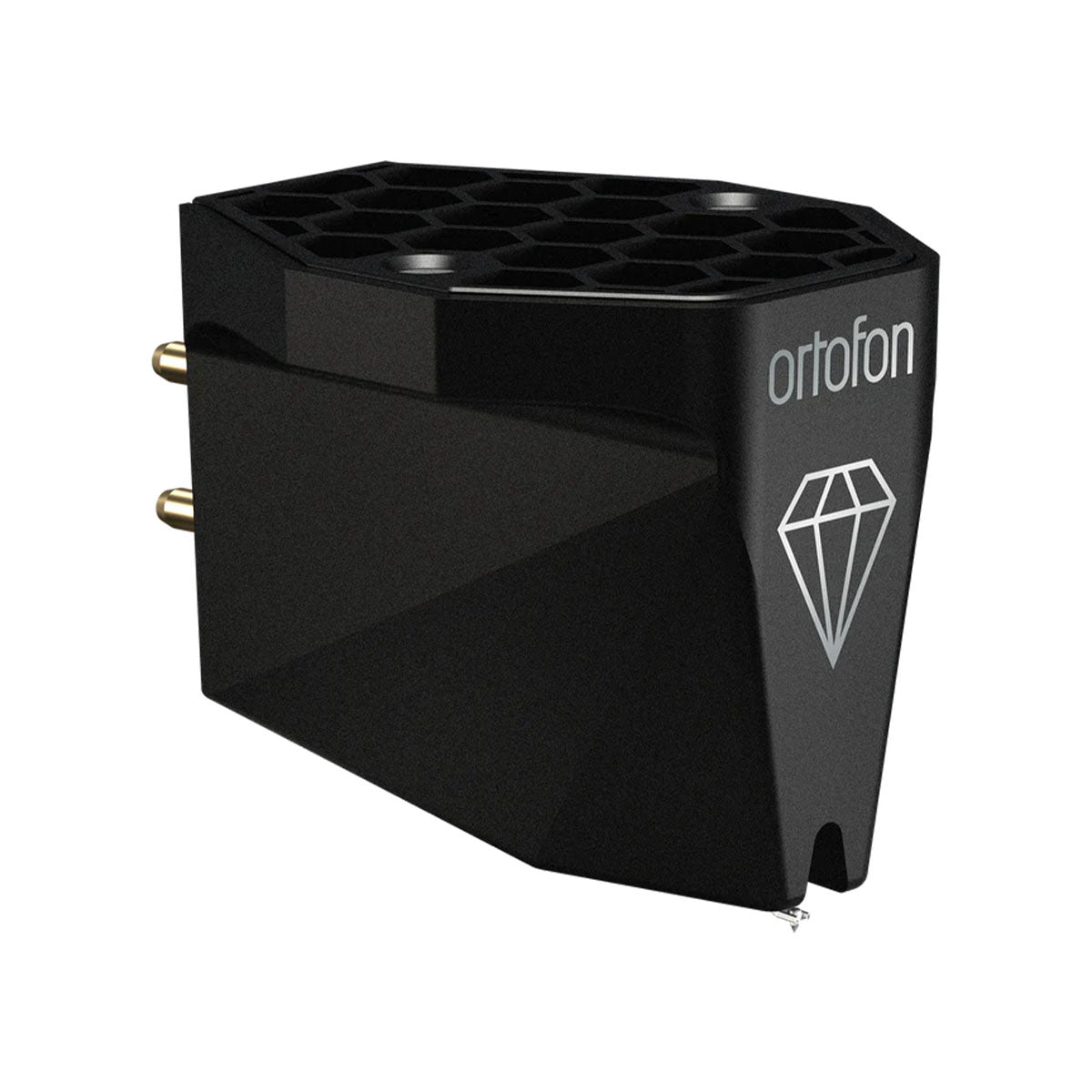

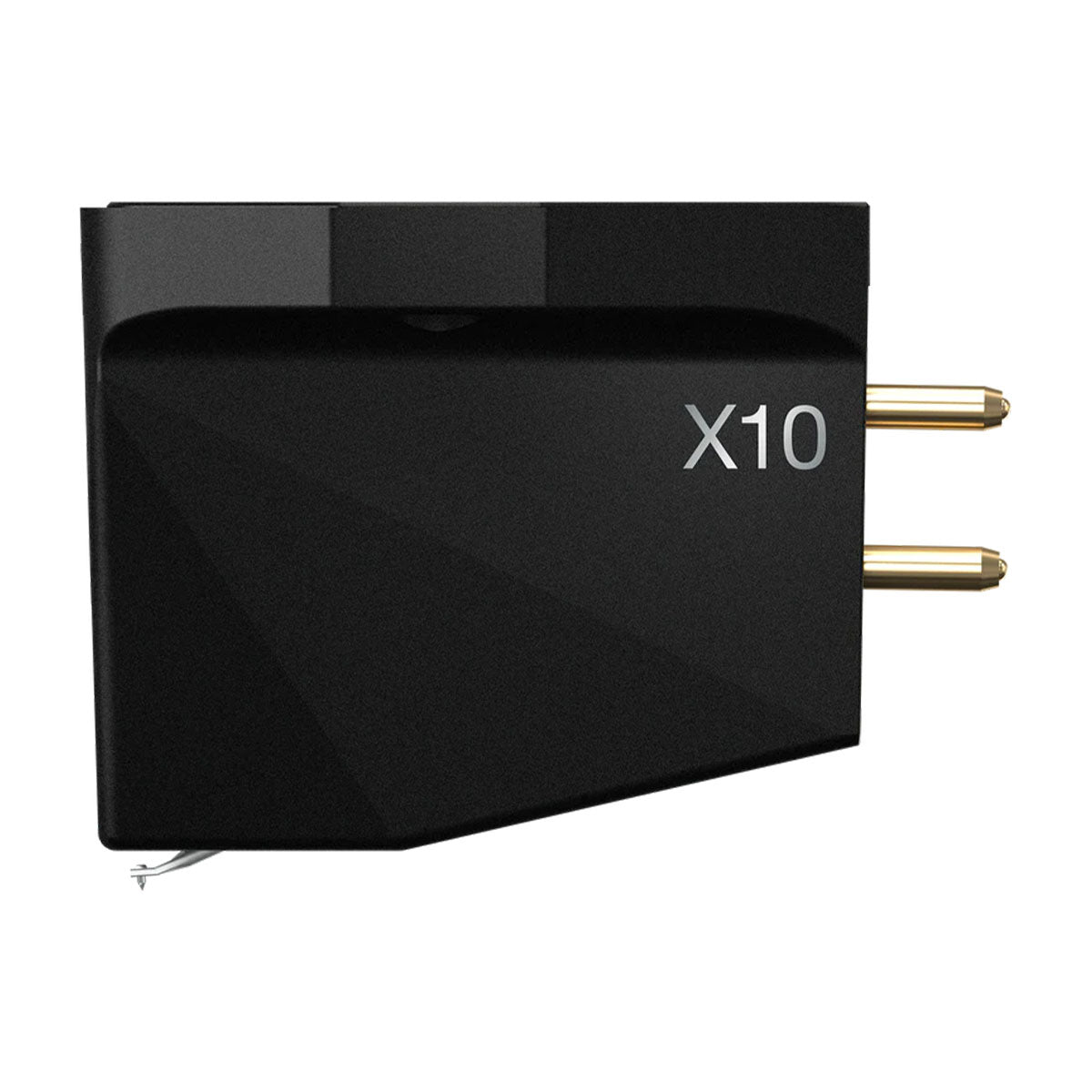

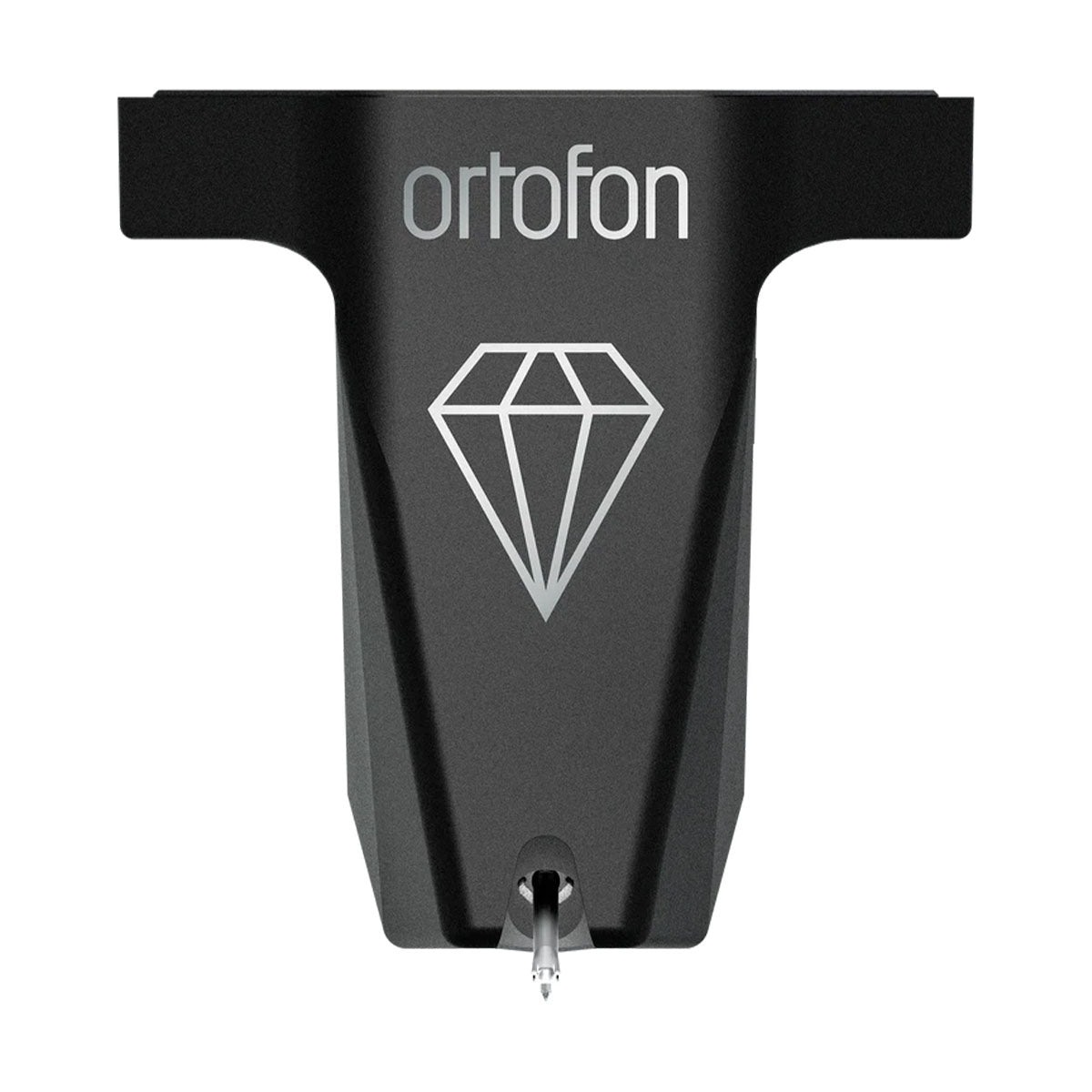

MC X10

MC X10 lays the foundation for high-fidelity sound. Its refined elliptical diamond stylus delivers clarity and precision, bringing your records to life with stunning detail. It’s the perfect starting point for an exceptional audio journey.

MC X20

Go deeper into your music with the MC X20. Featuring a nude elliptical diamond stylus, it reveals greater depth and definition, uncovering the full character of each track. Rediscover your favorite records with fresh excitement and vivid precision.

MC X30

Push your listening experience further with the MC X30. Featuring a nude fine line diamond stylus, it offers extraordinary accuracy and resolution, rendering your music and every track with breathtaking detail and dynamic range.

MC X40

MC X40 is the pinnacle of the MC X Series, designed for the most discerning audiophile. Featuring a nude Shibata diamond stylus mounted on a rigid and lightweight boron cantilever, this cartridge provides unparalleled transparency, speed, and responsiveness.

Details & Specs

Model MC X10
Channel balance at 1 kHz 0.5 dB
Output voltage at 1 kHz, 5cm/sec 0.4 mV
Channel separation at 1 kHz 24 dB
Frequency response 20 Hz - 20 kHz +/-2 dB
Compliance, dynamic, lateral 13 μm/mN
Cantilever material Aluminium
Stylus type Elliptical
Stylus tip radius r/R 8/18 μm
Stylus suspensions Ortofon exclusive
Coil system Quad coils
Tracking force, recommended 2.0 grams
Internal impedance, DC resistance 6 Ω
Coil wire material High-purity silver
Cartridge weight 8.6 grams
Recommended load resistance > 50 Ω

Model MC X20
Channel balance at 1 kHz 0.5 dB
Output voltage at 1 kHz, 5cm/sec 0.4 mV
Channel separation at 1 kHz 25 dB
Frequency response 20 Hz - 20 kHz +/-1 dB
Compliance, dynamic, lateral 15 μm/mN
Cantilever material Aluminium
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 μm
Stylus suspensions Ortofon exclusive
Coil system Quad coils
Tracking force, recommended 2.0 grams
Internal impedance, DC resistance 6 Ω
Coil wire material High-purity silver
Cartridge weight 8.6 grams
Recommended load resistance > 50 Ω

Model MC X30
Channel balance at 1 kHz 0.5 dB
Output voltage at 1 kHz, 5cm/sec 0.4 mV
Channel separation at 1 kHz 26 dB
Frequency response 20 Hz - 20 kHz +/-1 dB
Compliance, dynamic, lateral 15 μm/mN
Cantilever material Aluminium
Stylus type Nude Fine-Line
Stylus tip radius r/R 8/40 μm
Stylus suspensions Ortofon exclusive
Coil system Quad coils
Tracking force, recommended 2.0 grams
Internal impedance, DC resistance 6 Ω
Coil wire material High-purity silver
Cartridge weight 8.6 grams
Recommended load resistance > 50 Ω

Model MC X40
Channel balance at 1 kHz 0.5 dB
Output voltage at 1 kHz, 5cm/sec 0.4 mV
Channel separation at 1 kHz 26 dB
Frequency response 20 Hz - 20 kHz +/-1 dB
Compliance, dynamic, lateral 15 μm/mN
Cantilever material Boron
Stylus type Nude Shibata
Stylus tip radius r/R 6/50 μm
Stylus suspensions Ortofon exclusive
Coil system Quad coils
Tracking force, recommended 2.0 grams
Internal impedance, DC resistance 6 Ω
Coil wire material High-purity silver
Cartridge weight 8.6 grams
Recommended load resistance > 50 Ω
