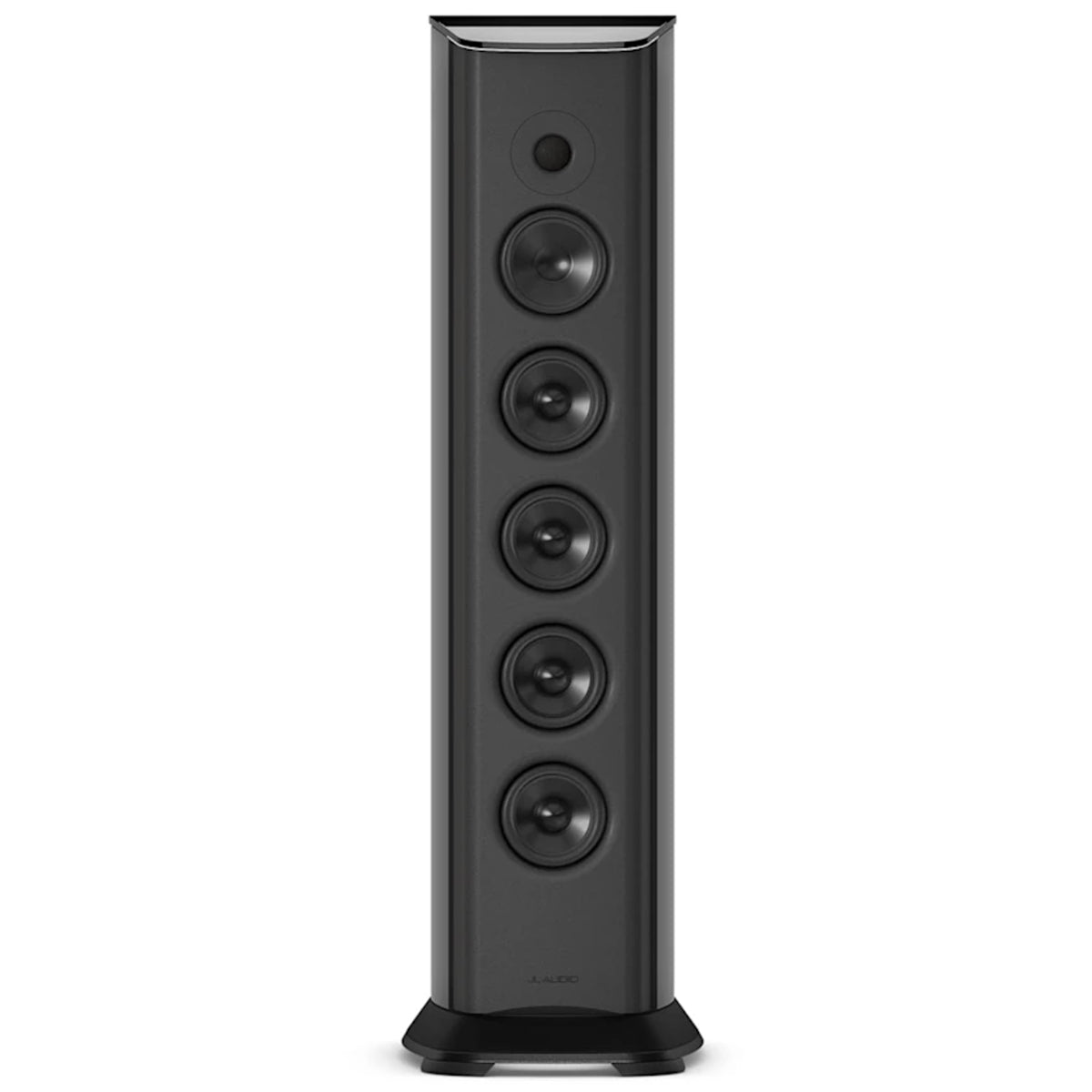

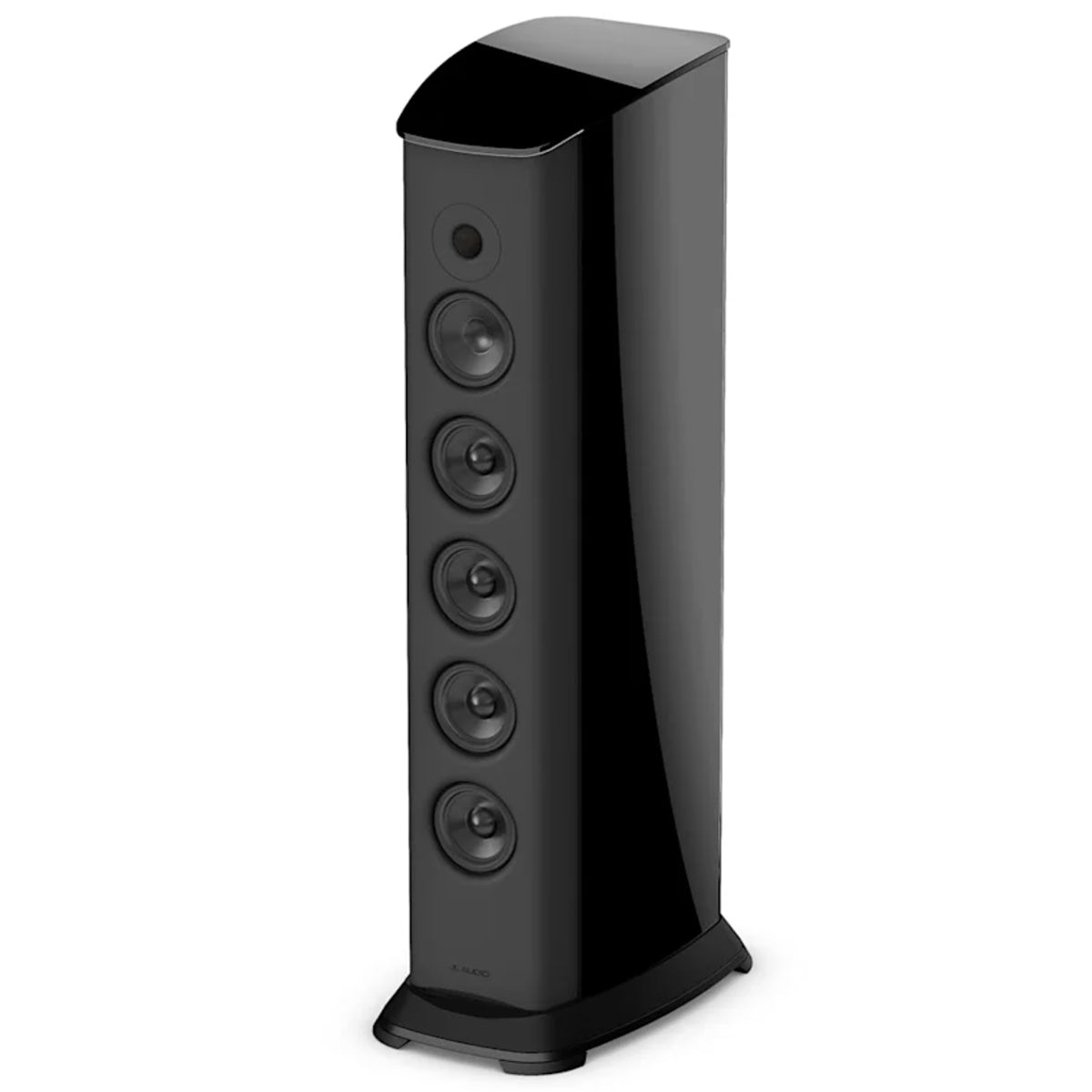

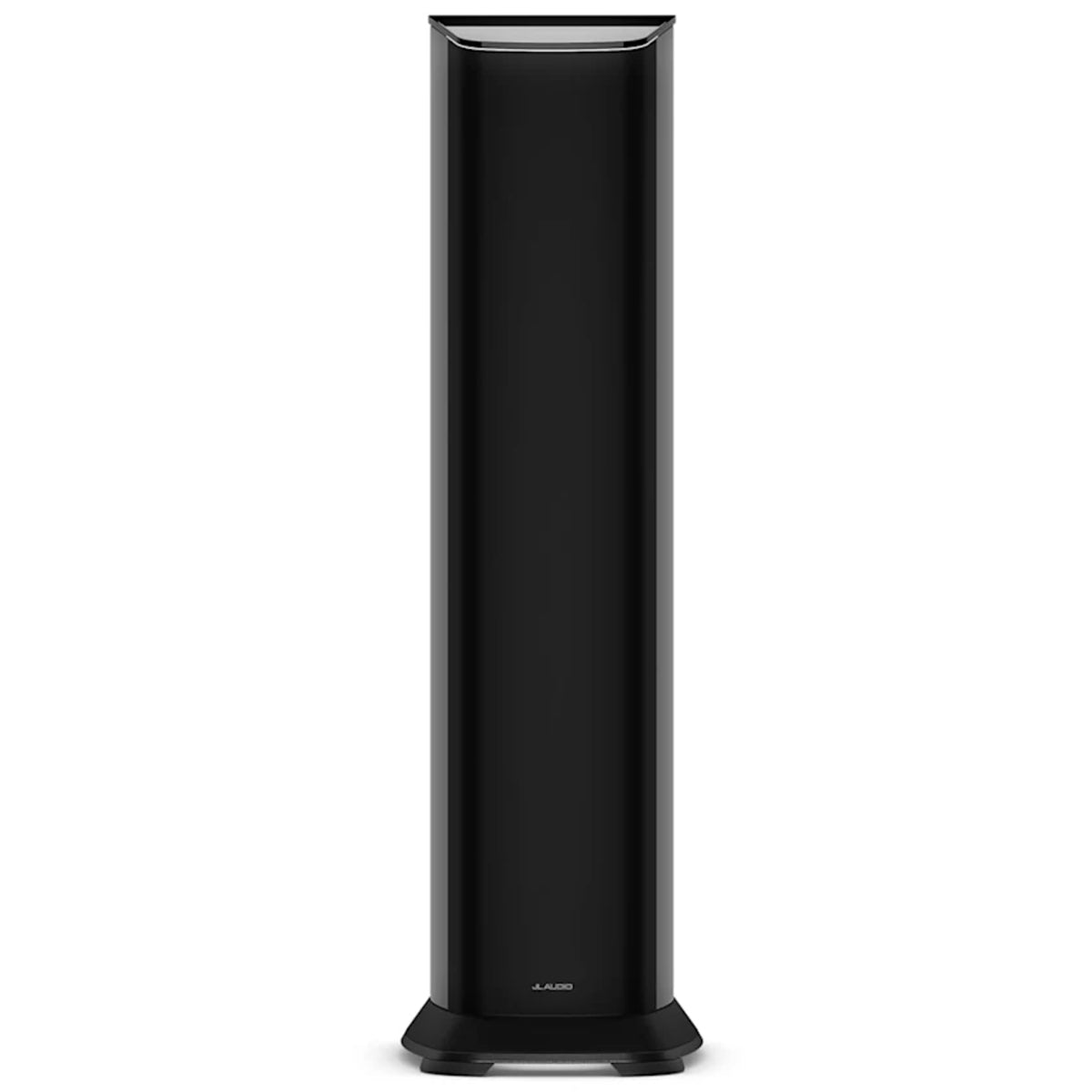

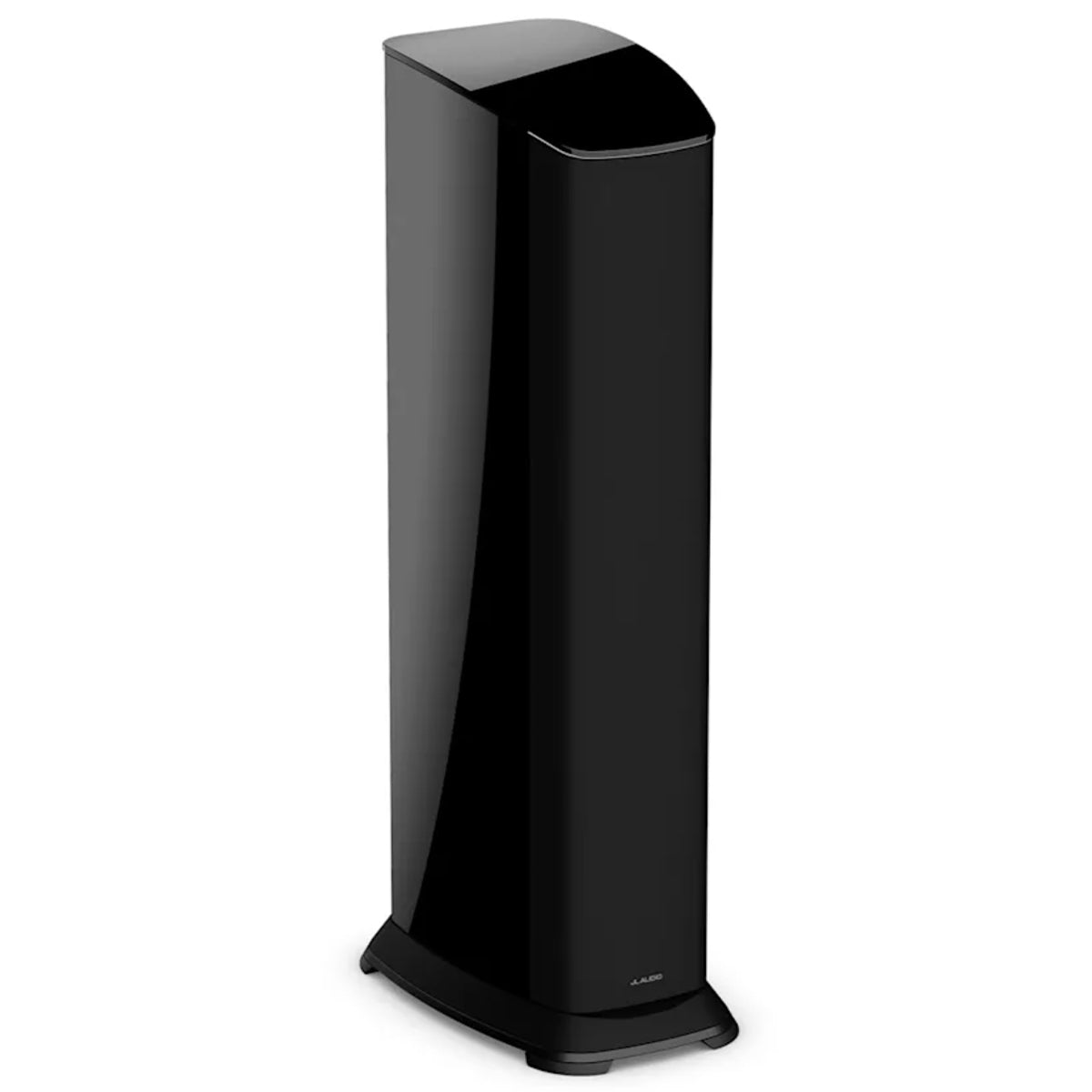

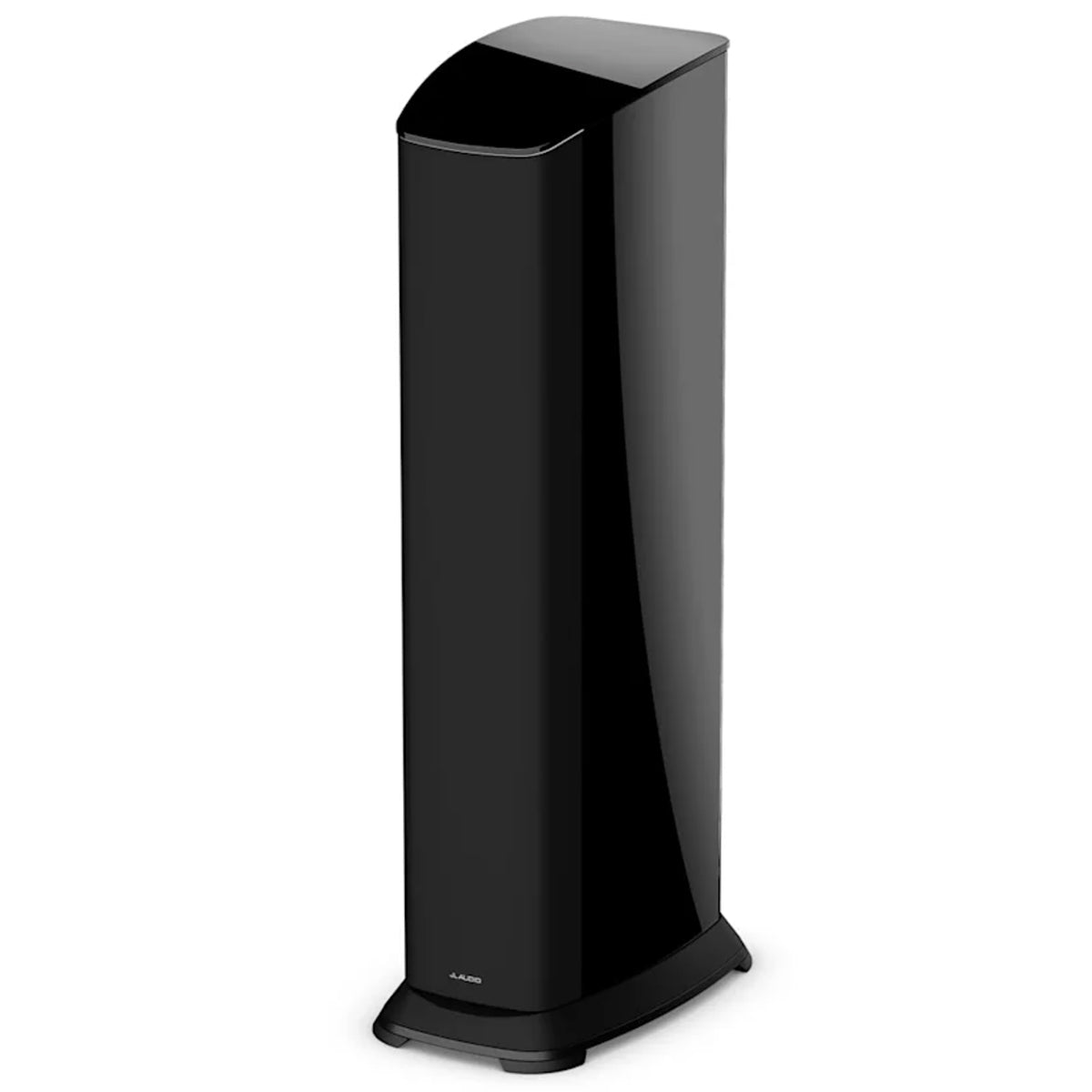

JL Audio Primacy T6

Active 3-Way Floorstanding Loudspeaker with DSP

JL Audio Primacy T6

Active 3-Way Floorstanding Loudspeaker with DSP
$90,000.00
Available In-Store
Contact Us

Overview

The JL Audio Primacy T6 speaker is designed for full-range performance, pairing advanced Class D amplification with a carbon fiber tweeter, dedicated aluminum-alloy woofers, and a precision-tuned midrange for exceptional detail and impact. Its rigid aluminum enclosure and carefully contoured baffle ensure smooth dispersion and low distortion across the entire frequency spectrum. Built with premium materials and intelligent system monitoring, the T6 delivers powerful, accurate sound with the control and refinement expected from a high-performance floorstanding speaker.
Watch our Comparison

Primacy T6


Amplifier Design

All Primacy amplifier channels use proprietary Class D designs optimized to the specific loudspeaker drivers assigned to them.

The volume control at the end of the audio chain sets relative channel gains and offers a balanced, internal full-scale signal path.

Proprietary software continuously monitors and analyzes output voltage and current for real-time diagnostics, ensuring driver protection and detecting impedance changes.

Amplifier output stages employ DirectFET™ surface-mount technology for clean switching and reduced EMI with shorter power paths.

A Zobel filter improves transients and reduces load effects on the amplifier to further optimize the interaction between the amplifier and speakers.

1" (26 MM) Carbon Fiber Tweeter

This tweeter features a light, rigid and well-damped thin-ply carbon fiber diaphragm.

A two-layer voice coil is wound onto a titanium former and operates within a symmetrical drive motor structure with flux stabilization.

A nonresonant aluminum chamber encloses the rear of the tweeter, providing a consistent and predictable enclosure.

Enclosure Design

Enclosure: The enclosure features a sand-cast aluminum-alloy inner core with secondary machining to ±1/1,000" tolerance (±0.025 mm) and includes all bracing, mechanical features and tuning ports.

Baffle: Extruded aluminum with a thickness of 0.9" (23 mm) at its center with a narrow design and gentle contour transitioning to the loudspeakers are an important part of acoustical design, enhancing even dispersion in the mid- and upper-frequency ranges. Secondary machining of the baffle’s front surface facilitates smooth dispersion of the tweeter’s output.

Cosmetic Panels: Furniture-grade side panels are compression molded from a glass fiber reinforced polymer to produce a durable and environmentally stable component with a smooth surface. These panels are available in various finishes, including solid colors and real wood veneers, and can also be custom painted or wrapped.

5.5" (140 MM) Polypropylene Midrange

T6: This is used as a midrange for 250 Hz–3 kHz.

Cone/Dust Cap: A lightweight mineral-filled polypropylene cone and dust cap were selected for the woofer material. To enhance rigidity and frequency response, the geometry of the cone was addressed, arriving at a single radius with a single step and a lightweight support structure attached to the back of the cone.

Surround: A synthetic rubber surround structure is employed, with integral sealing and isolation elements molded into the surround.

Spider: A Nomex/poly/cotton progressive roll spider with integrally woven lead wires forms the rear suspension.

Voice Coil: A two-layer bifilar copper voice coil is wound onto a polyimide (Kapton®) former with a spun lace wrap.

Motor: The magnet is a strontium-ferrite single stack ring.

5.5" (140 MM) Aluminum-Alloy Woofers

T6: These dedicated woofers cover 29–250 Hz.

Cone/Dust Cap: A lightweight rigid aluminum-alloy cone and dust cap were selected for the woofer material.

Surround: A synthetic rubber surround structure is employed, with integral sealing and isolation elements molded into the surround.

Spider: A Nomex/poly/cotton progressive roll spider with integrally woven lead wires forms the rear suspension.

Voice Coil: A two-layer bifilar copper voice coil is wound onto a polyimide (Kapton®) former with a spun lace wrap.

Motor: The magnet is a strontium-ferrite single stack ring.

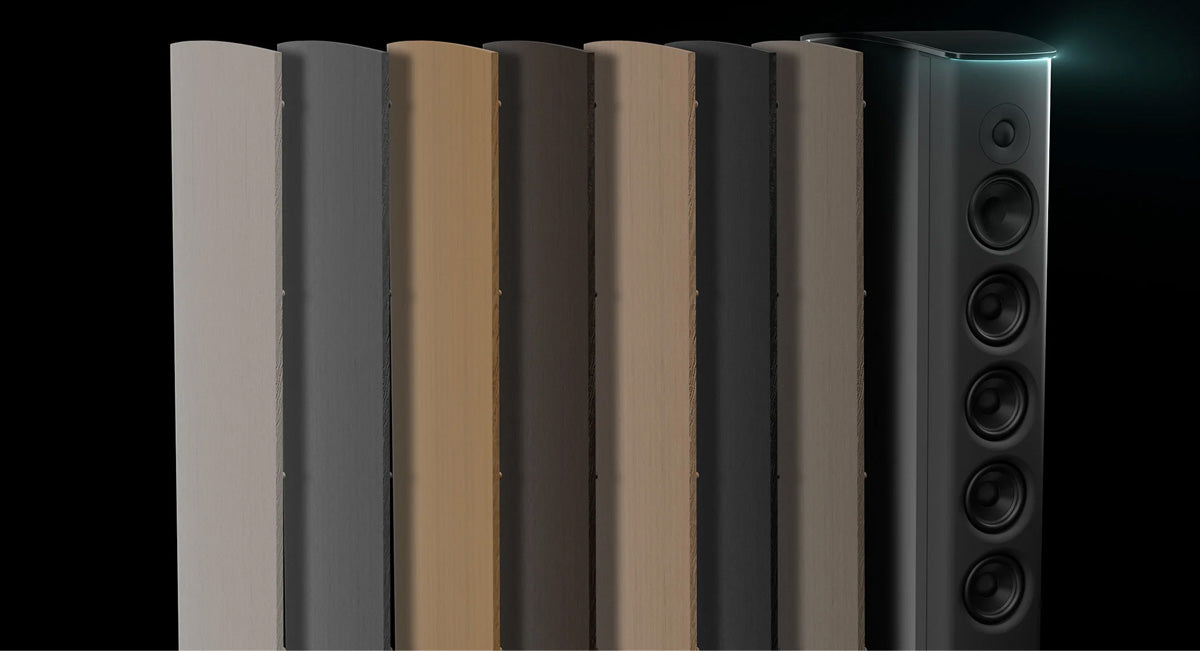

Match Your Décor With Swappable Cosmetic Panels

T6 Side Panels

Primacy Audio Systems


Primacy Centerpiece Compatible

Enhance your system with the optional Primacy CS Centerpiece, which allows for control of digital, analog, and streaming sources as well as Primacy Automatic Room Optimization (P.A.R.O.).

Connections and Streaming

The optional CS Centerpiece connects to your compatible loudspeakers via Dante® networking, preserving a high-resolution digital signal flow. You can also connect to your compatible smartphone or computer via Ethernet, Wi-Fi® connectivity or Bluetooth® technology, and stream audio from your favorite online sources.

User Profiles

Fine-tune your audio experience based on your room’s acoustics, seating position and frequency response preferences.

Room Optimization

When paired with your Primacy loudspeakers, you’ll get P.A.R.O., which measures and optimizes the entire system — as well as any additional powered subwoofers — for your room and listening position.

Active Design

Individual amplifier channels are connected to each driver section. This allows for optimal control and damping over each moving diaphragm.

Built-In Amplifiers

Each loudspeaker features multiple built-in amplifiers — one for each driver section — employing our most advanced switching technology. DSP filtering occurs at the input of each of the active amplifier channels.

Alloy Casting

The enclosure starts with a one-piece alloy casting, which includes many internal features, such as the bracing and ports for the woofer section.

High-Performance Triple-Core DSP

A digital signal processor, operating at 32-bit/192 kHz audio resolution, provides precise control over crossover filters, equalization, dynamics, delay, and phase.

Beautifully Built

Optional replaceable cosmetic panels are available in a variety of finishes to match a wide range of decors.

JL Audio Primacy T6 Active Floorstanding Loudspeaker

Details & Specs

General

Warranty5 years
Driver SizesTweeter: 1"
Midrange: 5.5"
Woofer (x4): 5.5"
Height48.9" (1,242 mm)
Width14.2" (361 mm)
Depth21.2" (538 mm)
Weight272 lbs (123 kg)
Light ModesOff, on, or dim
12V Trigger Output Capacity50 mA max, 1/8" (3.5 mm) mini jack
Amplifier Power RMS1000W total
Tweeter: 200W
Midrange: 200W
Woofer: 600W
Frequency Response Anechoic45 Hz to 20 kHz, ±2 dB, -3 dB @ 35 Hz, -6 dB @ 32 Hz
Factory calibrated to achieve ±1.5 dB to reference response
Latency4.46 ms at the speaker's analog input
Maximum Peak Short Term Sine Wave Acoustic Output>112 dB SPL, averaged from 100 Hz to 3 kHz @ 1 m, half space
Enclosure TypeTweeter: sealed assembly
Midrange: sealed, secondary cast alloy enclosure
Woofer: bass-reflex design vented at the base of the primary cast alloy enclosure
Enclosure FinishBlack gloss
Grilles IncludedYes
Power ModesOff, on, or automatic, signal-sensing or 12V trigger

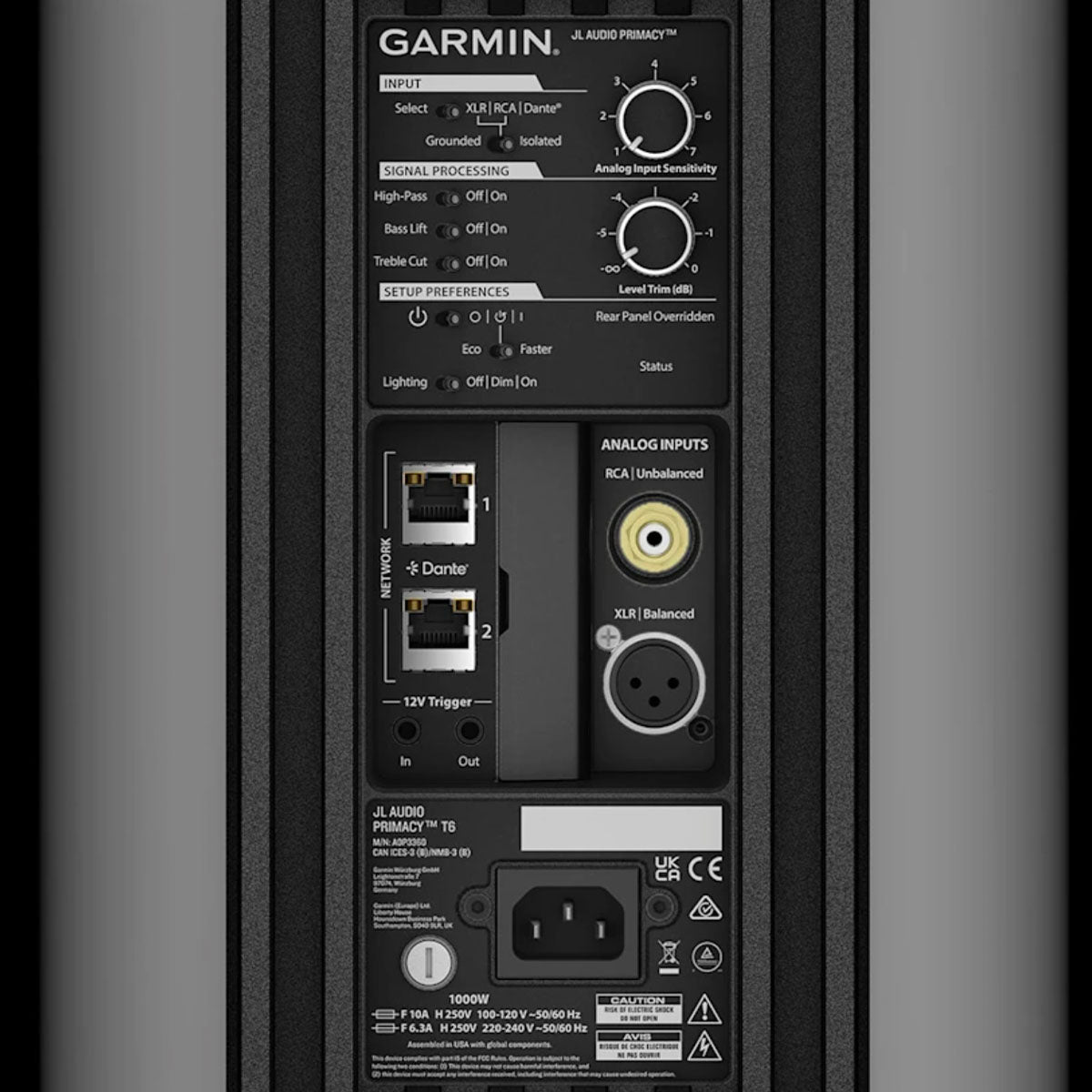

Signal Processing

Unbalanced InputMono, one RCA jack with input impedance of 50k ohms
Balanced InputMono, one female XLR jack with input impedance of 50k ohms
Dante Network ConnectionsTwo RJ45 ports
Analog Input Sensitivity0.32V (-10 dBV) to 8.0V (+18 dBV)
Input GroundingIsolated or grounded, analog inputs
Input ModesAnalog or Dante Network
Level ControlLevel trim: 0 to -5 dB and muted (-∞)
Filter ModesHigh-pass, Bass Lift, Treble Cut
Filter SlopesHigh-pass: 24 dB/octave
Filter Frequency RangeHigh-pass: 80 Hz
Bass Lift: +3 dB shelving filter @ 116 Hz, Q=0.4
Treble Cut: -2 dB shelving filter @ 2000 Hz, Q=0.4
Filter Defeat FunctionYes
Calibration ModePrimacy Automatic Room Optimization (P.A.R.O.) via PC and Primacy Centerpiece, sold separately
Crossover Frequencies/Slope240 Hz / 3 kHz, 24 dB/octave Linkwitz-Riley
Analog to Digital ConverterESS SABRE ES9822PRO, operating in mono mode
Digital Signal ProcessorAKM triple-core with Velvet Sound technology, processing at 32-bit / 192 kHz for local system volume, crossovers, delays, equalization, and dynamics for each amplifier and driver section
Processing Resolution32-bit / 192 kHz
Digital to Analog ConvertersESS SABRE Reference DACs x 3, operating in mono mode

Electrical

Mains Voltage100 to 240V AC, 50/60 Hz
Power Supply DesignWorldwide voltage compatibility with power factor correction and synchronized regulated switching power supply
Fuse Type/Value120V: 10A, 250V, 3AB fast acting, 0.25" ceramic cartridge
240V: 6.3A, 250V, 3AB fast acting, 5 x 20 mm glass cartridge
Power CordDetachable IEC style
120V: 18 AWG, 10A
240V: 17 AWG, 10A
Standby Power ConsumptionAuto power switch with Eco mode: <0.5W
Auto power switch with Faster: <7.0W
Idle Power Consumption120V: ~40W
240V: ~40W
Active Power Consumption120V: ~42W
240V: ~41W
On with signal, 80 dB SPL @ 1 m, C-weighted

Additional

Amplifier PowerThis rating was not tested under the FTC standard
