Item #FOAIWUCUSW0B000

Focal Utopia Cinema SUB

Subwoofer
Item #FOAIWUCUSW0B000

Focal Utopia Cinema SUB

Subwoofer
$5,999.00
Available In-Store
Contact Us

Overview

Cinema SUB is the ultimate subwoofer for your home cinema installation. Designed to work with the Cinema LCR speaker, it delivers deep bass, enhancing every nuance of sound, even in the largest private cinema rooms up to 2153 sq ft (200m²). Advanced acoustic design, exclusive Focal technologies, customisation and modularity of the installation... With Cinema SUB, transform your movies into an unforgettable immersive experience.

THE CINEMA, AT HOME

Cinema SUB features two 13" woofers from the Sub12 subwoofer in our professional range. They ensure maximum excursion and uncompromising bass control for powerful, punchy bass. With its top-of-the-range design, it integrates perfectly into multichannel systems, sublimating every musical explosion and nuance for an intensely cinematic experience.

MODULAR INSTALLATION

The subwoofer can be mounted on or in the wall, or positioned horizontally or vertically. It can also be combined with other Cinema SUB and as many Cinema LCR as required, for a tailor-made installation. And it's discreetly integrated thanks to carefully designed fabric grilles.

COMPLETE SOLUTION

Utopia Cinema products - Cinema LCR and Cinema SUB - have been designed to create a complete and powerful home cinema installation. They can also be combined with the 1000 Series loudspeakers, which feature the same reference technologies such as the "W" cone of the speaker drivers, for total immersion with Utopia signature sound.

  • Unique extension: Tuned to 19Hz for deep, punchy bass
  • 13" ‘W’ cone woofers: Dual high-excursion drivers for extreme performance

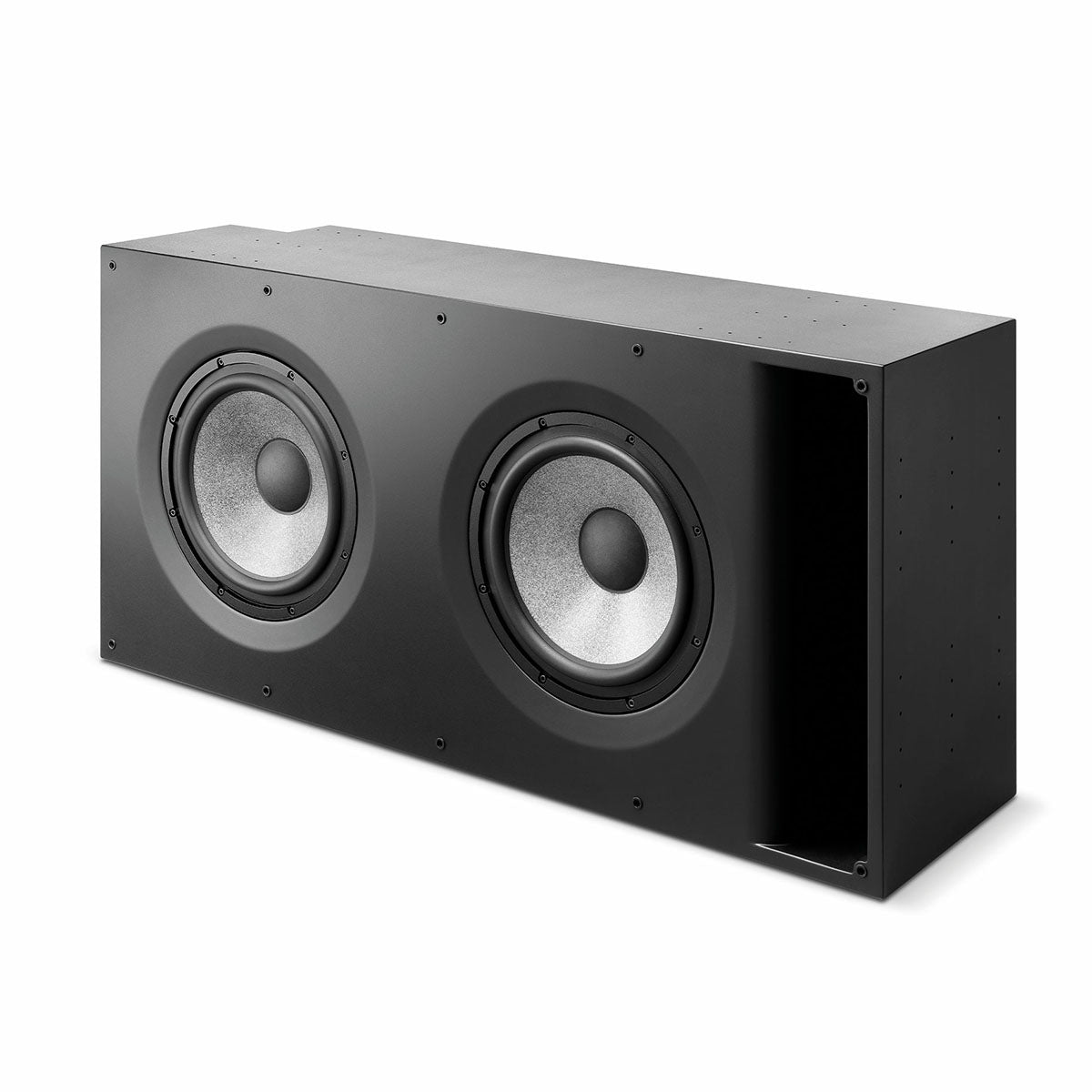

  • Modular configuration: Horizontal or vertical orientation
  • Optimized port: Reduces vent noise, maximizes SPL, and minimizes distortion
  • Quick mounting: Multi-point mounting for flexible wall placement

Key points

  • Bass-reflex subwoofer designed for low frequencies
  • Compatible with multiple Cinema SUB and Cinema LCR loudspeakers
  • Drivers developed and manufactured in France by Focal
  • Features Focal’s Utopia signature
  • Wall-mounted, in-wall, or freestanding modular installation
  • High power handling for large dedicated cinema rooms
  • Includes grille

Details & Specs

ModelFocal Utopia Cinema SUB
TypeBass-reflex subwoofer
InstallationIn-wall / On-wall / Freestanding
Tuned port19Hz
Speaker drivers2x 13" ‘W’ cone woofers
Sensitivity (2.83V/1m)95dB (66Hz)
Bandwidth (-3dB)42Hz – 2500Hz
Low-frequency cut-off (-10dB)19Hz – 2500Hz
Recommended EQ19Hz–2500Hz ±1dB, +12dB @20Hz Q=1.8, shelving -5dB @50Hz (1st order), 24dB/oct @18Hz Butterworth
Nominal impedance
Minimal impedance4.1Ω @19Hz
CrossoverNone
Rated power300W RMS (4Ω)
Recommended amp powerMax 400W (8Ω) / 800W (4Ω)
Dimensions (HxWxD)45 7/8" x 21 5/8" x 12 13/16" (116.5 x 54.9 x 32.6 cm)
Net weight160.94 lbs (73 kg)
AccessoriesGrille included
