Item #15SPV

Ascendo Audio The15 SUB

Passive Vented Subwoofer - Each
Item #15SPV

Ascendo Audio The15 SUB

Passive Vented Subwoofer - Each
$1,600.00
Special Order: Free Shipping!

Overview

At ASCENDO, they believe that powerful, deep, and distortion-free bass should be accessible to everyone. With THE15 Sub Passive Vented, they wanted to create a subwoofer that offers the same renowned ASCENDO quality at an affordable price, all while meeting the demands of the most discerning customers.

Ascendo Audio's design philosophy centers around the perfect balance of extension, punch, and accuracy. THE15 Sub Passive Vented delivers deep bass without compromising performance, with a meticulously selected tuning frequency of 27 Hz.

The vented enclosure enhances the lower frequency response, and Ascendo's exacting engineering guarantees top performance through a high-temperature voice coil, linear suspension, and robust magnetic motor system. The heavily braced enclosure effectively reduces undesirable resonances, delivering impressive internal and external sound clarity at a more affordable price point.

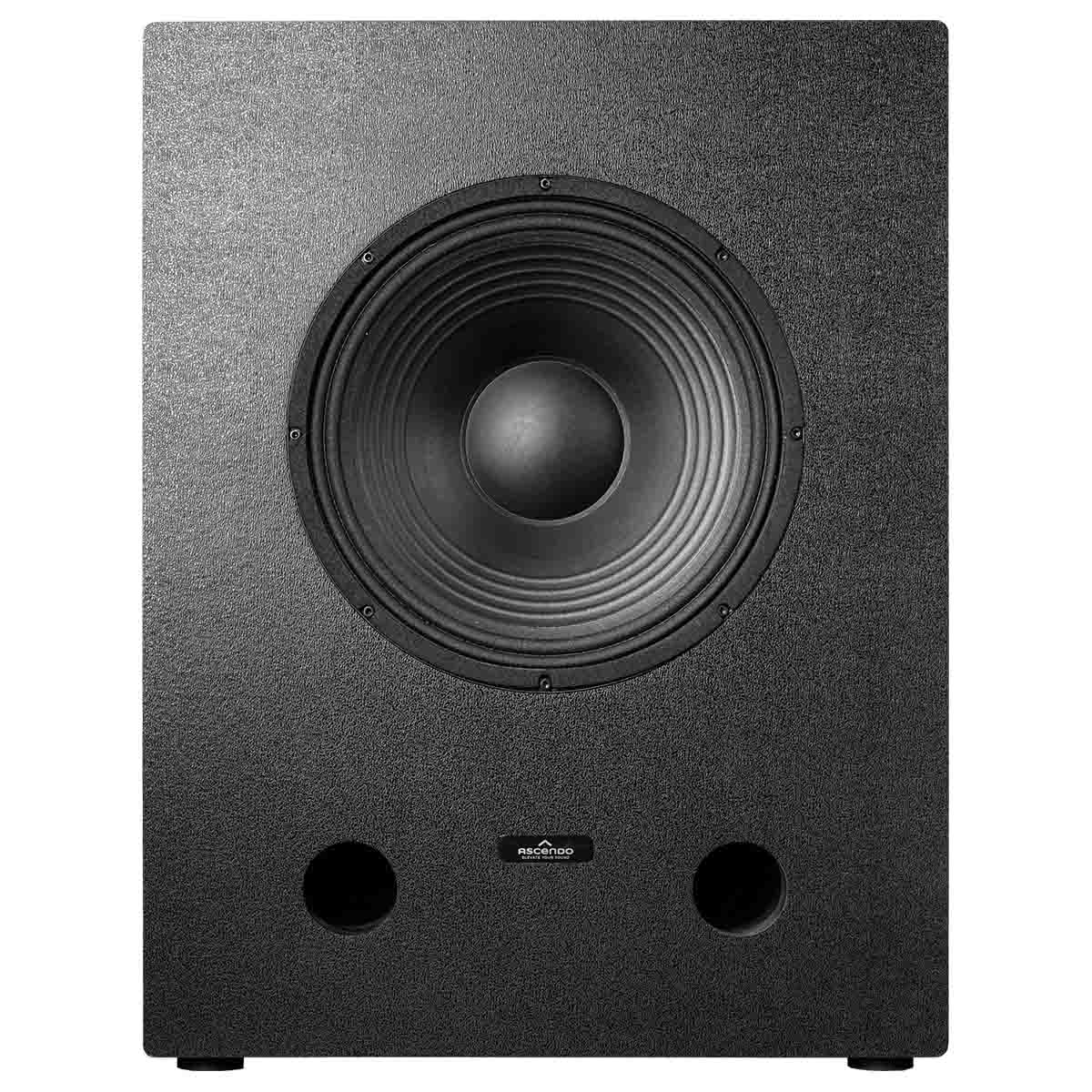

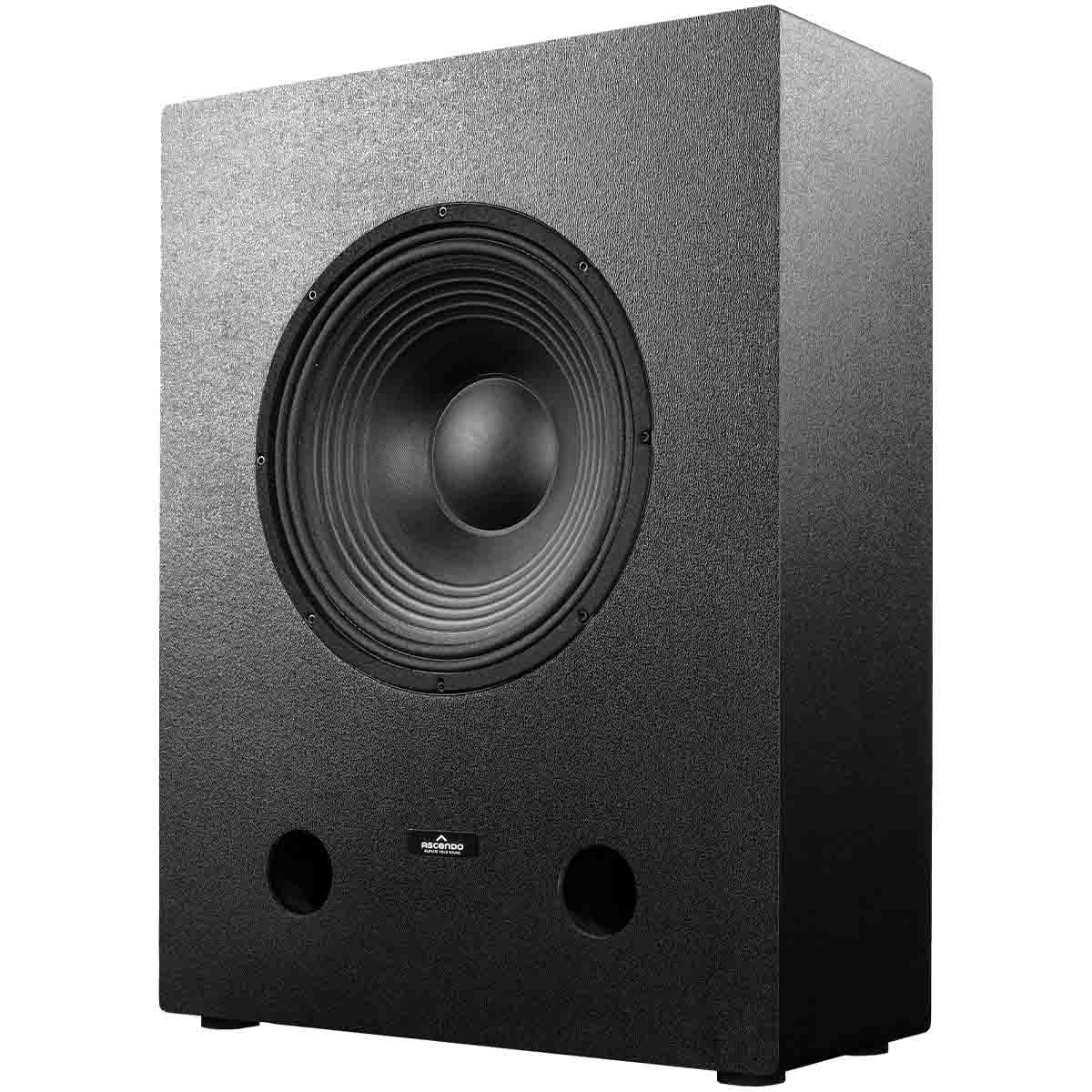

THE15 Sub Passive Vented is a 15-inch subwoofer made with precision engineering. It has a 4-inch voice coil for high long-term reliability, and is designed for amplifiers with 750 to 1500W power output at 4 ohms. The cast frame further enhances the design by eliminating resonance.

THE15 Sub Passive Vented provides the highest sound pressure level (SPL) paired with in-room extension down to 20 Hz, whether you’re installing it in a home theater or commercial space. The shallow design allows for flexible placement with no compromises to sound quality. Trust in the verified performance metrics from third-party testing and enjoy a powerful bass experience tailored for optimal cinema sound.

*For optimal performance, use with ASCENDO subwoofer amplifiers.


Measurements

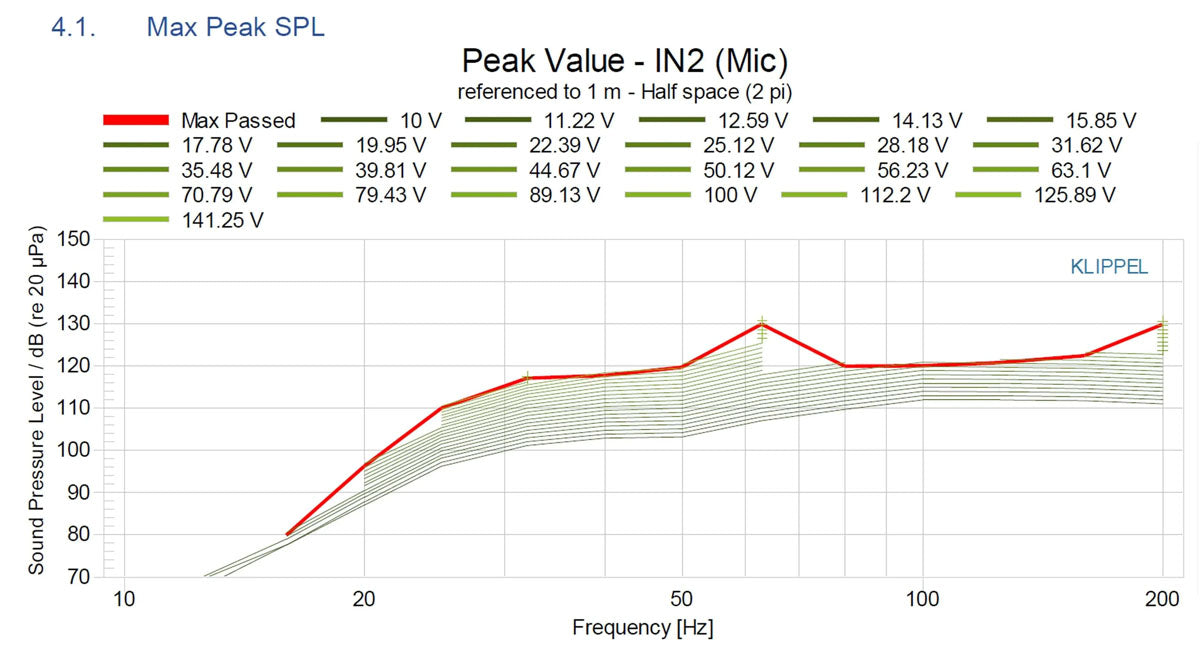

The15 SUB Passive Vented Measurements

Details & Specs

Model THE15 Sub Passive Vented
General
Speaker Type 15” forward-firing, with 3” voice-coil
XMAX 6 mm excursion each direction (12 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion
Principle Vented
Passive | Active Passive
Recommended Amplifiers 1Ch DSP and 1Ch amplifier are required.
Min. recommended amplifier: 52.9 Vrms, 74.8 Vpk, 13.2 A; equivalent to 700 W @ 4 Ω, with correct RMS & peak limiter settings
Recommended ASCENDO Amplifiers (With DSP-4D: AIA2-1404 bridged, AIA2-2704, AIA4-6004, AIA8-6004 bridged)
Measured Data
SPL Peak (Peak / Half Space 2pi) 120 dB @ 50 Hz
116 dB @ 30 Hz
Frequency Range Measured Data (without DSP)
59 Hz – 400 Hz / -3 dB
27 Hz – 400 Hz / -12 dB
Power Handling 1000 W
Efficiency 89 dB / 1 W/m 4 pi, 95 dB / 1 W/m 2 pi
Impedance 4 Ω
Directivity Horizontal x Vertical (°) 360°
Input

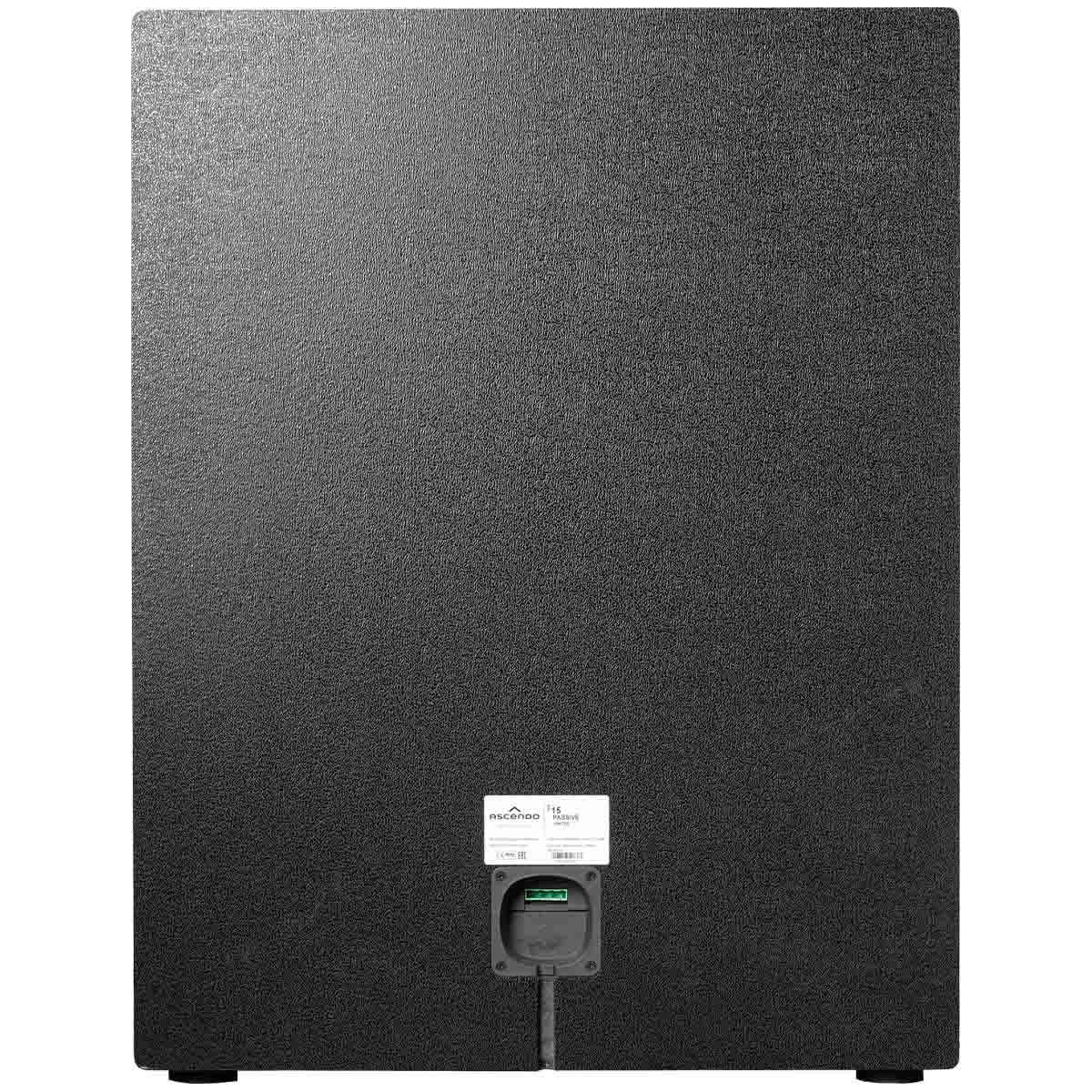

Input Terminal 4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille) 600 × 782 × 250 (Height without feet: 770)
Dimensions (W/H/D) inch (Without Grille) 23 10/16 × 30 12/16 × 9 13/16 (Height without feet: 30 5/16)
Packing Dimensions (W/H/D) mm 740 × 910 × 380
Packing Dimensions (W/H/D) inch 29 2/16 × 35 13/16 × 14 15/16
Weight 72.09 lbs | 32.7 kg
Gross Weight 83.11 lbs | 37.7 kg
Design & Mounting
Enclosure Internally braced MDF
Finish Structural paint black
Mounting Floorstanding with feet
