Item #10PLPVB

Ascendo Audio The10 Passive LED

Phantom Voice On-Wall Loudspeaker - Black/Black Grille - Each
Item #10PLPVB

Ascendo Audio The10 Passive LED

Phantom Voice On-Wall Loudspeaker - Black/Black Grille - Each
$2,550.00
Special Order: Free Shipping!

Overview

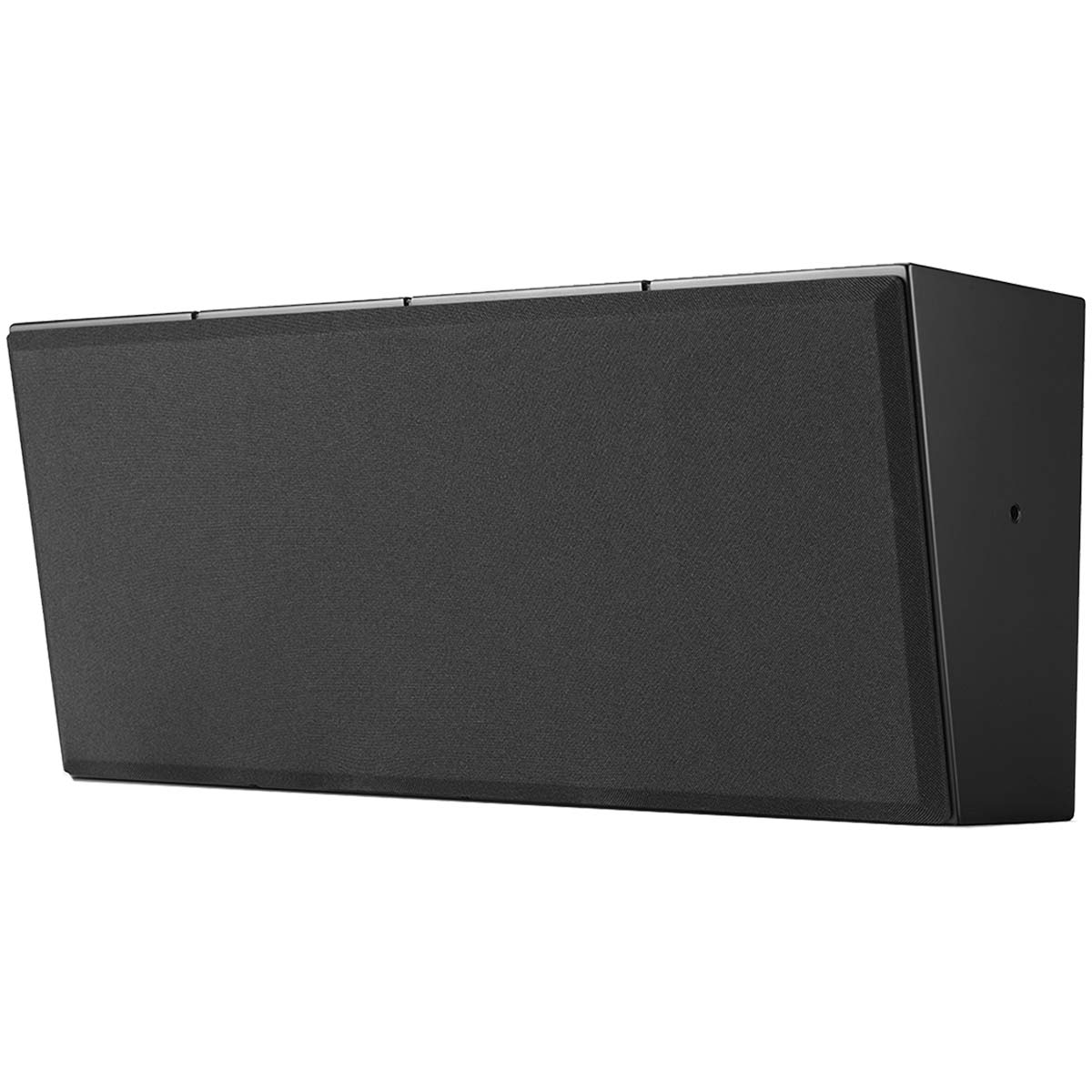

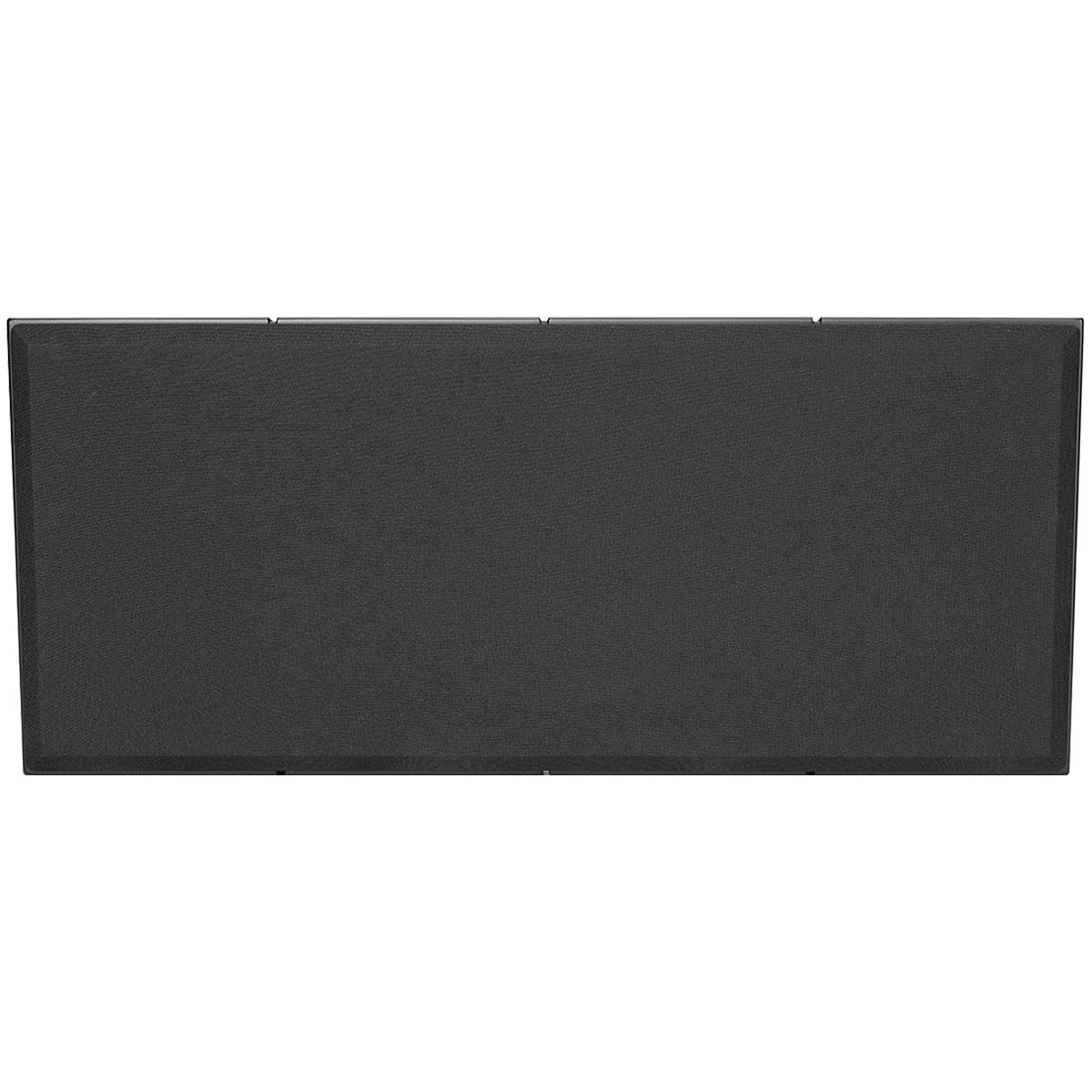

The10 PASSIVE LED PHANTOM is engineered for shallow and narrow spaces where high-performance sound must integrate cleanly with LED video walls and other demanding installations. Its slim wedge-shaped enclosure, adjustable phantom imaging concept, and flexible mounting options make it a versatile solution for top, wide, high, and surround speaker roles. The10 delivers controlled, high-output performance while fitting spaces that conventional cinema speakers cannot.

The10 PASSIVE LED PHANTOM VOICE speaker is a revolutionary solution designed to elevate your home theater experience like never before. This versatile speaker is built to meet the growing demand for high-quality sound in shallow and narrow spaces, making it the perfect companion for LED screens from leading brands like Samsung, Quantum, Christie, Barco, as well as non-perforated or near-field projection screens.

Advanced Design for Seamless Integration: The 12-degree wedge shape is expertly engineered to deliver impeccable sound coverage in theaters with one to three rows of seating. Whether setting up a home cinema or a professional screening room, this speaker ensures every seat is the best seat in the house.

Precision Sound Placement: The "Phantom" in its name is not just for show – it refers to the stereo phantom image, which can be adjusted vertically using DSP (Digital Signal Processing) technology. This allows the voice to be positioned exactly where it belongs: at the center of the screen, creating an immersive audio experience.

Sleek and Versatile Form Factor: Its slender, narrow design opens up a world of possibilities. Whether a high-performance top speaker, wide speaker, or high speaker layer is needed, The10 Passive LED Phantom Voice adapts to the application. It is even ideal for regular surround sound setups, enhancing the audio experience from every angle.

Flexible Mounting Options: Installation is a breeze with the included mounting brackets, allowing for ceiling or wall mounting at any desired angle. Additionally, keyhole wall mounts on the top and back of the speaker provide even more flexibility in positioning.

This is more than just a speaker. It's the future of home theater. The10 PASSIVE LED PHANTOM VOICE speaker promises to deliver unparalleled sound quality, perfect for any home theater setup. Don't miss out on this cutting-edge audio solution; upgrade your sound system today and experience the difference for yourself.

Details & Specs

Model The10 PASSIVE LED PHANTOM

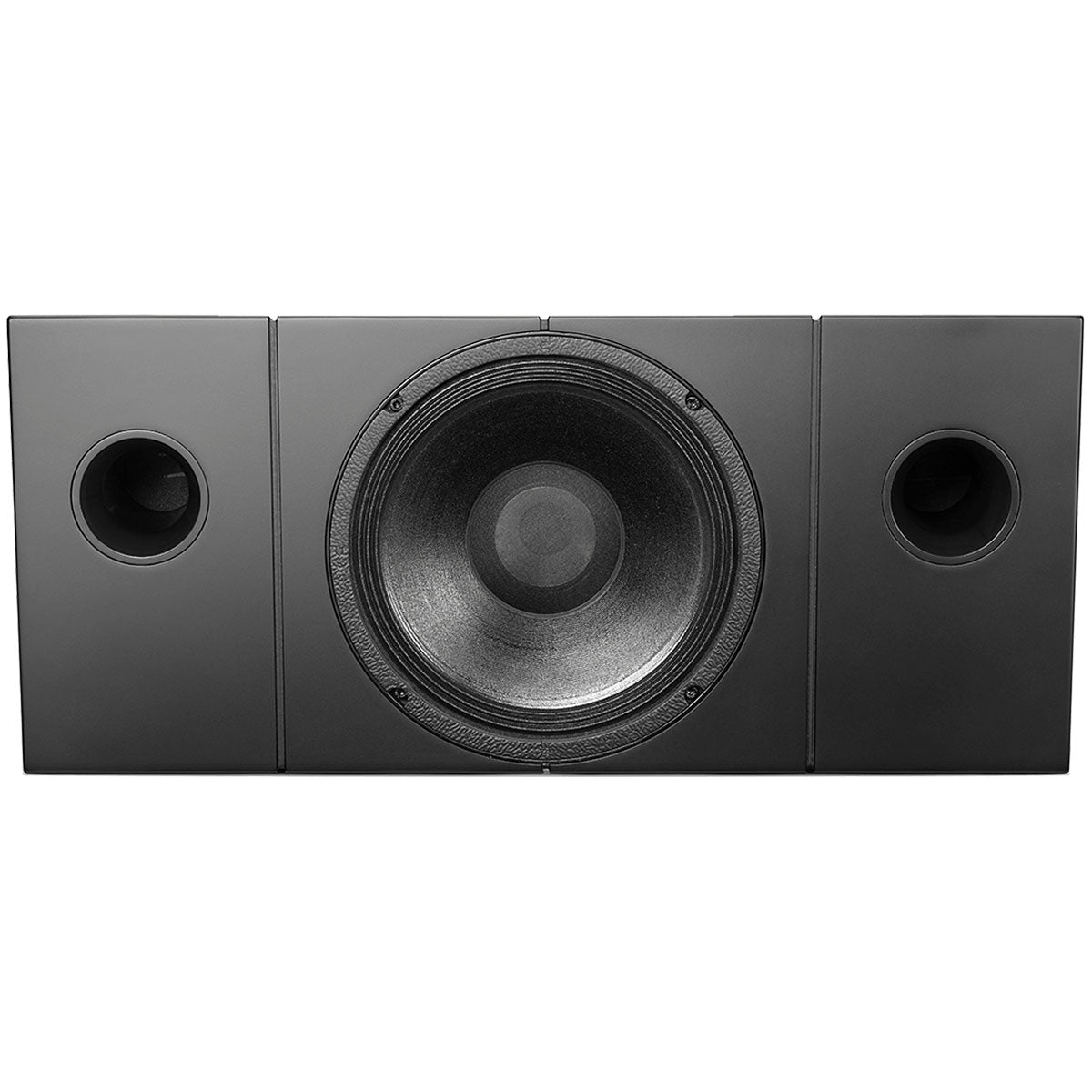

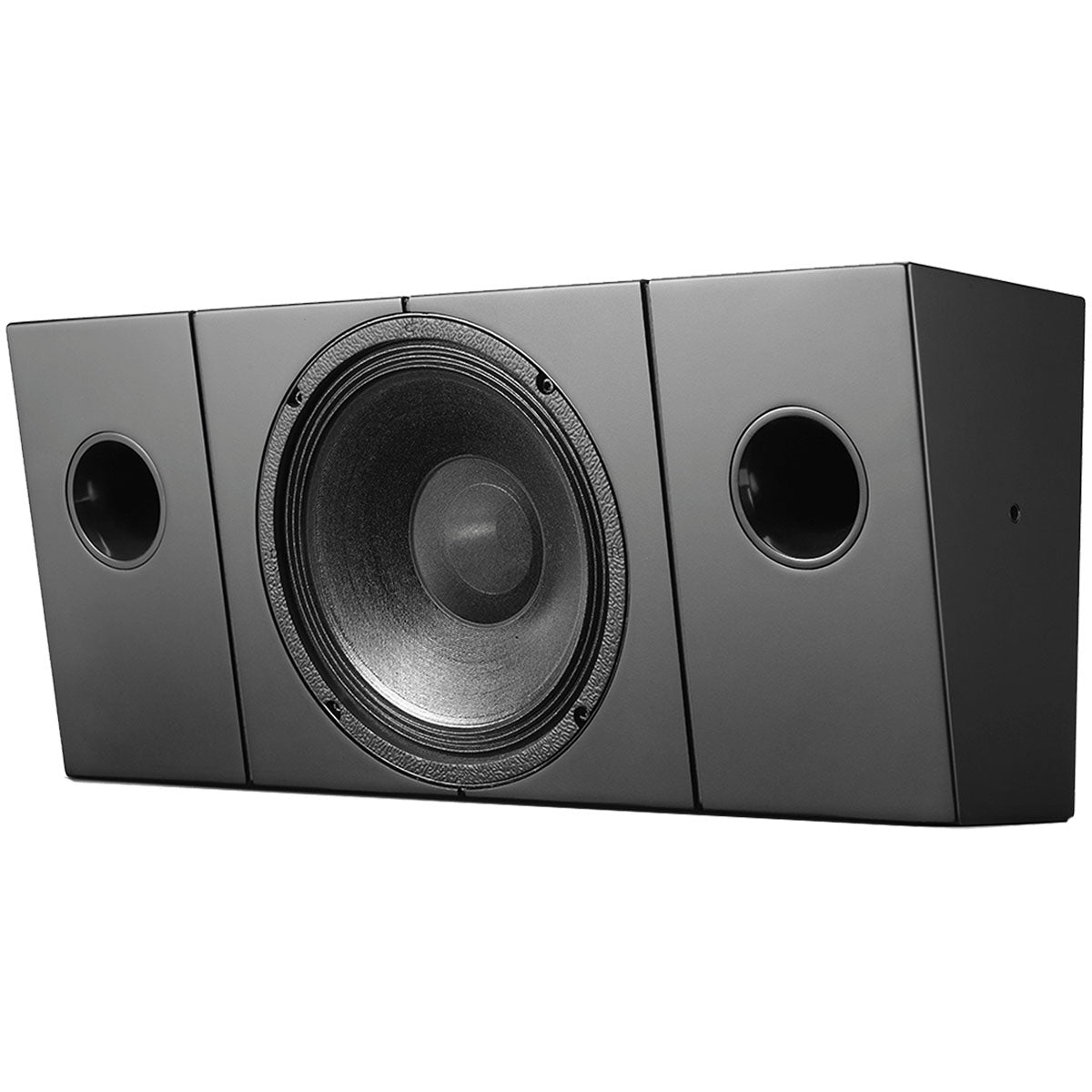

Speaker Type 10” time-coherent point-source coaxial
Principle Vented
Passive / Active Passive
Woofer 10” woofer
Tweeter 1-3/8” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers AIA2-1404, AIA2-2704, AIA4-2404, AIA8-2704, AIA8-6004
SPL (Half Space 2π) 120 dB (Cont.) / 130 dB (Peak)
Frequency Range 100 Hz – 20 kHz (-3 dB)
Power Handling 500 W
Efficiency 97 dB / 1 W/m (2π)
Impedance 8 Ω
Directivity Horizontal x Vertical 85° x 85°
Input Terminal 4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions (W/H/D) Inch (Without Grille) 24-13/16 x 10-5/8 x 6-3/4 (With grille: 7)
Weight 29.76 lbs (13.5 kg)
Enclosure Internally braced MDF

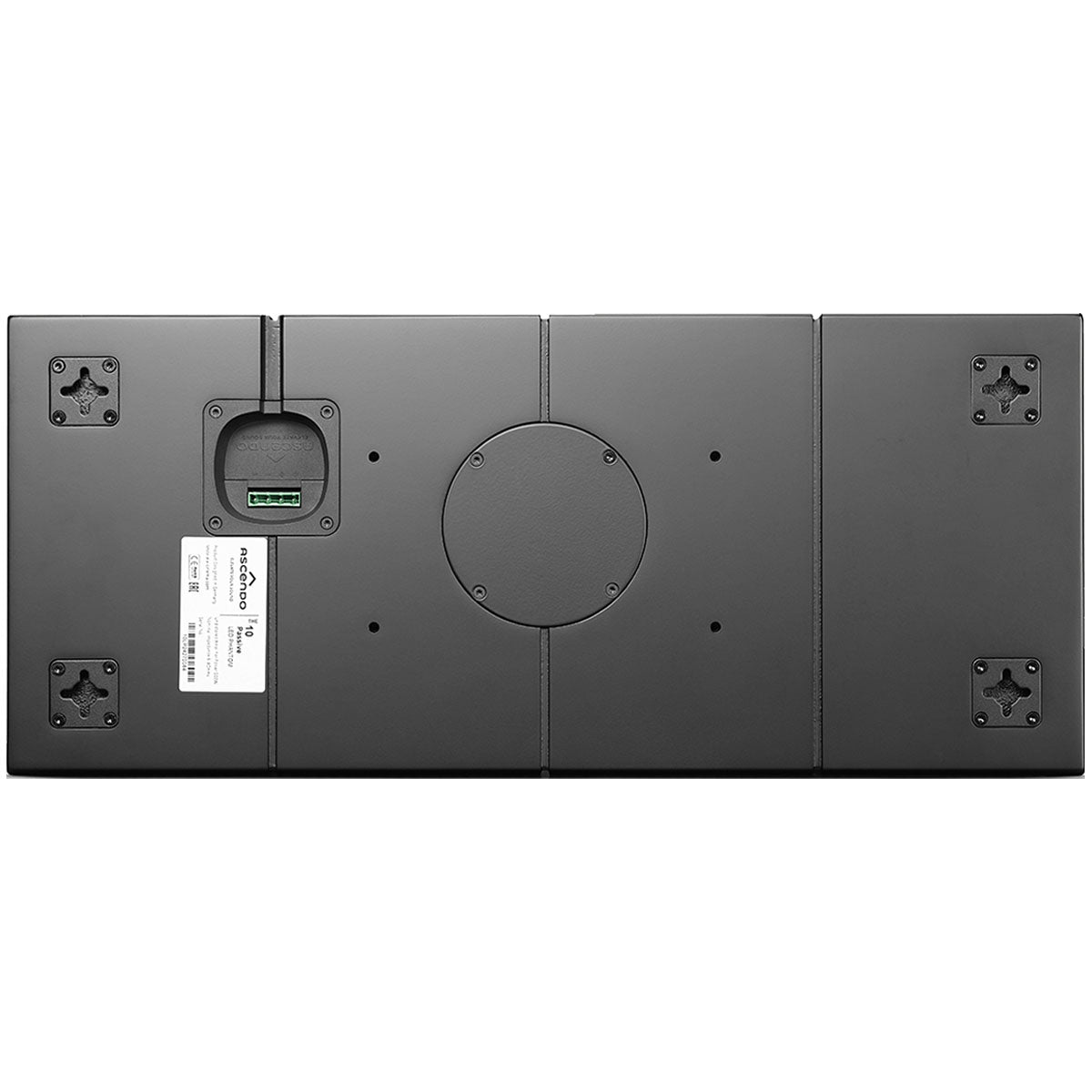

Mounting Metal wall or ceiling mounting brackets allowing further angling in two axes
8 x wall mount brackets for multiple hanging options
VESA 200 x 100 mounting points
