Marantz

AV7706 11.2 8K Ultra HD Surround Pre-Amplifier

Featuring 11.2 channel XLR and RCA pre-outs, the Marantz AV7706 supports your favorite 3D audio format like Dolby Atmos®, Dolby Atmos Height Virtualization, DTS:X®, DTS Virtual:XTM, IMAX Enhanced®, and Auro-3D®. For masterfully defined picture quality, an advanced HDMI section supports 8K/60Hz full-rate pass-through or upscaling, 4K/120Hz pass-through, 4:4:4 pure color, HDR10+, Dynamic HDR, and HDCP 2.3. Enjoy audio playback with exceptional quality thanks to Marantz- proprietary HDAM modules and stream from Pandora, Spotify, TIDAL, Deezer, and more with HEOS® Built-in. Ideal for custom integrations, the AV7706 features Control4 and an RS-232C serial port for third-party remote monitoring. Calibrate your listening environment with the full suite of Audyssey EQ tools and control the pre-amplifier with your voice through your favorite voice assistants.

Rating:
0%
$2,599.00
Free 2-Day Shipping
Learn More
Bread Checkout


Advanced 11.2 Channel Pre-Amplifier

Experience a versatile home theater setup with the new Marantz AV7706 processor/pre-amplifier. Featuring 11.2 channel XLR and RCA pre-outs, the AV7706 is built with masterful-quality external power amplification for the most demanding active speakers. Enjoy the audiophile sound you expect from Marantz combined with the latest video and audio decoding, as well as voice control with your favorite voice assistants.

Sophisticated Engineering

With 11.2 channel pre-outs on both conventional RCA sockets and balanced XLRs, the AV7706 is designed to work alongside high-quality external power amplifiers like the Marantz MM8077, MM7055, and MM7025. Not only is it a superb AV processor, but the AV7706 is also an extraordinary analog preamplifier with an HDAM circuit board. Using Marantz-proprietary HDAMs, the preamp section of the AV7706 provides optimal channel separation, minimum crosstalk, and enhanced signal-to-noise ratio for precise detail resolution and stereo imaging, while the ELNA capacitors of the analog section ensure exceptional power and dynamic ability.

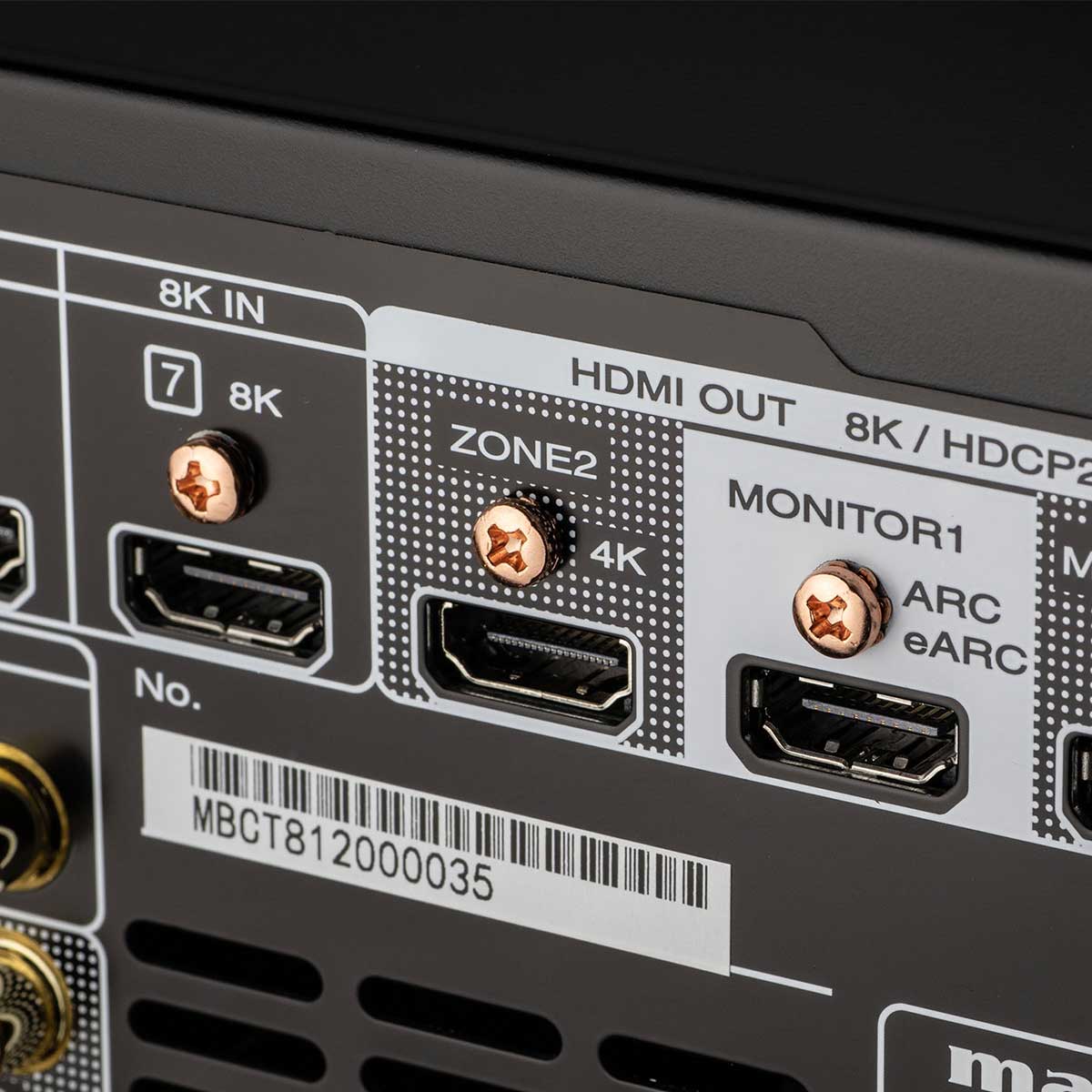

Advanced 8K HDMI Connectivity with eARC support

The new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, 4:4:4 Pure Color sub-sampling, Dolby Vision, HLG, HDR10, 21:9 video, 3D, and BT.2020 pass-through while the latest HDCP 2.3 copy protection standard is supported on all HDMI inputs. Showcasing all the latest HDMI technology and specifications, the AV7706 lets you take your home entertainment to the next level with HDR10+, Dynamic HDR, ALLM, VRR, QMS, and QFT support. The video processor can also upscale your native video source up to 8K quality. In addition, the AV7706 features HDMI eARC which supports 3D audio formats like Dolby Atmos® and DTS:X® in masterful quality from your TV source. For your convenience, your HDMI inputs automatically rename themselves with information provided by the source when available.

Full 3D Audio Support

Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X®, DTS Virtual:XTM, IMAX® Enhanced, and Auro-3D®.

Multichannel surround

  • DTS HD Master / DTS:X / DTS:X Pro - ✔️ / ✔️ / -
  • DTS Neo:X / DTS Neural:X - - / ✔️
  • DTS Virtual:X - ✔️
  • IMAX Enhanced - ✔️
  • Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization - ✔️ / ✔️ / ✔️
  • Dolby ProLogic Ilz / Dolby Surround - - / ✔️
  • Auro 3D - ✔️
  • Multichannel Stereo - ✔️
  • max. number of processing (preamp) channels - 11.2

Sound Enhancements

  • Copper plated chassis - no
  • Power Transformer: Toroidal / EI - - / ✔️
  • Current Feedback Topology - ✔️
  • Hyper Dynamic Amplifier Modules (HDAM) - ✔️
  • Pure Direct - ✔️
  • Gold plated RCA terminals - ✔️
  • Clock Jitter Reducer - ✔️
  • Audyssey MultEQ XT32 Audyssey Dynamic EQ / Dynamic Volume - ✔️ / ✔️
  • Audyssey LFC - ✔️
  • Compressed audio Enhancer: MDAX2 - ✔️

Network

  • HEOS Multi-room and Streaming - ✔️
  • Bluetooth Re-transmit for Bluetooth headphones - ✔️
  • Alexa / Google Voice Assistant / Apple HomePod - ✔️ / ✔️ / ✔️
  • Network Audio Sharing - ✔️
  • Lossy Formats: MP3 / WMA / AAC - ✔️ / ✔️ / ✔️
  • Lossless Formats: FLAC / ALAC / WAV - ✔️ / ✔️ / ✔️
  • Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 - ✔️ / ✔️ / ✔️
  • DSD Audio Streaming - ✔️ (2.8/5.6MHz)
  • FLAC HD 192/24 - ✔️
  • WAV 192/24 - ✔️
  • ALAC 192/24 - ✔️
  • Gapless Playback - ✔️ (FLAC, WAV, ALAC, DSD)
  • AirPlay Audio Streaming - ✔️ (AirPlay2)
  • Internet Radio - ✔️ (TuneIn)
  • Spotify - ✔️ (connect)
  • Pandora - ✔️
  • SiriusXM - ✔️
  • Other Streaming Services - Amazon Music HD / Amazon Music TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
  • Compatible with Remote APP for Smart Phones - Marantz 2016 AVR Remote
  • Compatible with Remote APP for Tablets - Android / iOS / Amazon Kindle
  • Ethernet Ports - ✔️
  • Wi-Fi - ✔️
  • Bluetooth - ✔️

HDMI

  • HDMI Inputs: Back / Front - 7 / 1
  • HDCP 2.3 support - ✔️
  • HDMI Outputs: Main / Zone - 2 / 1
  • Video Conversion Analog -> HDMI - ✔️
  • Analog to HDMI scaling - 480i/576i up to 8K 60/50
  • HDMI to HDMI scaling - up to 8K 60/50
  • GUI Overlay on HDMI - ✔️
  • 8K/60Hz / 4K/120Hz - ✔️ / ✔️
  • 3D / 4K / CEC / ARC / - ✔️ / ✔️/ ✔️ / ✔️
  • Enhanced ARC - ✔️
  • HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR - ✔️ / ✔️ / ✔️ / ✔️ / ✔️
  • ALLM (Auto Low Latency Mode) Pass-through for gaming - ✔️
  • Variable Refresh Rate / Quick Flame Transport / Quick Media Switching - ✔️ / ✔️ / ✔️
  • 3D signal pass-through - ✔️
  • 8K signal pass-through / scaling / GUI overlay - ✔️ / ✔️ / ✔️
  • 4K signal pass-through / scaling / GUI overlay - ✔️ / ✔️ / ✔️
  • HDMI pass-though in standby mode - ✔️
  • Picture adjust / Noise reduction - ✔️ / ✔️
  • CEC - ✔️
  • DSD Audio capability - ✔️
  • Audio Return Channel - ✔️
  • Auto LipSync - ✔️

Multiroom / CI

  • HEOS Multi-Room Integrated - ✔️
  • HEOS Link Compatibility: IR/ IP - ✔️ / ✔️
  • Multi-Room zones 3 Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog - ✔️ (2ch) / ✔️ (2ch) / ✔️ / ✔️
  • Zone Audio Output: Speaker / Preout - - / ✔️
  • Zone HDMI Output from HDMI Source - ✔️
  • IP Control / RS232 Control / Web Control / App Control - ✔️ / ✔️ / ✔️ / ✔️
  • IR Flasher In - ✔️
  • Marantz Remote Bus - ✔️
  • DC Trigger Output 2 HDMI Diagnostics - ✔️

Others

  • Auto Speaker Setup by Microphone - Audyssey MultEQ XT32
  • FL Display - 2 lines + Port Hole
  • Graphic User Interface - Advanced
  • ISF Certification - ✔️
  • GUI Languages - 3
  • Setup Assistant - ✔️
  • Smart Select - ✔️
  • Firmware Update by Network / USB - ✔️ / ✔️
  • Variable Cross Over - ✔️
  • Optimized Bass Redirection - ✔️
  • Bass Sync - ✔️
  • ECO Mode - Auto Power Off - ✔️
  • Sleep Timer - ✔️
  • Video Inputs/Outputs Composite In / Out - 3+1 / 2
  • Component In / Out - 3 / 1
  • HDMI In / Out - 7+1 / 3
  • Multi-Room Video Out: Video / HDMI - ✔️ / ✔️

Audio Inputs/Outputs

  • Analog In / Out - 5+1 / -
  • Phono (MM) In - ✔️
  • Digital In: Optical / Coaxial - 2 / 2
  • Multi-Room Out: Analog / Digital - 2 / -
  • Multichannel Pre Out - ✔️ (11.2 RCA & 11.2 XLR)
  • Subwoofer Out - 2 (independent)
  • 7.1 Multichannel Input - ✔️

Other

  • Speaker A / B - assignable pre out
  • Bi-amp drive - assignable pre out
  • Multi-Room Speaker Terminal - pre out
  • Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB - ✔️ / ✔️ / - / ✔️ / ✔️
  • USB Audio / Made for iPod / Made for iPhone - ✔️ / - / -
  • AM/FM Tuner - ✔️

General

  • Metal Front Panel - ✔️
  • System Remote Control RC044SR Pre-Programmed / Learnable / LCD Display - ✔️ / - / -
  • Power Consumption in W - 60
  • Power Consumption No-Sound (ECO on / off) in W - n/a
  • Standby Consumption in W - 0.2
  • CEC Standby Consumption in W - 0.5
  • Network Standby Consumption in W - 3.5
  • Network Control On Consumption in W - n/a

Maximum Dimensions

  • Antenna:Horizontal:(W x D x H) - 17.3 x 16.2 x 7.3"
  • Antenna:Vertical:(W x D x H) - 17.3 x 16.2 x 9.7"
  • w/o Antenna:(W x D x H) - 17.3 x 15.8 x 7.3"
  • Weight in lbs - 22.9
More Information
MPNAV7706/U1B
UPC699927211851
Weight22.90 lbs
FeaturesAdvanced Room EQ, Apple Airplay 2, Bi-Wire Output, Bluetooth Enabled, Built-In Phono Stage, Component Video Inputs, Composite Video Inputs, Dolby Atmos, Dolby Digital, DSD Capable, DTS:X, Dual HDMI Out, Ethernet Port, HDCP 2.2 for 4K Video, HDMI Inputs, MM Compatible, Multiple Outputs, Multi Room, Phono Input, Preamp Outputs, Spotify Connect, Surround Processing, 8K Resolution
Color OptionsBlack
