Item #Sonata3

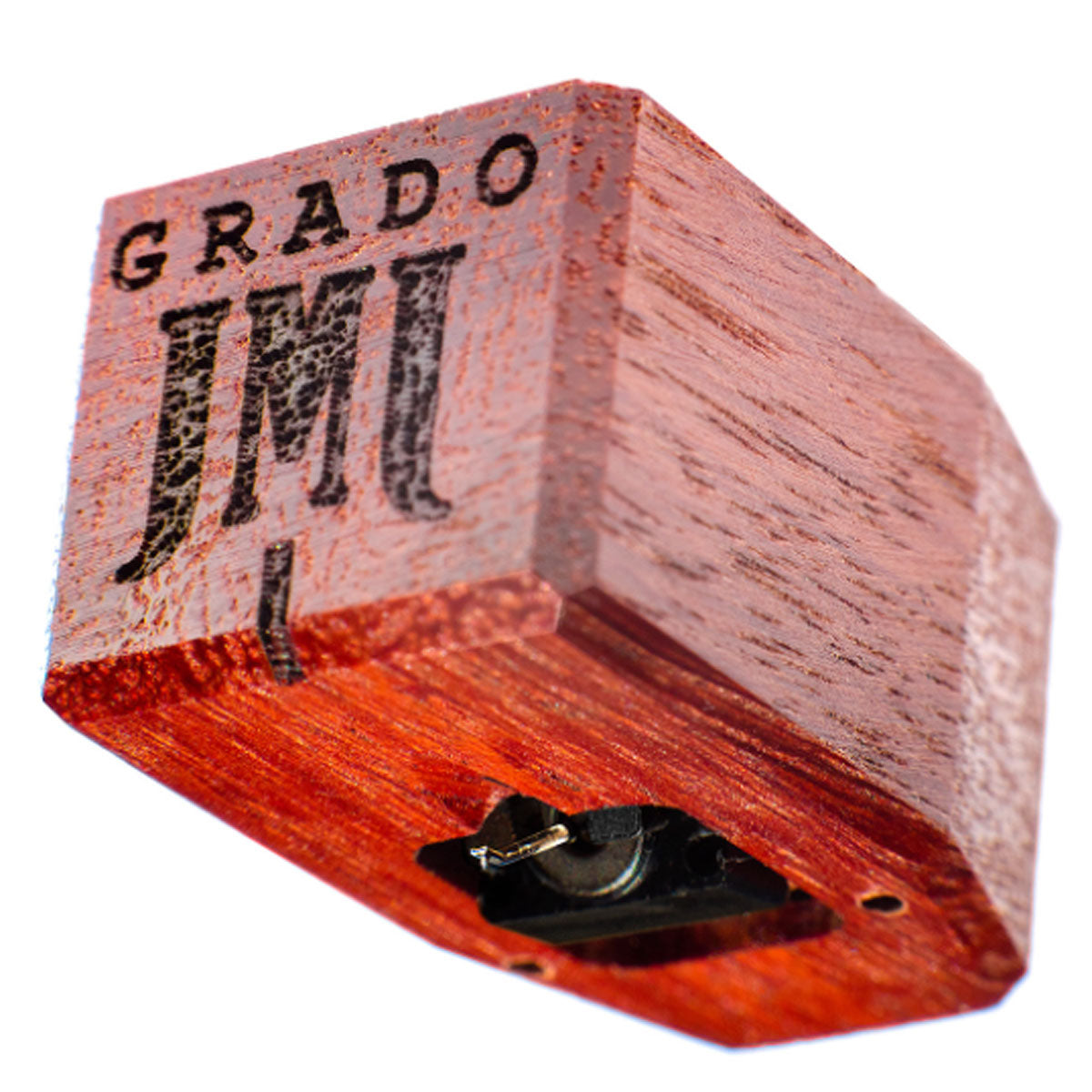

Grado Sonata3

Moving Iron Phono Cartridge - Low Output
Item #Sonata3

Grado Sonata3

Moving Iron Phono Cartridge - Low Output
$600.00
In Stock: Free 2-Day Shipping

Overview

The Platinum3 model uses Grado's specially designed elliptical diamond, and the Sonata3 model uses Grado's specially designed nude elliptical diamond.

The Platinum3 and Sonata3 models use a modified four piece OTL cantilever technology achieving a 10% tip mass reduction over the Prestige series and ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils.

Details & Specs

Body: Australian Jarrah Wood
Cantilever: Aluminum / Elliptical Diamond
Output:
High 4.0mV @5 CMV (45)
Low 1.0mV @5 CMV (45)
Inductance:
High Output 55mH
l
Low Output 6mH
Resistance:
High Output 660 ohms
Low Output 70 ohms
Input Load: 10k-47k ohms
Cartridge Weight: 9 grams
Tracking Force: 1.6-1.9 grams
Compliance: 20μm/mN
Channel Seperation: Average 30db - 10-30k Hz
Controlled Frequency Response: 10-60 KHz
Non-Sensative to Capacitative Load
Builds: High Output, Low Output, Mono
