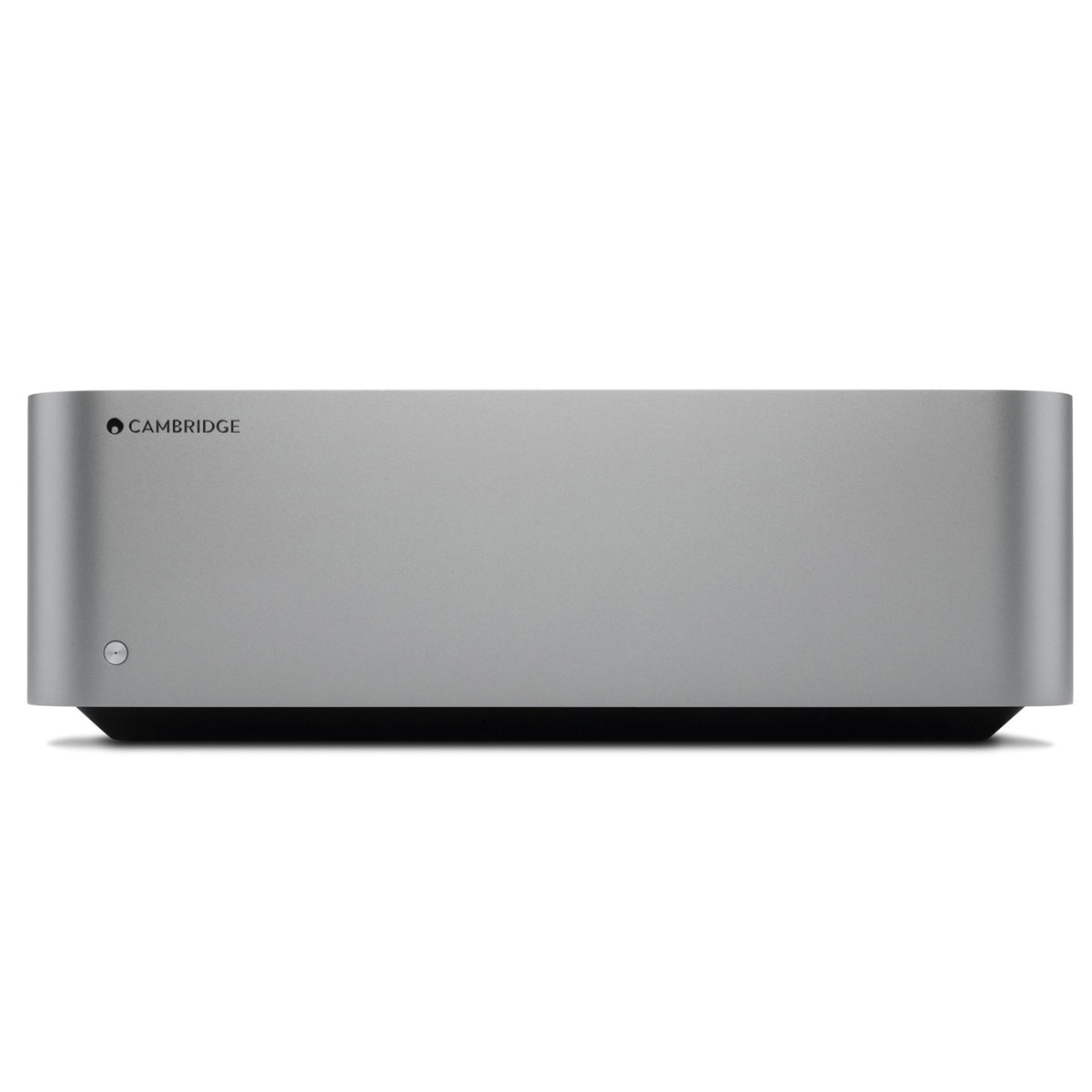

Edge W Power Amplifier
Edge W is made to be played loud. When you do turn it up, expect nothing but a dynamic and punchy sound that captures all the musicality of your songs. With just 14 hand-picked components, Edge W has one of the cleanest signal paths available. It delivers breath-taking, unadulterated British sound — nothing added, nothing taken away.
Special Order: Extended Delivery TimeLearn More
- Edge W's sound is finely balanced, with a musical depth and clarity that comes through with every note. It's all down to how they chose the componentry inside – nothing was picked on price, specs or measured performance. The end result is a power amplifier that truly brings an original recording to life like no other.
- Although minimal in its exterior design, Edge W has some complex audio engineering inside. To remove the barriers between you and your music, Cambridge worked hard to minimize the number of components in the signal path.
- Cambridge pioneered the use of toroidal transformers in amplifiers, which led to improved performance. In Edge they take this one step further, using opposing symmetry twin toroidal transformers. This cancels out electromagnetic interference whilst offering outstanding power and maintaining consistent tonality, no matter how loud it's played.
- Using standard Class A amplifier technology wasn't going to be efficient enough for Edge W. Instead they added a bias voltage to a traditional Class AB design, reducing distortion to inaudible levels. This unique configuration also produces less heat and makes the whole system much more effective.
|Power Per Channel||200W / 100W (4 Ohms / 8 Ohms)|
|Number of Channels||2|
|THD Stereo||<0.002% @ 1kHz (8 Ohms); <0.02% @ 20Hz 20kHz (8 Ohms)|
|Signal To Noise Ratio||93 dB|

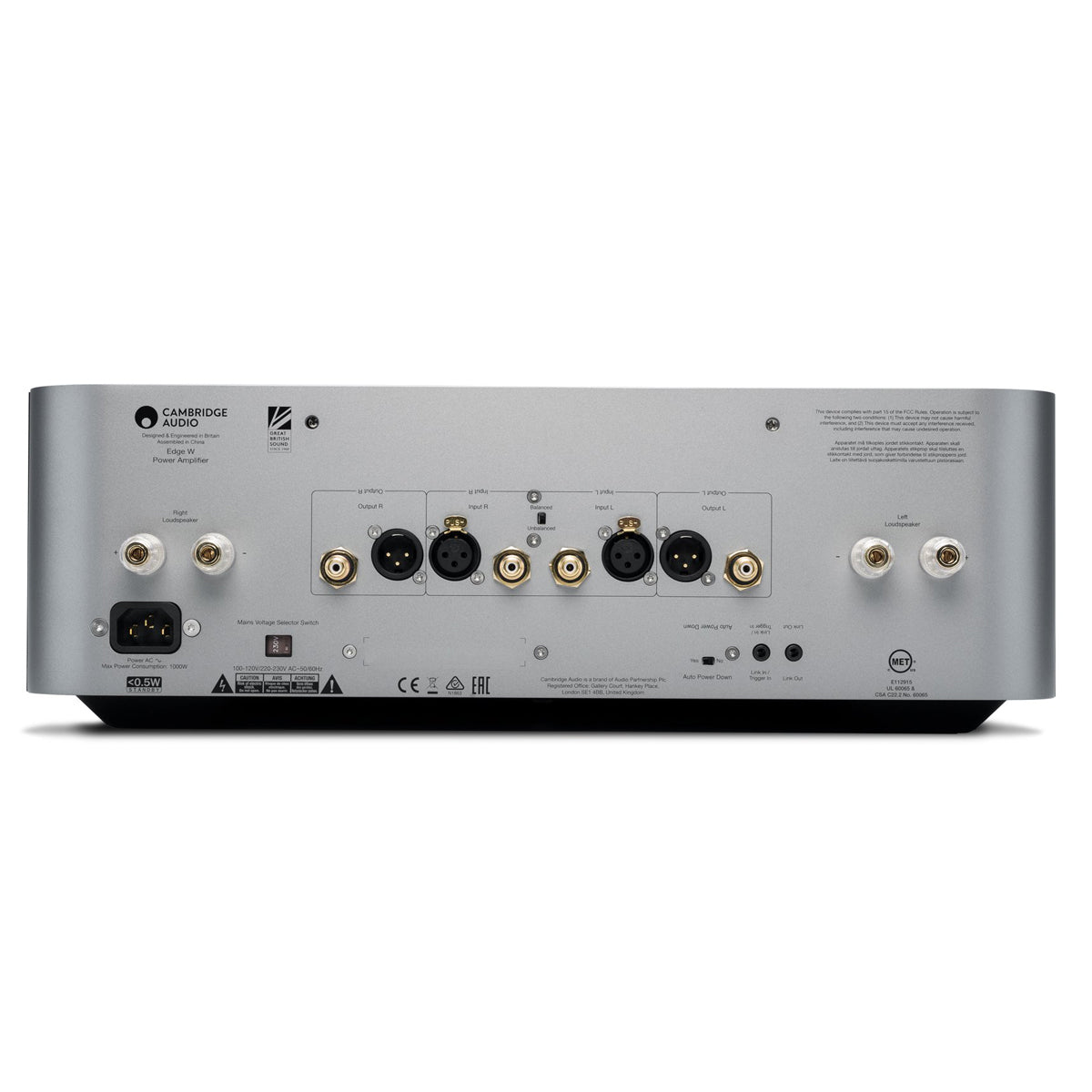

|Inputs||1 Relay Trigger (3.5-mm Mono Jack),2 Balanced XLR, 2 Unbalanced Coaxial|
|Number of Outputs||2 Pairs Speaker Binding Posts, 2 Balanced XLR, 2 Unbalanced Coaxial, 1 Loop Out (3.5-mm Mono Jack)|
|Max Power Consumption||1000W|
|Power Requirements||AC 120 V, 60 Hz|
|Features||Balanced Inputs, Stereo, 12v Trigger|
|Warranty||2 Years (Standard); 5 Years (w/ product registration)|
