The five most common Dolby Atmos setup mistakes are: placing height speakers in the wrong location, mounting bed-layer surrounds too high, using standard music speakers instead of dedicated height speakers, letting ceiling studs force bad speaker positions, and making a simple calibration error during setup. This guide explains each mistake and shows you exactly how to fix it.

It's hard to believe it has been over a decade since Pixar's Brave (2012) introduced Dolby Atmos in the cinema, and over ten years since Transformers: Age of Extinction (2014) brought that same immersive experience into living rooms on Blu-ray. At its core, Dolby Atmos is a revolution in how we experience sound.

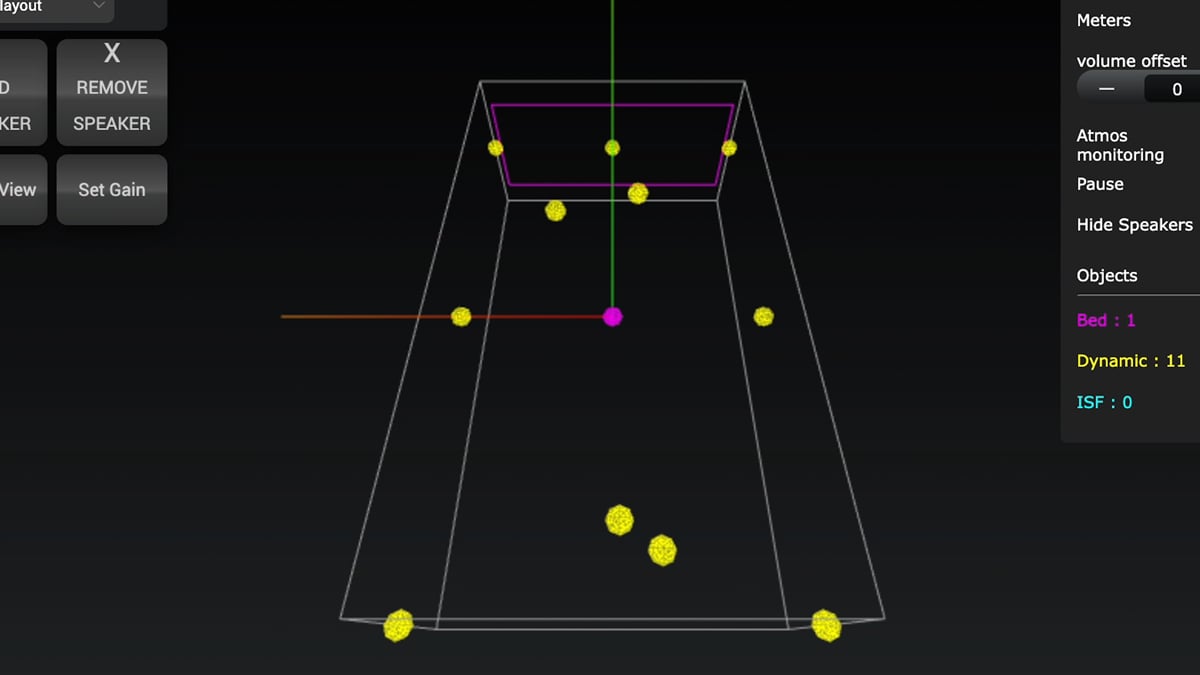

Traditional 5.1 or 7.1 surround systems send audio to fixed channels. Atmos is different — it is object-based, meaning a sound engineer can place a sound (a raindrop, a helicopter, a whisper) at a precise point in 3D space. To recreate that at home, you need height channels. Without the vertical dimension, the immersive "bubble" of sound collapses entirely.

We've seen home theaters where owners spent thousands of dollars on gear but completely missed the mark on implementation. The problems were never about cost — they were about approach.

Here are the five most common Dolby Atmos setup mistakes and exactly how to fix each one.

Mistake #1

Placing Height Speakers in the Wrong Location

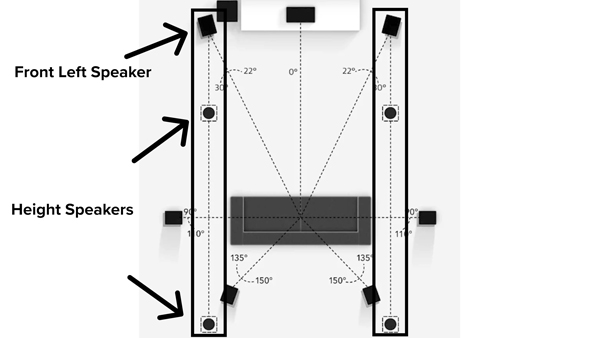

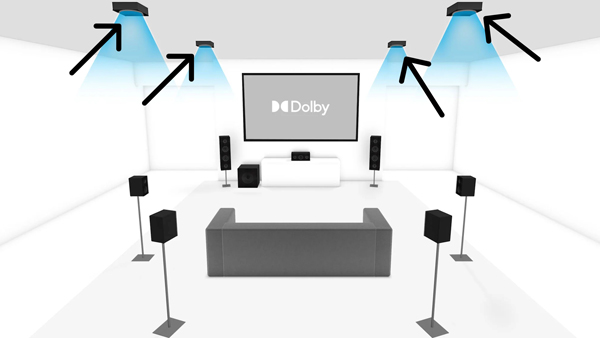

Most people start their Dolby Atmos journey by looking at the placement diagrams on the Dolby website. Those are a useful starting point, but they are completely generic. Many show height speakers perfectly in line with your front left and right towers — and while that's sometimes right, it often isn't, depending on your room's width and ceiling height.

Why This Matters

Ceiling height and room width both directly affect the ideal angle at which height speakers should fire toward your ears. A room that is 12 feet wide needs different height speaker placement than a room that is 18 feet wide. Treating them the same is one of the most common and costly mistakes in Atmos setup.

The Fix: Use a Room Design Tool That Does the Math for You

Our free and patented Home Theater Designer tool handles the trigonometry automatically. It adjusts height speaker locations based on your specific room dimensions and lets you choose between optimizing for the Main Listening Position (MLP) or the whole room:

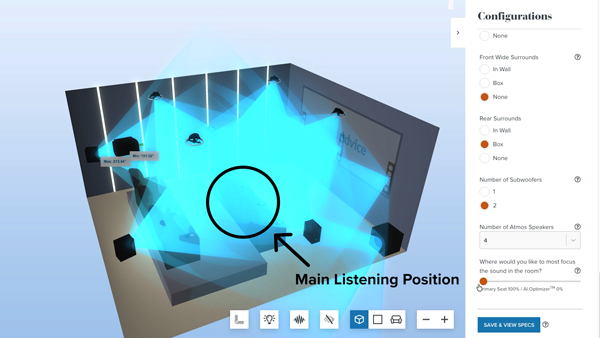

• If it's usually just you and a partner — focus the tool on the MLP for the sharpest imaging.

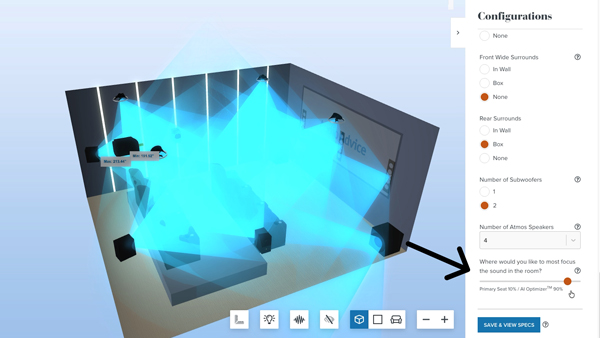

• If your room is always full of people — slide the Immersion toggle right to optimize angles for every seat in the room.

Mistake #2

Mounting Surround Speakers Too High

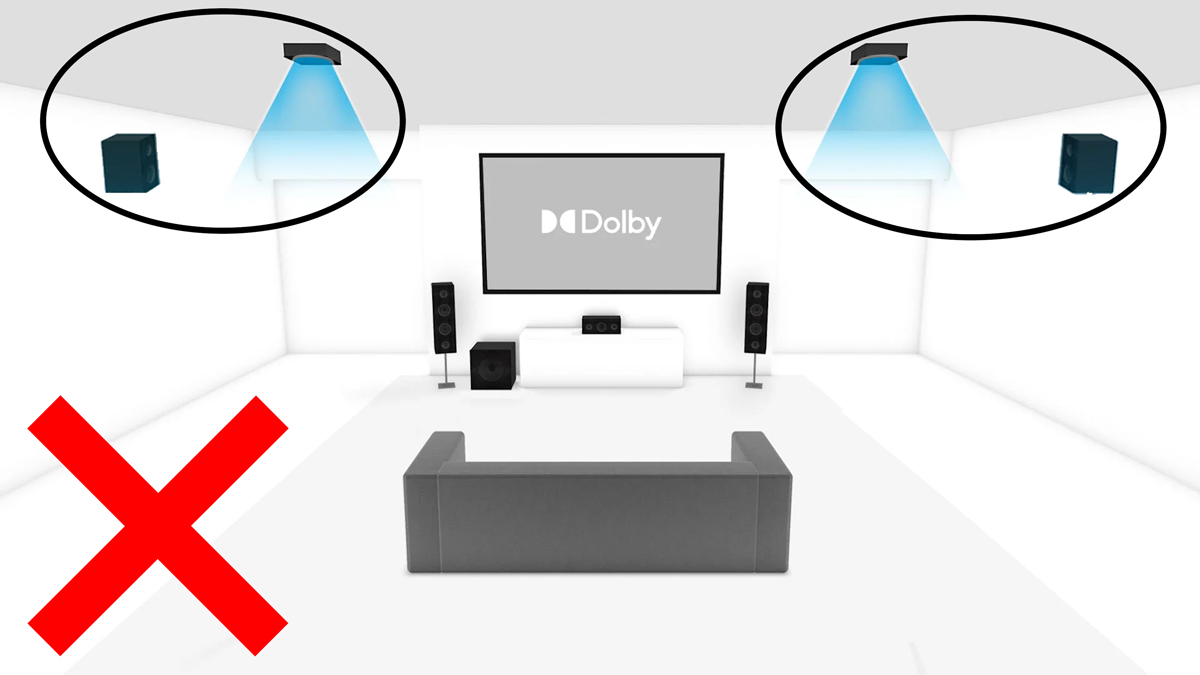

This mistake is most common in home theaters being upgraded to Dolby Atmos from an older 5.1 or 7.1 system. The old guidance was to mount surround speakers high on the wall — or even in the ceiling — to create a sense of diffusion. In an Atmos setup, that approach is actively harmful.

Why This Matters

Atmos works by exploiting your brain's ability to distinguish vertical separation between sounds. If your side or rear surrounds are too high, there isn't enough vertical gap between them and your height speakers. Your brain loses the ability to tell the difference between a sound at wall level and a sound at ceiling level — and the entire overhead effect collapses.

The Fix: Bring the Bed Layer Down to Ear Level

Your surround speakers (the "bed layer") should be mounted at or just slightly above ear level when seated. Before cutting any holes for height channels, verify your surround positions are correct. In some cases, your existing surround speakers may already be close to where the new height channels need to go — in which case it makes more sense to repurpose them as height speakers and install new surrounds at the proper ear-level height.

Mistake #3

Using Standard Music Speakers as Atmos Height Channels

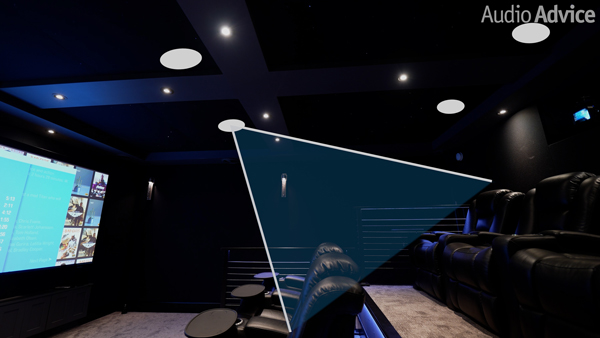

One of the most common — and most damaging — errors we see is homeowners purchasing standard in-ceiling speakers for their Atmos height channels. These speakers are engineered to fire sound straight down at the floor. When you are sitting 5 or 6 feet away from one, you are not in its on-axis listening window, and the sound will arrive at your ears dull, blurred, and missing critical high-frequency detail.

Why This Matters

For Dolby Atmos to create genuine spatial immersion, high frequencies must arrive at your ears directly and on-axis. If the tweeter is pointing at your carpet instead of your head, you are experiencing a significantly degraded version of the format — regardless of how much you spent on everything else in the system.

The Fix: Choose Speakers Designed for Height Channels

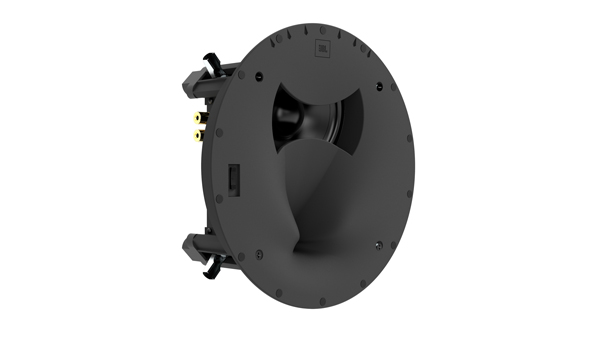

You need in-ceiling speakers with an angled baffle — specifically designed so you can physically aim the woofer and tweeter toward the seating area. With the widespread adoption of Dolby Atmos, there are now excellent options across every price range.

We always recommend matching your height speakers to your main speaker brand for tonal consistency. If your main speaker brand does not offer a suitable height speaker, we would rather see you choose a compatible model from another brand than compromise on this critical specification.

Mistake #4

Letting Ceiling Studs Dictate Speaker Placement

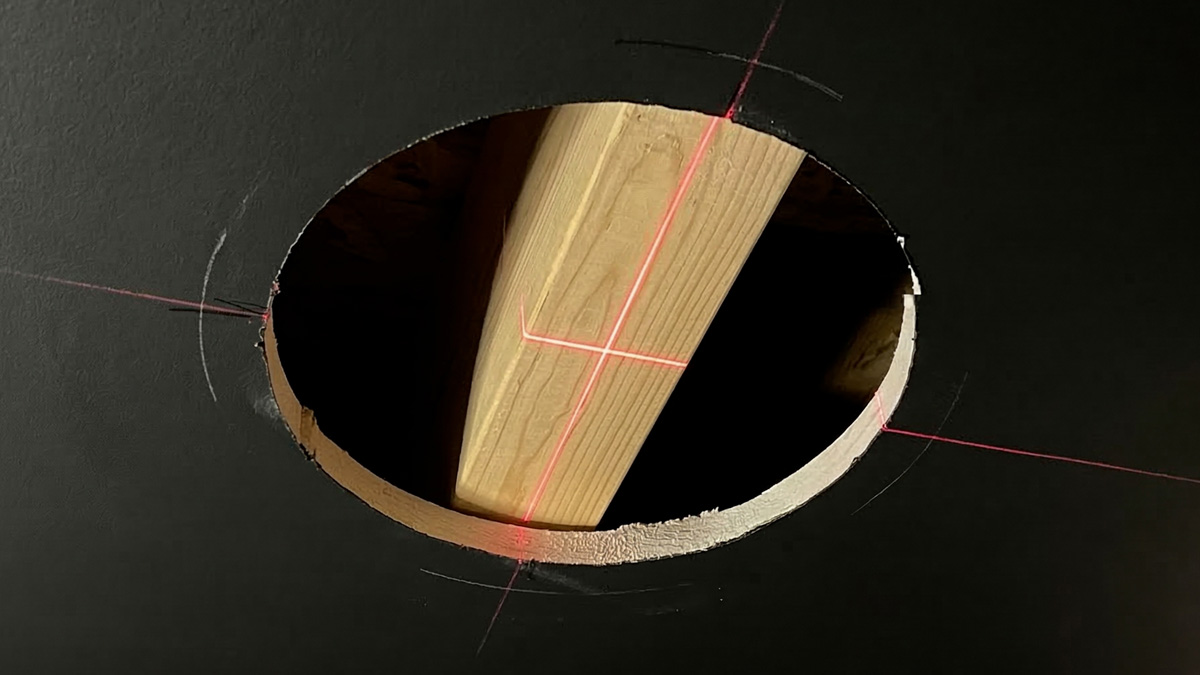

Nothing derails a weekend installation project like discovering a ceiling joist sits exactly where the design tool says your height speaker needs to go. The most common response is to simply shift the speaker to the nearest open spot — and that small compromise can significantly reduce the effectiveness of the whole system.

The Fix: Adjust the Design, Not Just the Drill Bit

Open the Home Theater Designer and use the Immersion Slider to recalculate the ideal position around the obstruction. Moving speakers slightly wider or narrower (left to right) is almost always a far better acoustic compromise than moving them front to back. The tool lets you find a new optimal position that avoids the stud while maintaining maximum immersion quality.

Mistake #5

Incorrect Microphone Placement During Calibration

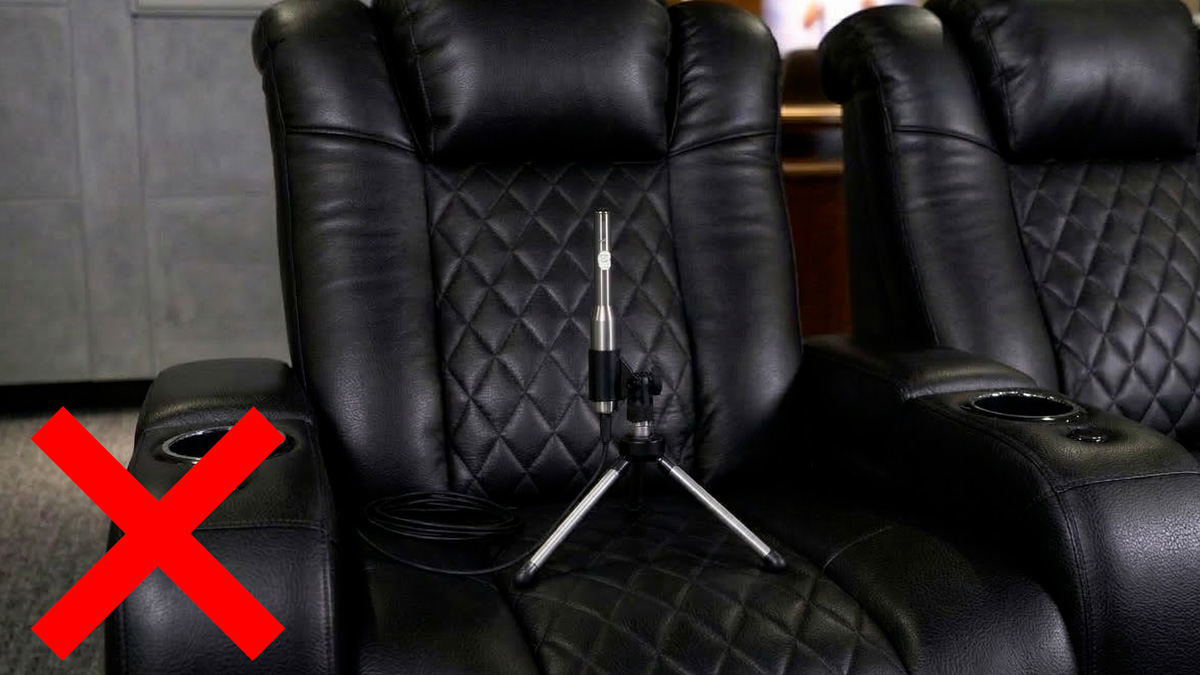

You've designed the room correctly. You bought the right speakers. You avoided the studs. Then you undermine all of that work in the final step: calibration. Most modern AV receivers include a microphone and auto-calibration system (Audyssey, YPAO, MCACC, etc.) to measure and tune the room. A critical — and very common — mistake is placing the microphone on the seat or just in front of an upright headrest.

Why This Matters

A high-back headrest directly blocks and reflects sound from your Atmos height and surround speakers before it reaches the microphone. The receiver "hears" a distorted picture of your room — reduced high frequencies, confused speaker distances — and then applies incorrect corrections. The result is a calibration that actively fights against your speaker positions rather than optimizing them.

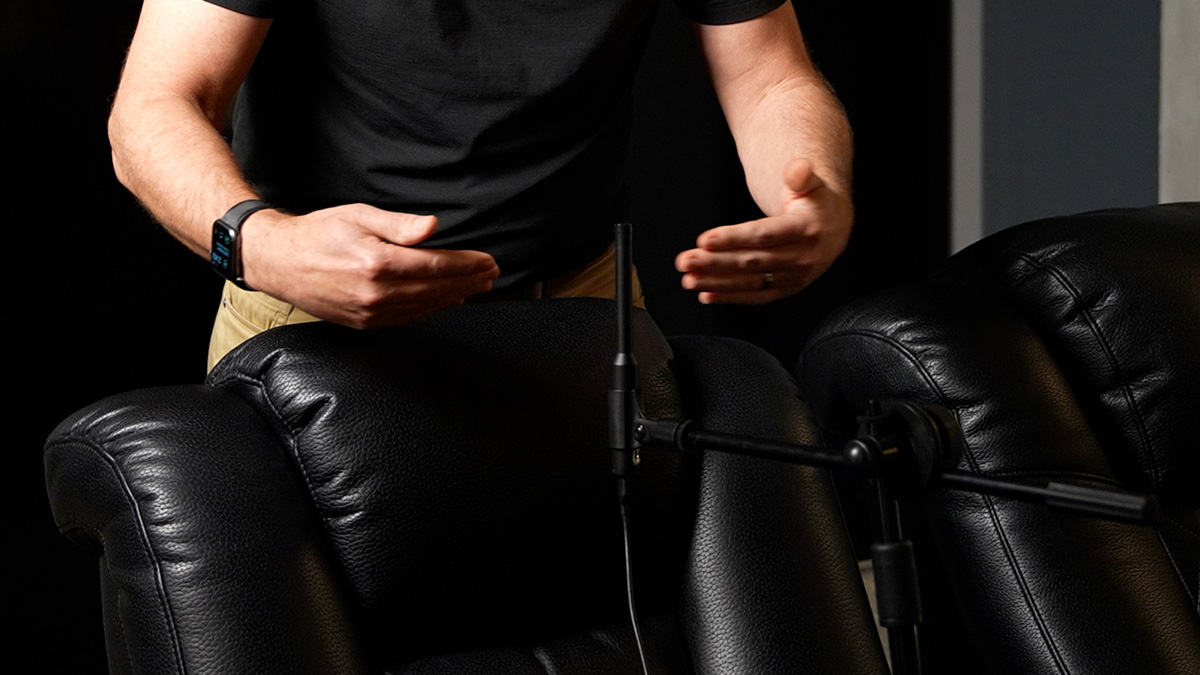

The Fix: Recline the Chair and Use a Boom Stand

Before running calibration, recline the seat completely so the headrest is no longer in the microphone's line of sight. Ideally, use a camera tripod or boom stand to position the microphone precisely at ear height for a seated listener. This clears every obstruction so the microphone accurately "sees" each speaker exactly as your ears will during playback.

Quick Reference: Dolby Atmos Setup Mistakes at a Glance

Frequently Asked Questions About Dolby Atmos Setup

Where should Dolby Atmos height speakers be placed?

Dolby Atmos height speakers should be placed at angles that direct sound toward the main listening position, accounting for both ceiling height and room width. The exact position varies by room — Dolby's generic diagrams are a starting point, but a room-specific design tool will calculate the precise angles and measurements needed for your space.

How high should surround speakers be mounted in a Dolby Atmos system?

In a Dolby Atmos system, surround speakers (the bed layer) should be mounted at or just slightly above ear level when seated — typically around 2 to 3 feet above the floor when the listener is seated. Mounting them high on the wall or in the ceiling, as was common in older 5.1 setups, destroys the vertical separation that Atmos depends on.

Can I use regular in-ceiling speakers for Dolby Atmos?

Standard in-ceiling speakers are not suitable for Dolby Atmos height channels. They fire straight down toward the floor, so listeners seated several feet away are outside the speaker's optimal listening angle. Atmos height channels require speakers with an angled baffle that can be physically aimed at the seating area.

What causes poor Dolby Atmos calibration results?

The most common calibration error is placing the measurement microphone in front of a high-back headrest. The headrest blocks sound from height and surround speakers, causing the receiver to measure an incorrect room acoustic profile and apply compensations that degrade performance. Always recline the chair and position the microphone at ear height with a stand.

How many Dolby Atmos height speakers do I need?

Most modern AV receivers support one, two, or three pairs of height speakers. The right number depends on your room size, ceiling height, and listening goals. For most residential home theaters, two pairs of height speakers (a 7.1.4 configuration) provide an excellent balance of immersion and cost.

Final Thoughts: Dolby Atmos Rewards Precision

Dolby Atmos is the most transformative advancement in home cinema audio in decades. When a system is properly designed and calibrated, it doesn't just sound better — the experience is categorically different. But the format is unforgiving of the five mistakes outlined above.

The good news is that every one of these mistakes is completely avoidable with the right tools and the right information. Use our free Home Theater Designer to get speaker placement right from the start, choose speakers built specifically for height channels, keep your bed layer at ear level, work around studs intelligently, and take calibration seriously.

Do those things, and you won't just hear the difference — you'll feel it.
