Klipsch Heritage Active Crossover

for Klipschorn AK7 or La Scala AL6

Klipsch Heritage Active Crossover

for Klipschorn AK7 or La Scala AL6
$3,499.00
Select Speaker Type


Overview

For over 75 years, the Klipschorn and La Scala have set the standard for high-efficiency home audio. Now, Klipsch is taking their performance to the next level with the Heritage Active Crossover, a cutting-edge DSP active crossover network designed specifically for the latest Klipschorn AK7 and La Scala AL6 models.

PRECISION-ENGINEERED FOR LEGENDARY PERFORMANCE

Tuned by legendary acoustician Roy Delgado, this advanced crossover builds upon innovations from the acclaimed Klipsch Jubilee, delivering unparalleled time and phase alignment, balanced EQ, and true-to-source response.

TWO MODELS, OPTIMIZED FOR KLIPSCHORN AK7 & LA SCALA AL6

The Heritage Active Crossover is available in two distinct versions, each custom-tuned for Klipschorn AK7 and La Scala AL6 loudspeakers. Both versions use advanced DSP technology to precisely manage crossover points, ensuring a seamless transition between frequency bands while preserving the power, detail, and realism these speakers are known for.

SUPERIOR BALANCE & CUSTOMIZATION

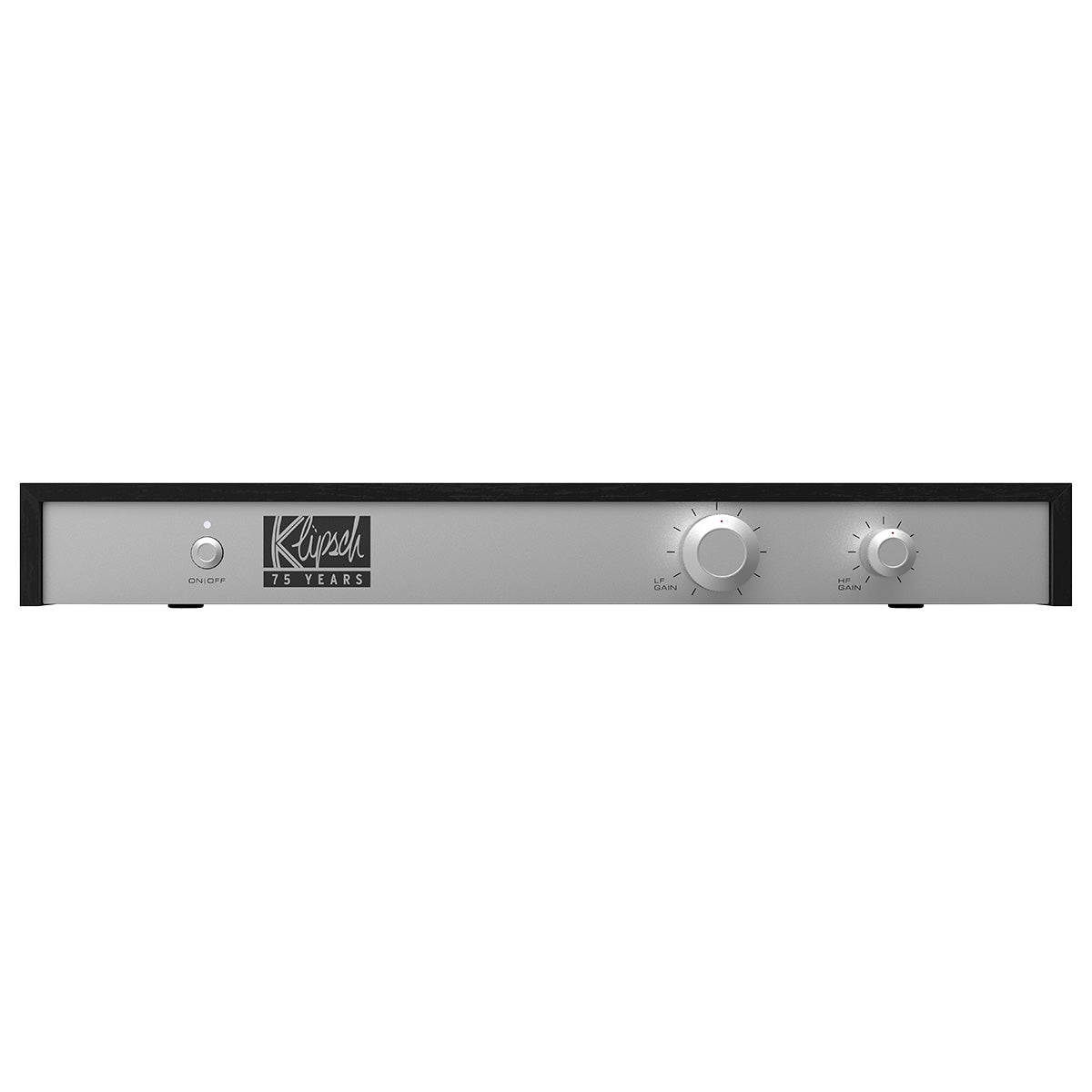

The Heritage Active Crossover offers user-adjustable Low-Frequency (LF) and High-Frequency (HF) gain controls, allowing listeners to fine-tune the system. This ensures optimal performance across different audio setups, enhancing clarity and tonal accuracy without introducing coloration.

SYNCHRONIZED SOUND

Utilizing advanced signal processing, the Heritage Active Crossover not only refines crossover filtering but also delays the signal to individual drivers, ensuring all frequencies arrive at the listener’s ears in perfect alignment—resulting in an incredibly immersive listening experience.

Details & Specs

Model Klipsch Heritage Active Crossover
Frequency Response 34Hz-20kHz (+/- 2.5 dB), 1/8 space anechoic
Inputs 2x Balanced XLR, 2x Unbalanced RCA
XLR Impedence: 10kOhm with RFI Protection, Max. Input Level: 4Vrms
RCA Impedence: 10kOhm, Max Input Level: 2Vrms
Input Options Auto Power Switch, Balanced/Unbalanced Input Switch, -9-0dB Pad Switch

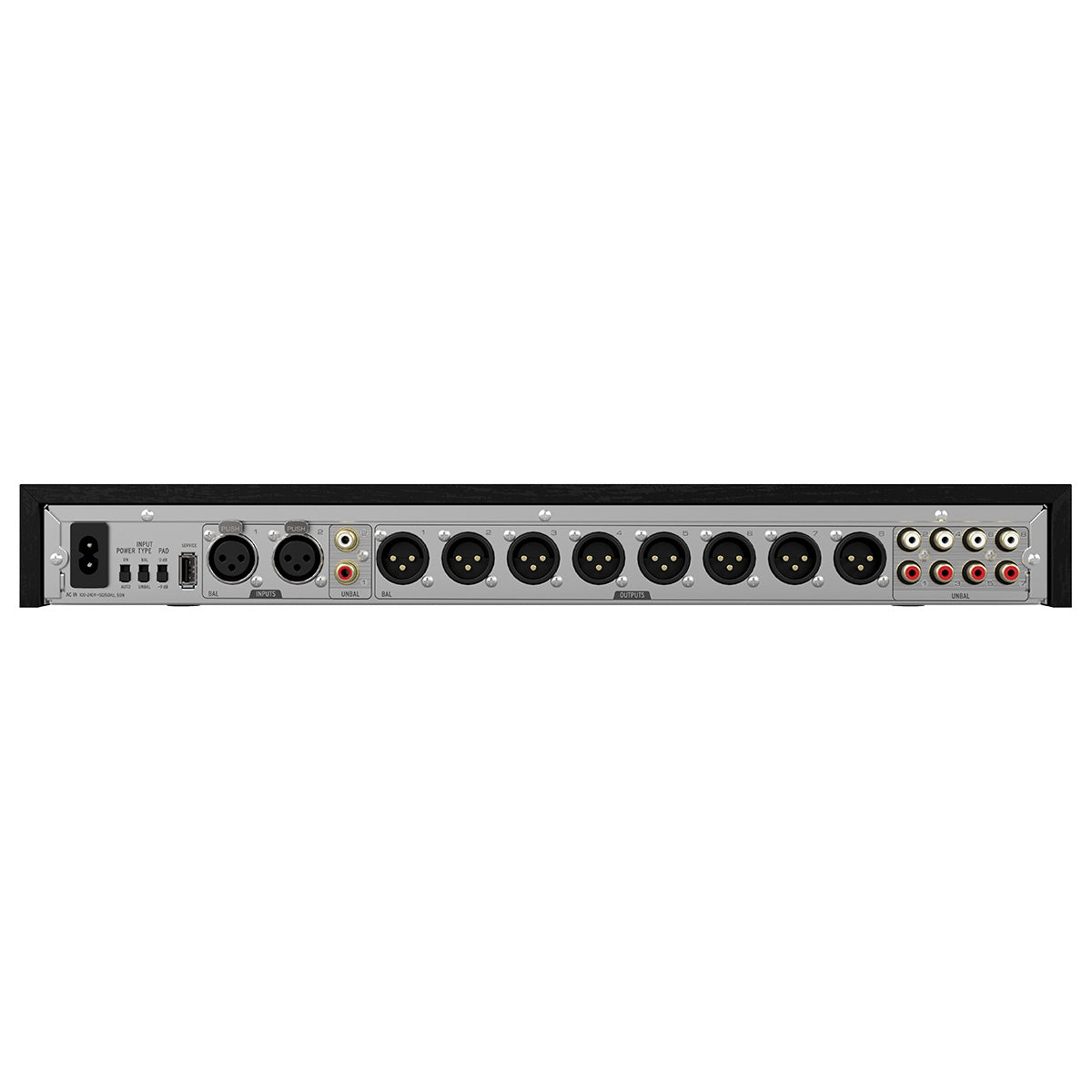

Outputs 8x Balanced XLR, 8x Unbalanced RCA
Output Specs Full Scale THD (balanced) = -105dB = 0.0005%
20-20kHz THD @ 1Vrms =-95dB = 0.001%
Dynamic Range ≥ 115dB
Signal to Noise = 115dB
Power Figure-8 IEC, AC 100-240V ~50/60Hz, 50W
Enclosure Material Veneered MDF, 1/2" plywood, steel front plate
Dimensions (H x W x D) 2.75" x 17" x 14.125" (70mm x 432mm x 359mm)
Weight 8.9lbs (4kg)
Finish Black Ash
