Astell&Kern OPEN BOX SEM2 All-in-one Module for SE180-Excellent Condition

All-in-one Module for SE180

Astell&Kern OPEN BOX SEM2 All-in-one Module for SE180-Excellent Condition

All-in-one Module for SE180
Was $349.00 $299.00
Save $50
In Stock: Free 2-Day Shipping
Contact Us

Overview

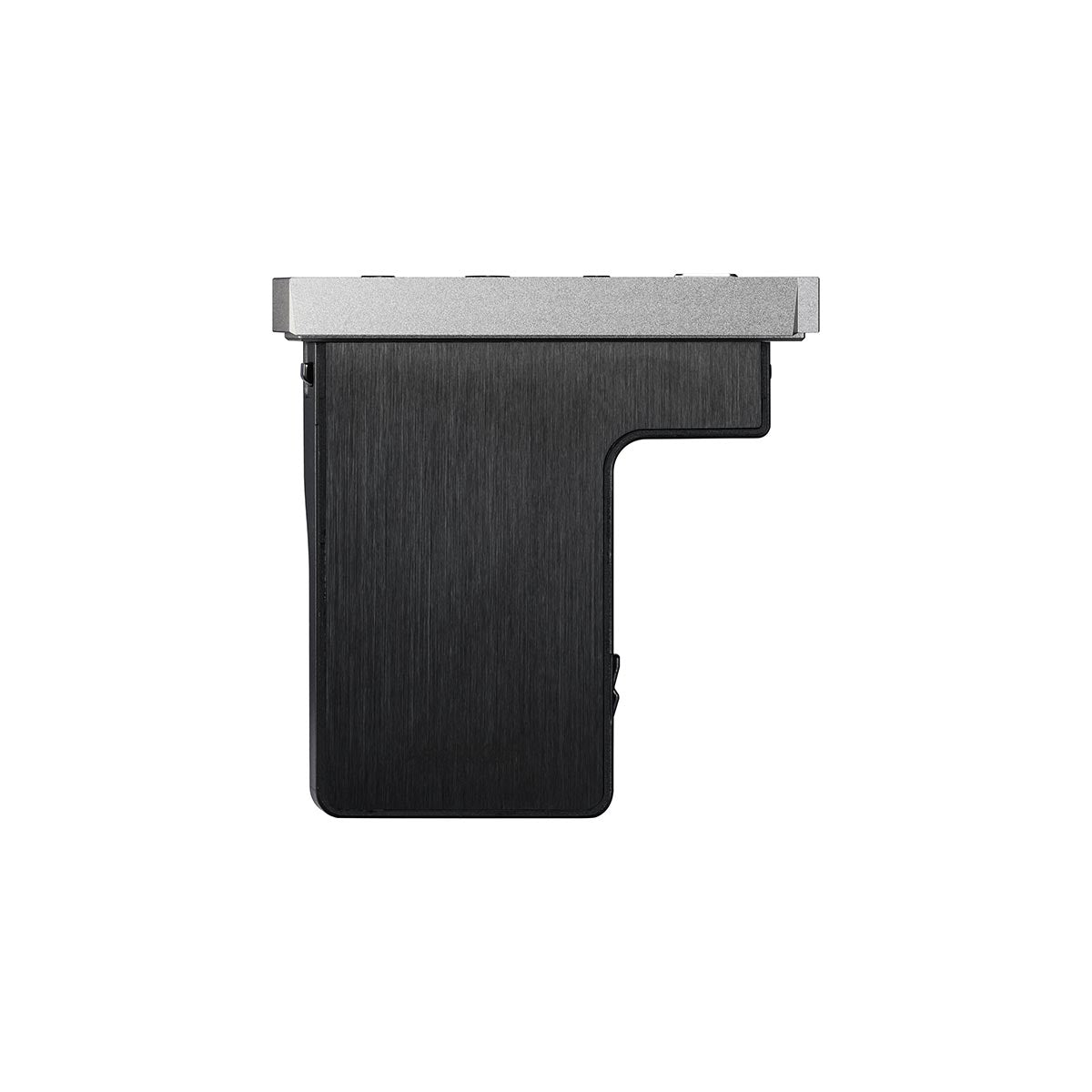

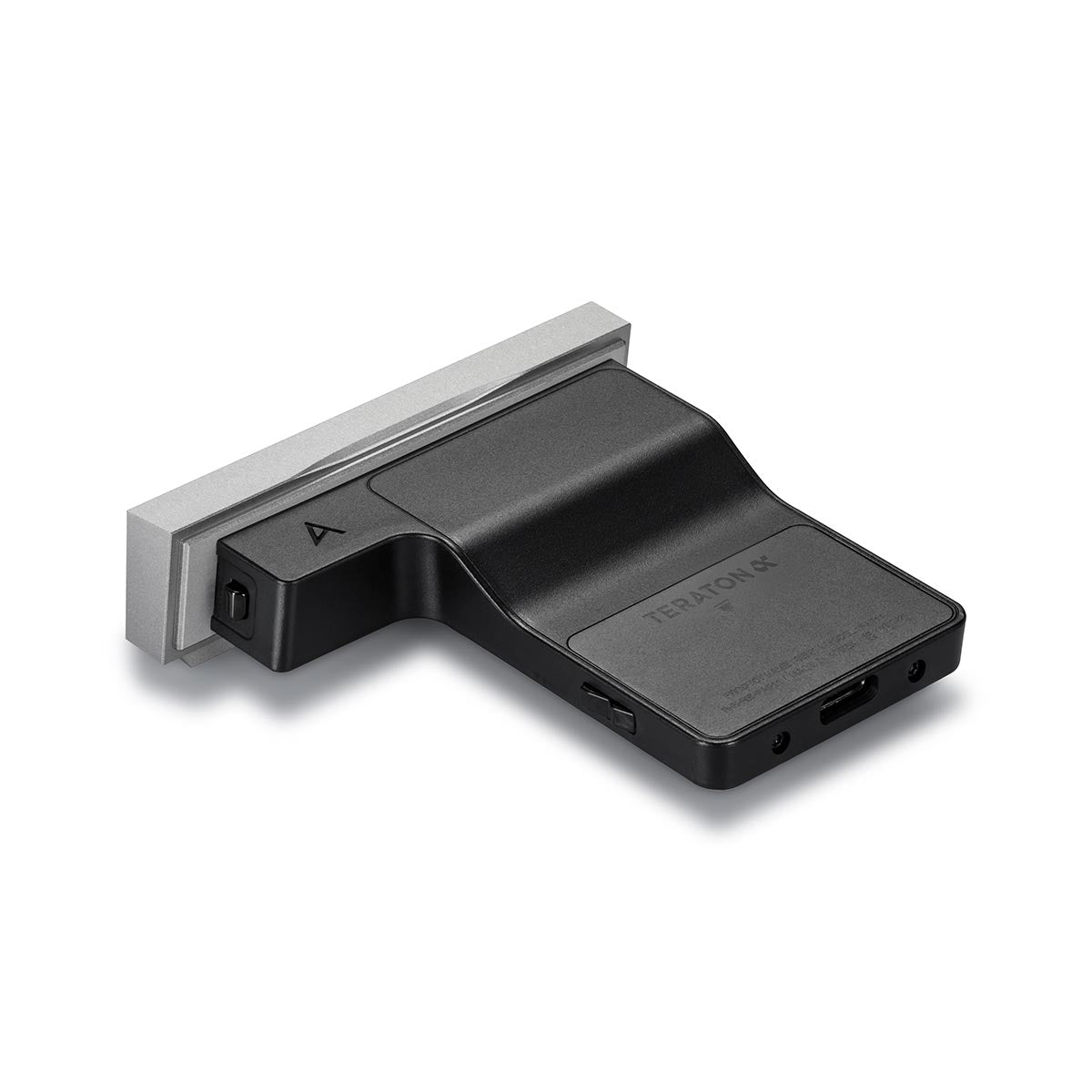

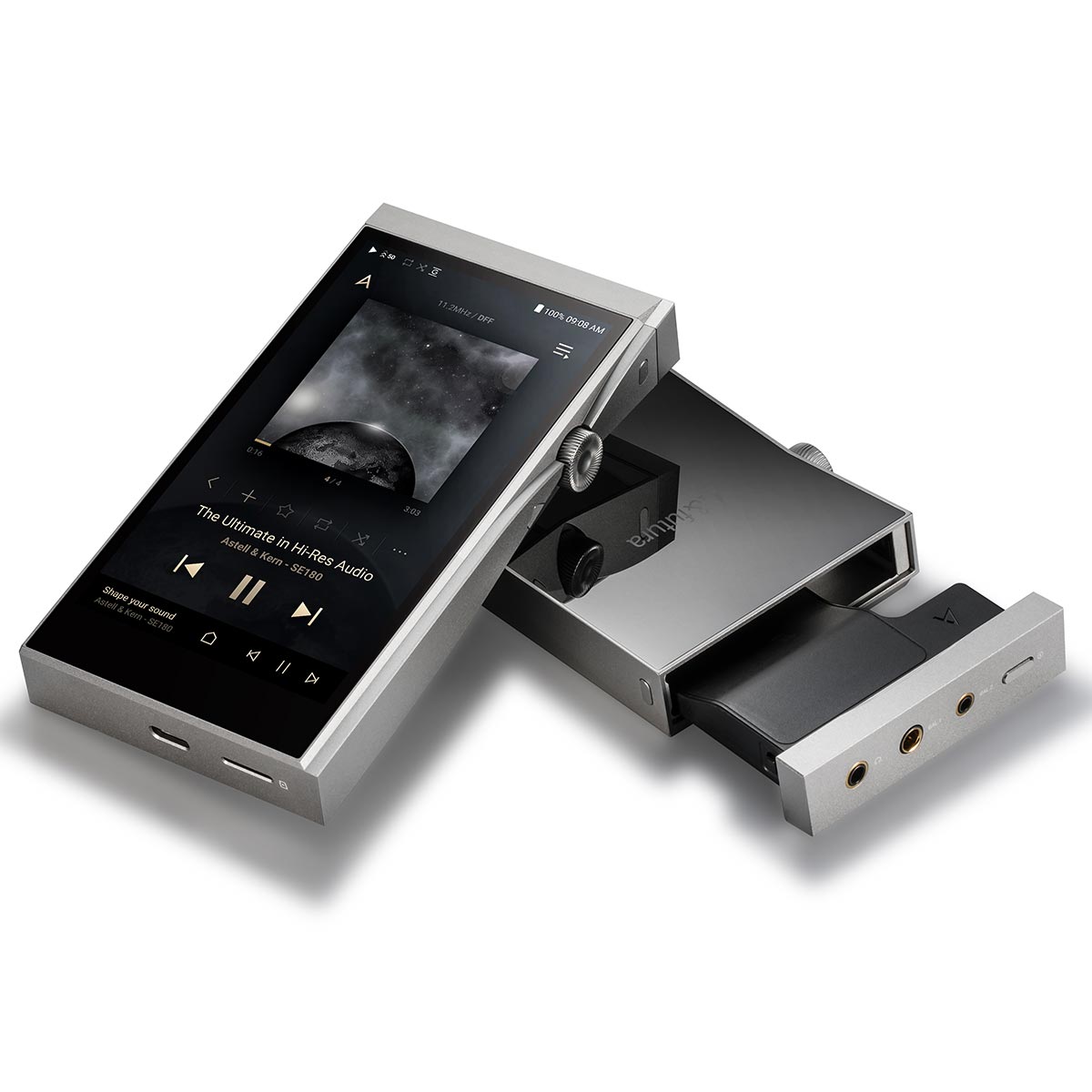

SEM2 is an Interchangeable All-in-One module for the SE180. Shape your Sound with the Asahi Kasei AK4497EQ Dual DAC SEM2 module. The SEM2 module allows you to give your SE180 a different sound than the bundled module. The SEM2 supports up to 32bit/768kHz bit-to-bit playback and Native DSD512.

All items are tested for functionality and have all required cables in the box unless otherwise noted. Learn more about our Open Box Guarantee >

Audio AdviceAudio Advice Our Open-Box Guarantee Our Open Box Guarantee Welcome to our Open Box Outlet, where you will find incredible deals on home audio and home theater products. When someone purchases a product, breaks the seal...

Shape Your Sound With SEM2

SEM2 is an Interchangeable All-in-One module for the SE180. Shape your Sound with the Asahi Kasei AK4497EQ Dual DAC SEM2 module. The SEM2 module allows you to give your SE180 a different sound than the bundled module. The SEM2 supports up to 32bit/768kHz bit-to-bit playback and Native DSD512.

Next Generation Advanced AMP technology

Next generation AMP technology is also applied in the SEM2 all-in-one module. From the selection of OP-AMP parts, to circuit design, board layout and tuning, everything has been completely redesigned to produce the best sound. Even with a high output, the signal-to-noise (SNR), one of the important measurements of audio performance, boasts an amazing 127dB (based on AK4497EQ Dual, Balanced, High Gain).

Astell&Kern Audio Technology Forms the TERATON ALPHA Sound Solution

AK ULTIMATE SOUND SOLUTION, TERATON ALPHA

TERATON ALPHA is AK's ultimate Sound Solution to produce audio playback that is close to the original sound through the audio output interface by use of effective power noise removal, efficient power management and amplification with minimal distortion.

TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.

Details & Specs

GENERAL SPECIFICATIONS

  • Product Name: SEM2
  • Model: PAP12
  • Body Color: Moon Silver
  • Body Material: Aluminum, Stainless Steel, Polycarbonate
  • Sample Rate:
    • PCM: 8kHz ~ 384kHz (8/16/24/32 bits per Sample)
    • DSD Native: DSD64 (1bit 2.8MHz), Stereo / DSD128 (1bit 5.6MHz), Stereo / DSD256 (1bit 11.2MHz), Stereo / DSD512 (1bit 22.4MHz), Stereo
  • Output: Unbalanced Out (3.5 mm), Balanced Out (2.5 mm, only 4-pole supported / 4.4 mm, only 5-pole supported)
  • Output Level: [Normal Gain] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load) [High Gain] Unbalanced 3Vrms / Balanced 6Vrms (Condition No Load)
  • DAC: AKM AK4497EQ x 2 (Dual DAC)
  • Decoding: Support up to 32bit / 768kHz Bit-to-Bit playback
  • Dimensions: 3.03″ (77 mm)[W] x 2.99″ (76 mm)[H] x 0.78″ (19.9 mm)[D]
  • Weight: 3.53 oz (100g)
  • Playback Time: About 10.5 hours (FLAC, 16bit, 44.1kHz, Vol.50, LCD Off)

AUDIO PERFORMANCE

  • Frequency Response:
    • ±0.07dB (Condition: 20Hz~20kHz) Unbalanced / ±0.06dB (Condition: 20Hz~20kHz) Balanced
    • ±0.68dB (Condition: 20Hz~70kHz) Unbalanced / ±0.67dB (Condition: 20Hz~70kHz) Balanced
  • Signal-to-noise ratio: [Normal Gain] 122dB @ 1kHz, Unbalanced / 124dB @ 1kHz, Balanced / [High Gain] 125dB @ 1kHz, Unbalanced / 127dB @ 1kHz, Balanced
  • Crosstalk: [Normal Gain] -138dB @ 1kHz, Unbalanced / -145dB @ 1kHz, Balanced [High Gain] -138dB @ 1kHz, Unbalanced / -147dB @ 1kHz, Balanced
  • THD+N: [Normal Gain] 0.0006% @ 1kHz, Unbalanced / 0.0005% @ 1kHz, Balanced / [High Gain] 0.0007% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced
  • IMD SMPTE: 0.0002%, 800Hz 10kHz (4:1), Unbalanced / 0.0002%, 800Hz 10kHz (4:1), Balanced
  • Output Impedance: 3.5mm (1ohm) / 2.5mm (1.5ohm) / 4.4mm (1.5ohm)
